KEMPPI MMT/PMT27 Air Cooled MIG GUN
Tonyweld
85159000
KEMPPI MMT/PMT27 Air Cooled MIG GUN and mig consu
KEMPPI MMT/PMT27 torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
270A Mixed Gases
35%
euro / miller /bernard connector and etc
0.6-1.2mm

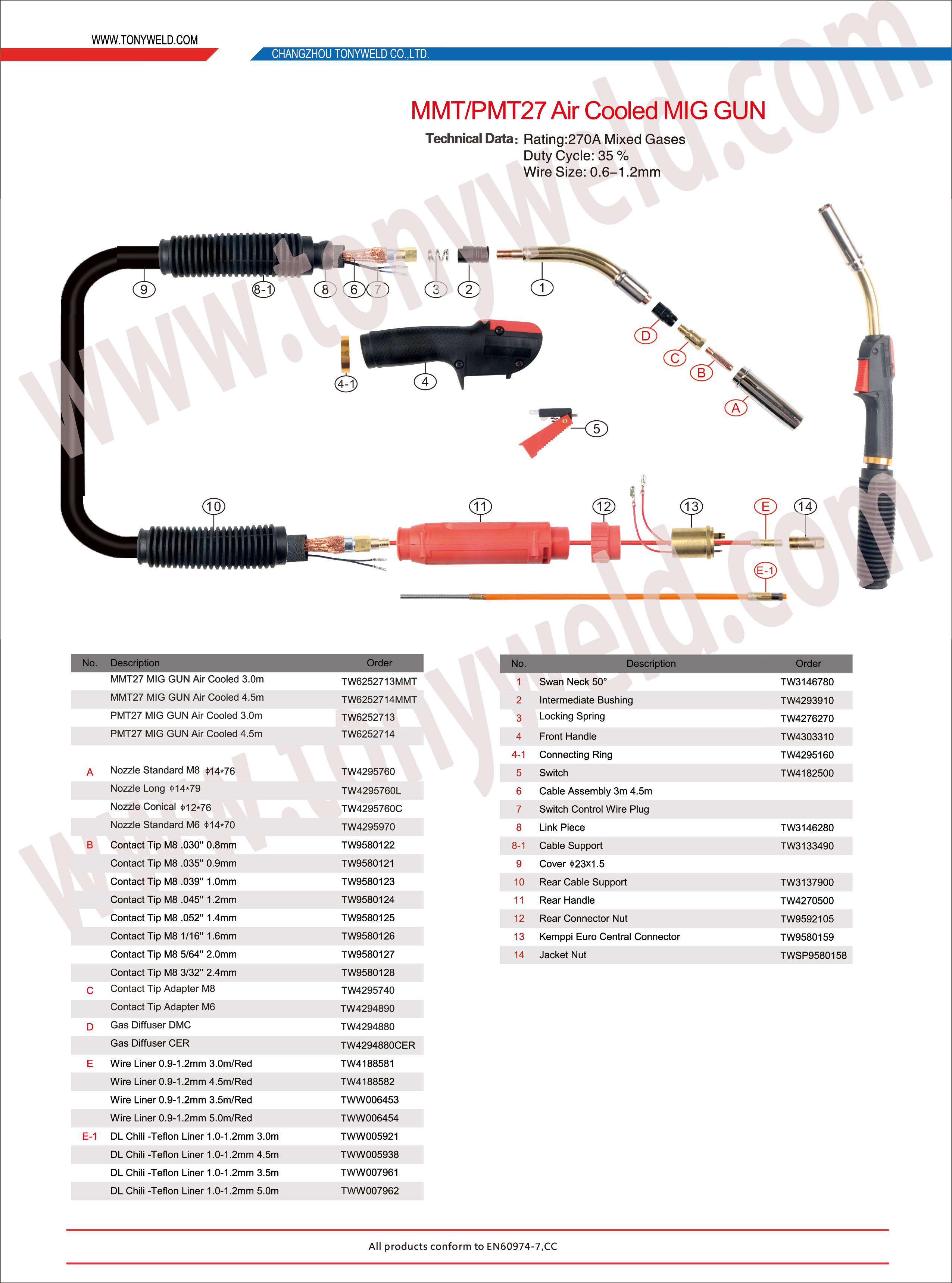

MMT/PMT27 Air Cooled MIG GUN | ||
Technical Data: | Rating:270A Mixed Gases | |
| Duty Cycle: 35 % | |
| Wire Size: 0.6-1.2mm | |
No. | Description | Order |
| MMT27 MIG GUN Air Cooled 3.0m | 6252713MMT |
| MMT27 MIG GUN Air Cooled 4.5m | 6252714MMT |
| PMT27 MIG GUN Air Cooled 3.0m | 6252713 |
| PMT27 MIG GUN Air Cooled 4.5m | 6252714 |
| | |
A | Nozzle Standard M8 φ14*76 | 4295760 |
| Nozzle Long φ14*79 | 4295760L |
| Nozzle Conical φ12*76 | 4295760C |
| Nozzle Standard M6 φ14*70 | 4295970 |
B | Contact Tip M8 .030” 0.8mm | 9580122 |
| Contact Tip M8 .035” 0.9mm | 9580121 |
| Contact Tip M8 .039” 1.0mm | 9580123 |
| Contact Tip M8 .045” 1.2mm | 9580124 |
| Contact Tip M8 .052” 1.4mm | 9580125 |
| Contact Tip M8 1/16” 1.6mm | 9580126 |
| Contact Tip M8 5/64” 2.0mm | 9580127 |
| Contact Tip M8 3/32” 2.4mm | 9580128 |
C | Contact Tip Adapter M8 | 4295740 |
| Contact Tip Adapter M6 | 4294890 |
D | Gas Diffuser DMC | 4294880 |
| Gas Diffuser CER | 4294880CER |
E | Wire Liner 0.9-1.2mm 3.0m/Red | 4188581 |
| Wire Liner 0.9-1.2mm 4.5m/Red | 4188582 |
| Wire Liner 0.9-1.2mm 3.5m/Red | W006453 |
| Wire Liner 0.9-1.2mm 5.0m/Red | W006454 |
E-1 | DL Chili -Teflon Liner 1.0-1.2mm 3.0m | W005921 |
| DL Chili -Teflon Liner 1.0-1.2mm 4.5m | W005938 |
| DL Chili -Teflon Liner 1.0-1.2mm 3.5m | W007961 |
| DL Chili -Teflon Liner 1.0-1.2mm 5.0m | W007962 |
| | |
No. | Description | Order |
1 | Swan Neck 50° | 3146780 |
2 | Intermediate Bushing | 4293910 |
3 | Locking Spring | 4276270 |
4 | Front Handle | 4303310 |
4-1 | Connecting Ring | 4295160 |
5 | Switch | 4182500 |
6 | Cable Assembly 3m 4.5m | |
7 | Switch Control Wire Plug | |
8 | Link Piece | 3146280 |
8-1 | Cable Support | 3133490 |
9 | Cover φ23×1.5 | |
10 | Rear Cable Support | 3137900 |
11 | Rear Handle | 4270500 |
12 | Rear Connector Nut | 9592105 |
13 | Kemppi Euro Central Connector | 9580159 |
14 | Jacket Nut | SP9580158 |
MMT/PMT27 Air Cooled MIG GUN | ||
Technical Data: | Rating:270A Mixed Gases | |
| Duty Cycle: 35 % | |
| Wire Size: 0.6-1.2mm | |
No. | Description | Order |
| MMT27 MIG GUN Air Cooled 3.0m | 6252713MMT |
| MMT27 MIG GUN Air Cooled 4.5m | 6252714MMT |
| PMT27 MIG GUN Air Cooled 3.0m | 6252713 |
| PMT27 MIG GUN Air Cooled 4.5m | 6252714 |
| | |
A | Nozzle Standard M8 φ14*76 | 4295760 |
| Nozzle Long φ14*79 | 4295760L |
| Nozzle Conical φ12*76 | 4295760C |
| Nozzle Standard M6 φ14*70 | 4295970 |
B | Contact Tip M8 .030” 0.8mm | 9580122 |
| Contact Tip M8 .035” 0.9mm | 9580121 |
| Contact Tip M8 .039” 1.0mm | 9580123 |
| Contact Tip M8 .045” 1.2mm | 9580124 |
| Contact Tip M8 .052” 1.4mm | 9580125 |
| Contact Tip M8 1/16” 1.6mm | 9580126 |
| Contact Tip M8 5/64” 2.0mm | 9580127 |
| Contact Tip M8 3/32” 2.4mm | 9580128 |
C | Contact Tip Adapter M8 | 4295740 |
| Contact Tip Adapter M6 | 4294890 |
D | Gas Diffuser DMC | 4294880 |
| Gas Diffuser CER | 4294880CER |
E | Wire Liner 0.9-1.2mm 3.0m/Red | 4188581 |
| Wire Liner 0.9-1.2mm 4.5m/Red | 4188582 |
| Wire Liner 0.9-1.2mm 3.5m/Red | W006453 |
| Wire Liner 0.9-1.2mm 5.0m/Red | W006454 |
E-1 | DL Chili -Teflon Liner 1.0-1.2mm 3.0m | W005921 |
| DL Chili -Teflon Liner 1.0-1.2mm 4.5m | W005938 |
| DL Chili -Teflon Liner 1.0-1.2mm 3.5m | W007961 |
| DL Chili -Teflon Liner 1.0-1.2mm 5.0m | W007962 |
| | |
No. | Description | Order |
1 | Swan Neck 50° | 3146780 |
2 | Intermediate Bushing | 4293910 |
3 | Locking Spring | 4276270 |
4 | Front Handle | 4303310 |
4-1 | Connecting Ring | 4295160 |
5 | Switch | 4182500 |
6 | Cable Assembly 3m 4.5m | |
7 | Switch Control Wire Plug | |
8 | Link Piece | 3146280 |
8-1 | Cable Support | 3133490 |
9 | Cover φ23×1.5 | |
10 | Rear Cable Support | 3137900 |
11 | Rear Handle | 4270500 |
12 | Rear Connector Nut | 9592105 |
13 | Kemppi Euro Central Connector | 9580159 |
14 | Jacket Nut | SP9580158 |
