Product Category

KEMPPI TWGX253G/255G Gas Cooled MIG GUN and mig consumables

Share to:

TWGX253G/255G Gas Cooled MIG GUN Technical Data： Rating: 250A Mixed Gases Duty Cycle : 35% Wire Size : 0.6-1.2MM

规格:	KEMPPI TWGX203G/205G Gas cooled WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
KEMPPI TWGX253G/255G Gas
Brand:
Tonyweld
Code:
85159000
Product Name :
KEMPPI TWGX253G Cooled MIG GUN and mig consumables
series :
KEMPPI TWGX253G/255G Gas torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
250A Mixed
Duty Cycle :
35%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.6MM

Product Description

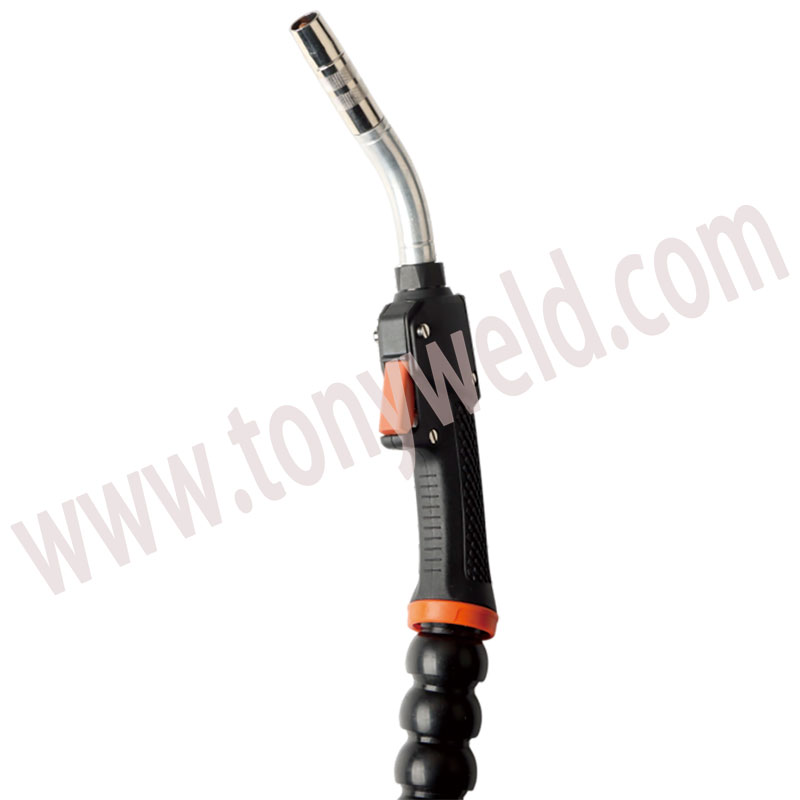

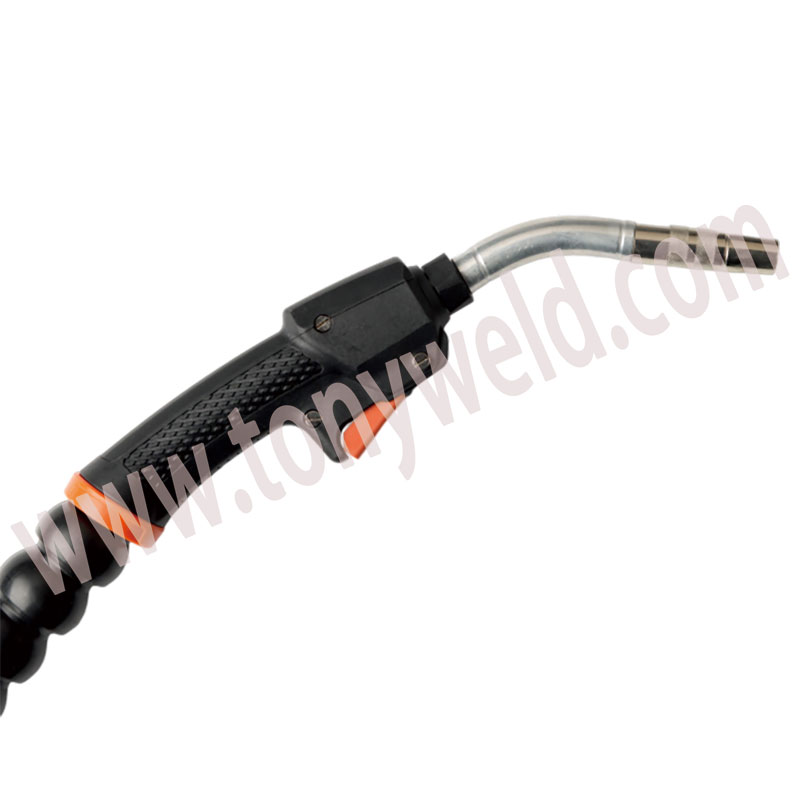

Kemppi TWGX253G/255G Air Cooled MIG GUN And Mig consumables
Kemppi-6

Kemppi TWGX253G/255G Air Cooled MIG GUN mig welding consumables .

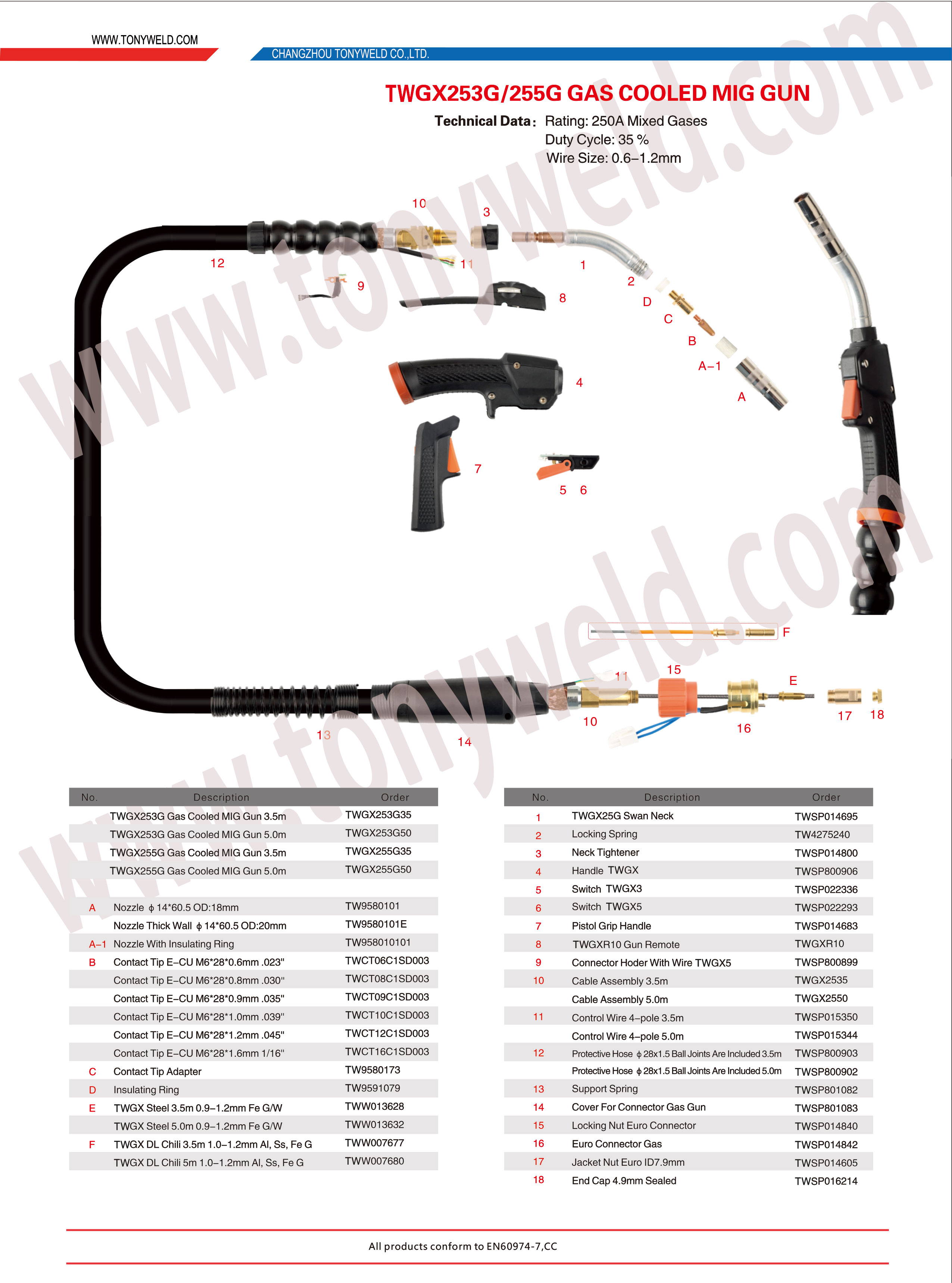

TWGX253G/255G GAS COOLED MIG GUN
Technical Data：	Rating : Rating: 250A Mixed Gases
	Duty Cycle : 35%
	Wire Size : 0.6-1.2MM

No.	Description	Order
	TWGX253G Gas Cooled MIG Gun 3.5m	TWGX253G35
	TWGX253G Gas Cooled MIG Gun 5.0m	TWGX253G50
	TWGX255G Gas Cooled MIG Gun 3.5m	TWGX255G35
	TWGX255G Gas Cooled MIG Gun 5.0m	TWGX255G50

A	Nozzle ф14*60.5 OD:18mm	TW9580101
	Nozzle Thick Wall ф14*60.5 OD:20mm	TW9580101E
A-1	Nozzle With Insulating Ring	TW958010101
B	Contact Tip E-CU M6280.6mm .023”	TWCT06C1SD003
	Contact Tip E-CU M6280.8mm .030”	TWCT08C1SD003
	Contact Tip E-CU M6280.9mm .035”	TWCT09C1SD003
	Contact Tip E-CU M6281.0mm .039”	TWCT10C1SD003
	Contact Tip E-CU M6281.2mm .045”	TWCT12C1SD003
	Contact Tip E-CU M6281.6mm 1/16”	TWCT16C1SD003
C	Contact Tip Adapter	TW9580173
D	Insulating Ring	TW9591079
E	TWGX Steel 3.5m 0.9-1.2mm Fe G/W	TWW013628
	TWGX Steel 5.0m 0.9-1.2mm Fe G/W	TWW013632
F	TWGX DL Chili 3.5m 1.0-1.2mm Al, Ss, Fe G	TWW007677
	TWGX DL Chili 5m 1.0-1.2mm Al, Ss, Fe G	TWW007680

No.	Description	Order
1	TWGX25G Swan Neck	TWSP014695
2	Locking Spring	TW4275240
3	Neck Tightener	TWSP014800
4	Handle TWGX	TWSP800906
5	Switch TWGX3	TWSP022336
6	Switch TWGX5	TWSP022293
7	Pistol Grip Handle	TWSP014683
8	TWGXR10 Gun Remote	TWGXR10
9	Connector Hoder With Wire TWGX5	TWSP800899
10	Cable Assembly 3.5m	TWGX2535
	Cable Assembly 5.0m	TWGX2550
11	Control Wire 4-pole 3.5m	TWSP015350
	Control Wire 4-pole 5.0m	TWSP015344
12	Protective Hose ф28x1 .5 Ball Joints Are Included 3.5m	TWSP800903
	Protective Hose ф28x1 .5 Ball Joints Are Included 5.0m	TWSP800902
13	Support Spring	TWSP801082
14	Cover For Connector Gas Gun	TWSP801083
15	Locking Nut Euro Connector	TWSP014840
16	Euro Connector Gas	TWSP014842
17	Jacket Nut Euro ID7.9mm	TWSP014605
18	End Cap 4.9mm Sealed	TWSP016214

Kemppi TWGX253G/255G Air Cooled MIG welding torch package
Kemppi-75

* 1 piece Kemppi TWGX253G/255G Air Cooled MIG welding torch 600A package in a carton
