KEMPPI TWGX605W Water Cooled MIG GUN and mig consumables

Share to:

TWGX605W Water Cooled MIG GUN Technical Data： Rating : 600A Mixed Gases Duty Cycle : 100% Wire Size : 1.2-2.4MM

规格:	KEMPPI TWGX605W Water cooled WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
KEMPPI TWGX605W
Brand:
Tonyweld
Code:
85159000
Product Name :
KEMPPI TWGX605W Water Cooled MIG GUN
series :
KEMPPI TWGX605W Water welding torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
600A Mixed Gases
Duty Cycle :
100%
connector :
euro / miller /bernard connector and etc
wire size :
1.2-2.4MM

Product Description

Kemppi TWGX605W Water Cooled MIG GUN And Mig consumables

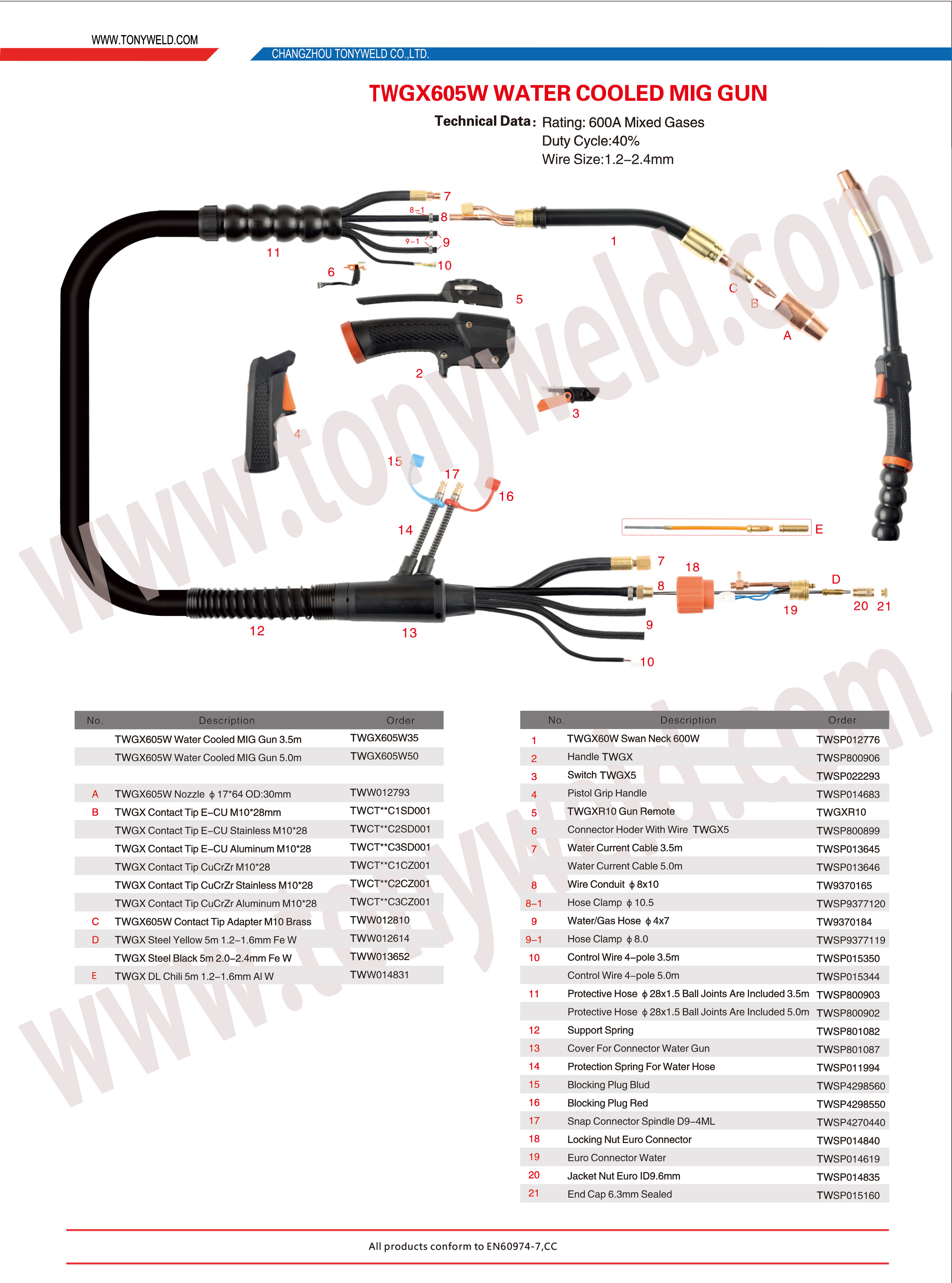

Kemppi-12

Kemppi TWGX605W Water Cooled MIG GUN mig welding consumables .

TWGX605W WATER COOLED MIG GUN
Technical Data：	Rating : 600A Mixed Gases
	Duty Cycle : 40%
	Wire Size : 1.2-2.4MM

No.	Description	Order
	TWGX605W Water Cooled MIG Gun 3.5m	TWGX605W35
	TWGX605W Water Cooled MIG Gun 5.0m	TWGX605W50

A	TWGX605W Nozzle ф17*64 OD:30mm	TWW012793
B	TWGX Contact Tip E-CU M10*28mm	TWCT**C1SD001
	TWGX Contact Tip E-CU Stainless M10*28	TWCT**C2SD001
	TWGX Contact Tip E-CU Aluminum M10*28	TWCT**C3SD001
	TWGX Contact Tip CuCrZr M10*28	TWCT**C1CZ001
	TWGX Contact Tip CuCrZr Stainless M10*28	TWCT**C2CZ001
	TWGX Contact Tip CuCrZr Aluminum M10*28	TWCT**C3CZ001
C	TWGX605W Contact Tip Adapter M10 Brass	TWW012810
D	TWGX Steel Yellow 5m 1.2-1.6mm Fe W	TWW012614
	TWGX Steel Black 5m 2.0-2.4mm Fe W	TWW013652
E	TWGX DL Chili 5m 1.2-1.6mm Al W	TWW014831

No.	Description	Order
1	TWGX60W Swan Neck 600W	TWSP012776
2	Handle TWGX	TWSP800906
3	Switch TWGX5	TWSP022293
4	Pistol Grip Handle	TWSP014683
5	TWGXR10 Gun Remote	TWGXR10
6	Connector Hoder With Wire TWGX5	TWSP800899
7	Water Current Cable 3.5m	TWSP013645
	Water Current Cable 5.0m	TWSP013646
8	Wire Conduit ф8x10	TW9370165
8-1	Hose Clamp ф10.5	TWSP9377120
9	Water/Gas Hose ф4x7	TW9370184
9-1	Hose Clamp ф8.0	TWSP9377119
10	Control Wire 4-pole 3.5m	TWSP015350
	Control Wire 4-pole 5.0m	TWSP015344
11	Protective Hose ф28x1.5 Ball Joints Are Included 3.5m	TWSP800903
	Protective Hose ф28x1.5 Ball Joints Are Included 5.0m	TWSP800902
12	Support Spring	TWSP801082
13	Cover For Connector Water Gun	TWSP801087
14	Protection Spring For Water Hose	TWSP011994
15	Blocking Plug Blud	TWSP4298560
16	Blocking Plug Red	TWSP4298550
17	Snap Connector Spindle D9-4ML	TWSP4270440
18	Locking Nut Euro Connector	TWSP014840
19	Euro Connector Water	TWSP014619
20	Jacket Nut Euro ID9.6mm	TWSP014835
21	End Cap 6.3mm Sealed	TWSP015160

Kemppi TWGX605W Water Cooled MIG welding torch package
Kemppi-8

* 1 piece Kemppi TWGX605W Water Cooled MIG welding torch 600A package in a carton
