Product Category

KEMPPI MT-51 Mw Water Cooled MIG GUN and mig consumables

Share to:

MT-51 Mw Water Cooled MIG GUN Technical Data： Rating : 500A CO2 Duty Cycle : 100% Wire Size : 0.8-1.6MM

规格:	KEMPPI MT-51 Mw Water WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
KEMPPI MT38
Brand:
Tonyweld
Code:
85159000
Product Name :
KEMPPI MT38 Air Cooled MIG GUN and mig consumables
series :
KEMPPI MT38 torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
500A CO2
Duty Cycle :
100%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.6MM

Product Description

Kemppi MT-51 Mw Water Cooled MIG GUN And Mig consumables

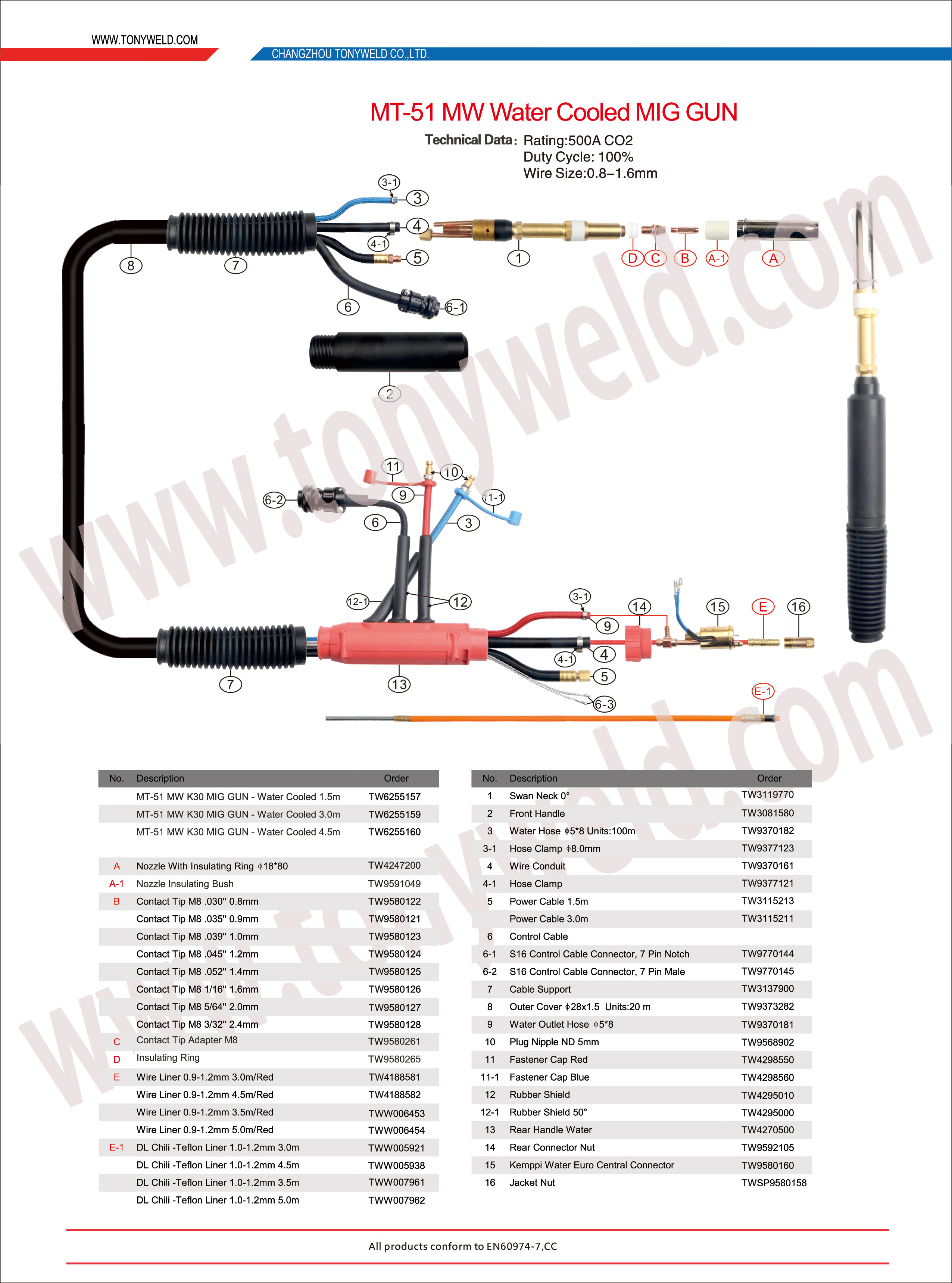

Kemppi-23

MT-51 MW Water Cooled MIG GUN
Technical Data：	Rating : 500A CO2
	Duty Cycle : 100%
	Wire Size : 0.8-1.6MM

No.	Description	Order
	MT-51 MW K30 MIG GUN - Water Cooled 1.5m	TW6255157
	MT-51 MW K30 MIG GUN - Water Cooled 3.0m	TW6255159
	MT-51 MW K30 MIG GUN - Water Cooled 4.5m	TW6255160
	Nozzle With Insulating Ring ф18*80	TW4247200

A-1	Nozzle Insulating Bush	TW9591049
B	Contact Tip M8 .030” 0.8mm	TW9580122
	Contact Tip M8 .035” 0.9mm	TW9580121
	Contact Tip M8 .039” 1.0mm	TW9580123
	Contact Tip M8 .045” 1.2mm	TW9580124
	Contact Tip M8 .052” 1.4mm	TW9580125
	Contact Tip M8 1/16” 1.6mm	TW9580126
	Contact Tip M8 5/64” 2.0mm	TW9580127
	Contact Tip M8 3/32” 2.4mm	TW9580128
C	Contact Tip Adapter M8	TW9580261
D	Insulating Ring	TW9580265
E	Wire Liner 0.9-1.2mm 3.0m/Red	TW4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	TW4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	TWW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	TWW006454
E-1	DL Chili-Teflon Liner 1.0-1.2mm 3.0m	TWW005921
	DL Chili-Teflon Liner 1.0-1.2mm 4.5m	TWW005938
	DL Chili-Teflon Liner 1.0-1.2mm 3.5m	TWW007961
	DL Chili-Teflon Liner 1.0-1.2mm 5.0m	TWW007962

No.	Description	Order
1	Swan Neck 0°	TW3119770
2	Front Handle	TW3081 580
3	Water Hose ф5*8 Units:100m	TW9370182
3-1	Hose Clamp ф8.0mm	TW9377123
4	Wire Conduit	TW9370161
4-1	Hose Clamp	TW9377121
5	Power Cable 1.5m	TW3115213
	Power Cable 3.0m	TW3115211
6	Control Cable
6-1	S16 Control Cable Connector, 7 Pin Notch	TW9770144
6-2	S16 Control Cable Connector, 7 Pin Male	TW9770145
7	Cable Support	TW3137900
8	Outer Cover ф28x1.5 Units:20 m	TW9373282
9	Water Outlet Hose ф5*8	TW9370181
10	Plug Nipple ND 5mm	TW9568902
11	Fastener Cap Red	TW4298550
11-1	Fastener Cap Blue	TW4298560
12	Rubber Shield	TW4295010
12-1	Rubber Shield 50°	TW4295000
13	Rear Handle Water	TW4270500
14	Rear Connector Nut	TW9592105
15	Kemppi Water Euro Central Connector	TW9580160
16	Jacket Nut	TWSP9580158

Kemppi MT-51 Mw Water Cooled MIG GUN mig welding consumables .

Kemppi MT-51 Mw Water Cooled MIG welding torch package

* 1 piece Kemppi MT-51 Mw Water Cooled MIG welding torch 600A package in a carton
