GX403W Kemppi GX 403W Water Cooled 400A MIG Torch 5.0m with Euro Connector Welding Gun
Tonyweld
GX403W Kemppi GX 403W
Product Display
Product Display

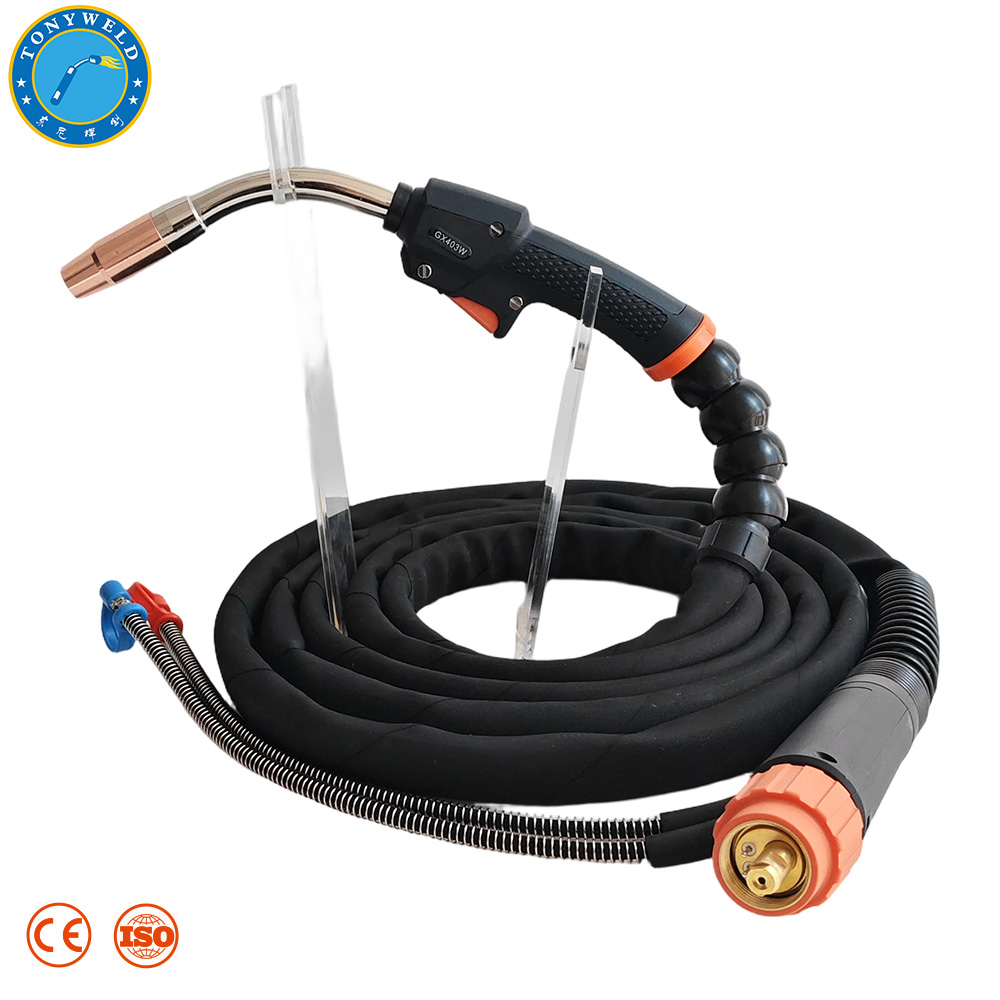

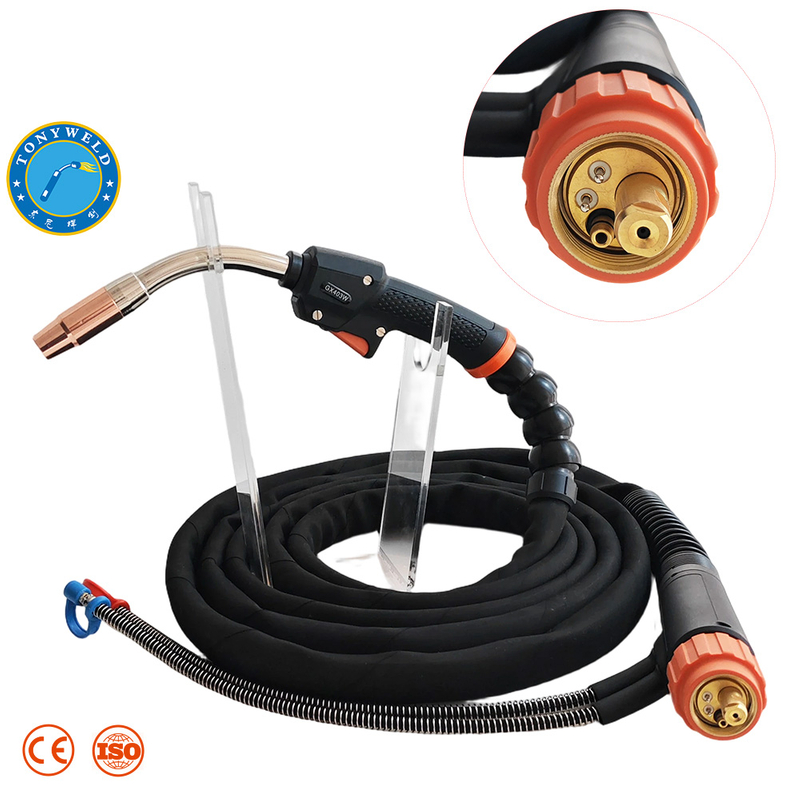

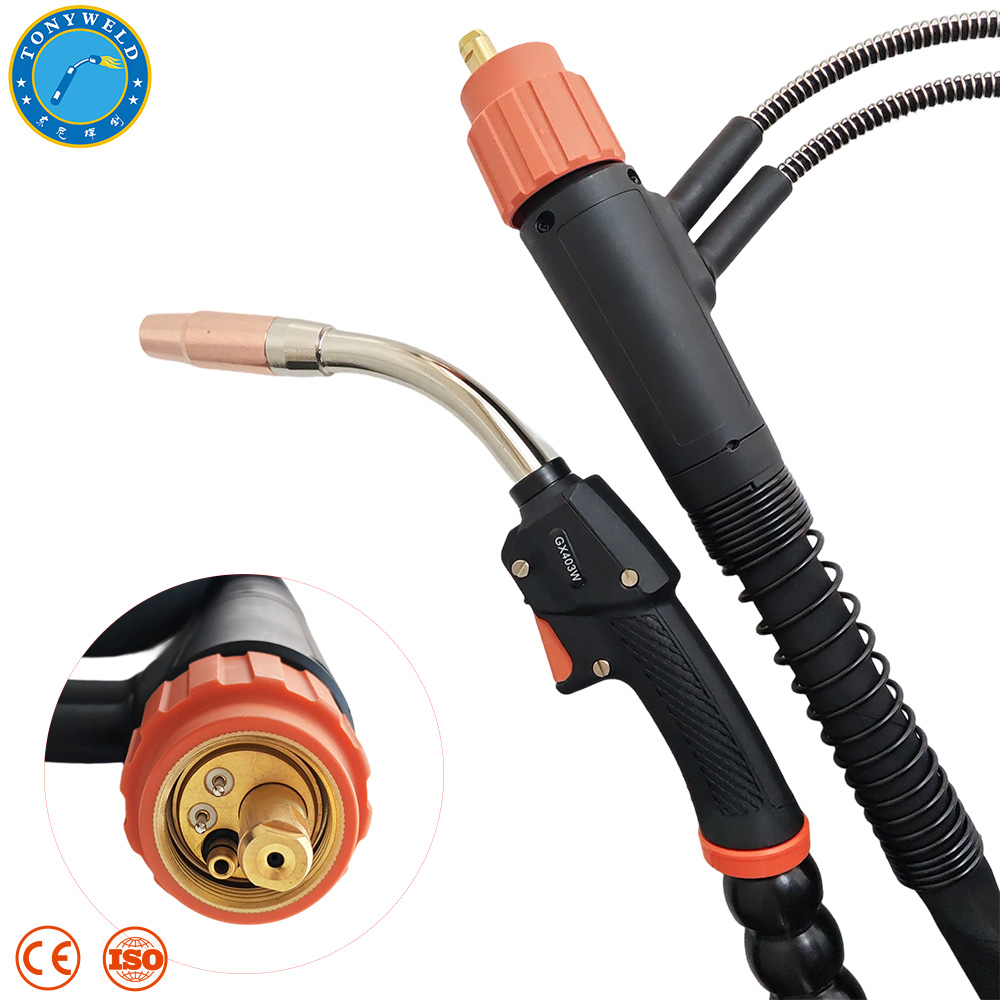

GX403W Kemppi GX 403W Water Cooled 400A MIG Torch 5.0m with Euro Connector Welding Gun
GX403W Kemppi GX 403W Water Cooled 400A MIG Torch 5.0m with Euro Connector Welding Gun
GX403W Kemppi GX 403W Water Cooled 400A MIG Torch 5.0m with Euro Connector Welding Gun
GX403W Kemppi GX 403W Water Cooled 400A MIG Torch 5.0m with Euro Connector Welding Gun

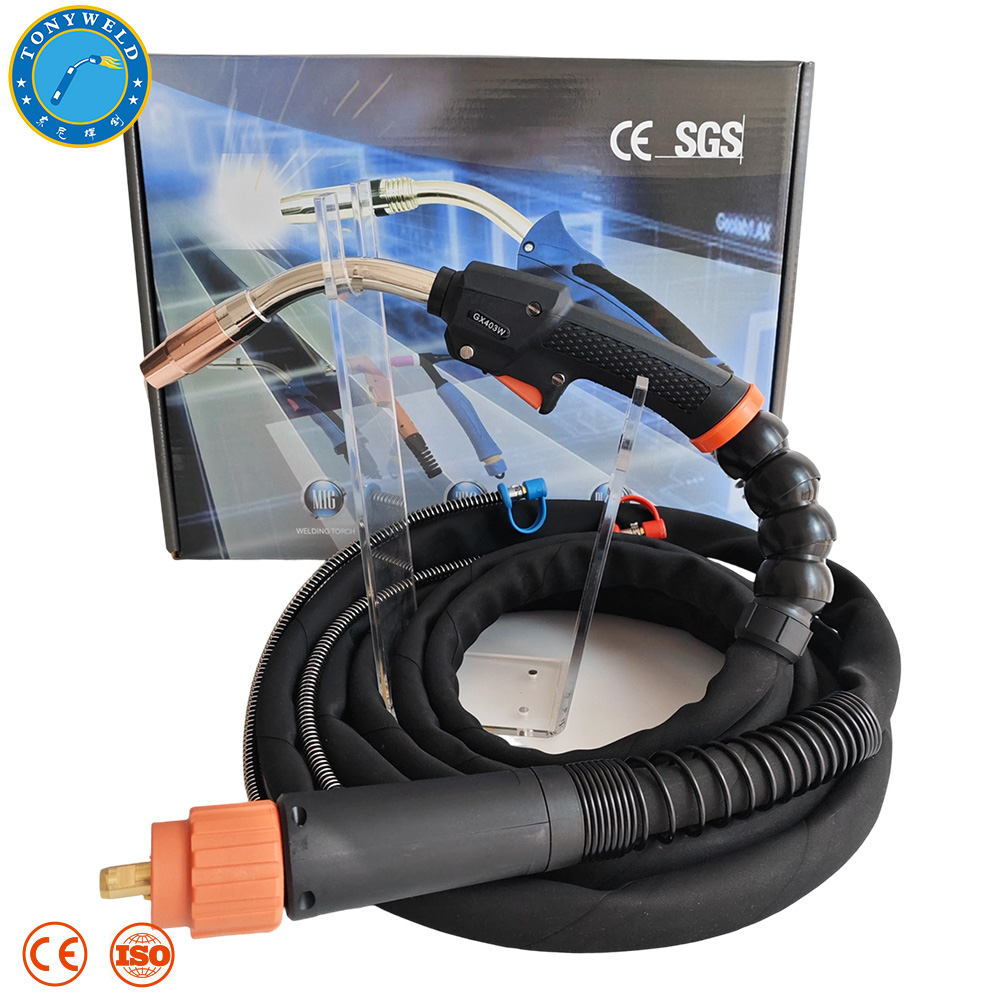

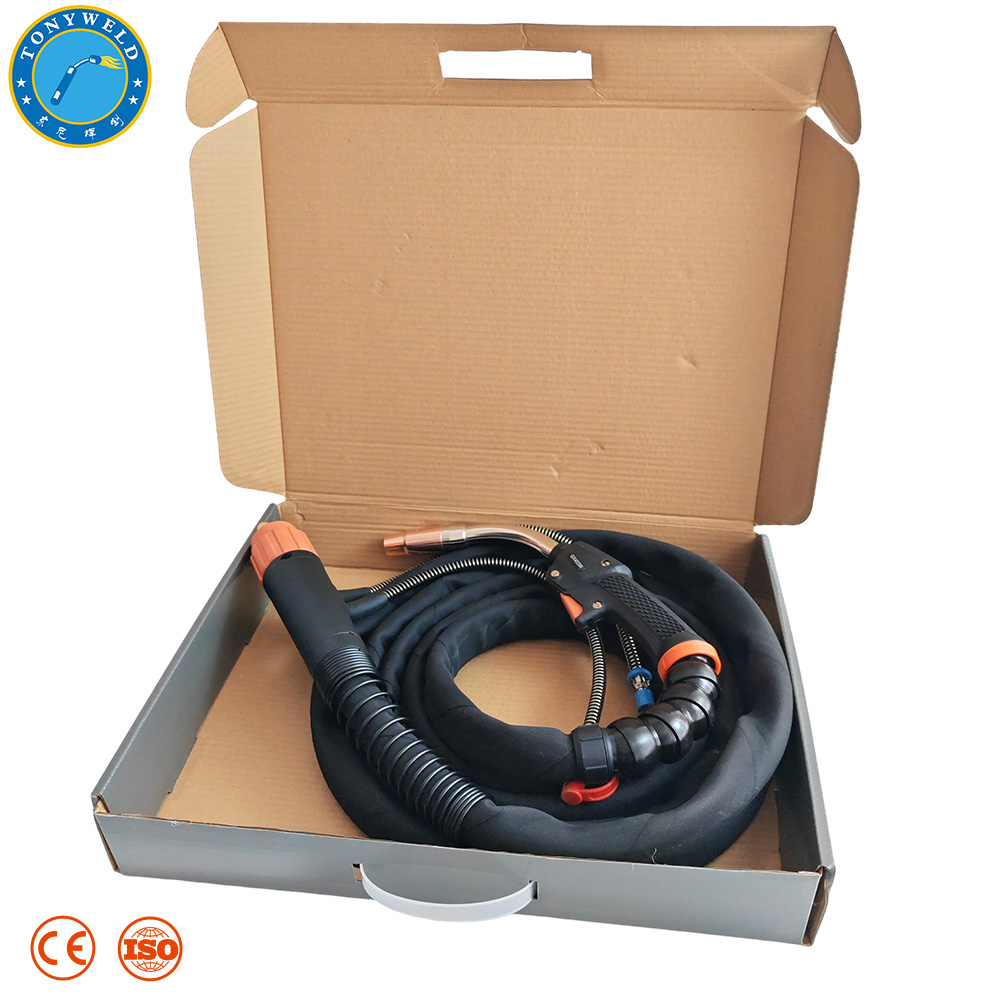

Welding Torch Packing Size

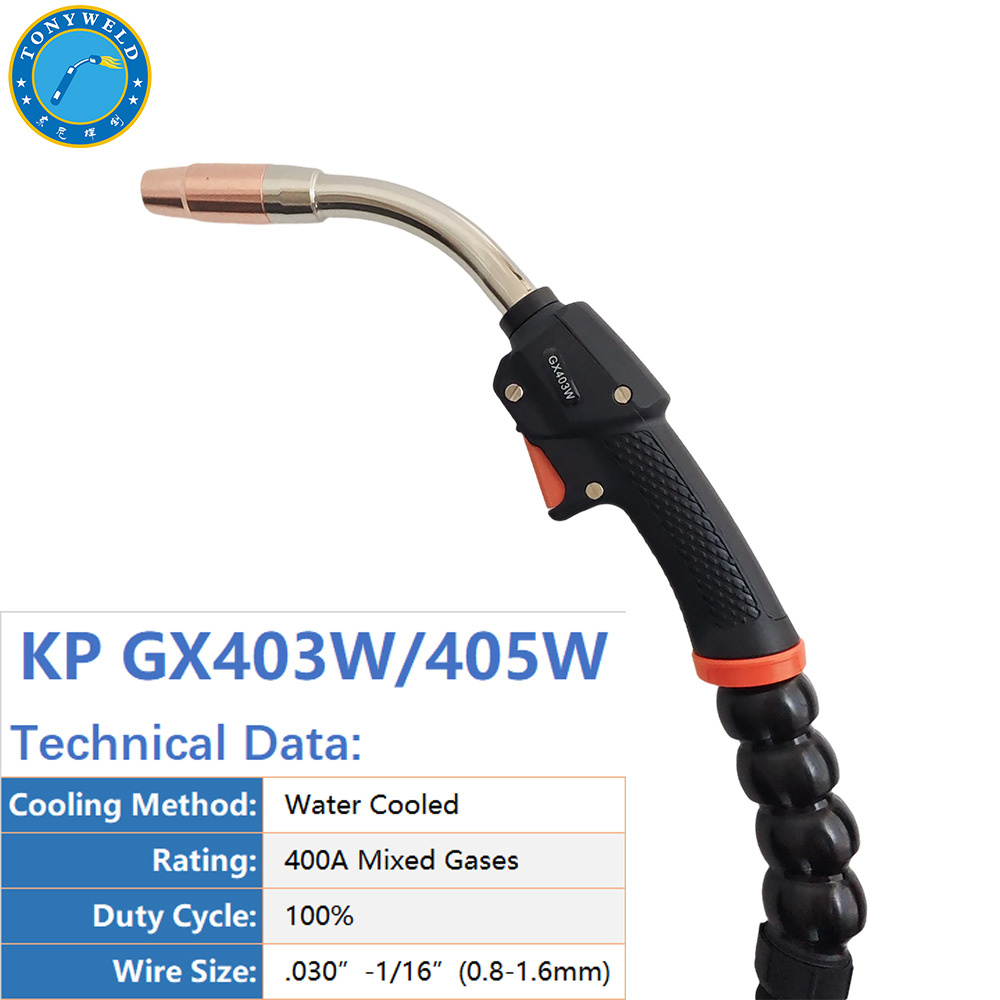

Welding Torch Technical Data
| TWGX403W/405W WATER COOLED MIIG GUN | ||
| Technical Data： | Rating : 400A Mixed Gases | |
| Duty Cycle : 100% | ||
| Wire Size : 0.8-1.6MM | ||
| No. | Description | Order |
| TWGX403W Water Cooled MIG Gun 3.5m | TWGX403W35 | |
| TWGX403W Water Cooled MIG Gun 5.0m | TWGX403W50 | |
| TWGX405W Water Cooled MIG Gun 3.5m | TWGX405W35 | |
| TWGX405W Water Cooled MIG Gun 5.0m | TWGX405W50 | |
| A | TWGX30G/GX40W Nozzle φ15*57 OD:25mm | TWW011478 |
| TWGX30G/GX40W Nozzle φ16*61 OD:25mm | TWW013930 | |
| TWGX30G/GX40W Nozzle φ19*61 OD:25mm | TWW012143 | |
| TWGX30G/GX40W Nozzle φ15*57 OD:25mm Nickel | TWW021173 | |
| TWGX30G/GX40W Nozzle φ16*61 OD:25mm Nickel | TWW021179 | |
| B | TWGX Contact Tip E-CU M10*28mm | TWCT**C1SD001 |
| TWGX Contact Tip E-CU Stainless M10*28 | TWCT**C2SD001 | |
| TWGX Contact Tip E-CU Aluminum M10*28 | TWCT**C3SD001 | |
| TWGX Contact Tip CuCrZr M10*28 | TWCT**C1CZ001 | |
| TWGX Contact Tip CuCrZr Stainless M10*28 | TWCT**C2CZ001 | |
| TWGX Contact Tip CuCrZr Aluminum M10*28 | TWCT**C3CZ001 | |
| C | Contact Tip Adapter M10 Insulated | TWW013203 |
| D | Contact Tip Adapter M10 Brass | TWW011483 |
| E | TWGX Steel 3.5m 0.9-1 .2mm Fe G/W | TWW013628 |
| TWGX Steel 5.0m 0.9-1.2mm Fe G/W | TWW013632 | |
| F | TWGX DL Chili 3.5m 1.0-1.2mm AI, Ss, Fe G | TWW007677 |
| TWGX DL Chili 5.0m 1.0-1.2mmAI, Ss, Fe G | TWW007680 | |
| No. | Description | Order |
| 1 | TWGX40W Swan Neck | TWSP012594 |
| 2 | Handle TWGX | TWSP800906 |
| 3 | Switch TWGX3 | TWSP022336 |
| 4 | Switch TWGX5 | TWSP022293 |
| 5 | Pistol Grip Handle | TWSP014683 |
| 6 | TWGXR10 Gun Remote | TWGXR10 |
| 7 | Connector Hoder With Wire TWGX5 | TWSP800899 |
| 8 | Water Current Cable 3.5m | TWSP012069 |
| Water Current Cable 5.0m | TWSP015372 | |
| 9 | Wire Conduit φ7x9 | TW9370166 |
| 9-1 | Hose Clamp φ9.5 | TWSP9377123 |
| 10 | Water/Gas Hose φ4x7 | TW9370184 |
| 10-1 | Hose Clamp φ8.0 | TWSP9377119 |
| 11 | Control Wire 4-pole 3.5m | TWSP015350 |
| Control Wire 4-pole 5.0m | TWSP015344 | |
| 12 | Protective Hose φ28x1.5 Ball Joints Are Included 3.5m | TWSP800903 |
| Protective Hose φ28x1.5 Ball Joints Are Included 5.0m | TWSP800902 | |
| 13 | Support Spring | TWSP801082 |
| 14 | Cover For Connector Water Gun | TWSP801087 |
| 15 | Protection Spring For Water Hose | TWSP011994 |
| 16 | Blocking Plug Blud | TWSP4298560 |
| 17 | Blocking Plug Red | TWSP4298550 |
| 18 | Snap Connector Spindle D9-4ML | TWSP4270440 |
| 19 | Locking Nut Euro Connector | TWSP014840 |
| 20 | Euro Connector Water | TWSP014619 |
| 21 | Jacket Nut Euro ID7.9mm | TWSP014605 |
| 22 | End Cap 4.9mm Sealed | TWSP016214 |
