KEMPPI MMG20/MMG22
Tonyweld
85159000
KEMPPI MMG20/MMG22 Air Cooled MIG GUN
KEMPPI MMG20/MMG22 torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
180A Mixed Gases
20%
euro / miller /bernard connector and etc
0.6-1.0MM

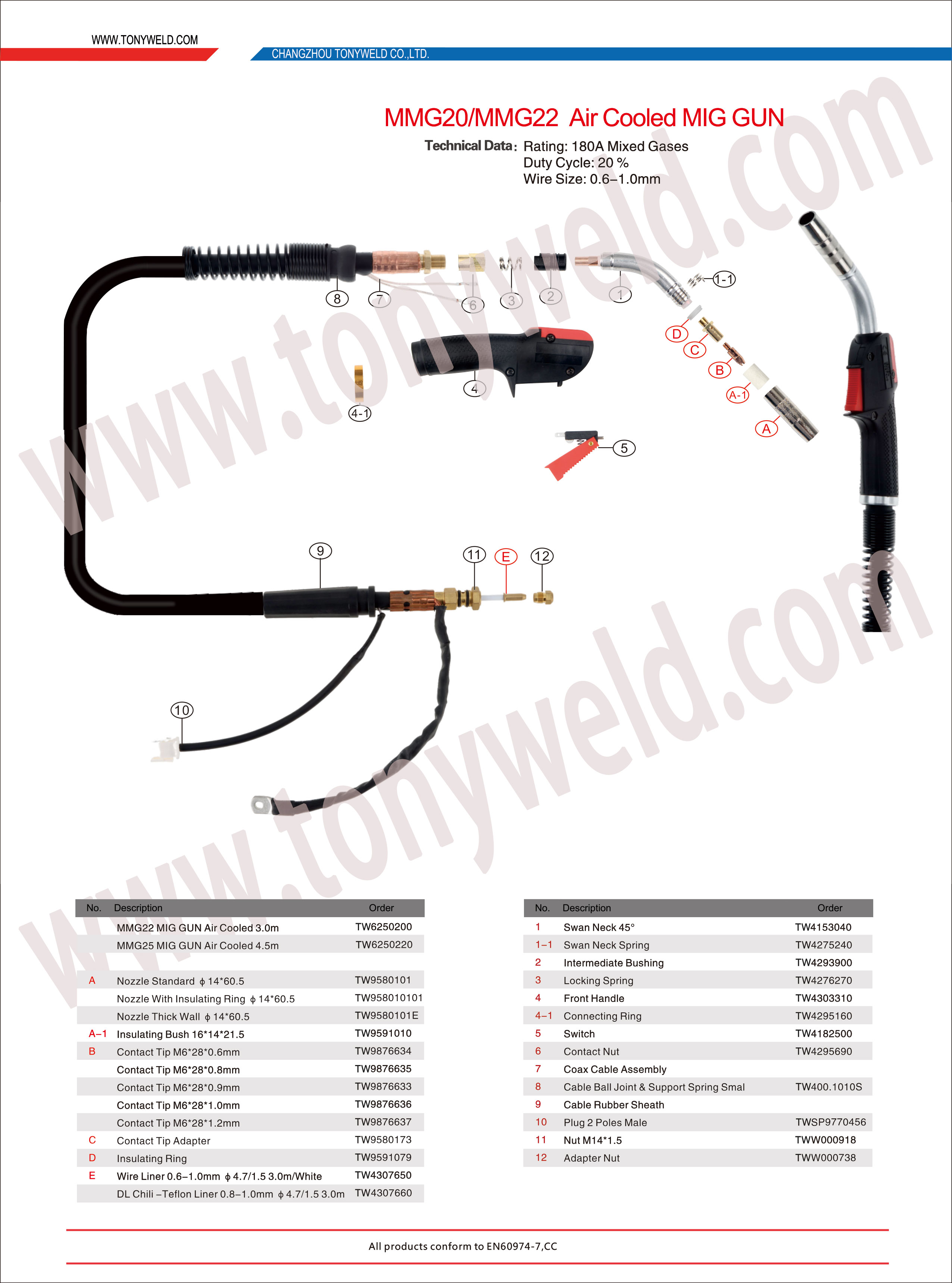

| MMG20/MMG22 Air Cooled MIG GUN | ||
| Technical Data： | Rating : Rating: 180A Mixed Gases | |
| | Duty Cycle : 20% | |
| | Wire Size : 0.6-1.0MM | |
| | | |
| No. | Description | Order |
| | MMG22 MIG GUN Air Cooled 3.0m | TW6250200 |
| | MMG25 MIG GUN Air Cooled 4.5m | TW6250220 |
| | | |
| A | Nozzle Standard ф14*60.5 | TW9580101 |
| | Nozzle With Insulating Ring ф14*60.5 | TW958010101 |
| | Nozzle Thick Wall ф14*60.5 | TW9580101E |
| A-1 | Insulating Bush 16*14*21.5 | TW9591010 |
| B | Contact Tip M6*28*0.6mm | TW9876634 |
| | Contact Tip M6*28*0.8mm | TW9876635 |
| | Contact Tip M6*28*0.9mm | TW9876633 |
| | Contact Tip M6*28*1.0mm | TW9876636 |
| | Contact Tip M6*28*1.2mm | TW9876637 |
| C | Contact Tip Adapter | TW9580173 |
| D | Insulating Ring | TW9591079 |
| E | Wire Liner 0.6-1.0mm ф4.7/1.5 3.0m/White | TW4307650 |
| | DL Chili-Teflon Liner 0.8-1.0mm ф4.7/1.5 3.0m | TW4307660 |
| | | |
| No. | Description | Order |
| 1 | Swan Neck 45° | TW4153040 |
| 1-1 | Swan Neck Spring | TW4275240 |
| 2 | Intermediate Bushing | TW4293900 |
| 3 | Locking Spring | TW4276270 |
| 4 | Front Handle | TW4303310 |
| 4-1 | Connecting Ring | TW4295160 |
| 5 | Switch | TW4182500 |
| 6 | Contact Nut | TW4295690 |
| 7 | Coax Cable Assembly | |
| 8 | Cable Ball Joint & Support Spring Smal | TW400.1010S |
| 9 | Cable Rubber Sheath | |
| 10 | Plug 2 Poles Male | TWSP9770456 |
| 11 | Nut M14*1.5 | TWW000918 |
| 12 | Adapter Nut | TWW000738 |
| MMG20/MMG22 Air Cooled MIG GUN | ||
| Technical Data： | Rating : Rating: 180A Mixed Gases | |
| | Duty Cycle : 20% | |
| | Wire Size : 0.6-1.0MM | |
| | | |
| No. | Description | Order |
| | MMG22 MIG GUN Air Cooled 3.0m | TW6250200 |
| | MMG25 MIG GUN Air Cooled 4.5m | TW6250220 |
| | | |
| A | Nozzle Standard ф14*60.5 | TW9580101 |
| | Nozzle With Insulating Ring ф14*60.5 | TW958010101 |
| | Nozzle Thick Wall ф14*60.5 | TW9580101E |
| A-1 | Insulating Bush 16*14*21.5 | TW9591010 |
| B | Contact Tip M6*28*0.6mm | TW9876634 |
| | Contact Tip M6*28*0.8mm | TW9876635 |
| | Contact Tip M6*28*0.9mm | TW9876633 |
| | Contact Tip M6*28*1.0mm | TW9876636 |
| | Contact Tip M6*28*1.2mm | TW9876637 |
| C | Contact Tip Adapter | TW9580173 |
| D | Insulating Ring | TW9591079 |
| E | Wire Liner 0.6-1.0mm ф4.7/1.5 3.0m/White | TW4307650 |
| | DL Chili-Teflon Liner 0.8-1.0mm ф4.7/1.5 3.0m | TW4307660 |
| | | |
| No. | Description | Order |
| 1 | Swan Neck 45° | TW4153040 |
| 1-1 | Swan Neck Spring | TW4275240 |
| 2 | Intermediate Bushing | TW4293900 |
| 3 | Locking Spring | TW4276270 |
| 4 | Front Handle | TW4303310 |
| 4-1 | Connecting Ring | TW4295160 |
| 5 | Switch | TW4182500 |
| 6 | Contact Nut | TW4295690 |
| 7 | Coax Cable Assembly | |
| 8 | Cable Ball Joint & Support Spring Smal | TW400.1010S |
| 9 | Cable Rubber Sheath | |
| 10 | Plug 2 Poles Male | TWSP9770456 |
| 11 | Nut M14*1.5 | TWW000918 |
| 12 | Adapter Nut | TWW000738 |
