KEMPPI MMT/PMT42W Water Cooled MIG GUN and mig consumables

Share to:

MMT/PMT42W Water Cooled MIG GUN Technical Data： Rating: 400A CO2 Duty Cycle: 100 % Wire Size: 0.8-1.6mm

规格:	KEMPPI MMT/PMT42W WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
KEMPPI MMT/PMT42W Water Cooled MIG GUN
Brand:
Tonyweld
Code:
85159000
Product Name :
KEMPPI MMT/PMT42W Water Cooled MIG and mig consu
series :
KEMPPI MMT/PMT42W Water Cooled MIG GUN
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
400A CO2
Duty Cycle :
100%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.6mm

Product Description

KEMPPI MMT/PMT42W Water Cooled MIG GUN and mig consumables

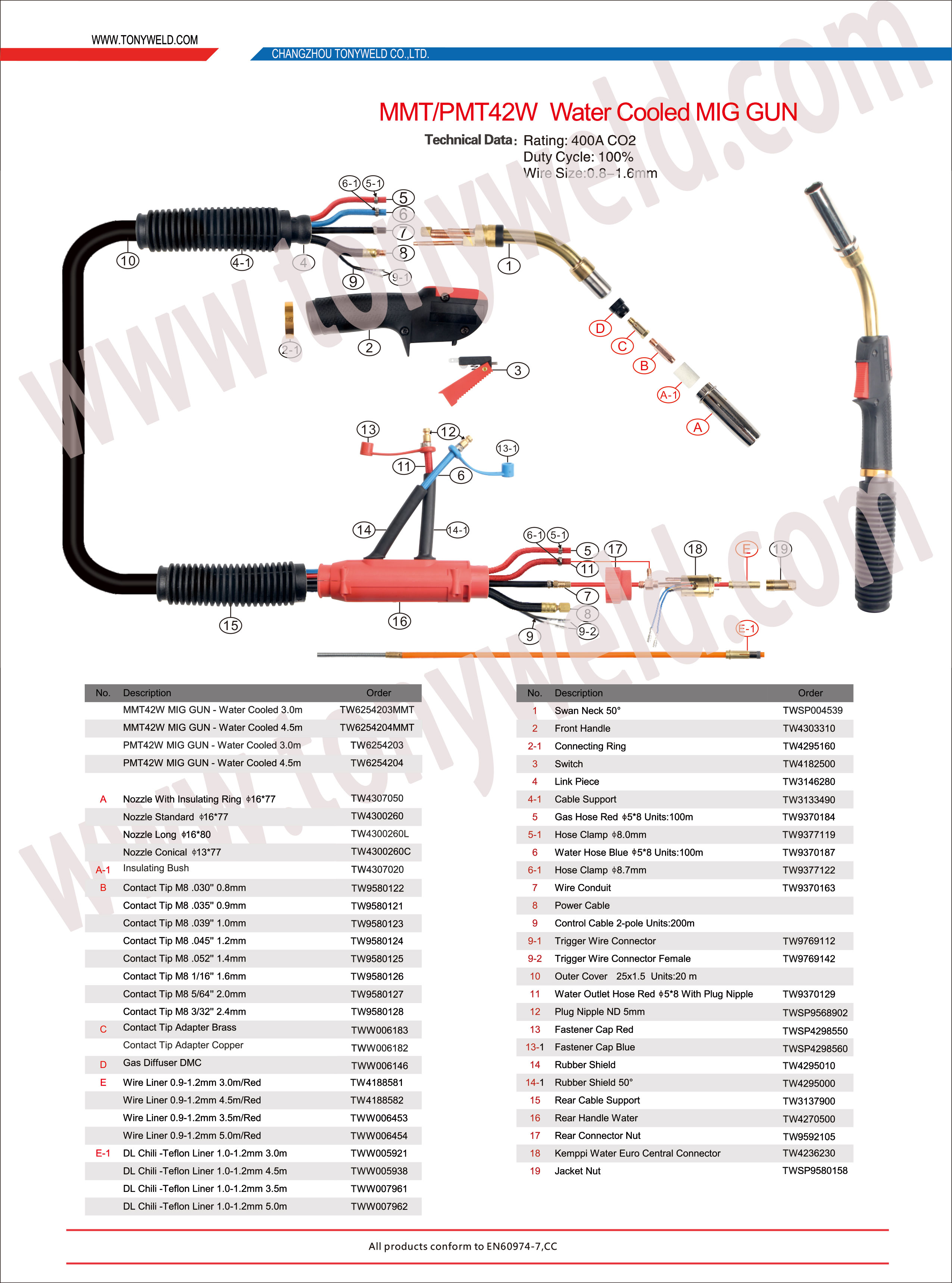

Kemppi-21

KEM PPI MMT/PMT mig welding consumables

MMT/PMT42W Water Cooled MIG GUN
Technical Data：	Rating : Rating: 400A CO2
	Duty Cycle : 100%
	Wire Size : 0.8-1.6MM

No.	Description	Order
	MMT42W MIG GUN - Water Cooled 3.0m	TW6254203MMT
	MMT42W MIG GUN - Water Cooled 4.5m	TW6254204MMT
	PMT42W MIG GUN - Water Cooled 3.0m	TW6254203
	PMT42W MIG GUN - Water Cooled 4.5m	TW6254204

A	Nozzle With Insulating Ring ф16*77	TW4307050
	Nozzle Standard ф16*77	TW4300260
	Nozzle Long ф16*80	TW4300260L
	Nozzle Conical ф13*77	TW4300260C
A-1	Insulating Bush	TW4307020
B	Contact Tip M8 .030” 0.8mm	TW9580122
	Contact Tip M8 .035” 0.9mm	TW9580121
	Contact Tip M8 .039” 1.0mm	TW9580123
	Contact Tip M8 .045” 1.2mm	TW9580124
	Contact Tip M8 .052” 1.4mm	TW9580125
	Contact Tip M8 1/16” 1.6mm	TW9580126
	Contact Tip M8 5/64” 2.0mm	TW9580127
	Contact Tip M8 3/32” 2.4mm	TW9580128
C	Contact Tip Adapter Brass	TWW006183
	Contact Tip Adapter Copper	TWW006182
D	Gas Diffuser DMC	TWW006146
E	Wire Liner 0.9-1.2mm 3.0m/Red	TW41.88581
	Wire Liner 0.9-1.2mm 4.5m/Red	TW4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	TWW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	TWW006454
E-1	DL Chili-Teflon Liner 1.0-1.2mm 3.0m	TWW005921
	DL Chili Teflon Liner 1.0-1.2mm 4.5m	TWW005938
	DL Chili-Teflon Liner 1.0-1 .2mm 3.5m	TWW007961
	DL Chili-Teflon Liner 1.0-1.2mm 5.0m	TWW007962

No.	Description	Order
1	Swan Neck 50°	TWSP004539
2	Front Handle	TW4303310
2-1	Connecting Ring	TW4295160
3	Switch	TW4182500
4	Link Piece	TW3146280
4-1	Cable Support	TW3133490
5	Gas Hose Red ф5*8 Units:100m	TW9370184
5-1	Hose Clamp ф8.0mm	TW9377119
6	Water Hose Blue ф5*8 Units:100m	TW9370187
6-1	Hose Clamp ф8.7mm	TW9377122
7	Wire Conduit	TW9370163
8	Power Cable
9	Control Cable 2-pole Units:200m
9-1	Trigger Wire Connector	TW9769112
9-2	Trigger Wire Connector Female	TW9769142
10	Outer Cover 25x1.5 Units:20m
11	Water Outlet Hose Red ф5*8 With Plug Nipple	TW9370129
12	Plug Nipple ND 5mm	TWSP9568902
13	Fastener Cap Red	TWSP4298550
13-1	Fastener Cap Blue	TWSP4298560
14	Rubber Shield	TW4295010
14-1	Rubber Shield 50°	TW4295000
15	Rear Cable Support	TW3137900
16	Rear Handle Water	TW4270500
17	Rear Connector Nut	TW9592105
18	Kemppi Water Euro Central Connector	TW4236230
19	Jacket Nut	TWSP9580158

KEMPPI MMT/PMT42 CO2 mig welding torch package

* 1 piece KEMPPI MMT/PMT35 mig torch 600A package in a carton
