Fronius mtg 550i air cooled mig welding torch 3.5M 4.5M

Share to:

Fronius mtg 550i air cooled mig welding torch Technical Data： Rating : 520A CO2/360A Mixed Gases Duty Cycle : 30% connector : fronius / euro connector wire size : 0.8-2.4mm

规格:	Fronius mig welding torch air cooled mtg 550i
Quantity:



Inquire Add to Basket

Model:
Fronius mtg 550i air cooled mig welding torch
Brand:
Tonyweld
Code:
85159000
Product Name :
Fronius mtg 550i air cooled mig welding torch
series :
fronius
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
520A CO2/360A Mixed Gases
Duty Cycle :
30%
connector :
fronius / euro connector
wire size :
0.8-2.4mm

Product Description

Fronius mig welding torch air cooled mtg 550i

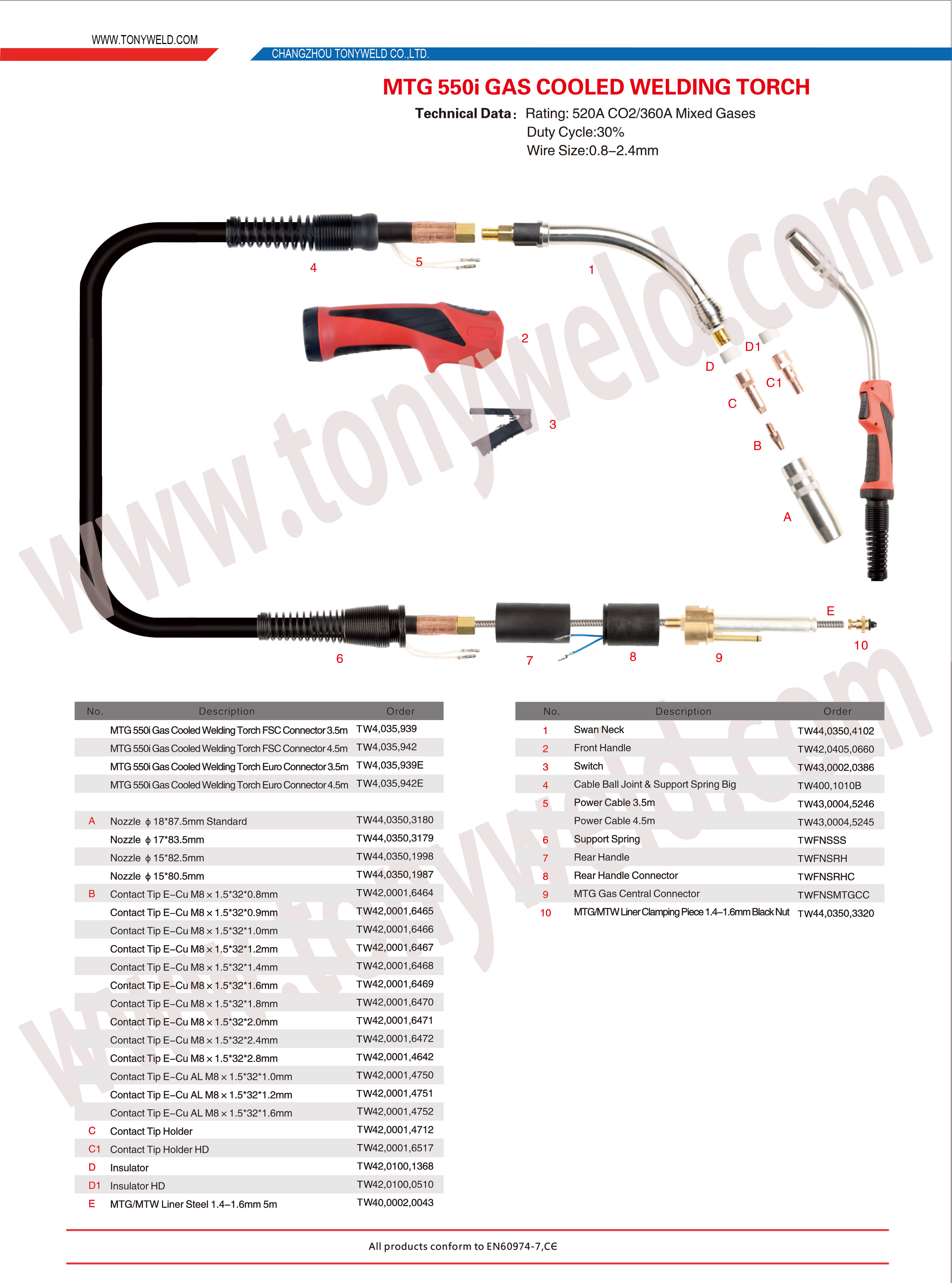

Fronius-15

Fronius mtg 550i air cooled mig welding torch
Technical Data：	Rating : 520A CO2/360A Mixed Gases
	Duty Cycle : 30%
	connector wire size : 0.8-2.4mm

No.	Description	Order
	MTG 550i Gas Cooled Welding Torch FSC Connector3.5m	TW4,035,939
	MTG 550i Gas Cooled Welding Torch FSC Connector 4.5m	TW4,035,942
	MTG 550i Gas CooledWelding Torch Euro Connector3.5m	TW4,035,939E
	MTG 550i Gas Cooled Weldin Torch Euro Connector 4.5m	TW4,035,942E

A	Nozzle ф18*87.5mm Standard	TW44,0350,3180
	Nozzle ф17*83.5mm	TW44,0350,3179
	Nozzle ф15*82.5mm	TW44,0350,1998
	Nozzle ф 15*80.5mm	TW44,0350,1987
B	Contact Tip E-Cu M8x 1.5320.8mm	TW42,0001,6464
	Contact Tip E-Cu M8 x 1.5320.9mm	TW42,0001,6465
	Contact Tip E: -Cu M8x 1.5321 .0mm	TW42,0001,6466
	Contact Tip E-Cu M8 x 1.5321.2mm	TW42,0001,6467
	Contact Tip E- Cu M8x 1.5321 .4mm	TW42,0001,6468
	Contact Tip E-Cu M8x 1.5321 .6mm	TW42,0001,6469
	Contact Tip E-Cu M8 x 1.5321.8mm	TW42,0001,6470
	Contact Tip E: -Cu M8x 1.5322.0mm .	TW42,0001,6471
	Contact Tip E-Cu M8x 1.5322.4mm	TW42,0001,6472
	Contact Tip E-Cu M8x 1.5322.8mm	TW42,0001,4642
	Contact Tip E-Cu AL M8 x 1.5321.0mm	TW42,0001,4750
	Contact Tip E-Cu AL M8 x 1.5321 .2mm	TW42,0001,4751
	Contact Tip E-Cu AL M8 x 1.5321 .6mm	TW42,0001,4752
C	Contact Tip Holder	TW42,0001,4712
C1	Contact Tip Holder HD	TW42,0001,6517
D	Insulator	TW42,0100,1368
D1	Insulator HD	TW42,0100,0510
E	MTG/MTW Liner Steel 1.4-1.6mm 5m	TW40,0002,0043

No.	Description	Order
1	Swan Neck	TW44,0350,4102
2	Front Handle	TW42,0405,0660
3	Switch	TW43,0002,0386
4	Cable Ball Joint & Support Spring Big	TW400,1010B
5	Power Cable 3.5m	TW43,0004,5246
	Power Cable 4.5m	TW43,0004,5245
6	Support Spring	TWFNSSS
7	Rear Handle	TWFNSRH
8	Rear Handle Connector	TWFNSRHC
9	MTG Gas Central Connector	TWFNSMTGCC
10	MTGMTWLiner Clamping Piece 1.4 -1.6mm Black Nut	TW44,0350,3320

Fronius mig torch fronius /euro connector

* 1 piece Fronius mig welding torch mtG400i package in a carton
