Product Category

Fronius mig welding torch air cooled mtg320i

Share to:

Fronius mig welding torch air cooled mtg320i

规格:	Fronius mig welding torch air cooled mtg320i
Quantity:



Inquire Add to Basket

Model:
Fronius mig welding torch air cooled mtg320i
Brand:
Tonyweld
Code:
85159000
Product Name :
Fronius mig welding torch air cooled mtg320i
series :
fronius
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
250A CO2/170A Mixed Gases
Duty Cycle :
40%
connector :
fronius / euro connector
wire size :
0.8-1.2mm

Product Description

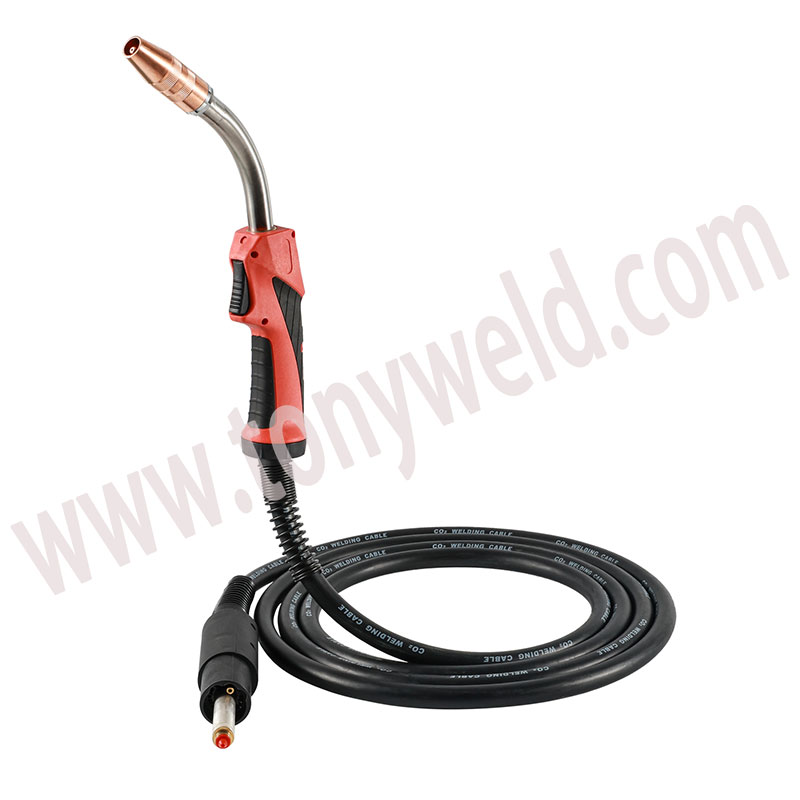

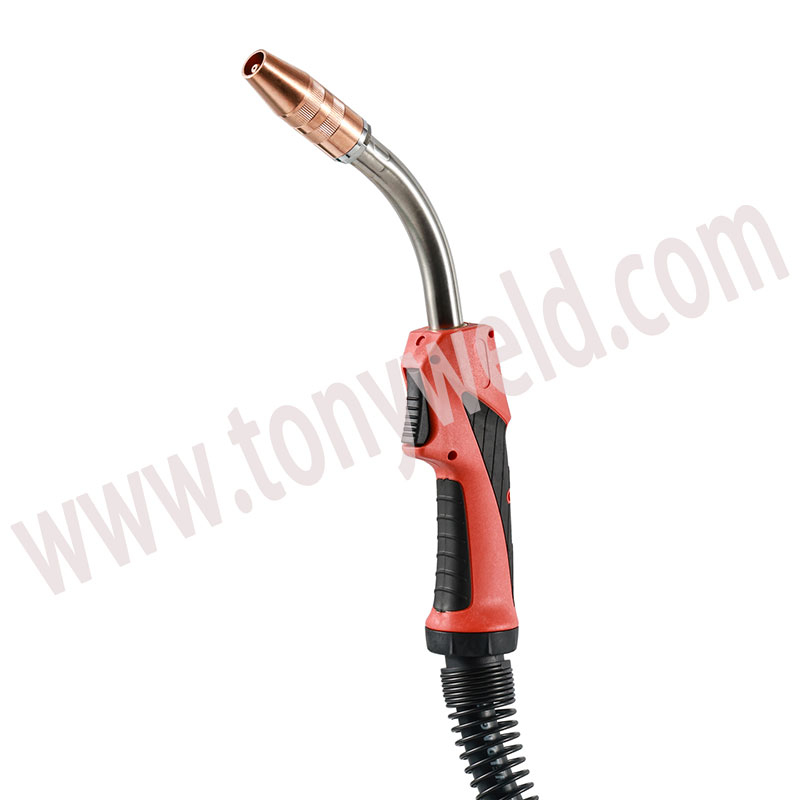

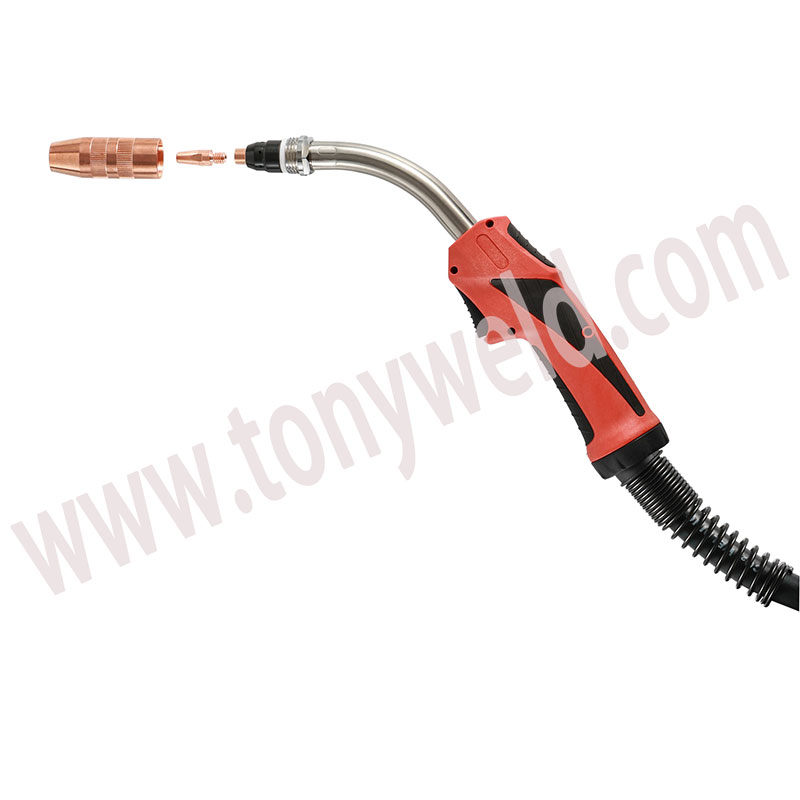

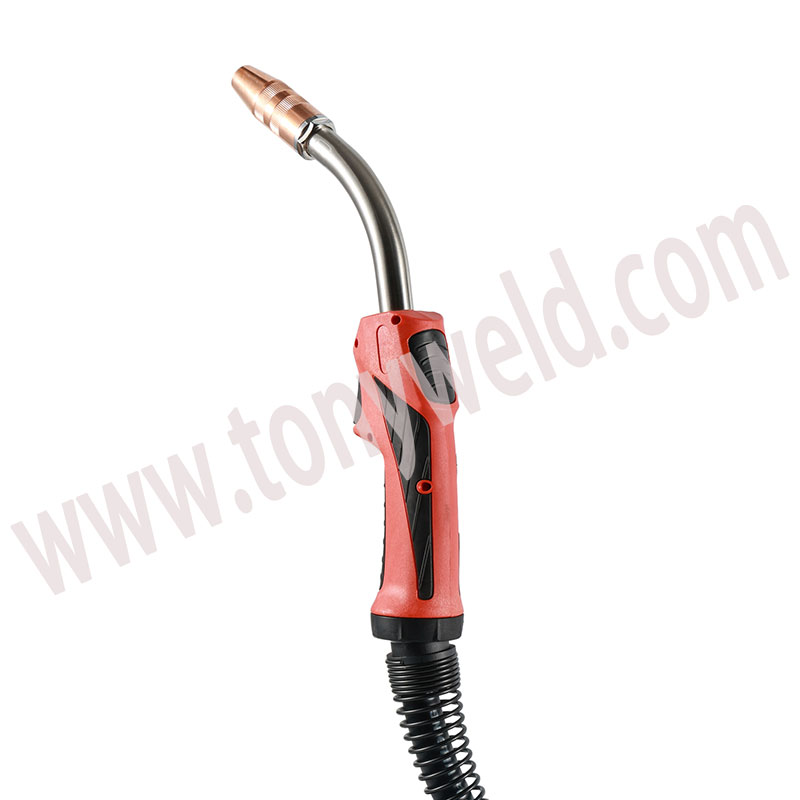

Fronius mig welding torch air cooled MTG320i
Fronius-13

Fronius mtg 320i air cooled mig welding torch

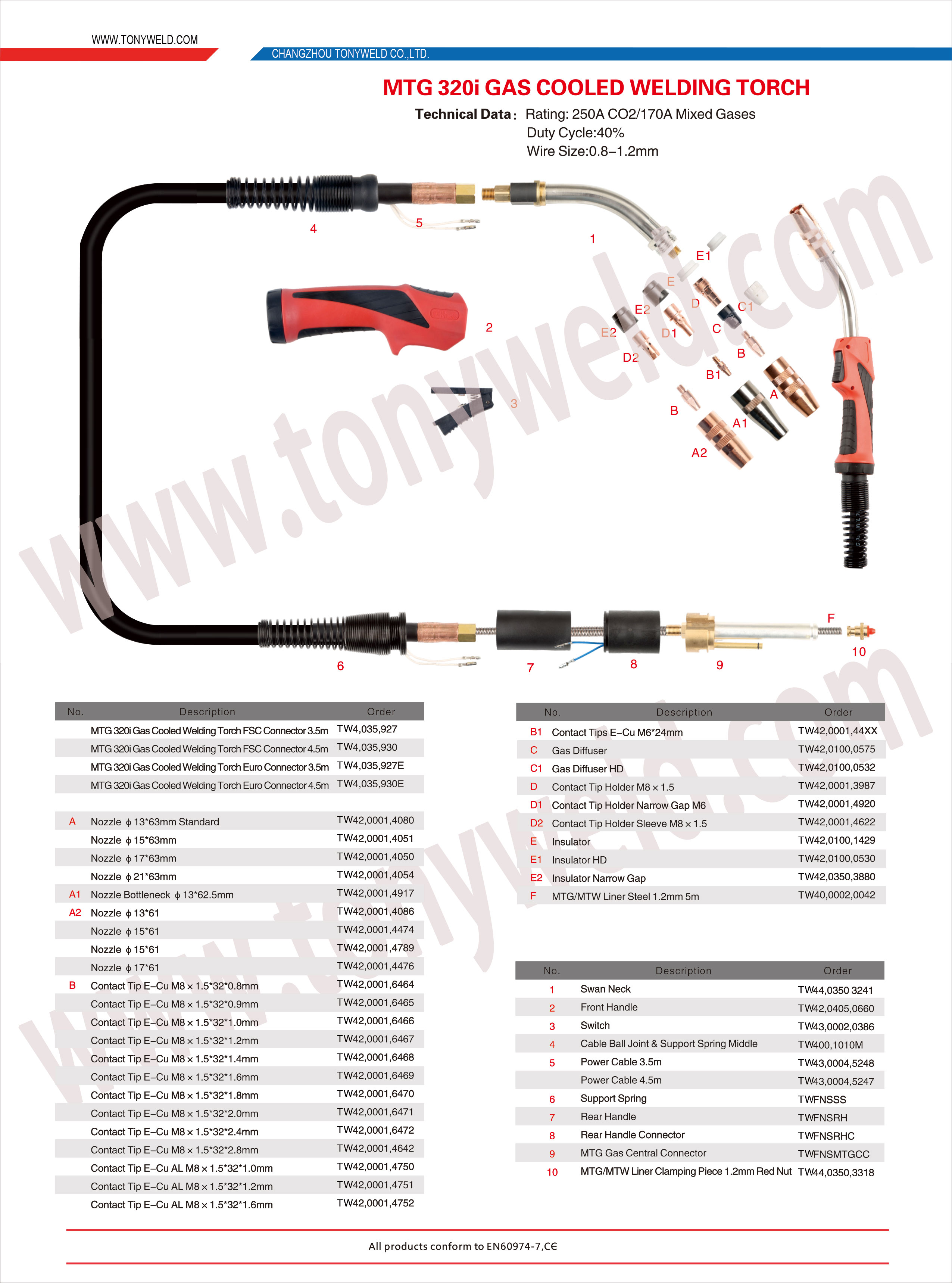

Technical Data：	Rating : 250A CO2/170A Mixed Gases
	Duty Cycle : 40%
	connector wire size : 0.8-1.2mm

No.	Description	Order
A	Nozzle ф13*63mm Standard	TW42,0001,4080
	Nozzle ф 15*63mm	TW42,0001,4051
	Nozzle ф17*63mm	TW42,0001,4050
	Nozzle ф 21*63mm	TW42,0001,4054
A1	Nozzle Bottleneck ф13*62.5mm	TW42,0001,4917
A2	Nozzle ф13*61	TW42,0001,4086
	Nozzle ф15*61	TW42,0001,4474
	Nozzle ф15*61	TW42,0001,4789
	Nozzle ф17*61	TW42,0001,4476
B	Contact Tip E-Cu M8 x 1.5320.8mm	TW42,0001,6464
	Contact Tip E-Cu M8 x 1.5320.9mm	TW42,0001,6465
	Contact Tip E-Cu M8x 1.5321 .0mm	TW42,0001,6466
	Contact Tip E-Cu M8x 1.5321 .2mm	TW42,0001,6467
	Contact Tip E-Cu M8x 1.5321 .4mm	TW42,0001,6468
	Contact Tip E-Cu M8x 1.5321 .6mm	TW42,0001,6469
	Contact Tip E-Cu M8x 1.5321 .8mm	TW42,0001,6470
	Contact Tip E-Cu M8x 1.5322.0mm	TW42,0001,6471
	Contact Tip E-Cu M8 x 1.5322.4mm	TW42,0001,6472
	Contact Tip E -Cu M8x 1.5322.8mm	TW42,0001,4642
	Contact Tip E-Cu AL M8x 1.5321.0mm	TW42,0001,4750
	Contact Tip E-Cu AL M8x 1.5321.2mm	TW42,0001,4751
	Contact Tip E-Cu AL M8x 1.5321.6mm	TW42,0001,4752
B1	Contact Tips E-Cu M6*24mm	TW42,0001,44XX
C	Gas Diffuser	TW42,0100,0575
C1	Gas Diffuser HD	TW42,0100,0532
D	Contact Tip Holder M8x1.5	TW42,0001,3987
D1	Contact Tip Holder Narrow Gap M6	TW42,0001,4920
D2	Contact Tip Holder Sleeve M8x1.5	TW42,0001,4622
E	Insulator	TW42,0100,1429
E1	Insulator HD	TW42,0100,0530
E2	Insulator Narrow Gap	TW42,0350,3880
F	MTG/MTW Liner Steel 1.2mm 5m	TW40,0002,0042

No.	Description	Order
1	Swan Neck	TW44,0350,3241
2	Front Handle	TW42,0405,0660
3	Switch	TW43,0002,0386
4	Cable Ball Joint & Support Spring Middle	TW400,1010M
5	Power Cable 3.5m	TW43,0004,5248
	Power Cable 4.5m	TW43,0004,5247
6	Support Spring	TWFNSSS
7	Rear Handle	TWFNSRH
8	Rear Handle Connector	TWFNSRHC
9	MTG Gas Central Connector	TWFNSMTGCC
10	MTG/MTW Liner Clamping Piece 1.2mm Red Nut	TW44,0350,3318

Fronius mig torch fronius /euro connector

* 1 piece Fronius mig welding torch mtG320i package in a carton

Our Sevice

* timely online 24 hours .

* sample order /trail order is available .

*supply the qualified products.

*after -sale service

*processing customer's sample .
