Brazil OXIMIG SBME 470 gas air cooled CO2 Mig welding torches 3/4/5 M

Share to:

Brazil OXIMIG SBME 470 gas air cooled CO2 Mig welding torches 3/4/5 M Technical Data： Rating :490A CO2/460A Mixed Gases Duty Cycle : 60% Wire Size : 0.8-2.4MM

规格:	OXIMIG SBME 470 air cooled CO2 Mig welding torch
Quantity:



Inquire Add to Basket

Model:
Brazil OXIMIG SBME 470
Brand:
Tonyweld
Code:
85159000
Product Name :
OXIMIG SBME 470 air cooled CO2 Mig welding torch
series :
OXIMIG SBME 470
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
490A CO2/460A Mixed Gases
Duty Cycle :
60%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-2.4MM

Product Description

Brazil OXIMIG SBME 470 air cooled CO2 Mig welding torch And Mig consumables

OXIMIG-9

Brazil OXIMIG SBME 470 air cooled CO2 Mig welding torch mig welding consumables

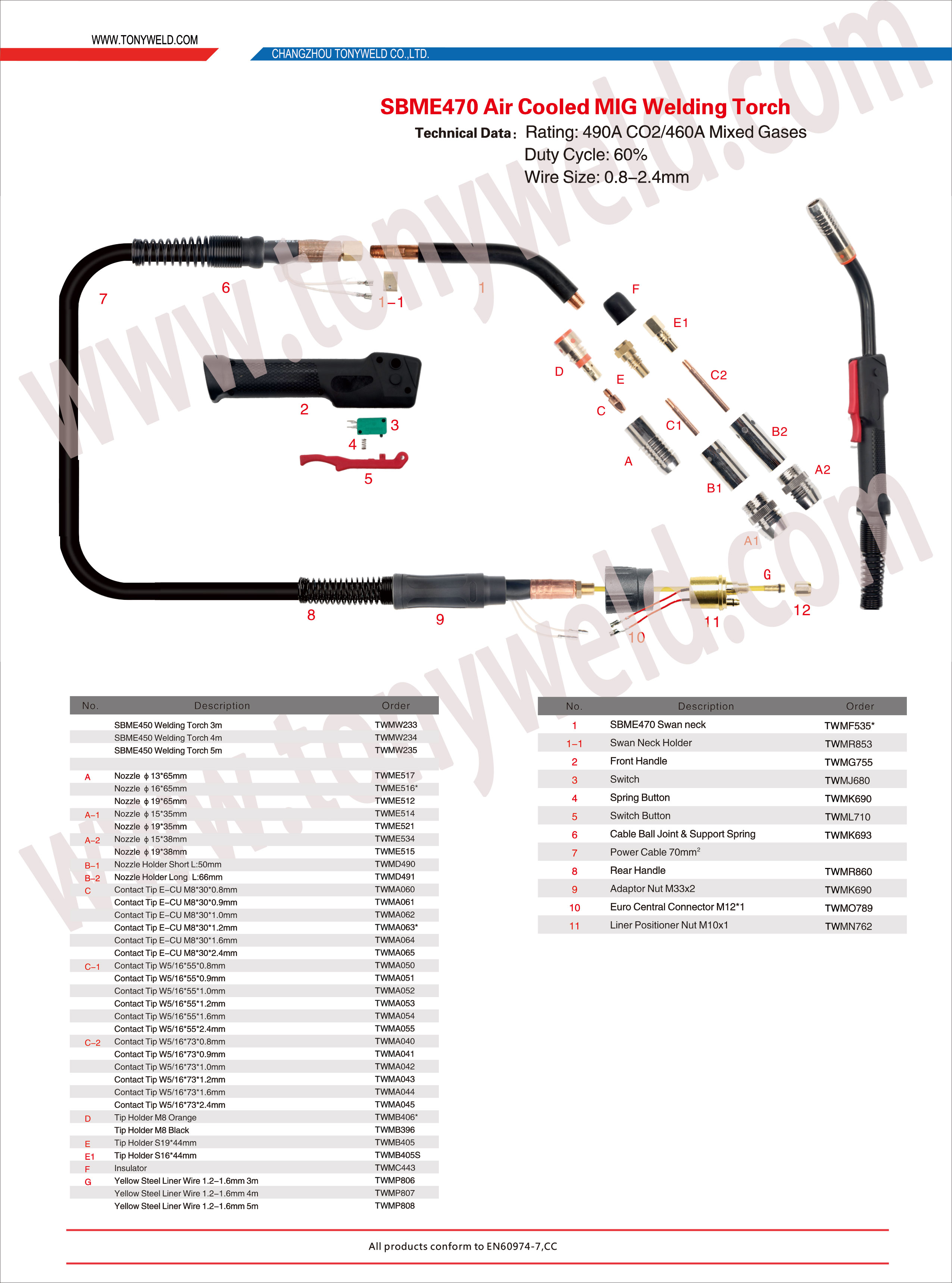

OXIMIG SBME470 Air Cooled MIG Welding Torch
Technical Data：	Rating :490A CO2/460A Mixed Gases
	Duty Cycle : 60%
	Wire Size : 0.8-2.4MM

No.	Description	Order
	SBME450 Welding Torch 3m	TWMW233
	SBME450 Welding Torch 4m	TWMW234
	SBME450 Welding Torch 5m	TWMW235

A	Nozzle ф13*65mm	TWME517
	Nozzle ф16*65mm	TWME516*
	Nozzle ф19*65mm	TWME512
A-1	Nozzle ф15*35mm	TWME514
	Nozzle ф19*35mm	TWME521
A-2	Nozzle ф15*38mm	TWME534
	Nozzle ф19*38mm	TWME515
B-1	Nozle Holder Short L:50mm	TWMD490
B-2	Nozzle Holder Long Q:66mm	TWMD491
C	Contact Tip E-CU M8300.8mm	TWMA060
	Contact Tip E-CU M8300.9mm	TWMA061
	Contact Tip E- CU M8301.0mm	TWMA062
	Contact Tip E-CU M8301.2mm	TWMA063*
	Contact Tip E- CU M8301.6mm	TWMA064
	Contact Tip E-CU M8302.4mm	TWMA065
C-1	Contact Tip W5/16550.8mm	TWMA050
	Contact Tip W5/16550.9mm	TWMA051
	Contact Tip W5/16551.0mm	TWMA052
	Contact Tip W5/16551.2mm	TWMA053
	Contact Tip W5/16551.6mm	TWMA054
	Contact Tip W5/16552.4mm	TWMA055
C-2	Contact Tip W5/16730.8mm	TWMA040
	Contact Tip W5/16730.9mm	TWMA041
	Contact Tip W5/16731.0mm	TWMA042
	Contact Tip W5/16731.2mm	TWMA043
	Contact Tip W5/16731.6mm	TWMA044
	Contact Tip W5/16732.4mm	TWMA045
D	Tip Holder M8 Orange	TWMB406*
	Tip Holder M8 Black	TWMB396
E	Tip Holder S19*44mm	TWMB405
E1	Tip Holder S16*44mm	TWMB405S
F	Insulator	TWMC443
G	Yellow Steel Liner Wire 1.2-1.6mm 3m	TWMP806
	Yellow Steel Liner Wire 1.2-1.6mm 4m	TWMP807
	Yellow Steel Liner Wire 1.2-1.6mm 5m	TWMP808

No.	Description	Order
1	SBME470 Swan neck	TWMF535*
1-1	Swan Neck Holder	TWMR853
2	Front Handle	TWMG755
3	Switch	TWMJ680
4	Spring Button	TWMK690
5	Switch Button	TWML710
6	Cable Ball Joint & Support Spring	TWMK693
7	Power Cable 70mm²
8	Rear Handle	TWMR860
9	Adaptor Nut M33x2	TWMK690
10	Euro Central Connector M12*1	TWMO789
11	Liner Positioner Nut M10x1	TWMN762

Brazil OXIMIG SBME 470 air cooled CO2 Mig welding torch package

* 1 piece Brazil OXIMIG SBME 470 air cooled CO2 Mig welding torch package in a carton
