Brazil OXIMIG SBME 116 gas air cooled CO2 Mig welding torches 3/4/5 M

Share to:

Brazil OXIMIG SBME 116 gas air cooled CO2 Mig welding torches 3/4/5 M Technical Data： Rating : Rating : 180A CO2/160A Mixed Gases Duty Cycle : 60% Wire Size : 0.8-1.0MM

规格:	OXIMIG SBME 116 air cooled CO2 Mig welding torch
Quantity:



Inquire Add to Basket

Model:
Brazil OXIMIG SBME116
Brand:
Tonyweld
Code:
85159000
Product Name :
OXIMIG SBME 116 air cooled CO2 Mig welding torch
series :
OXIMIG SBME 116
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
180A CO2/160A Mixed Gases
Duty Cycle :
60%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.0MM

Product Description

Brazil OXIMIG SBME 116 air cooled CO2 Mig welding torch And Mig consumables
OXIMIG-3

Brazil OXIMIG SBME 116 air cooled CO2 Mig welding torch mig welding consumables

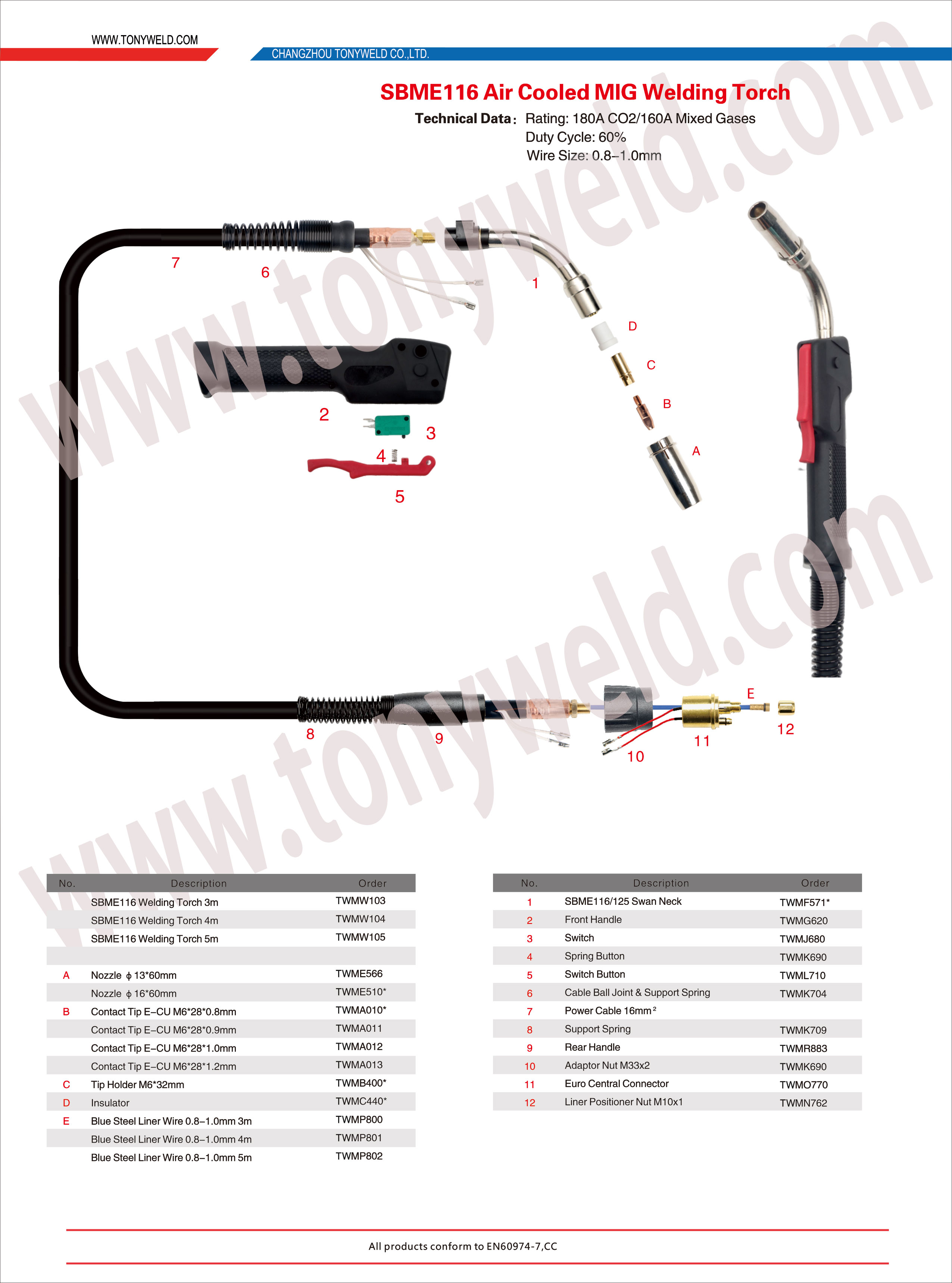

OXIMIG SBME116 Air Cooled MIG Welding Torch
Technical Data：	Rating : 180A CO2/160A Mixed Gases
	Duty Cycle : 60%
	Wire Size : 0.8-1.0MM

No.	Description	Order
	SBME116 Welding Torch 3m	TWMW103
	SBME116 Welding Torch 4m	TWMW104
	SBME116 Welding Torch 5m	TWMW105

A	Nozzle ф13*60mm	TWME566
	Nozzle ф16*60mm	TWME510*
B	Contact Tip E-CU M6280.8mm	TWMA010*
	Contact Tip E-CU M6280.9mm	TWMA011
	Contact Tip E-CU M6281.0mm	TWMA012
	Contact Tip E-CU M6281.2mm	TWMA013
	Tip Holder M6 *32mm	TWMB400*
D	Insulator	TWMC440*
E	Blue Steel Liner Wire 0.8-1.0mm 3m	TWMP800
	Blue Steel Liner Wire 0.8-1.0mm 4m	TWMP801
	Blue Steel Liner Wire 0.8-1.0mm 5m	TWMP802

No.	Description	Order
1	SBME116/125 Swan Neck .	TWMF571*
2	Front Handle	TWMG620
3	Switch	TWMJ680
4	Spring Button	TWMK690
5	Switch Button	TWML710
6	Cable Ball Joint & Support Spring	TWMK704
7	Power Cable 16mm²
8	Support Spring	TWMK709
9	Rear Handle	TWMR883
10	Adaptor Nut M33x2	TWMK690
11	Euro Central Connector	TWMO770
12	Liner Positioner Nut M10x1	TWMN762

Brazil OXIMIG SBME 116 air cooled CO2 Mig welding torch package

* 1 piece Brazil OXIMIG SBME 116 air cooled CO2 Mig welding torch package in a carton
