Brazil OXIMIG SBME 135 gas air cooled CO2 Mig welding torches 3/4/5 M

Share to:

Brazil OXIMIG SBME 135 gas air cooled CO2 Mig welding torches 3/4/5 M Technical Data： Rating : 290A CO2/260A Mixed Gases Duty Cycle : 60% Wire Size : 0.8-1.2MM

规格:	OXIMIG SBME 135 air cooled CO2 Mig welding torch
Quantity:



Inquire Add to Basket

Model:
Brazil OXIMIG SBME135
Brand:
Tonyweld
Code:
85159000
Product Name :
OXIMIG SBME 135 air cooled CO2 Mig welding torch
series :
OXIMIG SBME 135
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
290A CO2/260A Mixed Gases
Duty Cycle :
60%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.2MM

Product Description

Brazil OXIMIG SBME 135 air cooled CO2 Mig welding torch And Mig consumables
OXIMIG-5

Brazil OXIMIG SBME 135 air cooled CO2 Mig welding torch mig welding consumables

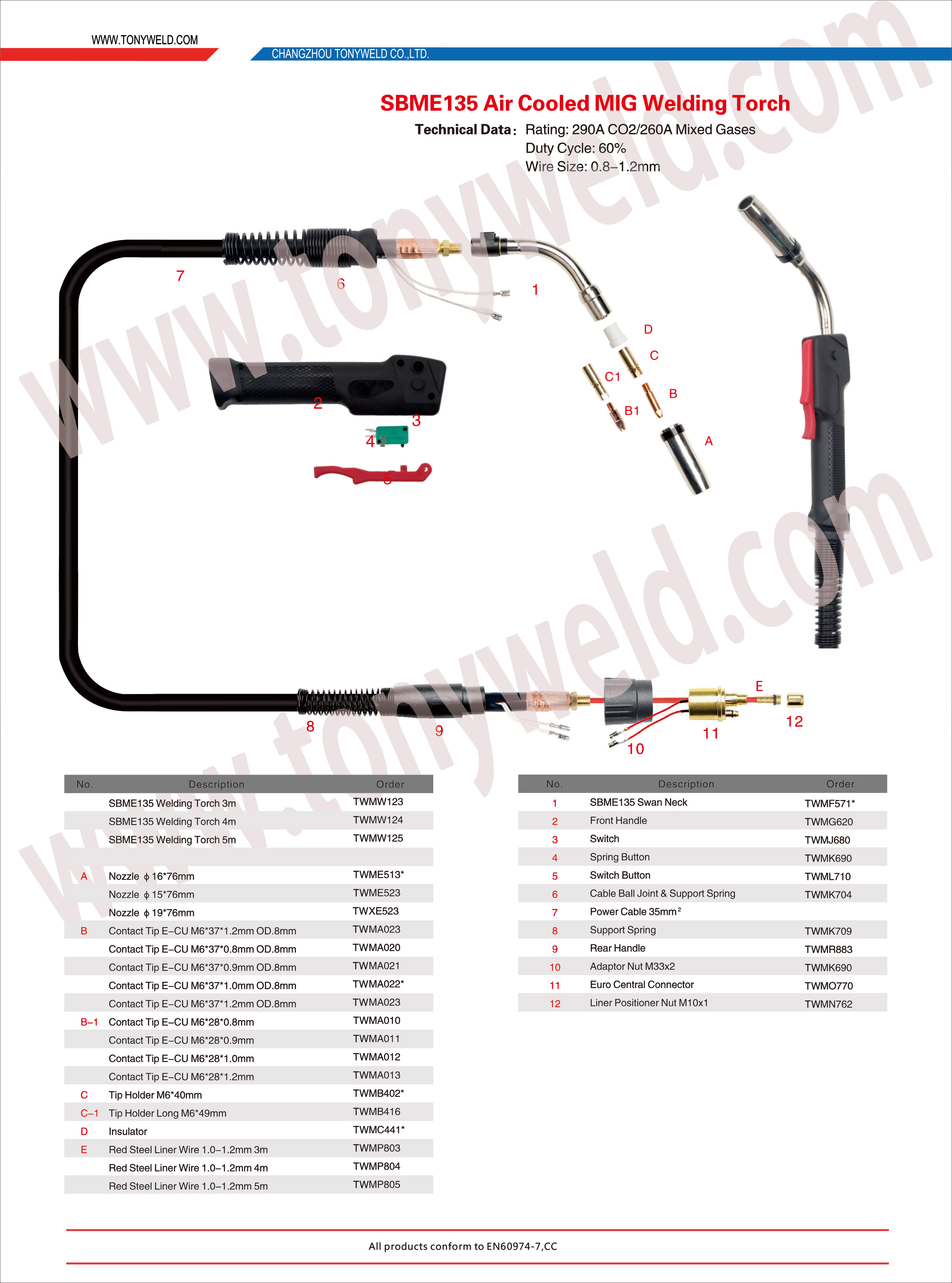

OXIMIG SBME135 Air Cooled MIG Welding Torch
Technical Data：	Rating : 290A CO2/260A Mixed Gases
	Duty Cycle : 60%
	Wire Size : 0.8-1.2MM

No.	Description	Order
	SBME135 Welding Torch 3m	TWMW123
	SBME135 Welding Torch 4m	TWMW124
	SBME135 Welding Torch 5m	TWMW125

A	Nozzle ф16*76mm	TWME513*
	Nozzle ф15*76mm	TWME523
	Nozzle ф19* 76mm	TWXE523
B	Contact Tip E-CU M6371.2mm OD .8mm	TWMA023
	Contact Tip E-CU M6370.8mm OD .8mm	TWMA020
	Contact Tip E-CU M6370.9mm OD .8mm	TWMA021
	Contact Tip E-CU M6371.0mm OD .8mm	TWMA022*
	Contact Tip E-CU M6371.2mm 0D .8mm	TWMA023
B-1	Contact Tip E-CU M6280.8mm	TWMA010
	Contact Tip E-CU M6280.9mm	TWMA011
	Contact Tip E-CU M6281.0mm	TWMA012
	Contact Tip E-CU M6281.2mm	TWMA013
C	Tip Holder M6*40mm	TWMB402*
C-1	Tip Holder Long M6*49mm	TWMB416
D	Insulator	TWMC441*
E	Red Steel Liner Wire 1.0-1.2mm 3m	TWMP803
	Red Steel Liner Wire 1.0-1.2mm 4m	TWMP804
	Red Steel Liner Wire 1.0-1.2mm 5m	TWMP805

No.	Description	Order
1	SBME135 Swan Neck	TWMF571*
2	Front Handle	TWMG620
3	Switch	TWMJ680
4	Spring Button	TWMK690
5	Switch Button	TWML710
6	Cable Ball Joint & Support Spring	TWMK704
7	Power Cable 35mm²
8	Support Spring	TWMK709
9	Rear Handle	TWMR883
10	Adaptor Nut M33x2	TWMK690
11	Euro Central Connector	TWMO770
12	Liner Positioner Nut M10x1	TWMN762

Brazil OXIMIG SBME 135 air cooled CO2 Mig welding torch package

* 1 piece Brazil OXIMIG SBME 135 air cooled CO2 Mig welding torch package in a carton
