Bnd Q60 "Q" CO2 mig welding torch and spare parts

Share to:

BND BTB Q60 "O" Series AIR COOLED MIG GUN Technical Data: Standard Length：3M 4M 5M Rating: 600A CO2/550A Mixes Gases Duty Cycle: 100% Wire Size: 023" (0.6 mm) to 1/8" (3.2 mm)

规格:	BND Q60 WHOLE TORCH 600A torch 3M 4M 5M
Quantity:



Inquire Add to Basket

Model:
Bnd Q60
Brand:
Tonyweld
Code:
85159000
Product Name :
Bnd Q60 "O" CO2 mig welding torch and consumables
series :
bnd torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
Q60 600A CO2
Duty Cycle :
100%
connector :
euro / mille /bnd connector and etc
wire size :
2.4-3.2mm

Product Description

Bnd Q60 CO2 mig welding torch and consumables

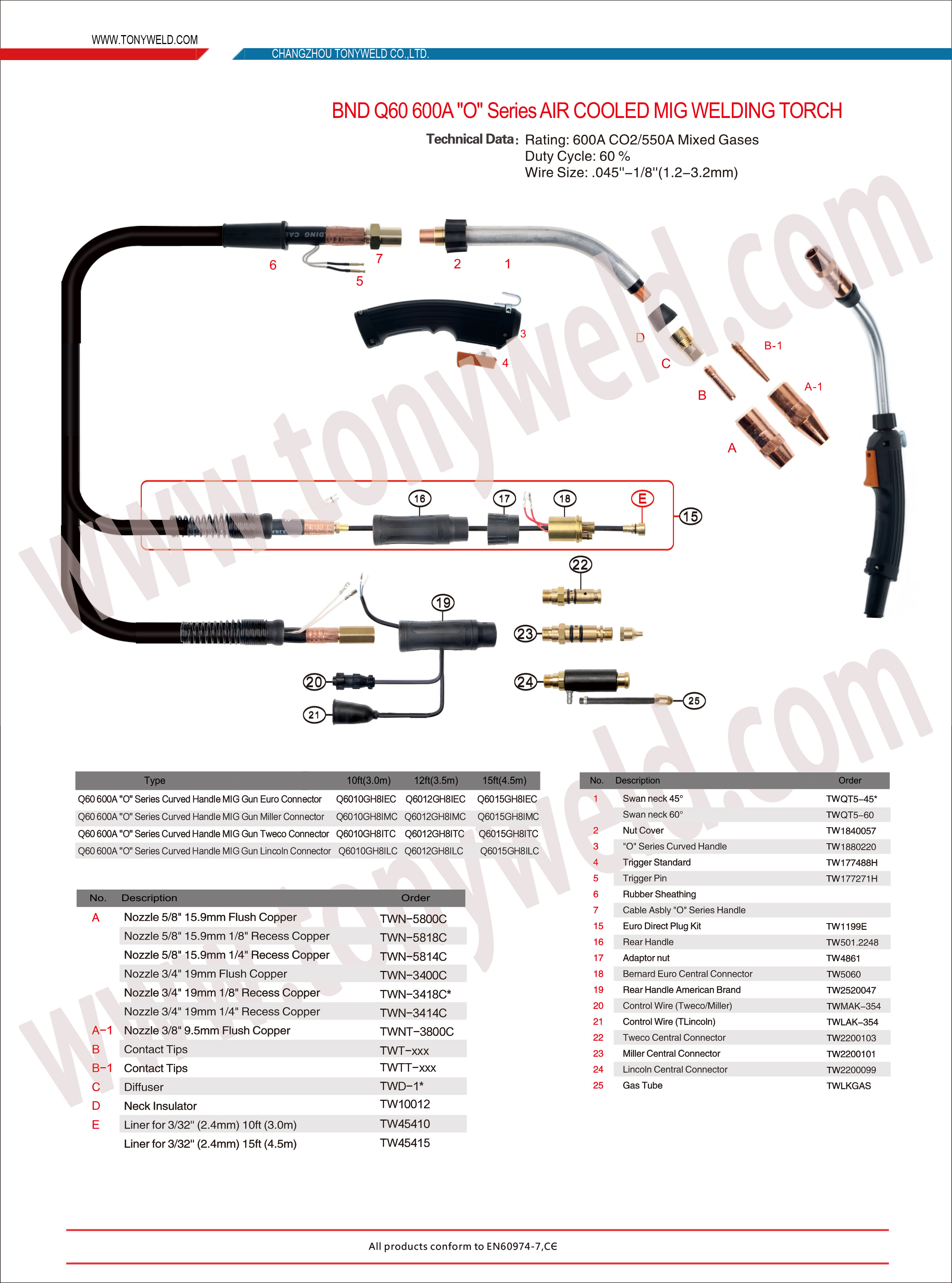

BND BTB Q60 AIR COOLED MIG WELDING TORCH
Technical Data：	Rating: 600A CO2/550A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .045”-1/8”(1.2-3.2mm)

	Type	10ft(3.0m)
	Q60 600A ”O” Series Curved Handle MlG Gun Euro Connector	Q6010GH8IEC
	600A ”O” Series Curved Handle MlG Gun Miller Connector	Q6010GH8IMC
	600A ”O” Series Curved Handle MG Gun Tweco Connector	Q6010GH8ITC
	600A ”O” Series Curved Handle MlG Gun Lincoln Connector	Q6010GH8ILC

No.	Description	Order
A	Nozzle 5/8” 15.9mm Flush Copper	TWN-5800C
	Nozzle 5/8” 15.9mm 1/8” Recess Copper	TWN-5818C
	Nozzle 5/8” 15.9mm 1/4” Recess Copper	TWN-5814C
	Nozzle 3/4” 19mm Flush Copper	TWN-3400C
	Nozzle 3/4” 19mm 1/8” Recess Copper	TWN-3418C*
	Nozzle 3/4” 19mm 1/4” Recess Copper	TWN-3414C
A-1	Nozzle 3/8” 9.5mm Flush Copper	TWNT-3800C
B	Contact Tips	TWT-xxx
B-1	Contact Tips	TWTT-xxx
C	Diffuser	TWD-1*
D	Neck Insulator	TW10012
E	Liner for 3/32”(2.4mm) 10ft (3.0m)	TW45410
	Liner for 3/32”(2.4mm)15ft (4.5m)	TW45415

No.	Description	Order
1	Swan neck 45°	TWQT5-45*
	Swan neck 60°	TWQT5-60
2	Nut Cover	TW1840057
3	”O” Series Curved Handle	TW1880220
4	Trigger Standard	TW177488H
5	Trigger Pin	TW177271H
6	Rubber Sheathing
7	Cable Asbly ”O” Series Handle
15	Euro Direct Plug Kit	TW1199E
16	Rear Handle	TW501.2248
17	Adaptor nut	TW4861
18	Bernard Euro Central Connector	TW5060
19	Rear Handle American Brand	TW2520047
20	Control Wire (Tweco/Miller)	TWMAK-354
21	Control Wire (TLincoln)	TWLAK-354
22	Tweco Central Connector	TW2200103
23	Miller Central Connector	TW2200101
24	Lincoln Central Connector	TW2200099
25	Gas Tube	TWLKGAS

Bnd BTB Q60A CO2 mig welding torch package

* 1 piece Bnd mig torch BTB Q60 A package in a carton
