Product Category

Bnd 400A CO2 mig welding torch and consumables

Share to:

TWBND 400A AIR COOLED MIG TORCH Technical Data： Rating: 400A CO2/350A Mixed Gases Duty Cycle: 60 % Wire Size: .025”-1/16”(0.6-1.6mm)

规格:	BND 400A WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
Bnd 300A
Brand:
Tonyweld
Code:
85159000
Product Name :
BND 400A CO2 mig welding torch and consumables
series :
bernard torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
400A CO2 250A mixed gases
Duty Cycle :
60%
connector :
euro / mille /BND connector and etc
wire size :
0.8-1.6mm

Product Description

BND 400A CO2 mig welding torch and consumables
BND-7

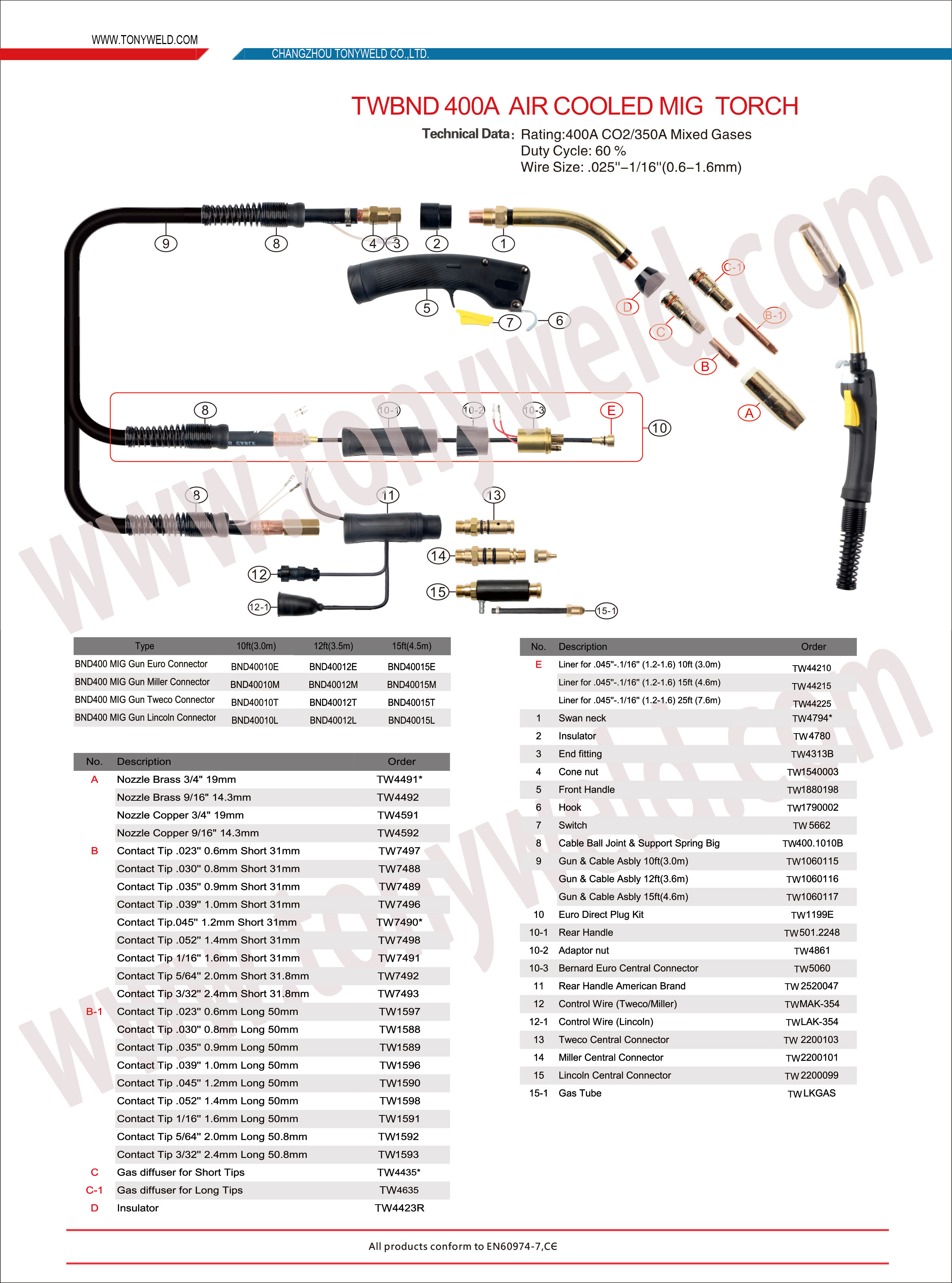

BND 400A AIR COOLED MIG WELDING TORCH
Technical Data：	Rating: 400A CO2/350A Mixed Gases
	Duty Cycle: 60 %
	Wire Size: .025”-1/16”(0.6-1.6mm)

	Type	10ft(3.0m)
	BND400 MIG Gun Euro Connector	BND40010E
	BND400 MIG Gun Miller Connector	BND40010M
	BND400 MIG Gun Tweco Connector	BND40010T
	BND400 MIG Gun Lincoln Connector	BND40010L

No.	Description	Order

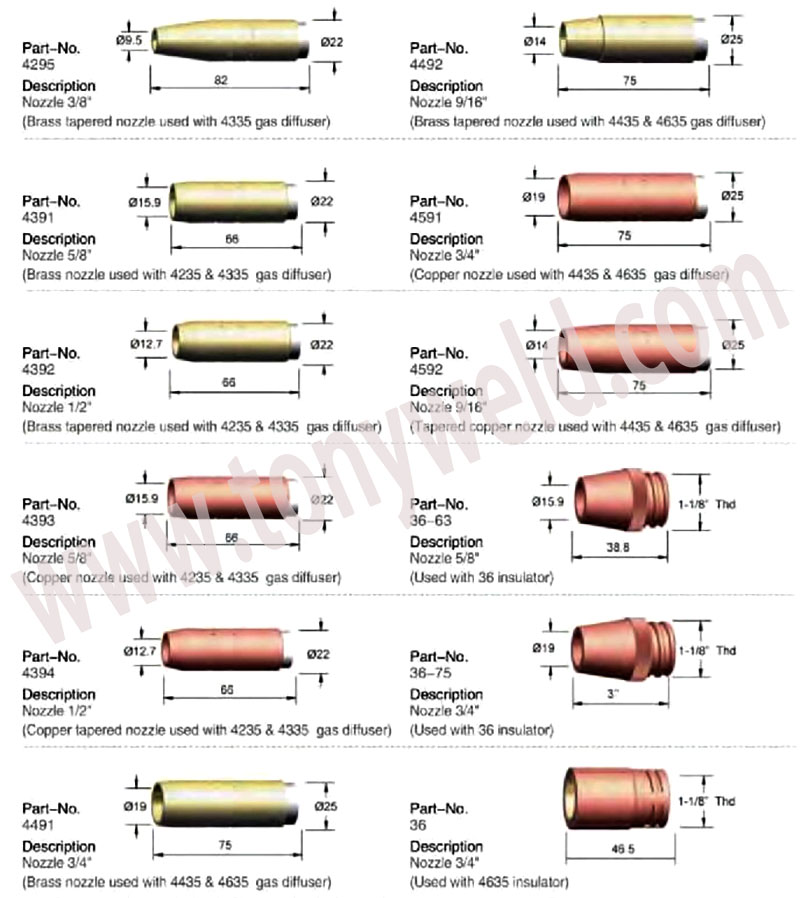

A	Nozzle Brass 3/4” 19mm	TW4491
	Nozzle Brass 9/16” 14.3mm	TW4492
	Nozzle Copper 3/4” 19mm	TW4591
	Nozzle Copper 9/16” 14.3mm	TW4592
B	Contact Tip .023” 0.6mm Short 31mm	TW7497
	Contact Tip .030” 0.8mm Short 31mm	TW7488
	Contact Tip .035” 0.9mm Short 31mm	TW7489
	Contact Tip .039” 1.0mm Short 31mm	TW7496
	Contact Tip.045” 1.2mm Short 31mm	TW7490*
	Contact Tip .052” 1.4mm Short 31mm	TW7498
	Contact Tip 1/16” 1.6mm Short 31mm	TW7491
	Contact Tip 5/64” 2.0mm Short 31.8mm	TW7492
	Contact Tip 3/32” 2.4mm Short 31.8mm	TW7493
B-1	Contact Tip .023” 0.6mm Long 50mm	TW1597
	Contact Tip .030” 0.8mm Long 50mm	TW1588
	Contact Tip .035” 0.9mm Long 50mm	TW1589
	Contact Tip .039” 1.0mm Long 50mm	TW1596
	Contact Tip .045” 1.2mm Long 50mm	TW1590
	Contact Tip .052” 1.4mm Long 50mm	TW1598
	Contact Tip 1/16” 1.6mm Long 50mm	TW1591
	Contact Tip 5/64” 2.0mm Long 50.8mm	TW1592
	Contact Tip 3/32” 2.4mm Long 50.8mm	TW1593

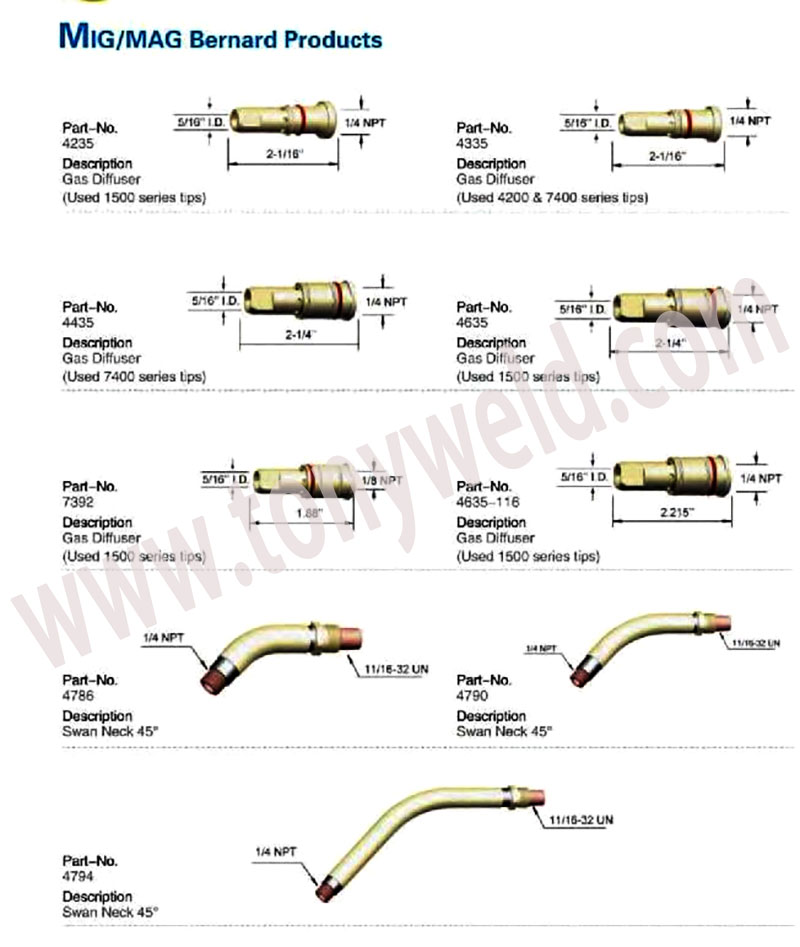

C	Gas diffuser for Short Tips	TW4435*
C-1	Gas diffuser for Long Tips	TW4635
D	Insulator	TW4423R
E	Liner for .045”-.1/16”(1.2-1.6)10ft(3.0m)	TW44210
	Liner for .045”-.1/16”(1.2-1.6)15ft (4.6m)	TW44215
	Liner for .045”-.1/16”(1.2-1.6)25ft(7.6m)	TW44225

No.	Description	Order
1	Swan neck	4794*
2	Insulator	4780
3	End fitting	4313B
4	Cone nut	1540003
5	Front Handle	1880198
6	Hook	1790002
7	Switch	5662
8	Cable Ball Joint & Support Spring Big	400.1010B
9	Gun & Cable Asbly 10ft(3.0m)	1060115
	Gun & Cable Asbly 12ft(3.6m)	1060116
	Gun & Cable Asbly 15ft(4.6m)	1060117
10	Euro Direct Plug Kit	1199E
10-1	Rear Handle	501.2248
10-2	Adaptor nut	4861
10-3	Bernard Euro Central Connector	5060
11	Rear Handle American Brand	2520047
12	Control Wire (Tweco/Miller)	MAK-354
12-1	Control Wire (TLincoln)	LAK-354
13	Tweco Central Connector	2200103
14	Miller Central Connector	200101
15	Lincoln Central Connector	2200099
15-1	Gas Tube	LKGAS

Bnd mig welding consumables

Bernard 400A CO2 mig welding torch package

* 1 piece Bernard CO2 mig torch 300A package in a carton
