Bnd 200A CO2 mig welding torch and consumables

Share to:

BND 200A AIR COOLED MIG WELDING TORCH Technical Data： Rating: 200A CO2/150A Mixed Gases Duty Cycle: 60 % Wire Size: .025”-.045”(0.6-1.2mm)

规格:	BND 200A WHOEL TORCH
Quantity:



Inquire Add to Basket

Model:
Bnd 200
Brand:
Tonyweld
Code:
85159000
Product Name :
Bnd 200A CO2 mig welding torch and consumables
series :
bnd torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
200A CO2 160A mixed gases
Duty Cycle :
60%
connector :
euro / mille /bnd connector and etc
wire size :
0.6-0.9mm

Product Description

Bnd 20A CO2 mig welding torch and consumables

BND 200A AIR COOLED MIG WELDING TORCH
Technical Data：	Rating: 200A CO2/150A Mixed Gases
	Duty Cycle: 60 %
	Wire Size: .025”-.045”(0.6-1.2mm)

	Type	10ft(3.0m)
	BND200 MIG Gun Euro Connector	BND20010E
	BND200 MIG Gun Miller Connector	BND20010M
	BND200 MIG Gun Tweco Connector	BND20010T
	BND200 MIG Gun Lincoln Connector	BND20010L

No.	Description	Order
A	Nozzle Brass 5/8″ 15.9mm	4391
	Nozzle Brass 1/2″ 12.7mm	4392
	Nozzle Copper 5/8″ 15.9mm	4393
	Nozzle Copper 1/2″ 12.7mm	4394
	Nozzle Brass 3/8″ 9.5mm	4295
B	Contact Tip .023” 0.6mm Short 31mm	7497
	Contact Tip .030” 0.8mm Short 31mm	7488
	Contact Tip .035” 0.9mm Short 31mm	7489
	Contact Tip .039” 1.0mm Short 31mm	7496
	Contact Tip.045” 1.2mm Short 31mm	7490
	Contact Tip .052” 1.4mm Short 31mm	7498
	Contact Tip 1/16” 1.6mm Short 31mm	7491
B-1	Contact Tip .023” 0.6mm Long 50mm	1597
	Contact Tip .030” 0.8mm Long 50mm	1588
	Contact Tip .035” 0.9mm Long 50mm	1589
	Contact Tip .039” 1.0mm Long 50mm	1596
	Contact Tip .045” 1.2mm Long 50mm	1590
	Contact Tip .052” 1.4mm Long 50mm	1598
	Contact Tip 1/16” 1.6mm Long 50mm	1591

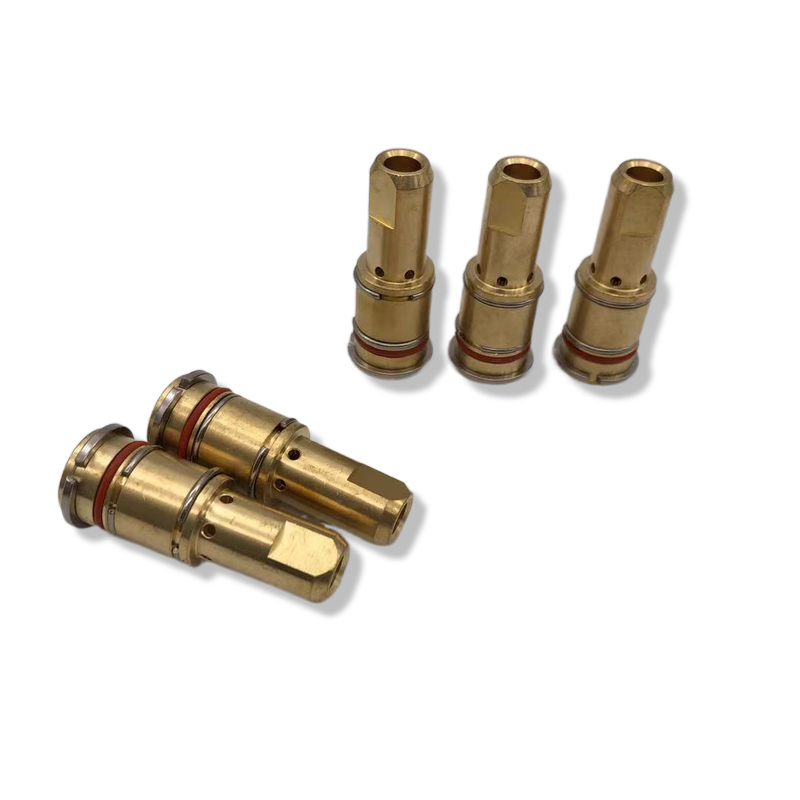

C	Gas diffuser for Short Tips	4335
C-1	Gas diffuser for Long Tips	4235
D	Insulator	4323R
E	Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m)	43110
	Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m)	43115
	Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m)	43125

No.	Description	Order
1	Swan neck	4786*
2	Insulator	4780
3	End fitting	4213B
4	Cone nut	4305
5	Front Handle	1880198
6	Hook	1790002
7	Switch	5662
8	Cable Ball Joint & Support Spring Big	400.1010B
9	Gun & Cable Asbly 10ft(3.0m)	1060121
	Gun & Cable Asbly 12ft(3.6m)	1060122
	Gun & Cable Asbly 15ft(4.6m)	1060123
10	Euro Direct Plug Kit	1199E
10-1	Rear Handle	501.2248
10-2	Adaptor nut	4861
10-3	Bernard Euro Central Connector	5060
11	Rear Handle American Brand	2520047
12	Control Wire (Tweco/Miller)	MAK-354
12-1	Control Wire (TLincoln)	LAK-354
13	Tweco Central Connector	2200103
14	Miller Central Connector	2200101
15	Lincoln Central Connector	2200099
15-1	Gas Tube	LKGAS

Bnd 200A CO2 mig welding torch package

* 1 piece Bnd mig torch 200A package in a carton
