规格: | |
---|---|
Quantity: | |
Bnd Q30
Tonyweld
85159000

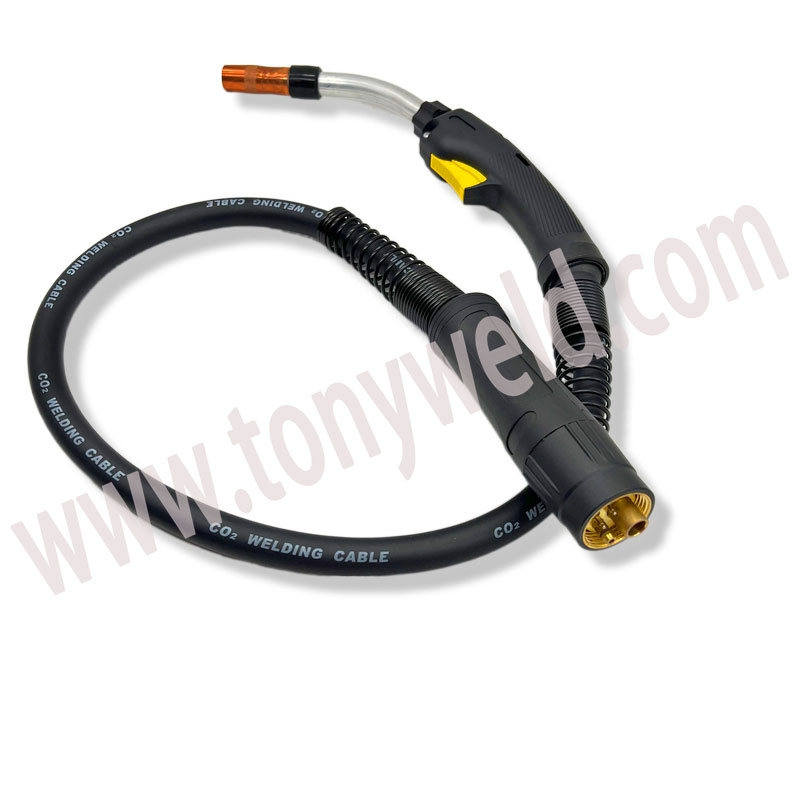

Bnd Q30 CO2 mig welding torch and consumables
bnd torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
Q30CO2 160A mixed gases
60%
euro / mille /bnd connector and etc
0.6-1.2mm

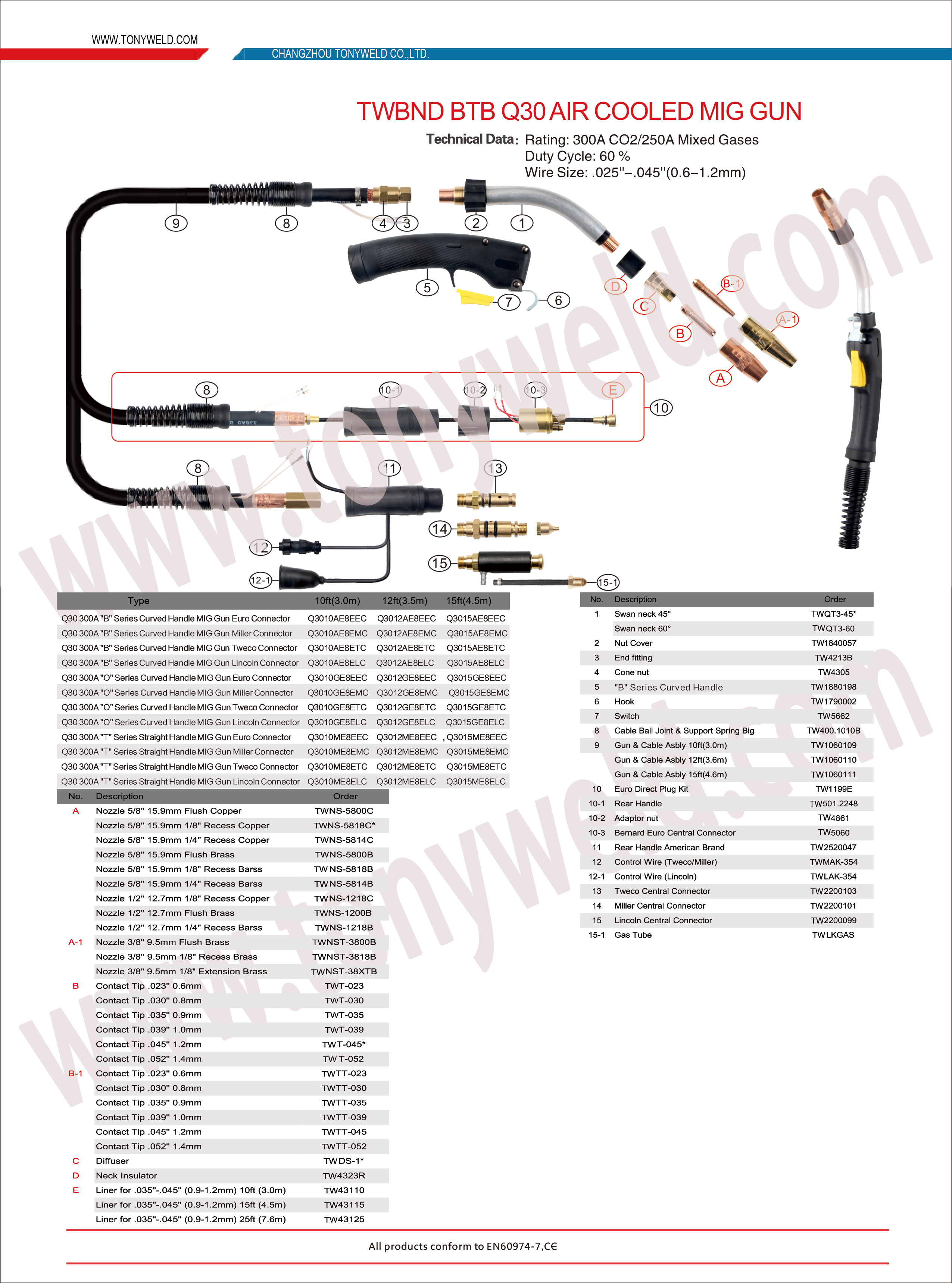

BND BTB Q30 AIR COOLED MIG GUN | ||
Technical Data: | Rating: 300A CO2/250A Mixed Gases | |
| Duty Cycle: 60% | |
| Wire Size: .025”-.045”(0.6-1.2mm) | |
| | |
| Type | 10ft(3.0m) |
| Q300 MIG Gun Euro Connector | Q3010AE8EE |
| Q300 MIG Gun Miller Connector | Q3010AE8EM |
| Q300 MIG Gun Tweco Connector | Q3010AE8ET |
| Q300 MIG Gun Lincoln Connector | Q3010AE8EL |
| | |
No. | Description | Order |
A | Nozzle 5/8″ 15.9mm Flush Copper | NS-5800C |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Copper | NS-5818C* |
| Nozzle 5/8″ 15.9mm 1/4″ Recess Copper | NS-5814C |
| Nozzle 5/8″ 15.9mm Flush Brass | NS-5800B |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Barss | NS-5818B |
| Nozzle 5/8″ 15.9mm 1/4″ Recess Barss | NS-5814B |
| Nozzle 1/2″ 12.7mm 1/8″ Recess Copper | NS-1218C |
| Nozzle 1/2″ 12.7mm Flush Brass | NS-1200B |
| Nozzle 1/2″ 12.7mm 1/4″ Recess Barss | NS-1218B |
A-1 | Nozzle 3/8″ 9.5mm Flush Brass | NST-3800B |
| Nozzle 3/8” 9.5mm 1/8″ Recess Brass | NST-3818B |
| Nozzle 3/8″ 9.5mm 1/8″ Extension Brass | NST-38XTB |
B | Contact Tip .023” 0.6mm | T-023 |
| Contact Tip .030” 0.8mm | T-030 |
| Contact Tip .035” 0.9mm | T-035 |
| Contact Tip .039” 1.0mm | T-039 |
| Contact Tip .045” 1.2mm | T-045* |
| Contact Tip .052” 1.4mm | T-052 |
B-1 | Contact Tip .023” 0.6mm | TT-023 |
| Contact Tip .030” 0.8mm | TT-030 |
| Contact Tip .035” 0.9mm | TT-035 |
| Contact Tip .039” 1.0mm | TT-039 |
| Contact Tip .045” 1.2mm | TT-045 |
| Contact Tip .052” 1.4mm | TT-052 |
C | Diffuser | DS-1 |
D | Neck Insulator | 4323R |
E | Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m) | 44110 |
| Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m) | 44115 |
| Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m) | 44125 |
| | |
No. | Description | Order |
1 | Swan neck 45° | QT3-45 |
| Swan neck 60° | QT3-60 |
2 | Nut Cover | 1840057 |
3 | End fitting | 4213B |
4 | Cone nut | 4305 |
5 | Front Handle | 1880198 |
6 | Hook | 1790002 |
7 | Switch | 5662 |
8 | Cable Ball Joint & Support Spring Big | 400.1010B |
9 | Gun & Cable Asbly 10ft(3.0m) | 1060109 |
| Gun & Cable Asbly 12ft(3.6m) | 1060110 |
| Gun & Cable Asbly 15ft(4.6m) | 1060111 |
10 | Euro Direct Plug Kit | 1199E |
10-1 | Rear Handle | 501.2248 |
10-2 | Adaptor nut | 4861 |
10-3 | Bernard Euro Central Connector | 5060 |
11 | Rear Handle American Brand | 2520047 |
12 | Control Wire (Tweco/Miller) | MAK-354 |
12-1 | Control Wire (TLincoln) | LAK-354 |
13 | Tweco Central Connector | 2200103 |
14 | Miller Central Connector | 2200101 |
15 | Lincoln Central Connector | 2200099 |
15-1 | Gas Tube | LKGAS |
BND BTB Q30 AIR COOLED MIG GUN | ||
Technical Data: | Rating: 300A CO2/250A Mixed Gases | |
| Duty Cycle: 60% | |
| Wire Size: .025”-.045”(0.6-1.2mm) | |
| | |
| Type | 10ft(3.0m) |
| Q300 MIG Gun Euro Connector | Q3010AE8EE |
| Q300 MIG Gun Miller Connector | Q3010AE8EM |
| Q300 MIG Gun Tweco Connector | Q3010AE8ET |
| Q300 MIG Gun Lincoln Connector | Q3010AE8EL |
| | |
No. | Description | Order |
A | Nozzle 5/8″ 15.9mm Flush Copper | NS-5800C |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Copper | NS-5818C* |
| Nozzle 5/8″ 15.9mm 1/4″ Recess Copper | NS-5814C |
| Nozzle 5/8″ 15.9mm Flush Brass | NS-5800B |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Barss | NS-5818B |
| Nozzle 5/8″ 15.9mm 1/4″ Recess Barss | NS-5814B |
| Nozzle 1/2″ 12.7mm 1/8″ Recess Copper | NS-1218C |
| Nozzle 1/2″ 12.7mm Flush Brass | NS-1200B |
| Nozzle 1/2″ 12.7mm 1/4″ Recess Barss | NS-1218B |
A-1 | Nozzle 3/8″ 9.5mm Flush Brass | NST-3800B |
| Nozzle 3/8” 9.5mm 1/8″ Recess Brass | NST-3818B |
| Nozzle 3/8″ 9.5mm 1/8″ Extension Brass | NST-38XTB |
B | Contact Tip .023” 0.6mm | T-023 |
| Contact Tip .030” 0.8mm | T-030 |
| Contact Tip .035” 0.9mm | T-035 |
| Contact Tip .039” 1.0mm | T-039 |
| Contact Tip .045” 1.2mm | T-045* |
| Contact Tip .052” 1.4mm | T-052 |
B-1 | Contact Tip .023” 0.6mm | TT-023 |
| Contact Tip .030” 0.8mm | TT-030 |
| Contact Tip .035” 0.9mm | TT-035 |
| Contact Tip .039” 1.0mm | TT-039 |
| Contact Tip .045” 1.2mm | TT-045 |
| Contact Tip .052” 1.4mm | TT-052 |
C | Diffuser | DS-1 |
D | Neck Insulator | 4323R |
E | Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m) | 44110 |
| Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m) | 44115 |
| Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m) | 44125 |
| | |
No. | Description | Order |
1 | Swan neck 45° | QT3-45 |
| Swan neck 60° | QT3-60 |
2 | Nut Cover | 1840057 |
3 | End fitting | 4213B |
4 | Cone nut | 4305 |
5 | Front Handle | 1880198 |
6 | Hook | 1790002 |
7 | Switch | 5662 |
8 | Cable Ball Joint & Support Spring Big | 400.1010B |
9 | Gun & Cable Asbly 10ft(3.0m) | 1060109 |
| Gun & Cable Asbly 12ft(3.6m) | 1060110 |
| Gun & Cable Asbly 15ft(4.6m) | 1060111 |
10 | Euro Direct Plug Kit | 1199E |
10-1 | Rear Handle | 501.2248 |
10-2 | Adaptor nut | 4861 |
10-3 | Bernard Euro Central Connector | 5060 |
11 | Rear Handle American Brand | 2520047 |
12 | Control Wire (Tweco/Miller) | MAK-354 |
12-1 | Control Wire (TLincoln) | LAK-354 |
13 | Tweco Central Connector | 2200103 |
14 | Miller Central Connector | 2200101 |
15 | Lincoln Central Connector | 2200099 |
15-1 | Gas Tube | LKGAS |
