规格: | |
---|---|
Quantity: | |
Bnd 400A
Tonyweld
85159000
BNd CO2 mig welding torch 400A and welding co
bNd torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
400A CO2 380A mixed gases
60%
euro / miller /bernard connector and etc
0.8-1.2mm

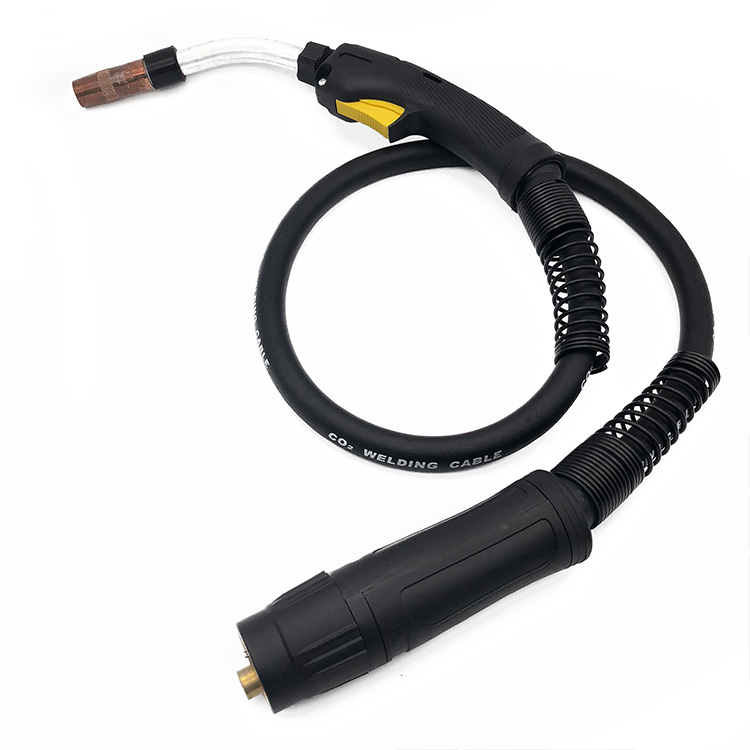

BND 400A AIR COOLED MIG WELDING TORCH | ||
Technical Data:Rating:400A CO2/350A Mixed Gases | ||
Duty Cycle: 60% | ||
Wire Size: .025”-1/16”(0.6-1.6mm) | ||
| | |
Type | 10ft(3.0m) | |
| BND400 MIG Gun Euro Connector | BND40010E |
| BND400 MIG Gun Miller Connector | BND40010M |
| BND400 MIG Gun Tweco Connector | BND40010T |
| BND400 MIG Gun Lincoln Connector | BND40010L |
| | |
No. | Description | Order |
A | Nozzle Brass 3/4″ 19mm | 4491 |
| Nozzle Brass 9/16″ 14.3mm | 4492 |
| Nozzle Copper 3/4″ 19mm | 4591 |
| Nozzle Copper 9/16″ 14.3mm | 4592 |
B | Contact Tip .023” 0.6mm Short 31mm | 7497 |
| Contact Tip .030” 0.8mm Short 31mm | 7488 |
| Contact Tip .035” 0.9mm Short 31mm | 7489 |
| Contact Tip .039” 1.0mm Short 31mm | 7496 |
| Contact Tip.045” 1.2mm Short 31mm | 7490 |
| Contact Tip .052” 1.4mm Short 31mm | 7498 |
| Contact Tip 1/16” 1.6mm Short 31mm | 7491 |
| Contact Tip 5/64” 2.0mm Short 31.8mm | 7492 |
| Contact Tip 3/32” 2.4mm Short 31.8mm | 7493 |
B-1 | Contact Tip .023” 0.6mm Long 50mm | 1597 |
| Contact Tip .030” 0.8mm Long 50mm | 1588 |
| Contact Tip .035” 0.9mm Long 50mm | 1589 |
| Contact Tip .039” 1.0mm Long 50mm | 1596 |
| Contact Tip .045” 1.2mm Long 50mm | 1590 |
| Contact Tip .052” 1.4mm Long 50mm | 1598 |
| Contact Tip 1/16” 1.6mm Long 50mm | 1591 |
| Contact Tip 5/64” 2.0mm Long 50.8mm | 1592 |
| Contact Tip 3/32” 2.4mm Long 50.8mm | 1593 |
C | Gas diffuser for Short Tips | 4435 |
C-1 | Gas diffuser for Long Tips | 4635 |
D | Insulator | 4423R |
E | Liner for .045”-.1/16” (1.2-1.6) 10ft (3.0m) | 44210 |
| Liner for .045”-.1/16” (1.2-1.6) 15ft (4.6m) | 44215 |
| Liner for .045”-.1/16” (1.2-1.6) 25ft (7.6m) | 44225 |
| | |
No. | Description | Order |
1 | Swan neck | 4794* |
2 | Insulator | 4780 |
3 | End fitting | 4313B |
4 | Cone nut | 1540003 |
5 | Front Handle | 1880198 |
6 | Hook | 1790002 |
7 | Switch | 5662 |
8 | Cable Ball Joint & Support Spring Big | 400.1010B |
9 | Gun & Cable Asbly 10ft(3.0m) | 1060115 |
| Gun & Cable Asbly 12ft(3.6m) | 1060116 |
| Gun & Cable Asbly 15ft(4.6m) | 1060117 |
10 | Euro Direct Plug Kit | 1199E |
44835 | Rear Handle | 501.2248 |
44836 | Adaptor nut | 4861 |
44837 | Bernard Euro Central Connector | 5060 |
11 | Rear Handle American Brand | 2520047 |
12 | Control Wire (Tweco/Miller) | MAK-354 |
44896 | Control Wire (TLincoln) | LAK-354 |
13 | Tweco Central Connector | 2200103 |
14 | Miller Central Connector | 2200101 |
15 | Lincoln Central Connector | 2200099 |
44576 | Gas Tube | LKGAS |
BND 400A AIR COOLED MIG WELDING TORCH | ||
Technical Data:Rating:400A CO2/350A Mixed Gases | ||
Duty Cycle: 60% | ||
Wire Size: .025”-1/16”(0.6-1.6mm) | ||
| | |
Type | 10ft(3.0m) | |
| BND400 MIG Gun Euro Connector | BND40010E |
| BND400 MIG Gun Miller Connector | BND40010M |
| BND400 MIG Gun Tweco Connector | BND40010T |
| BND400 MIG Gun Lincoln Connector | BND40010L |
| | |
No. | Description | Order |
A | Nozzle Brass 3/4″ 19mm | 4491 |
| Nozzle Brass 9/16″ 14.3mm | 4492 |
| Nozzle Copper 3/4″ 19mm | 4591 |
| Nozzle Copper 9/16″ 14.3mm | 4592 |
B | Contact Tip .023” 0.6mm Short 31mm | 7497 |
| Contact Tip .030” 0.8mm Short 31mm | 7488 |
| Contact Tip .035” 0.9mm Short 31mm | 7489 |
| Contact Tip .039” 1.0mm Short 31mm | 7496 |
| Contact Tip.045” 1.2mm Short 31mm | 7490 |
| Contact Tip .052” 1.4mm Short 31mm | 7498 |
| Contact Tip 1/16” 1.6mm Short 31mm | 7491 |
| Contact Tip 5/64” 2.0mm Short 31.8mm | 7492 |
| Contact Tip 3/32” 2.4mm Short 31.8mm | 7493 |
B-1 | Contact Tip .023” 0.6mm Long 50mm | 1597 |
| Contact Tip .030” 0.8mm Long 50mm | 1588 |
| Contact Tip .035” 0.9mm Long 50mm | 1589 |
| Contact Tip .039” 1.0mm Long 50mm | 1596 |
| Contact Tip .045” 1.2mm Long 50mm | 1590 |
| Contact Tip .052” 1.4mm Long 50mm | 1598 |
| Contact Tip 1/16” 1.6mm Long 50mm | 1591 |
| Contact Tip 5/64” 2.0mm Long 50.8mm | 1592 |
| Contact Tip 3/32” 2.4mm Long 50.8mm | 1593 |
C | Gas diffuser for Short Tips | 4435 |
C-1 | Gas diffuser for Long Tips | 4635 |
D | Insulator | 4423R |
E | Liner for .045”-.1/16” (1.2-1.6) 10ft (3.0m) | 44210 |
| Liner for .045”-.1/16” (1.2-1.6) 15ft (4.6m) | 44215 |
| Liner for .045”-.1/16” (1.2-1.6) 25ft (7.6m) | 44225 |
| | |
No. | Description | Order |
1 | Swan neck | 4794* |
2 | Insulator | 4780 |
3 | End fitting | 4313B |
4 | Cone nut | 1540003 |
5 | Front Handle | 1880198 |
6 | Hook | 1790002 |
7 | Switch | 5662 |
8 | Cable Ball Joint & Support Spring Big | 400.1010B |
9 | Gun & Cable Asbly 10ft(3.0m) | 1060115 |
| Gun & Cable Asbly 12ft(3.6m) | 1060116 |
| Gun & Cable Asbly 15ft(4.6m) | 1060117 |
10 | Euro Direct Plug Kit | 1199E |
44835 | Rear Handle | 501.2248 |
44836 | Adaptor nut | 4861 |
44837 | Bernard Euro Central Connector | 5060 |
11 | Rear Handle American Brand | 2520047 |
12 | Control Wire (Tweco/Miller) | MAK-354 |
44896 | Control Wire (TLincoln) | LAK-354 |
13 | Tweco Central Connector | 2200103 |
14 | Miller Central Connector | 2200101 |
15 | Lincoln Central Connector | 2200099 |
44576 | Gas Tube | LKGAS |
