Product Category

Binzle 25AK mig mag welding torch and welding parts

Share to:

-25AK Air Cooled MIG Welding Torch Technical Data： Rating: 230A CO2/200A Mixed Gases Duty Cycle: 60 % Wire Size: 0.8-1.2 mm

Quantity:



Inquire Add to Basket

Model:
25AK parts
Brand:
Tonyweld
Code:
85159000
Product Name :
25AK soldador mig mag welding parts
series :
25AK mig torch
package :
5pcs aplastic box or as customer request
Place of Origin :
Jiangsu, China (Mainland)
material :
copper brass CuCrZr E-cu
属性:
属性值

Product Description

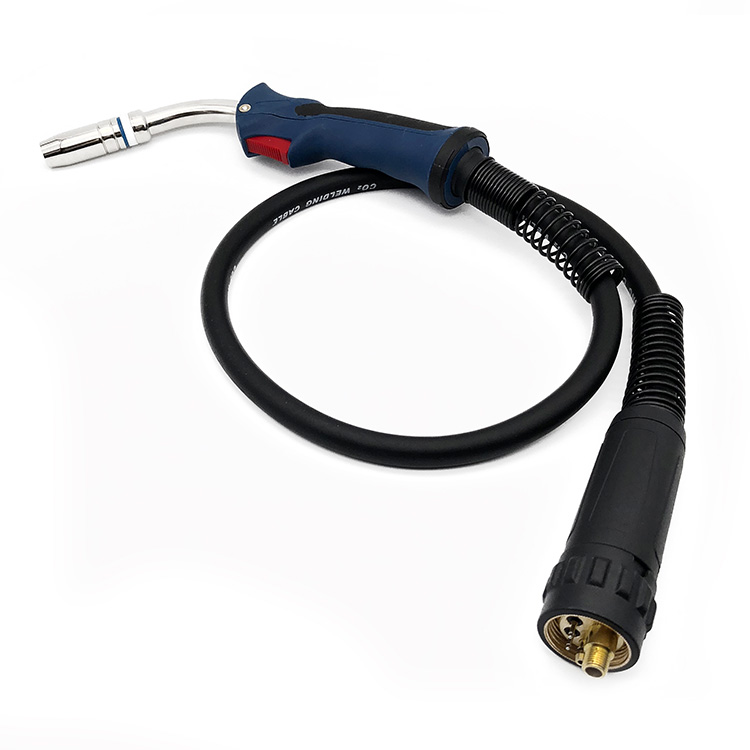

Binzle 25AK mig mag welding torch and welding parts

-25AK Air Cooled MIG Welding Torch
Technical Data：	Rating: 230A CO2/200A Mixed Gases
	Duty Cycle: 60 %
	Wire Size: 0.8-1.2 mm
No.	Description	Order
	25AK 3m Welding Torch	4.051
	25AK 4m Welding Torch	4.0511
	25AK 5m Welding Torch	4.0512

A	Nozzle Tapered φ11.5*57	145.0124
	Nozzle Conical φ15*57	145.0076
	Nozzle Cylindrical φ18*57	145.0042
B	Contact Tip E-CU M6280.8mm	140.0051
	Contact Tip E-CU M6280.9mm	140.0169
	Contact Tip E-CU M6281.0mm	140.0242
	Contact Tip E-CU M6281.2mm	140.0379
	Contact Tip E-CU M6281.4mm	140.0516
	Contact Tip E-CU M6281.6mm	140.0555
	Contact Tip CuCrZr M6280.8mm	140.0054
	Contact Tip CuCrZr M6281.0mm	140.0245
	Contact Tip CuCrZr M6281.2mm	140.0382
	Contact Tip CuCrZr M6281.4mm	140.0519
	Contact Tip CuCrZr M6281.6mm	140.0558
	Contact Tip E-CU Aluminum M6280.8mm	141.0001
	Contact Tip E-CU Aluminum M6281.0mm	141.0006
	Contact Tip E-CU Aluminum M6281.2mm	141.001
	Contact Tip E-CU Aluminum M6281.4mm	141.0019
	Contact Tip E-CU Aluminum M6281.6mm	141.002
C	Tip Holder M6*35	142.0001
	Tip Holder M8*35	142.0001M8
D	Nozzle Spring	3.0013
E	Red Steel Liner 1.0-1.2mm 3m	124.0026
	Red Steel Liner 1.0-1.2mm 4m	124.0031
	Red Steel Liner 1.0-1.2mm 5m	124.0035

1	Swan Neck	4.0012
1-1	Swan neck Flexible	4.0032
2	Front Handle	180.D078
3	Switch	185.0031S
4	Cable Ball Joint & Support Spring Middle	400.1010M
5	25AK Power Cable 3m 25mm²	160.0128
	25AK Power Cable 4m 25mm²	160.0142
	25AK Power Cable 5m 25mm²	160.0155
6	Rear Handle & Support Spring	501.2248X
7	Rear Connector Nut	500.0213X
8	Euro Central Connector KZ-2	501.0003
9	Liner Positioner Nut M10x1	501.0082

25AK mig welding consumables

15AK

25AK soldador mig mag CO2 welding torch

25AK soldador mig mag welding parts package

* 5pcs a plastic box or as customer request

Our Sevice

* timely online 24 hours .

* sample order /trail order is available .

*supply the qualified products.

*after -sale service

*processing customer's sample .
