binzel mb 26kd
Tonyweld

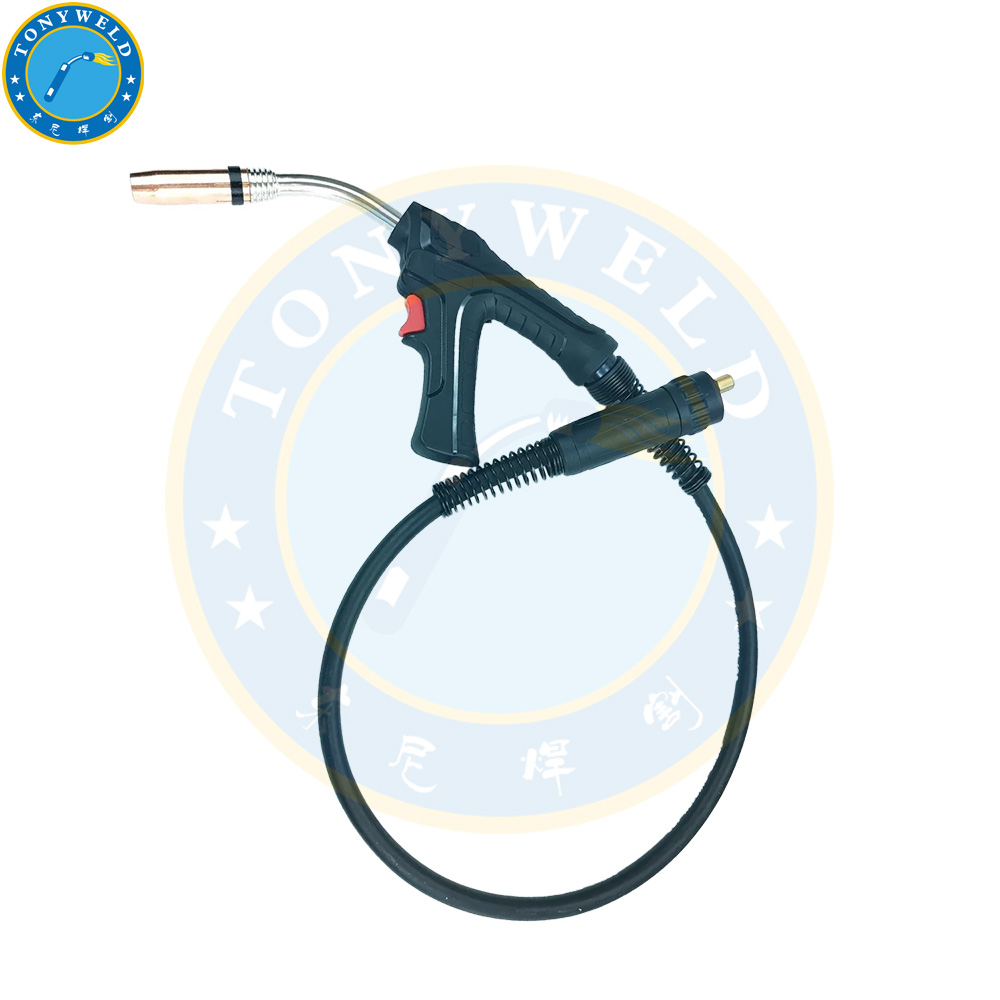

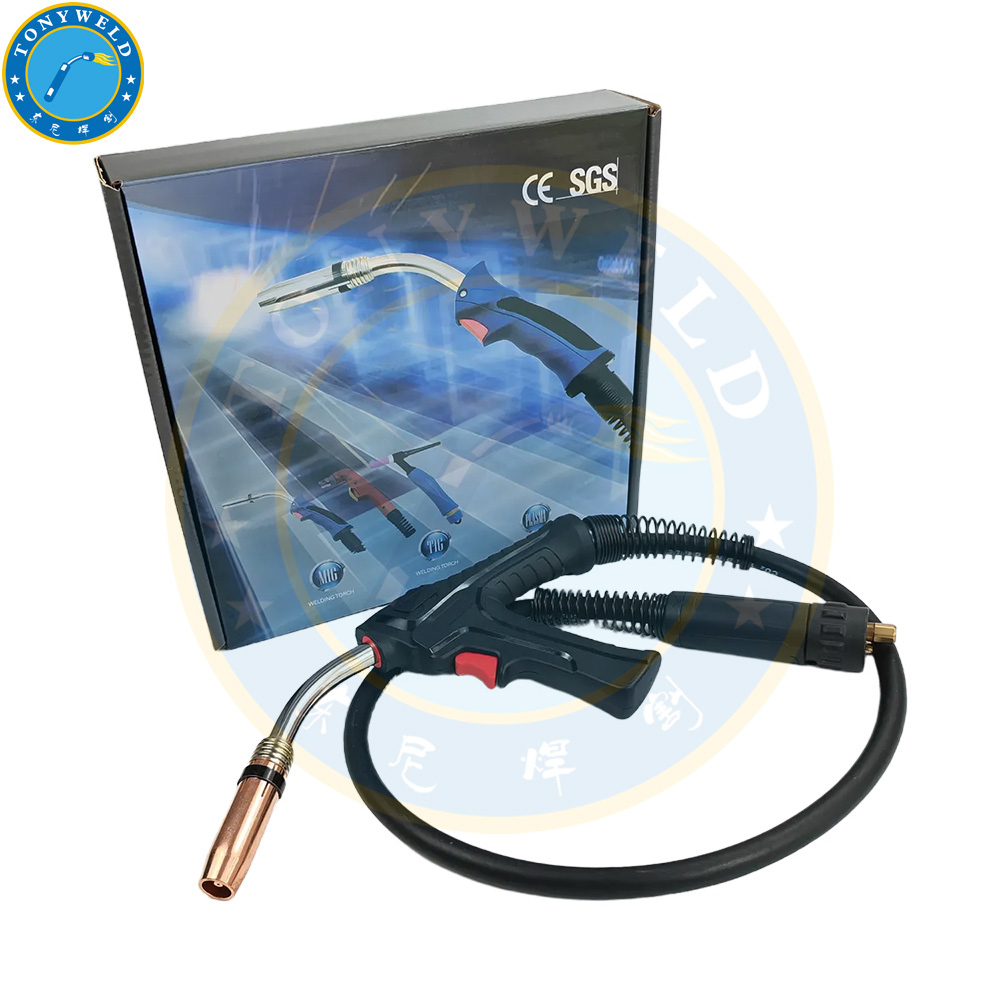

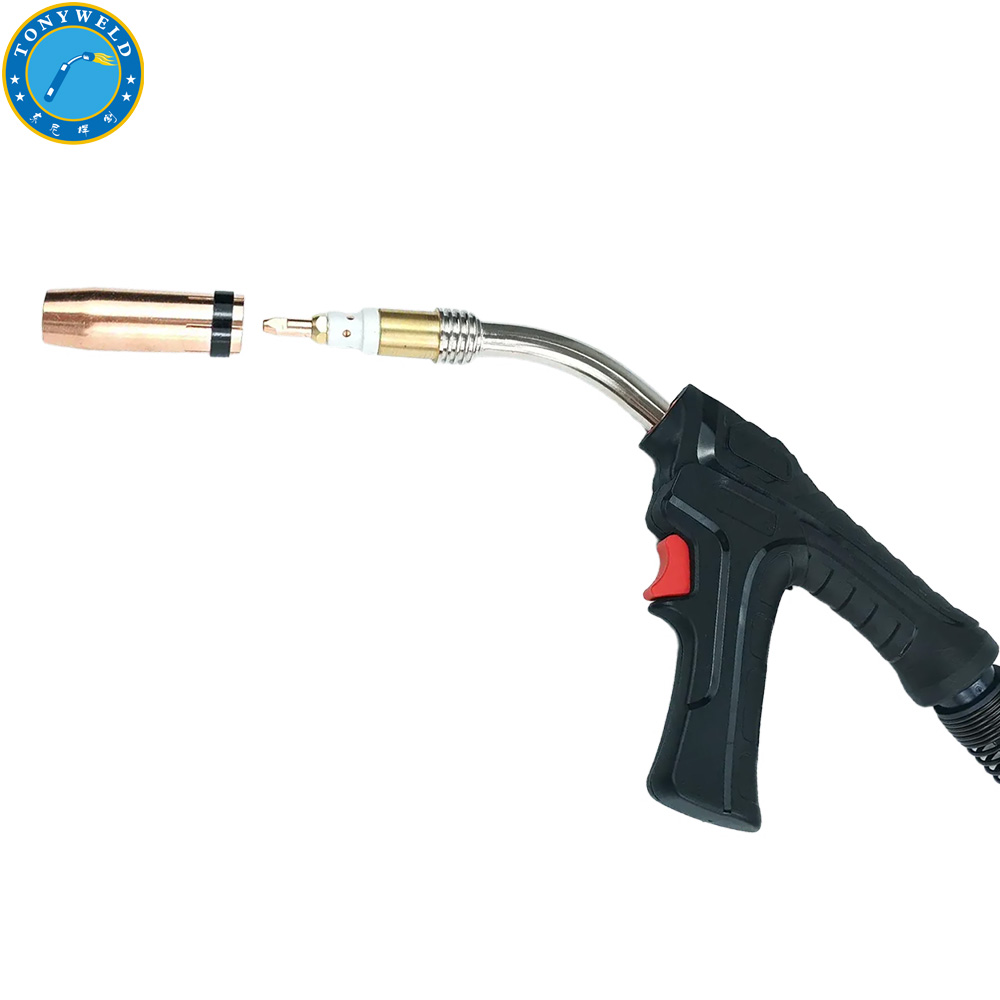

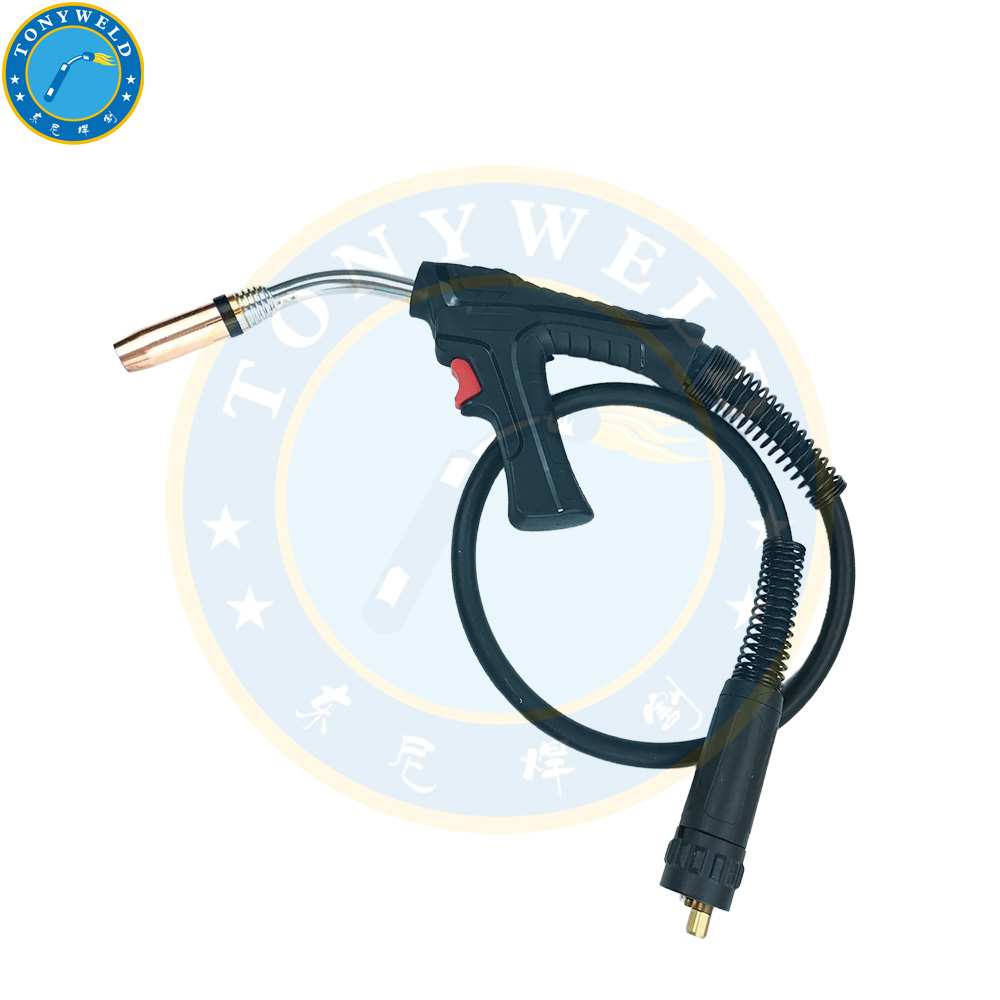

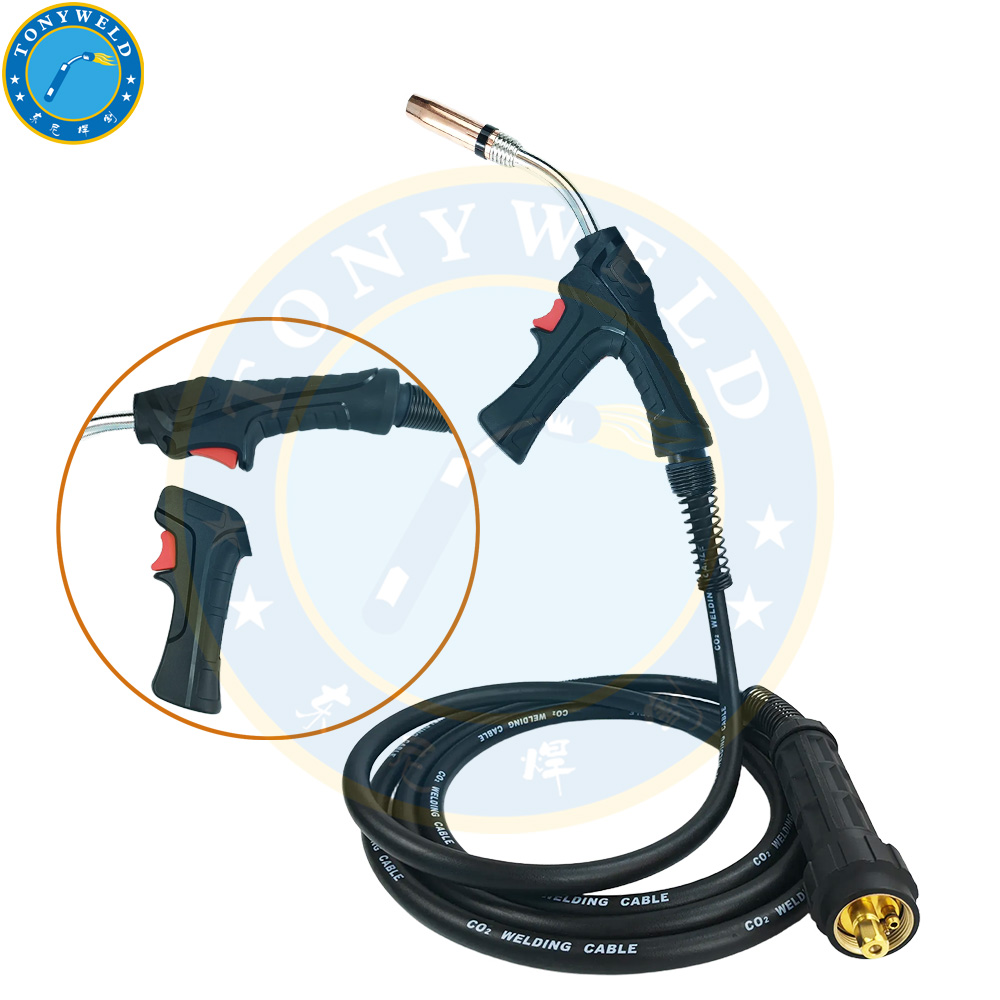

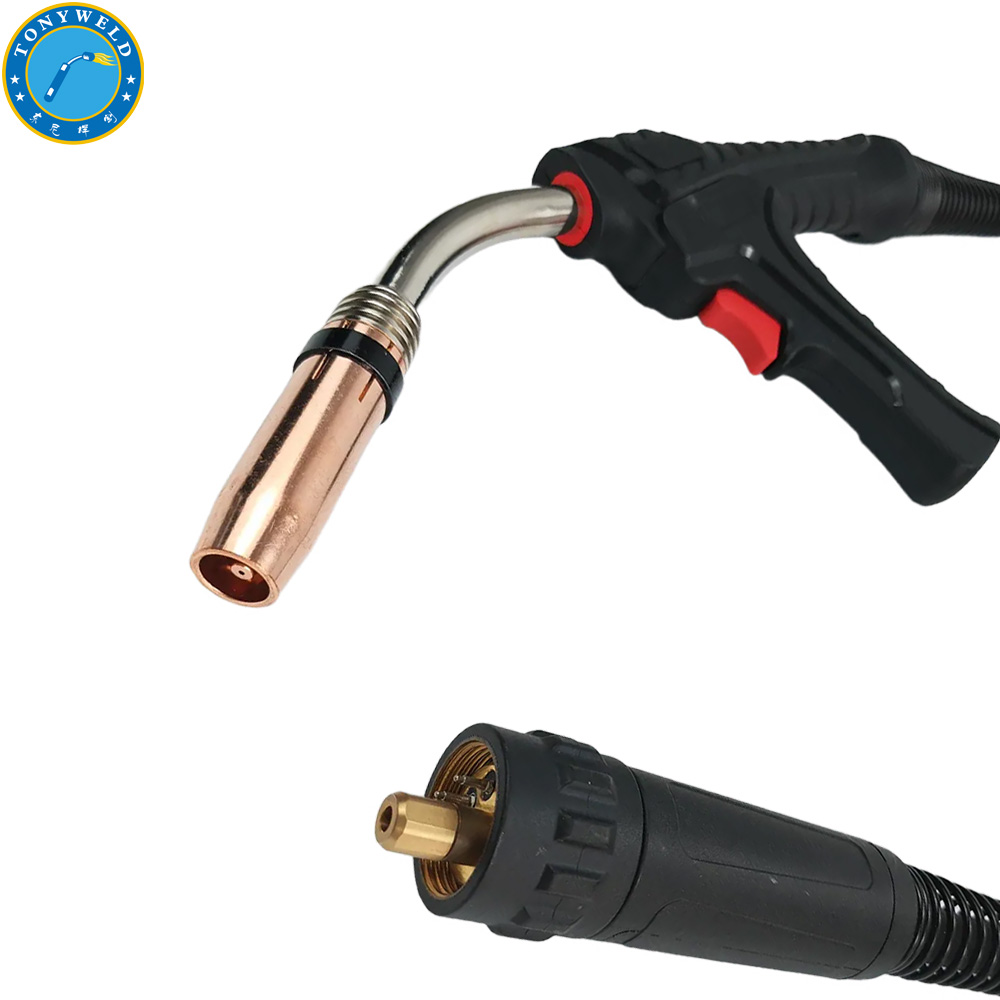

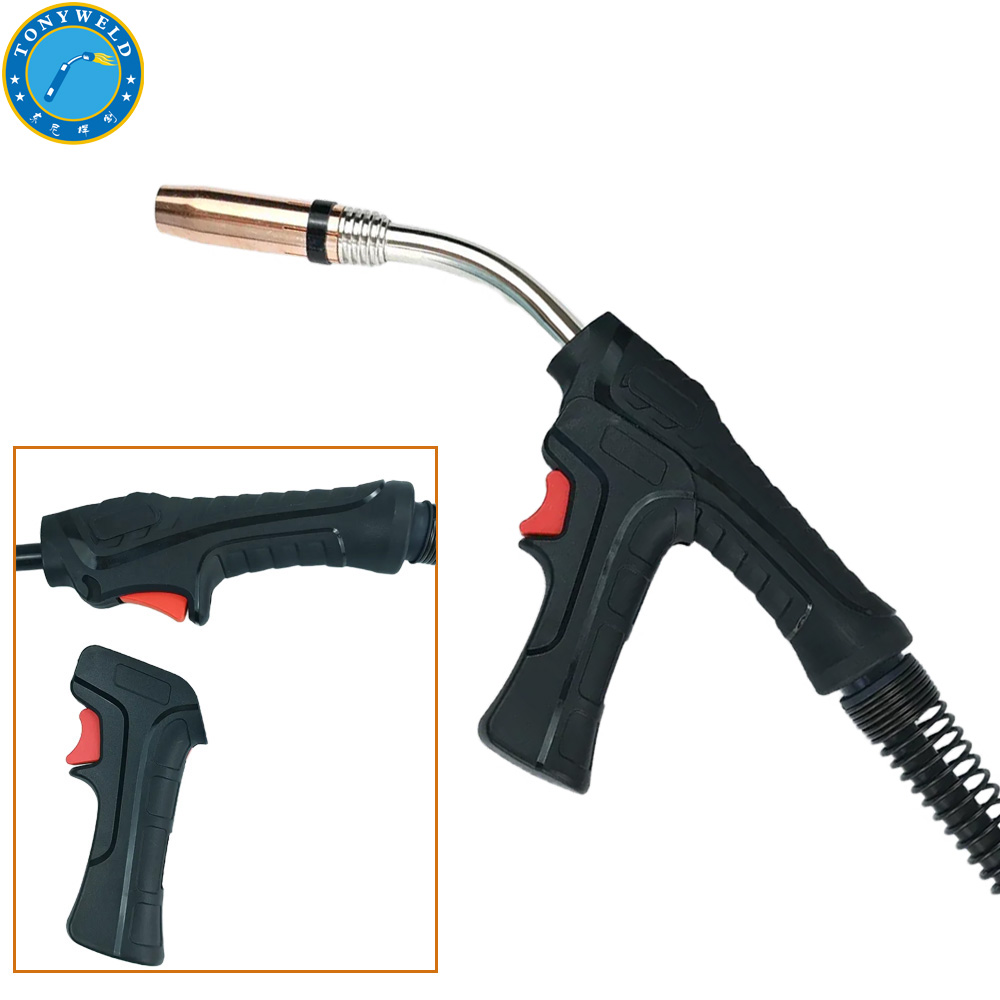

Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch
| Mig Welding Torches Binzel Removable Pistol Grip Mb 26kd Co2 Gas Air Cooled Gun Torch Technical Data |
| TW26KD Air Cooled MIG Welding Torch | ||
| Technical Data: | ||
| Rating: 270A CO2/240A Mixed Gases | ||
| Duty Cycle: 60% | ||
| Wire Size:0.8-1.2mm | ||
| No. | Description | Order |
| TW26KD 3m Welding Torch | TW018.0146 | |
| TW26KD 4m Welding Torch | TW018.0147 | |
| TW26KD 5m Welding Torch | TW018.0148 | |
| A | Nozzle Tapered Φ14*76 | TW145.0132 |
| Nozzle Conical Φ16*76 | TW145.0085 | |
| Nozzle Cylindrical Φ20*76 | TW145.0051 | |
| B | Contact Tip E-CU M6*28*0.8mm | TW140.0051 |
| Contact Tip E-CU M6*28*0.9mm | TW140.0169 | |
| Contact Tip E-CU M6*28*1.0mm | TW140.0242 | |
| Contact Tip E-CU M6*28*1.2mm | TW140.0379 | |
| Contact Tip E_CU M6*28*1.4mm | TW140.0516 | |
| Contact Tip E-CU M6*28*1.6mm | TW140.0555 | |
| Contact Tip CuCrZr M6*28*0.8mm | TW140.0054 | |
| Contact Tip CuCrZr M6*28*1.0mm | TW140.0245 | |
| Contact Tip CuCrZr M6*28*1.2mm | TW140.0382 | |
| Contact Tip CuCrZr M6*28*1.4mm | TW140.0519 | |
| Contact Tip CuCrZr M6*28*1.6mm | TW140.0558 | |
| Contact Tip E-CU Aluminum M6*28*0.8mm | TW141.0001 | |
| Contact Tip E-CU Aluminum M6*28*1.0mm | TW141.0006 | |
| Contact Tip E-CU Aluminum M6*28*1.2mm | TW141.0010 | |
| Contact Tip E-CU Aluminum M6*28*1.4mm | TW141.0019 | |
| Contact Tip E-CU Aluminum M6*28*1.6mm | TW141.0020 | |
| C | Contact Tip Holder M6*22 | TW142.0007 |
| Contact Tip Holder M8*22 | TW142.0082 | |
| Contact Tip Holder M6*25 | TW142.0012 | |
| Contact Tip Holder M8*25 | TW142.0026 | |
| D | Gas Diffuser DMC | TW018.0116 |
| Gas Diffuser Ceramic | TW018.0141 | |
| E | Red Steel Liner 1.0-1.2mm 3m | TW124.0026 |
| Red Steel Liner 1.0-1.2mm 4m | TW124.0031 | |
| Red Steel Liner 1.0-1.2mm 5m | TW124.0035 | |
| No. | Description | Order |
| 1 | Swan Neck | TW018.0001 |
| 2 | Front Handle | TW180.D078 |
| 3 | Switch | TW185.0031S |
| 4 | Cable Ball Joint & Support Spring Middle | TW400.1010M |
| 5 | TW26KD Power Cable 3m 30mm2 | TW160.0239 |
| TW26KD Power Cable 4m 30mm2 | TW160.0255 | |
| TW26KD Power Cable 5m 30mm2 | TW160.0267 | |
| 6 | Rear Handle & Support Spring | TW501.2248X |
| 7 | Rear Connector Nut | TW500.0213X |
| 8 | Euro Central Connector KZ-2 | TW501.0003 |
| 9 | Liner Positioner Nut M10x1 | TW501.0082 |
| Mig Welding Torch Binzel Series Related Products |
