esab psf 415
Tonyweld

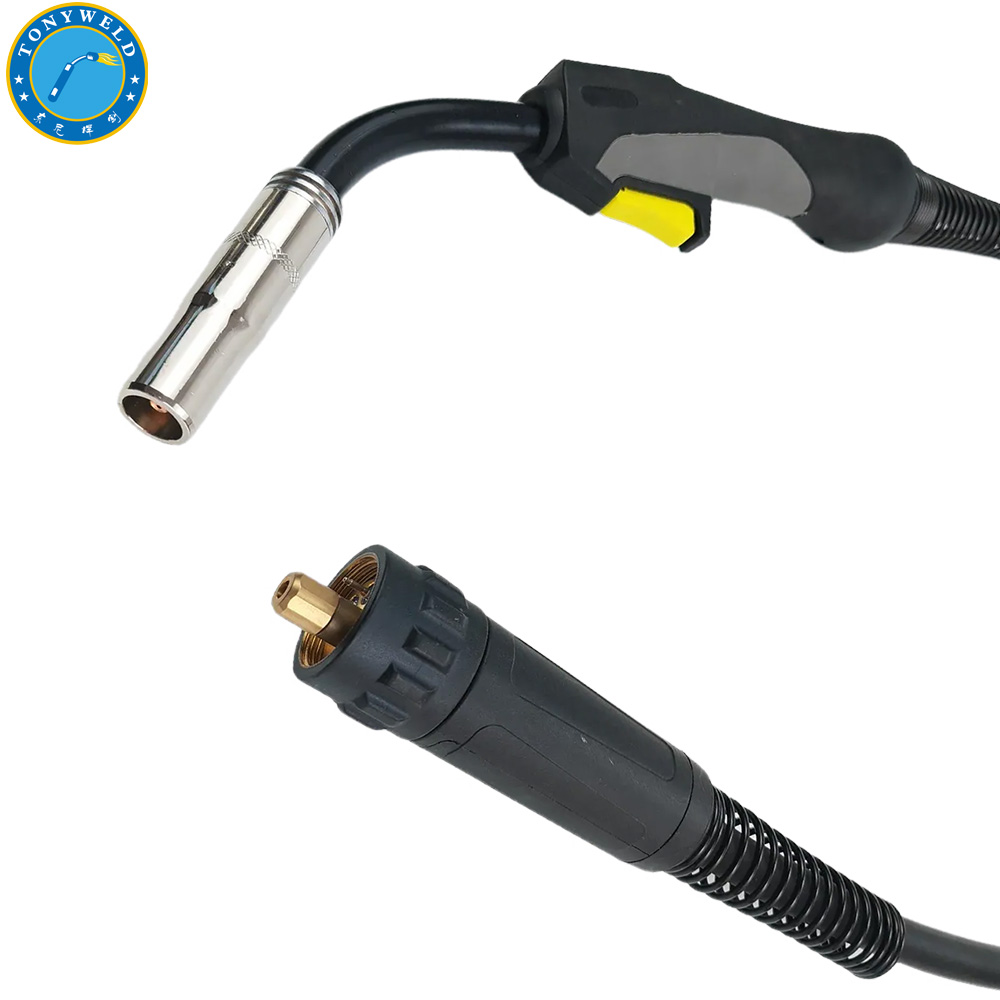

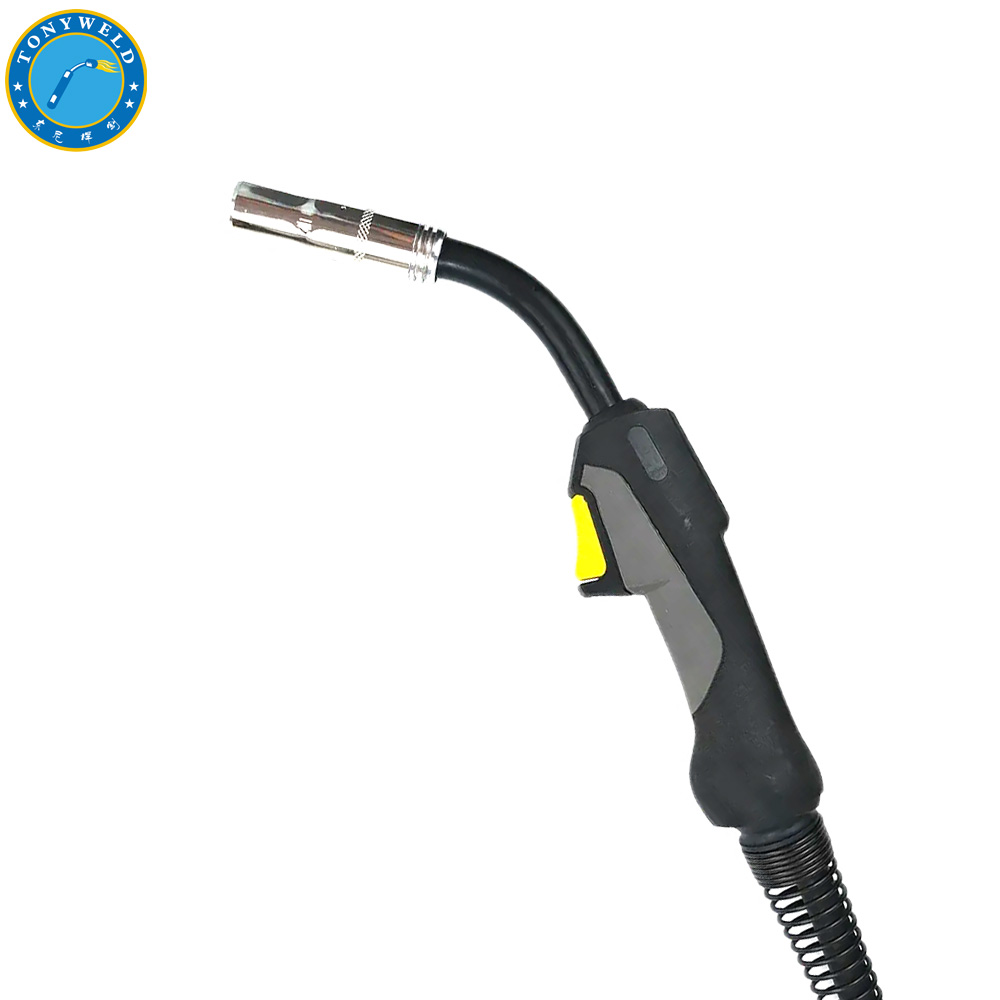

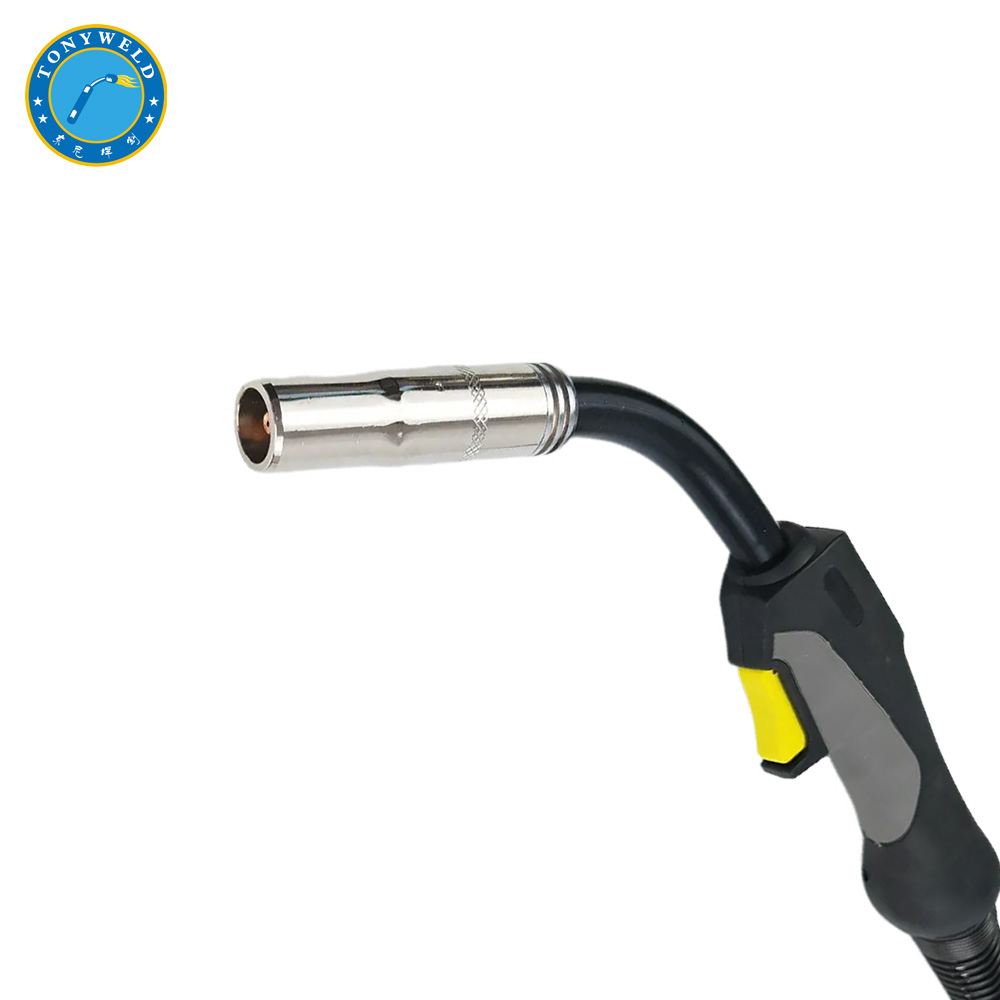

380A Mig Welding Torch Easb Type PSF415 Co2 Gas Air Cooled Gun with Euro Connector
380A Mig Welding Torch Easb Type PSF415 Co2 Gas Air Cooled Gun with Euro Connector
| 380A Mig Welding Torch Easb Type PSF415 Co2 Gas Air Cooled Gun with Euro Connector Technical Data |
| TWPSF415 AIR COOLED MIG WELDING TORCH | ||
| Technical Data： | Rating : 380A CO2/325A Mixed Gases | |
| Duty Cycle : 60% | ||
| Wire Size : 0.8-1.6mm | ||
| No. | Description | Order |
| TWPSF415 Air Cooled Welding Torch 3m | TW0700025040 | |
| TWPSF415 Air Cooled Welding Torch 4m | TW0700025041 | |
| TWPSF415 Air Cooled Welding Torch 5m | TW0700025042 | |
| A | Nozzle φ17mm | TW0458464883 |
| A-1 | Nozzle Insulation Bushing | TW0458471004 |
| B | Contact Tip M8*37*0.6mm | TW0468502001 |
| Contact Tip M8*37*0.8mm | TW0468502003 | |
| Contact Tip M8*37*0.9mm | TW0468502004 | |
| Contact Tip M8*37*1.0mm | TW0468502005 | |
| Contact Tip M8*37*1.2mm | TW0468502006 | |
| Contact Tip M8*37*1.4mm | TW0468502008 | |
| Contact Tip M8*37*1.6mm | TW0468502009 | |
| C | Tip Adapter M8 | TW0460819001 |
| D | Liner Steel Insulation Yellow Wire φ1.2-1.6mm 3m . | TW0700025802 |
| Liner Steel Insulation Yellow Wire φ1.2-1.6mm 4m | TW0700025803 | |
| Liner Steel Insulation Yellow Wire φ1.2-1.6mm 5m | TW0700025804 | |
| No. | Description | Order |
| 1 | TWPSF415 Swan Neck | TW0700025002 |
| 2 | Handle Expert Plus | TW0700025905 |
| 3 | Switch | TW0700025903 |
| 4 | Switch Long | TW0800025903 |
| 5 | Cable Ball Joint & Support Spring | TW070002590G |
| 6 | Cable Assembly 3m | TW0700025957 |
| Cable Assembly 4m | TW0700025958 | |
| Cable Assembly 5m | TW0700025959 | |
| 7 | Support Spring | TW0700020907 |
| 8 | Rear Handle | TW0700025907 |
| 9 | Adaptor Nut M33x2 | TW0700025951 |
| 10 | Euro Central Connector | TW0700200101 |
| 11 | Liner Positioner Nut M10x1 | TW0700200098 |
| Mig Welding Torch Esab Series Related Products |
| TW0700 025 020 TWPSF 260 Welding torch 3m |
| TW0700 025 021 TWPSF 260 Welding torch 4m |
| TW0700 025 022 TWPSF 260 Welding torch 5m |
| TW0700 025 030 TWPSF 315 Welding torch 3m |
| TW0700 025 031 TWPSF 315 Welding torch 4m |
| TW0700 025 032 TWPSF 315 Welding torch 5m |
| TW0700 025 040 TWPSF 415 Welding torch 3m |
| TW0700 025 041 TWPSF 415 Welding torch 4m |
| TW0700 025 042 TWPSF 415 Welding torch 5m |
| TW0700 025 050 TWPSF 515 Welding torch 3m 50mm² |
| TW0700 025 051 TWPSF 515 Welding torch 4m 50mm² |
| TW0700 025 052 TWPSF 515 Welding torch 5m 50mm² |
| TW0700 025 050 TWPSF 515 Welding torch 3m 56mm² |
| TW0700 025 051 TWPSF 515 Welding torch 4m 56mm² |
| TW0700 025 052 TWPSF 515 Welding torch 5m 56mm² |
| TW0700 025 060 TWPSF 420W Water Welding torch 3m |
| TW0700 025 061 TWPSF 420W Water Welding torch 4m |
| TW0700 025 062 TWPSF 420W Water Welding torch 5m |
| TW0700 025 070 TWPSF 520W Water Welding torch 3m |
| TW0700 025 071 TWPSF 520W Water Welding torch 4m |
| TW0700 025 072 TWPSF 520W Water Welding torch 5m |
