binzel mb 15ak
Tonyweld

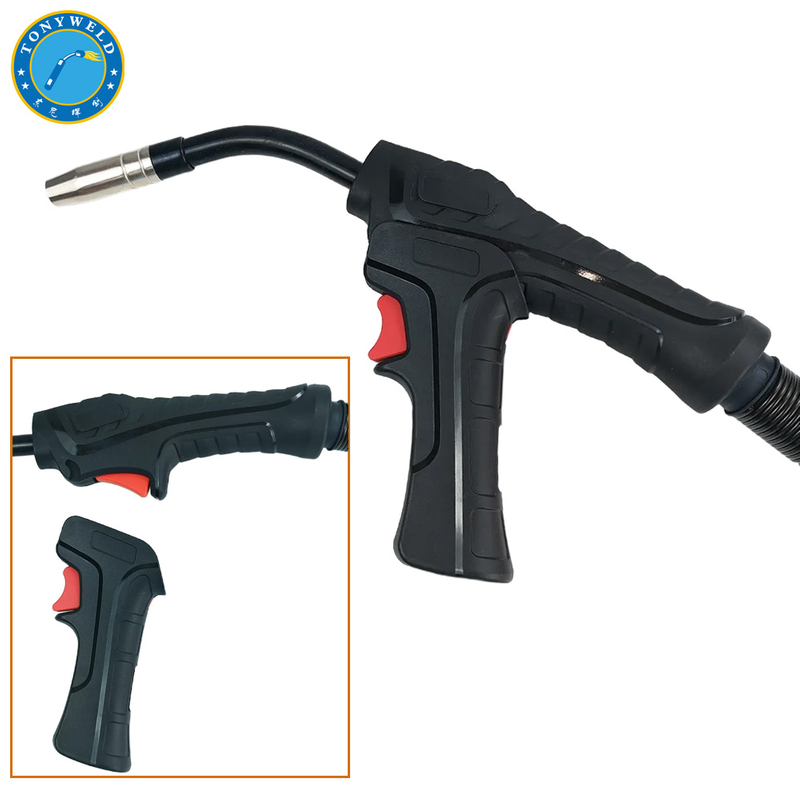

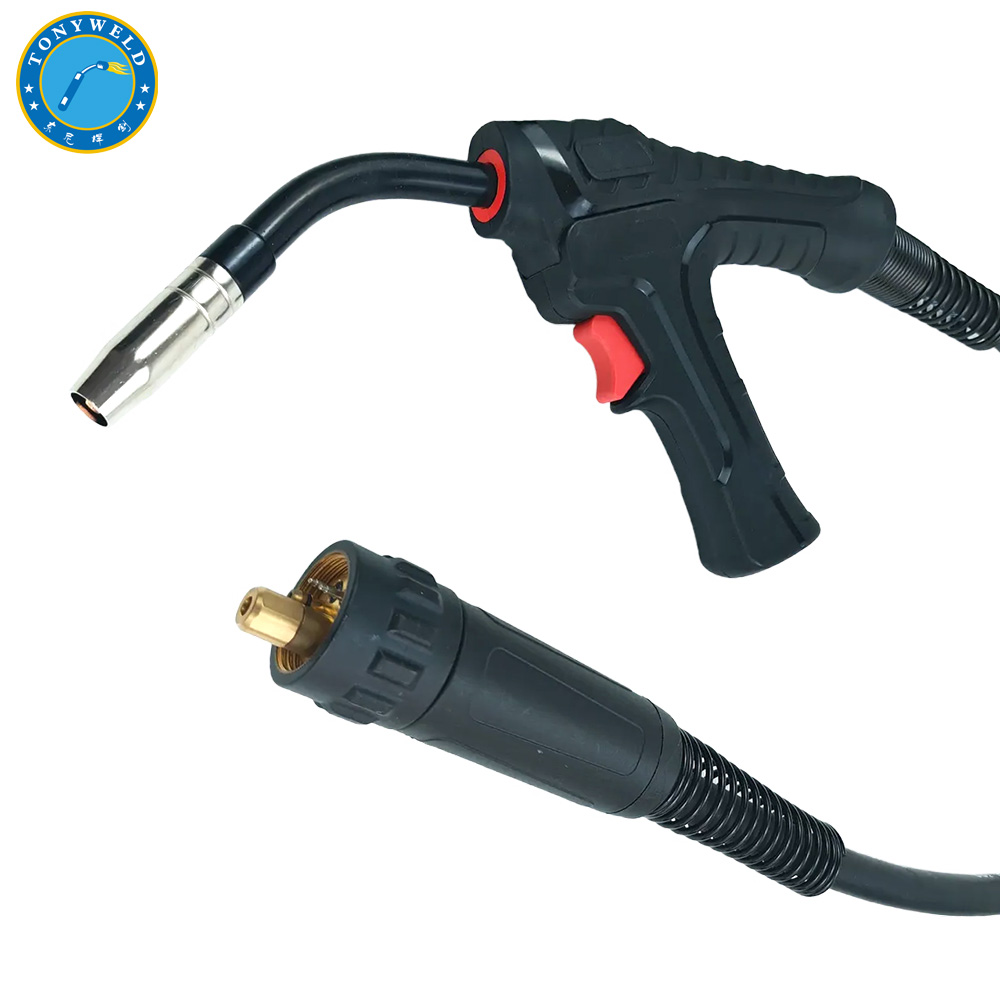

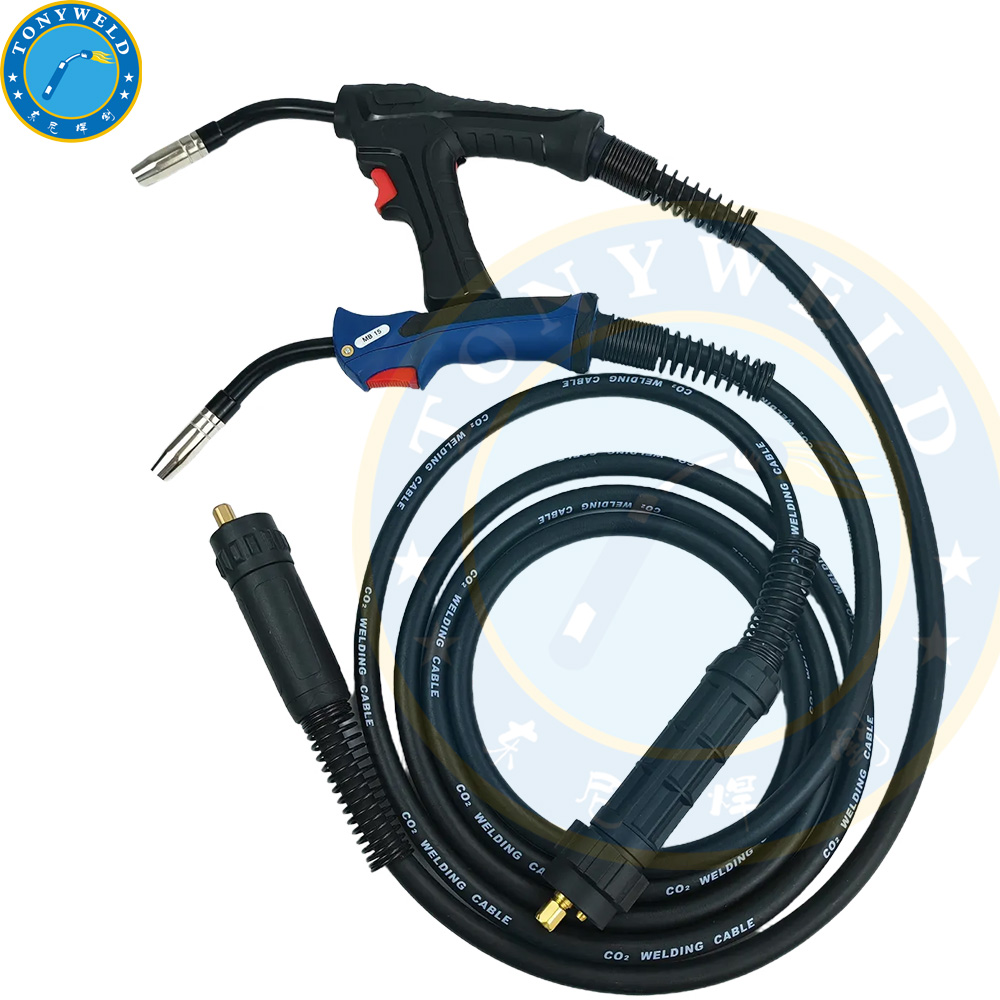

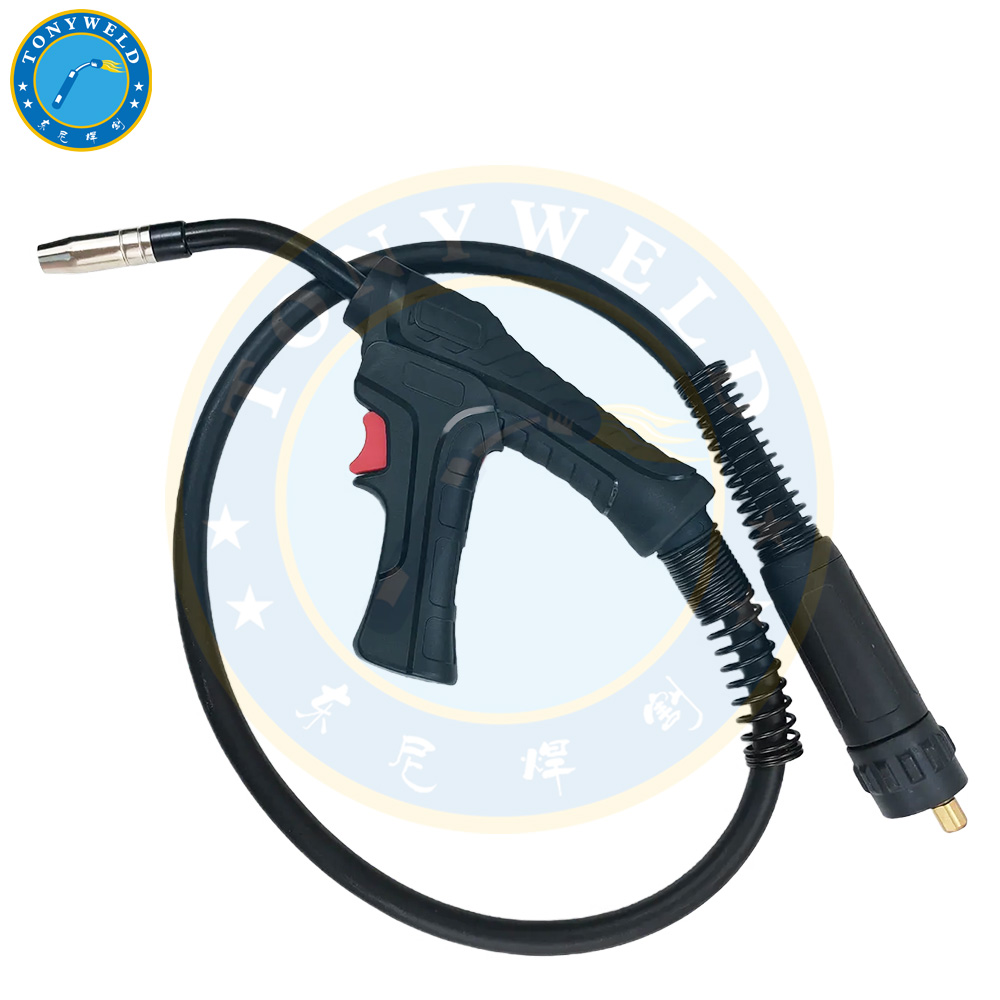

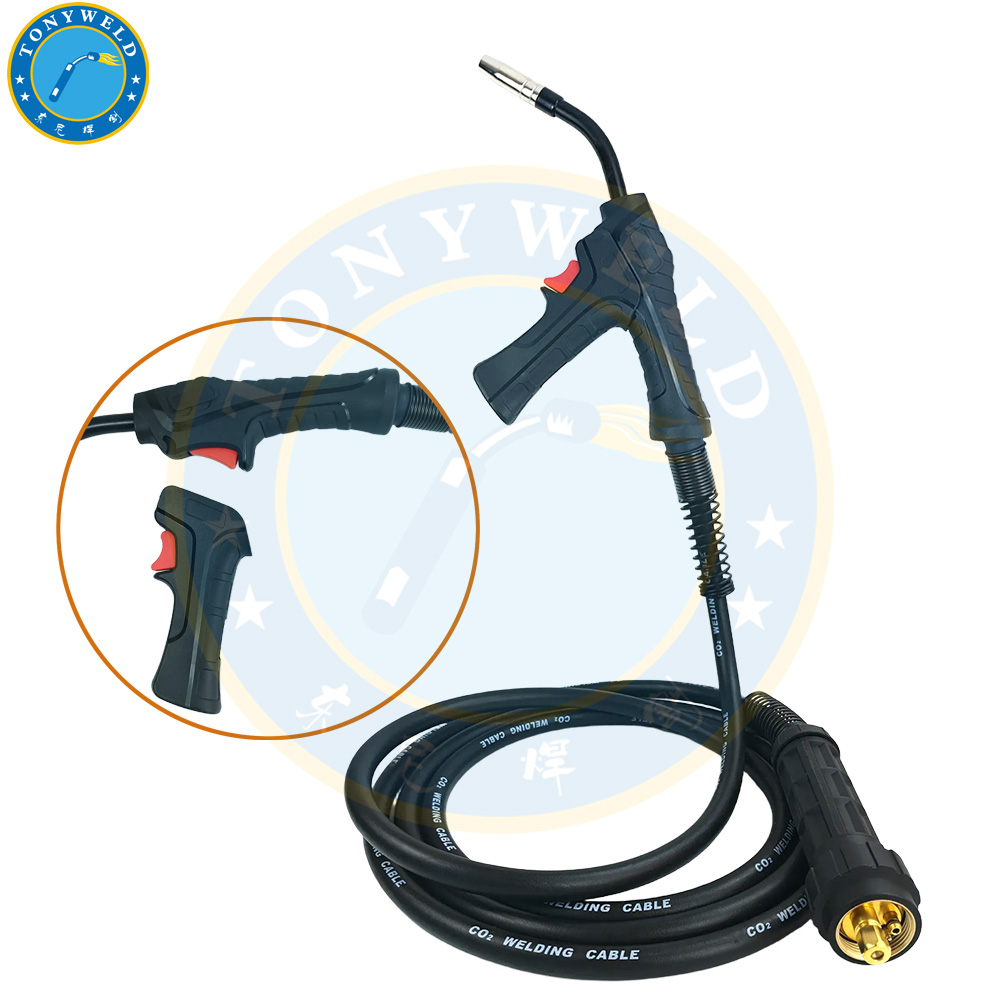

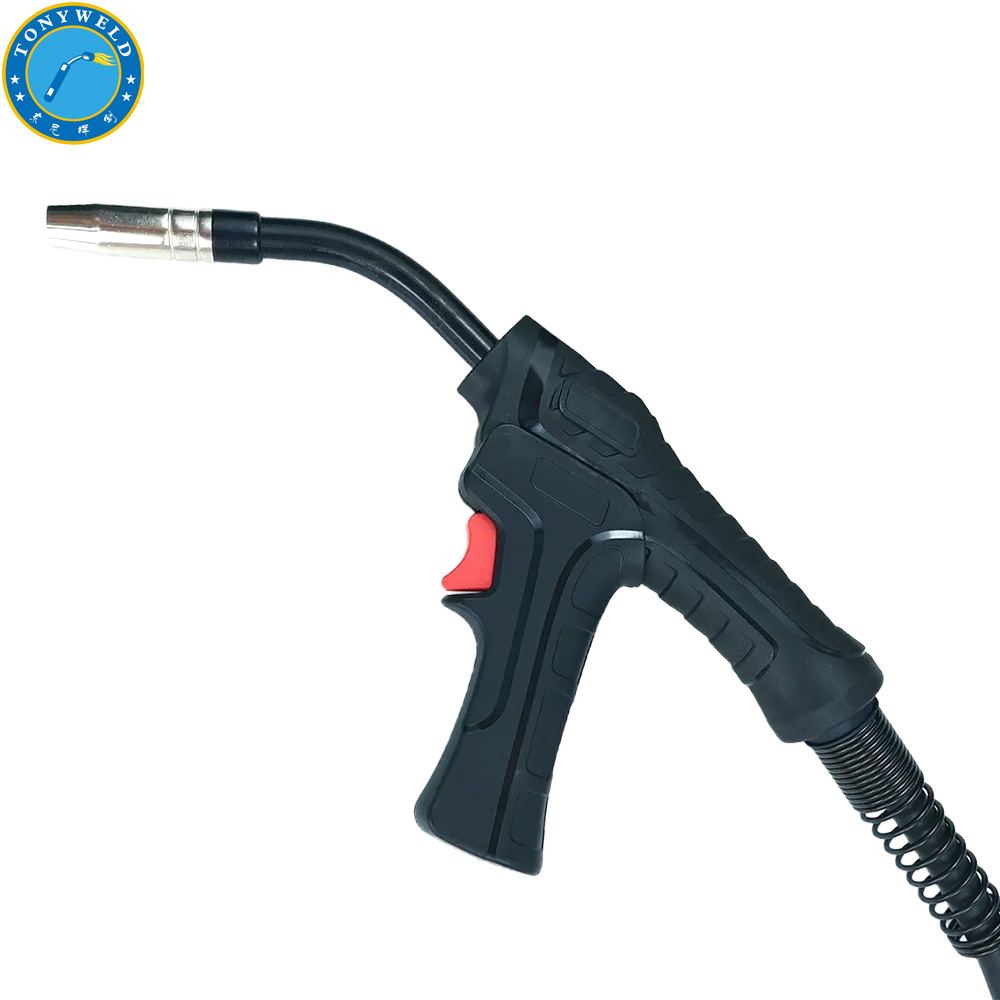

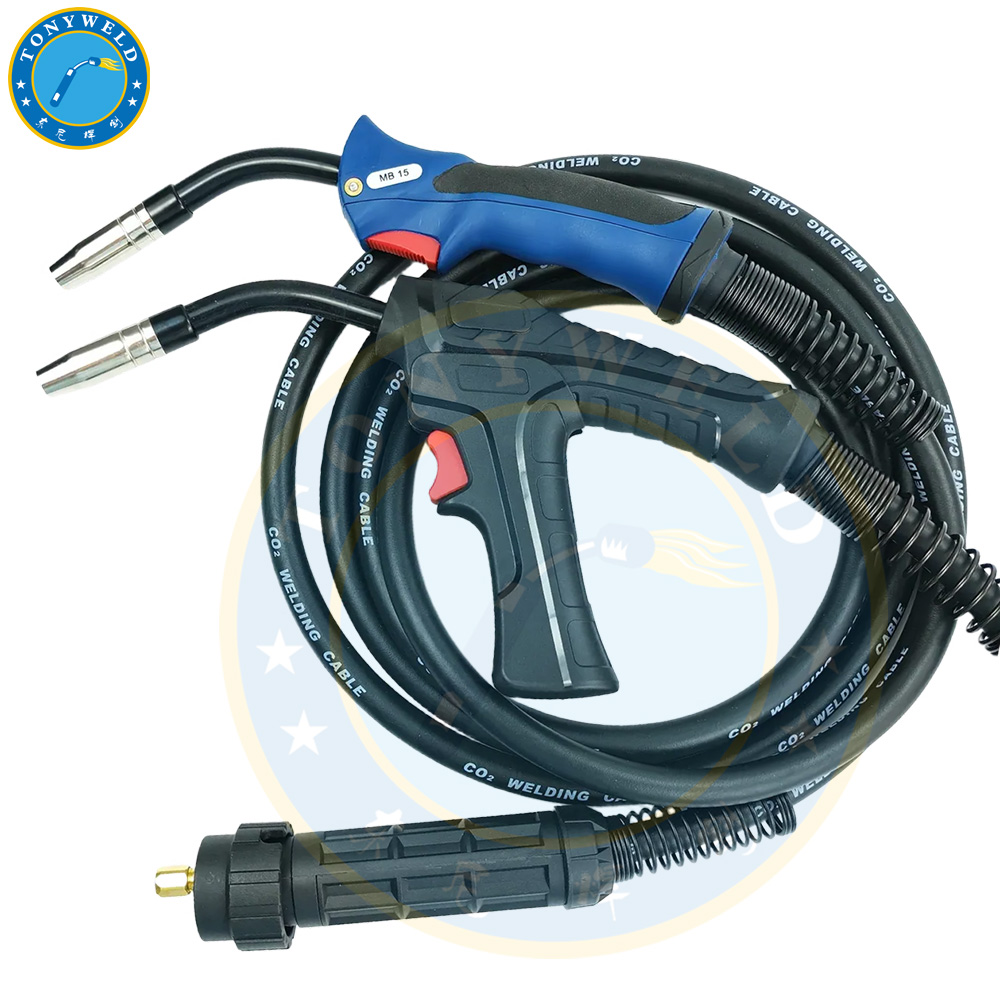

Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch
Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch
| Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch Technical Data |
| TW15AK Air Cooled MIG Welding Torch | ||
| Technical Data: | ||
| Rating: 180A CO2/150A Mixed Gases | ||
| Duty Cycle: 60% | ||
| Wire Size:0.6-1.0mm | ||
| No. | Description | Order |
| TW15AK 3m Welding Torch | TW002.0604 | |
| TW15AK 4m Welding Torch | TW002.0605 | |
| TW15AK 5m Welding Torch | TW002.0606 | |
| A | Nozzle Tapered Φ9.5*53 | TW145.0123 |
| Nozzle Conical Φ12*53 | TW145.0075 | |
| Nozzle Cylindrical Φ16*53 | TW145.0041 | |
| B | Contact Tip E-CU M6*25*0.6mm | TW140.0008 |
| Contact Tip E-CU M6*25*0.8mm | TW140.0059 | |
| Contact Tip E-CU M6*25*0.9mm | TW140.0177 | |
| Contact Tip E-CU M6*25*1.0mm | TW140.0253 | |
| Contact Tip E-CU M6*25*1.2mm | TW140.0387 | |
| Contact Tip CuCrZr M6*25*0.6mm | TW140.0855 | |
| Contact Tip CuCrZr M6*25*0.8mm | TW140.0062 | |
| Contact Tip CuCrZr M6*25*1.0mm | TW140.0256 | |
| C | Contact Tip CuCrZr M6*25*1.2mm | TW140.0390 |
| D | Contact Tip E-CU Aluminum M6*25*0.8mm | TW141.0002 |
| E | Contact Tip E-CU Aluminum M6*25*1.0mm | TW141.0007 |
| Contact Tip E-CU Aluminum M6*25*1.2mm | TW141.0011 | |
| Tip Holder | TW002.0078 | |
| Spring Support | TW002.0058 | |
| Blue Steel Liner 0.6-0.8mm 3m | TW124.0011 | |
| Blue Steel Liner 0.6-0.8mm 4m | TW124.0012 | |
| Blue Steel Liner 0.6-0.8mm 5m | TW124.0015 | |
| No. | Description | Order |
| 1 | Head Insulator | TW002.0050 |
| 2 | Swan Neck | TW002.0009 |
| 2-1 | Swan neck Flexible | TW002.0029 |
| 3 | Front Handle | TW180.D078 |
| 4 | Switch | TW185.0031S |
| 5 | Cable Ball Joint & Support Spring Middle | TW400.1010M |
| 6 | TW15AK Power Cable 3m 16mm2 | TW160.0065 |
| TW15AK Power Cable 4m 16mm2 | TW160.0078 | |
| TW15AK Power Cable 5m 16mm2 | TW160.0091 | |
| 7 | Rear Handle & Support Spring | TW501.2248X |
| 8 | Rear Connector Nut | TW500.0213X |
| 9 | Euro Central Connector KZ-2 | TW501.0003 |
| 10 | Liner Positioner Nut M10x1 | TW501.0082 |
| Mig Welding Torch Binzel Series Related Products |

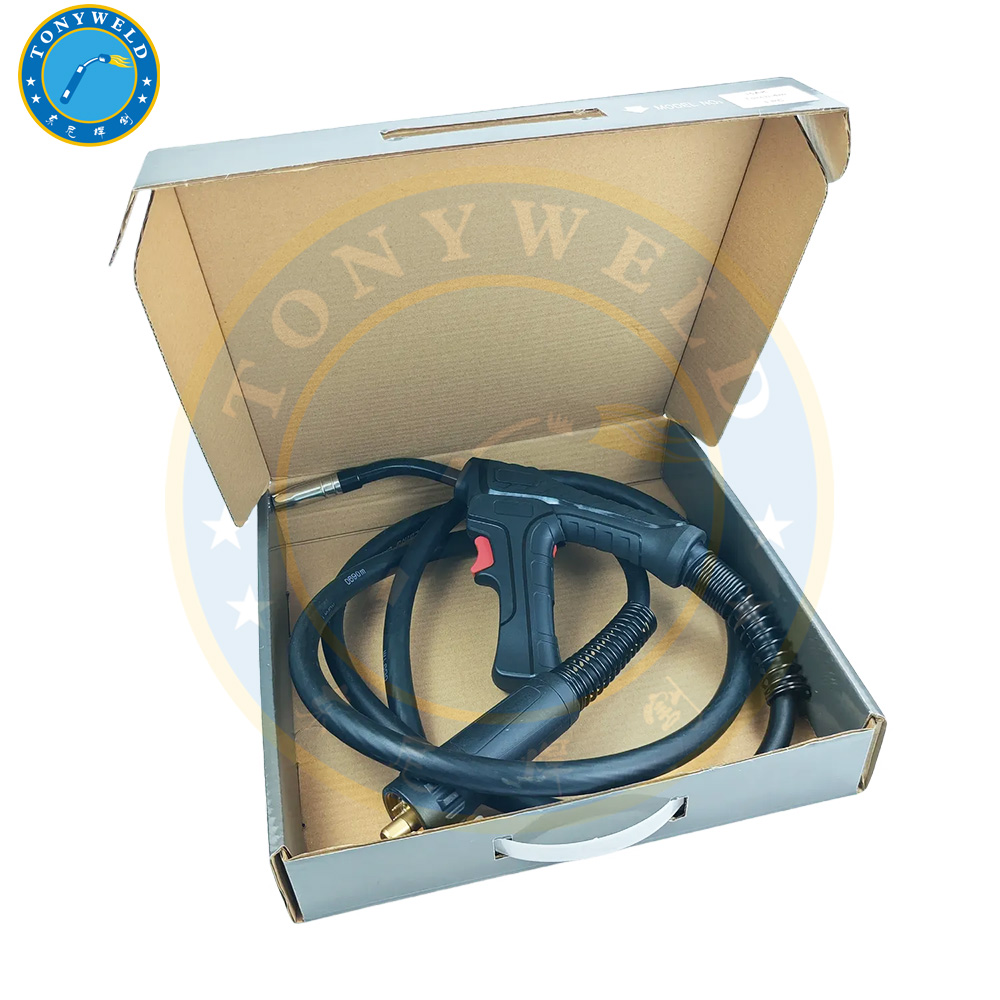

| Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch Packing Size |
