binzel mb 24kd
Tonyweld

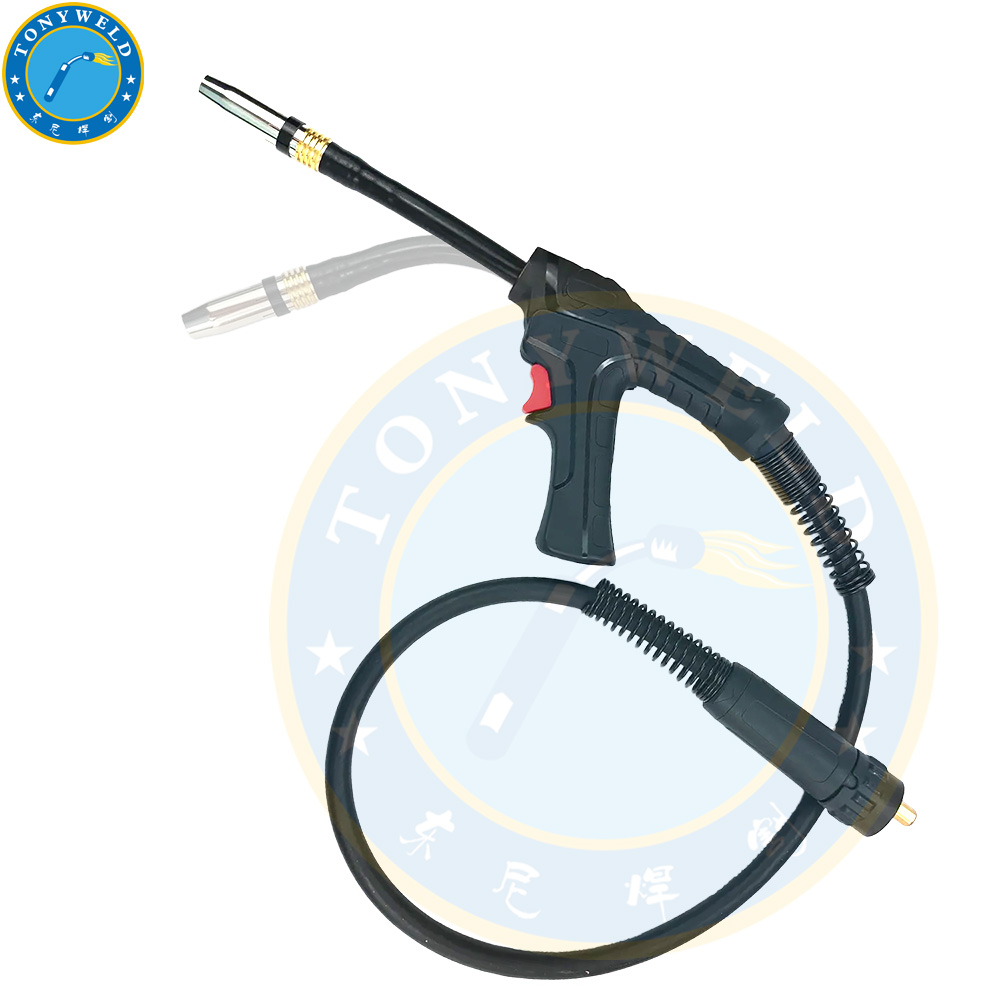

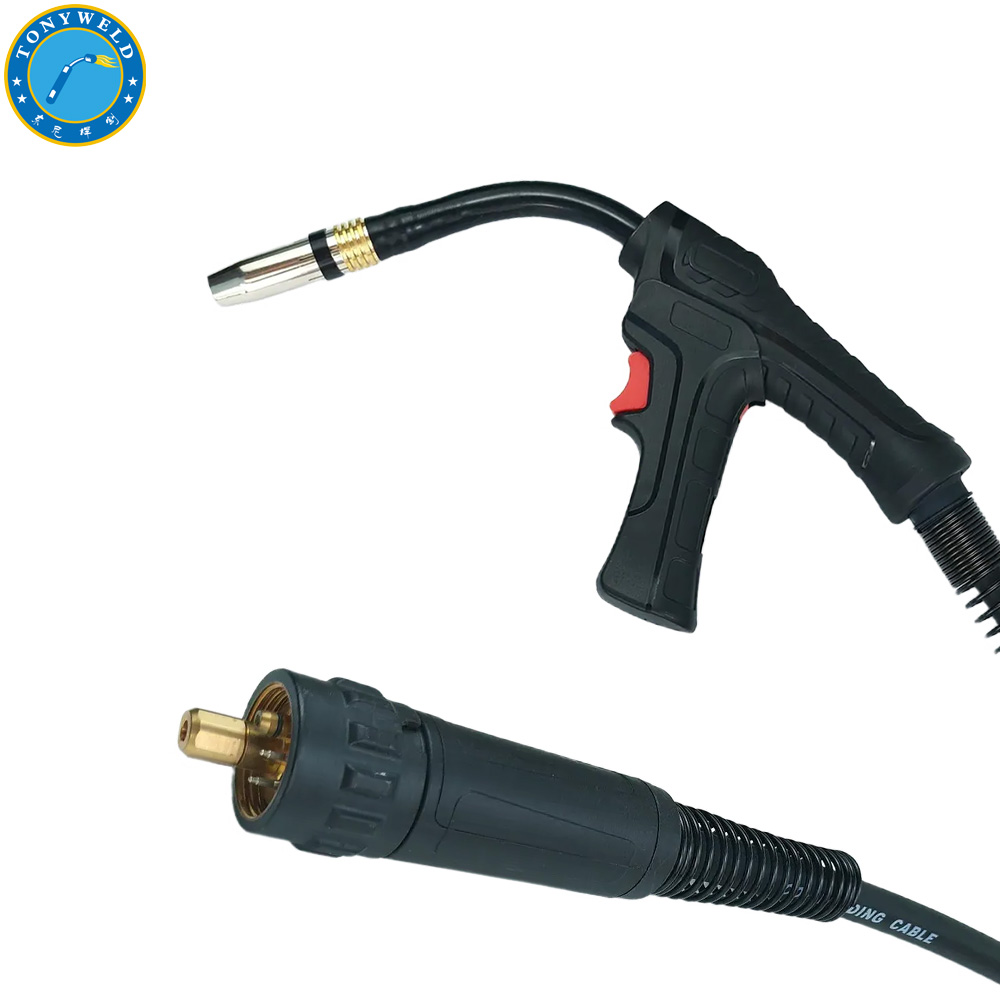

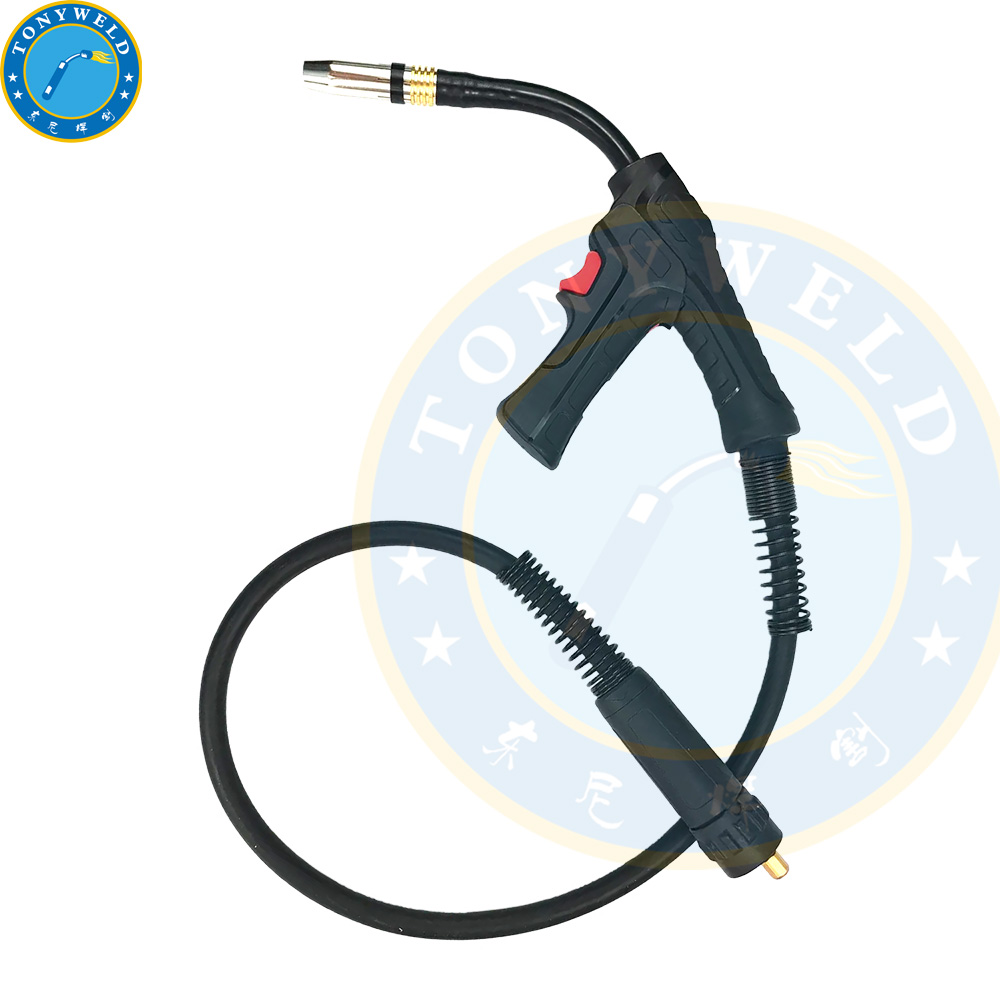

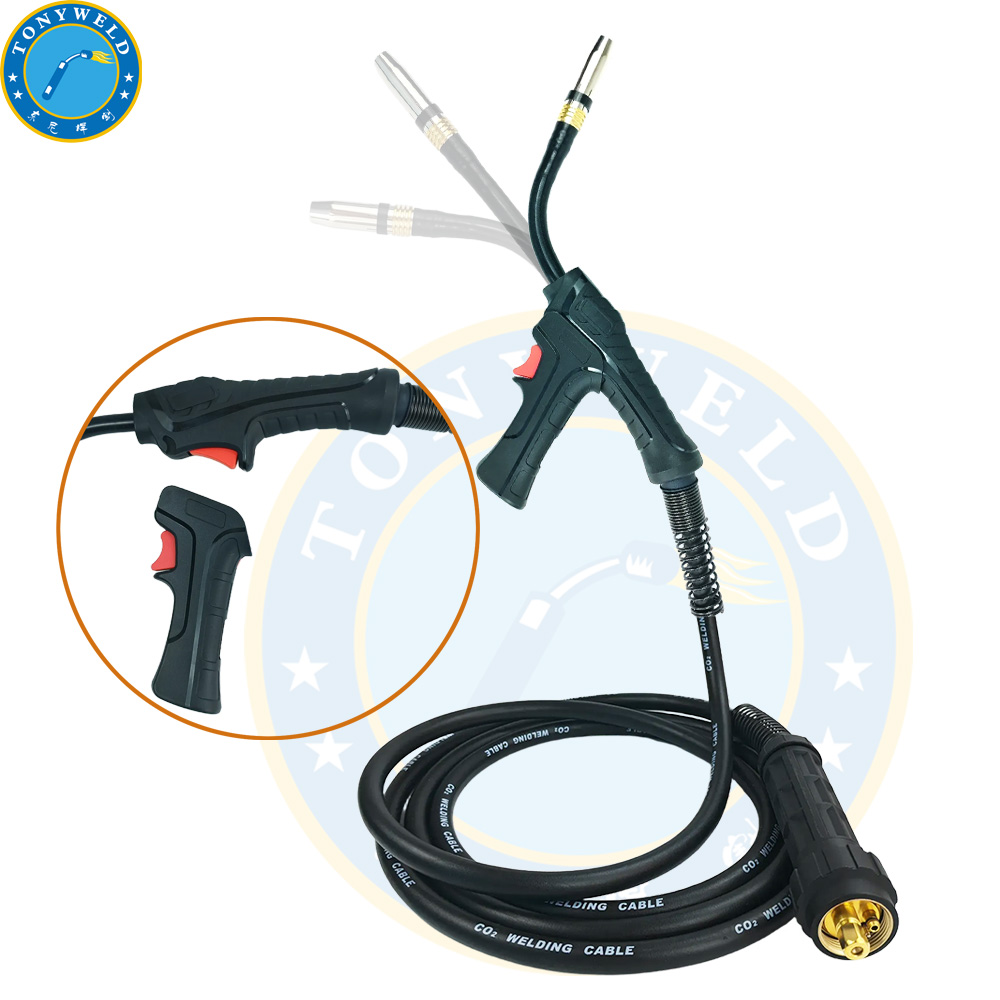

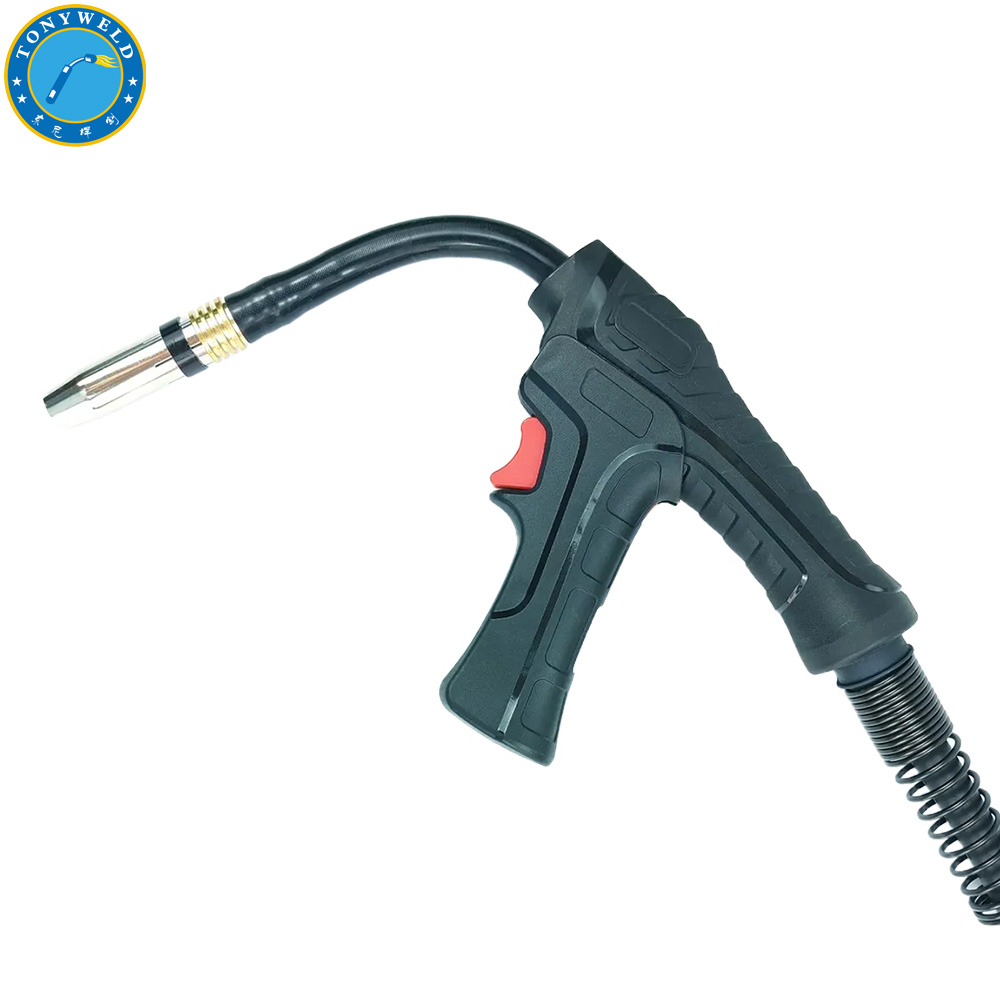

Flexible Swan Neck Mig Welding Torches Binzel Removable Pistol Grip Mb 24KD Co2 Gas Air Cooled Gun Torch
Flexible Swan Neck Mig Welding Torches Binzel Removable Pistol Grip Mb 24KD Co2 Gas Air Cooled Gun Torch
Flexible Swan Neck Mig Welding Torches Binzel Removable Pistol Grip Mb 24KD Co2 Gas Air Cooled Gun Torch
Flexible Swan Neck Mig Welding Torches Binzel Removable Pistol Grip Mb 24KD Co2 Gas Air Cooled Gun Torch
| Flexible Swan Neck Mig Welding Torches Binzel Removable Pistol Grip Mb 24KD Co2 Gas Air Cooled Gun Torch Technical Data |
| TW24KD Air Cooled MIG Welding Torch | ||
| Technical Data: | ||
| Rating: 250A CO2/2200A Mixed Gases | ||
| Duty Cycle: 60% | ||
| Wire Size:0.8-1.2mm | ||
| No. | Description | Order |
| TW24KD 3m Welding Torch | TW012.0251 | |
| TW24KD 4m Welding Torch | TW012.0252 | |
| TW24KD 5m Welding Torch | TW012.0253 | |

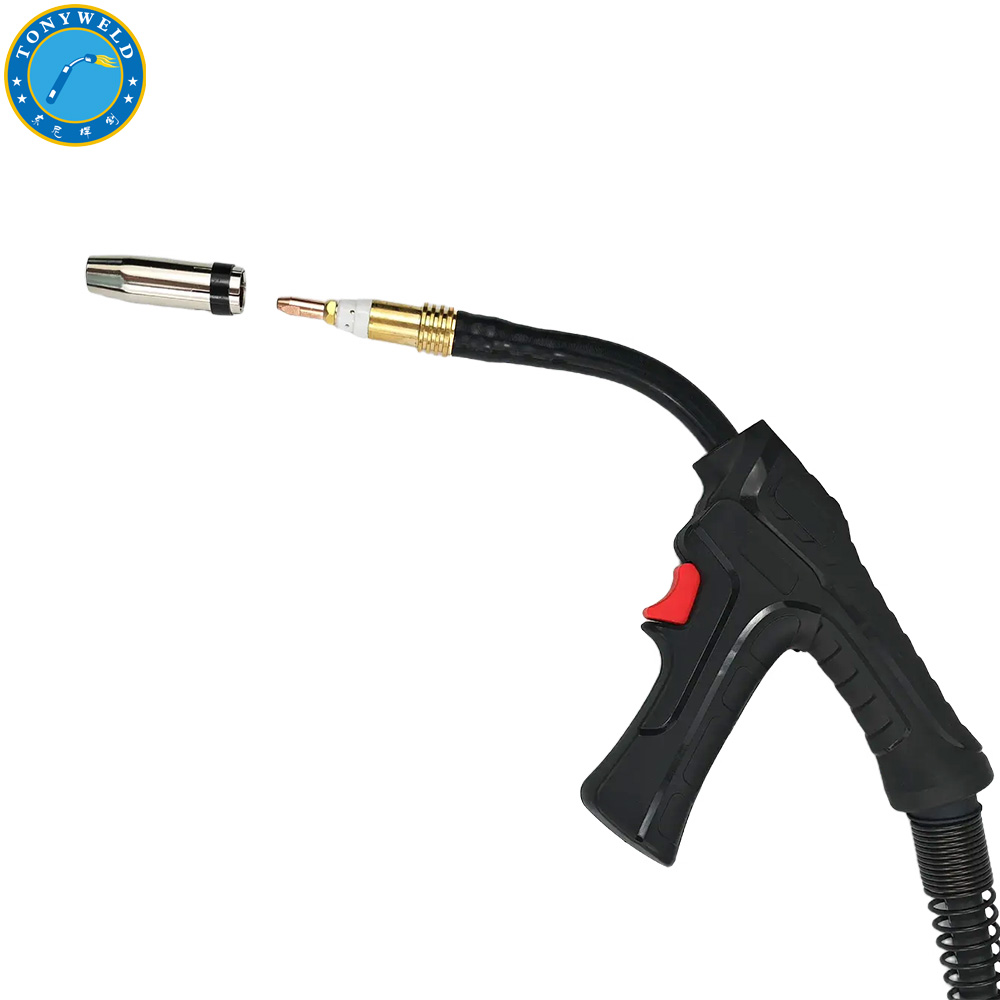

| A | Nozzle Conical Φ10*63.5 | TW145.0128 |
| Nozzle Conical Φ12.5*63.5 | TW145.0080 | |
| Nozzle Cylindrical Φ17*63.5 | TW145.0047 | |
| B | Contact Tip E-CU M6*28*0.8mm | TW140.0051 |
| Contact Tip E-CU M6*28*0.9mm | TW140.0169 | |
| Contact Tip E-CU M6*28*1.0mm | TW140.0242 | |
| Contact Tip E-CU M6*28*1.2mm | TW140.0379 | |
| Contact Tip E-CU M6*28*1.4mm | TW140.0516 | |
| Contact Tip E-CU M6*28*1.6mm | TW140.0555 | |
| Contact Tip CuCrZr M6*28*0.8mm | TW140.0054 | |
| Contact Tip CuCrZr M6*28*1.0mm | TW140.0245 | |
| Contact Tip CuCrZr M6*28*1.2mm | TW140.0382 | |
| Contact Tip CuCrZr M6*28*1.4mm | TW140.0519 | |
| Contact Tip CuCrZr M6*28*1.6mm | TW140.0558 | |
| Contact Tip E-CU Aluminum M6*28*0.8mm | TW141.0001 | |
| Contact Tip E-CU Aluminum M6*28*1.0mm | TW141.0006 | |
| Contact Tip E-CU Aluminum M6*28*1.2mm | TW141.0010 | |
| Contact Tip E-CU Aluminum M6*28*1.4mm | TW141.0019 | |
| Contact Tip E-CU Aluminum M6*28*1.6mm | TW141.0020 | |
| C | Tip Holder M6*26 | TW142.0003 |
| D | Gas Diffuser DMC | TW012.0183 |
| Gas Diffuser Ceramic | TW012.0183C | |
| E | Red Steel Liner 1.0-1.2mm 3m | TW124.0026 |
| Red Steel Liner 1.0-1.2mm 4m | TW124.0031 | |
| Red Steel Liner 1.0-1.2mm 5m | TW124.0035 | |
| No. | Description | Order |
| 1 | Swan Neck | TW012.0001 |
| 2 | Front Handle | TW180.D078 |
| 3 | Switch | TW185.0031S |
| 4 | Cable Ball Joint & Support Spring Middle | TW400.1010M |
| 5 | TW24KD Power Cable 3m 25mm2 | TW160.0239 |
| TW24KD Power Cable 4m 25mm2 | TW160.0255 | |
| TW24KD Power Cable 5m 25mm2 | TW160.0267 | |
| 6 | Rear Handle & Support Spring | TW501.2248X |
| 7 | Rear Connector Nut | TW500.0213X |

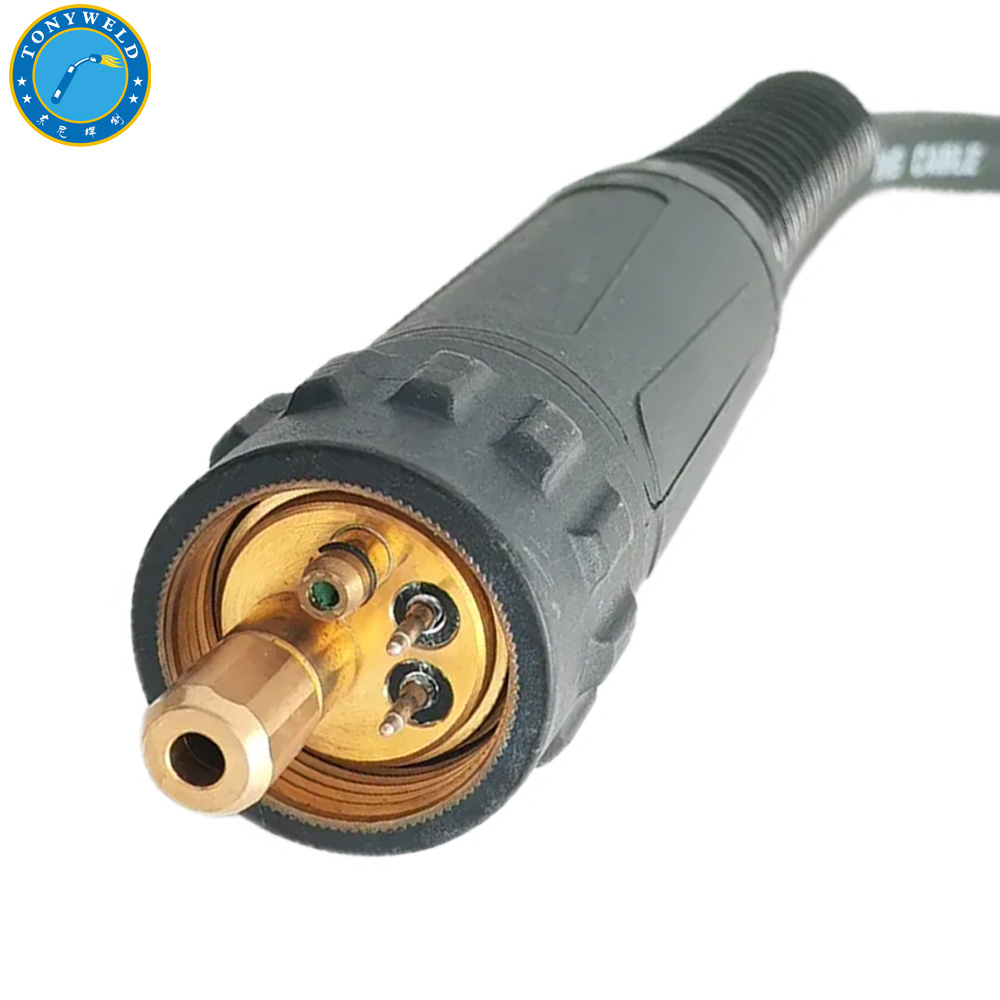

| 8 | Euro Central Connector KZ-2 | TW501.0003 |
| 9 | Liner Positioner Nut M10x1 | TW501.0082 |
| Mig Welding Torch Binzel Series Related Products |

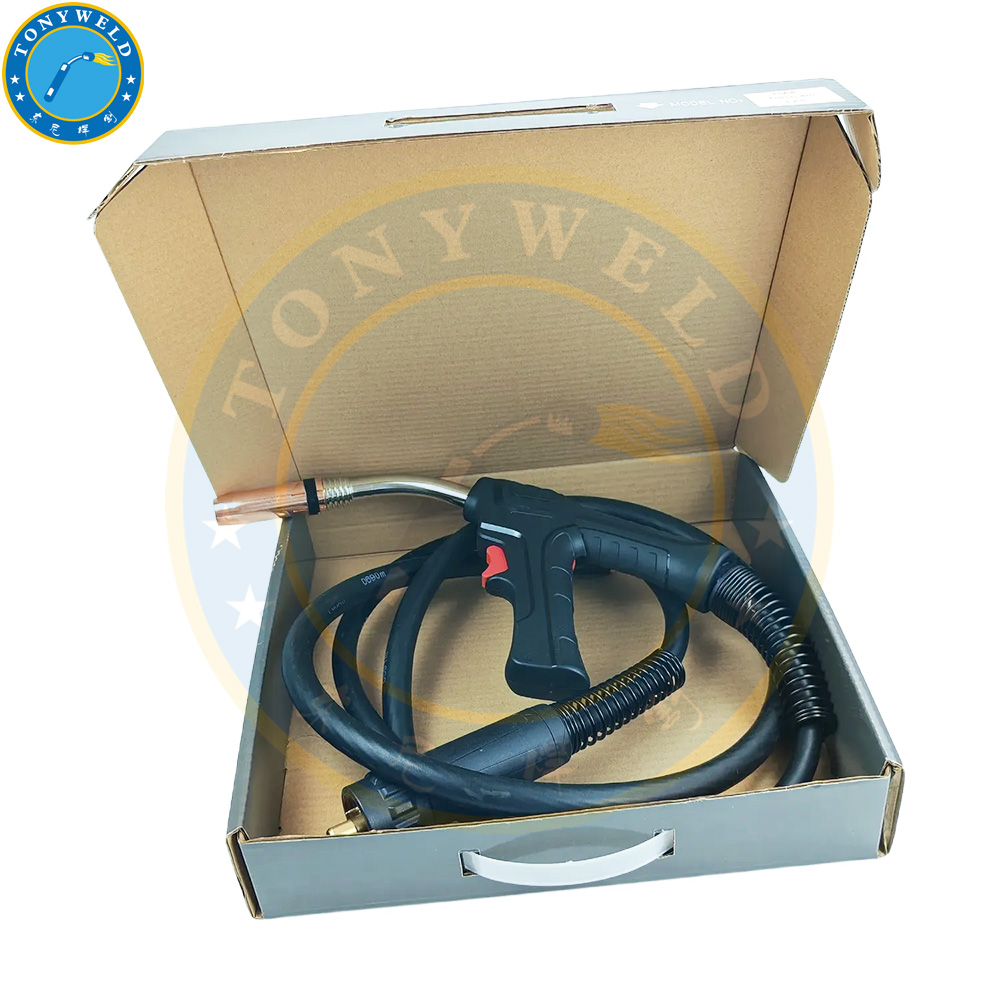

| Mig Welding Torches Binzel Removable Pistol Grip Mb 15ak Co2 Gas Air Cooled Gun Torch Packing Size |
