Fronius mig welding torch air cooled AL4000 350A- 400A

Share to:

AL4000 Air cooled Welding Torch

Technical Data：
Rating: 400A CO2/350A Mixed Gases
Duty Cycle:40%
Wire Size:1.2-1.6mm

规格:	FRONIUS AL4000 WELDING TORCH
Quantity:



Inquire Add to Basket

Model:
Fronius
Brand:
Tonyweld
Code:
85159000
Product Name :
Fronius mig welding torch air cooled AL4000 400A
series :
fronius
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
350A -400A
Duty Cycle :
40%
connector :
fronius / euro connector
wire size :
1.0-1.6mm

Product Description

Fronius mig welding torch air cooled AL4000 400A euro connector

AL4000 Air cooled Welding Torch
Technical Data：	Rating: 400A CO2/350A Mixed Gases
	Duty Cycle:40%
	Wire Size:1.2-1.6mm

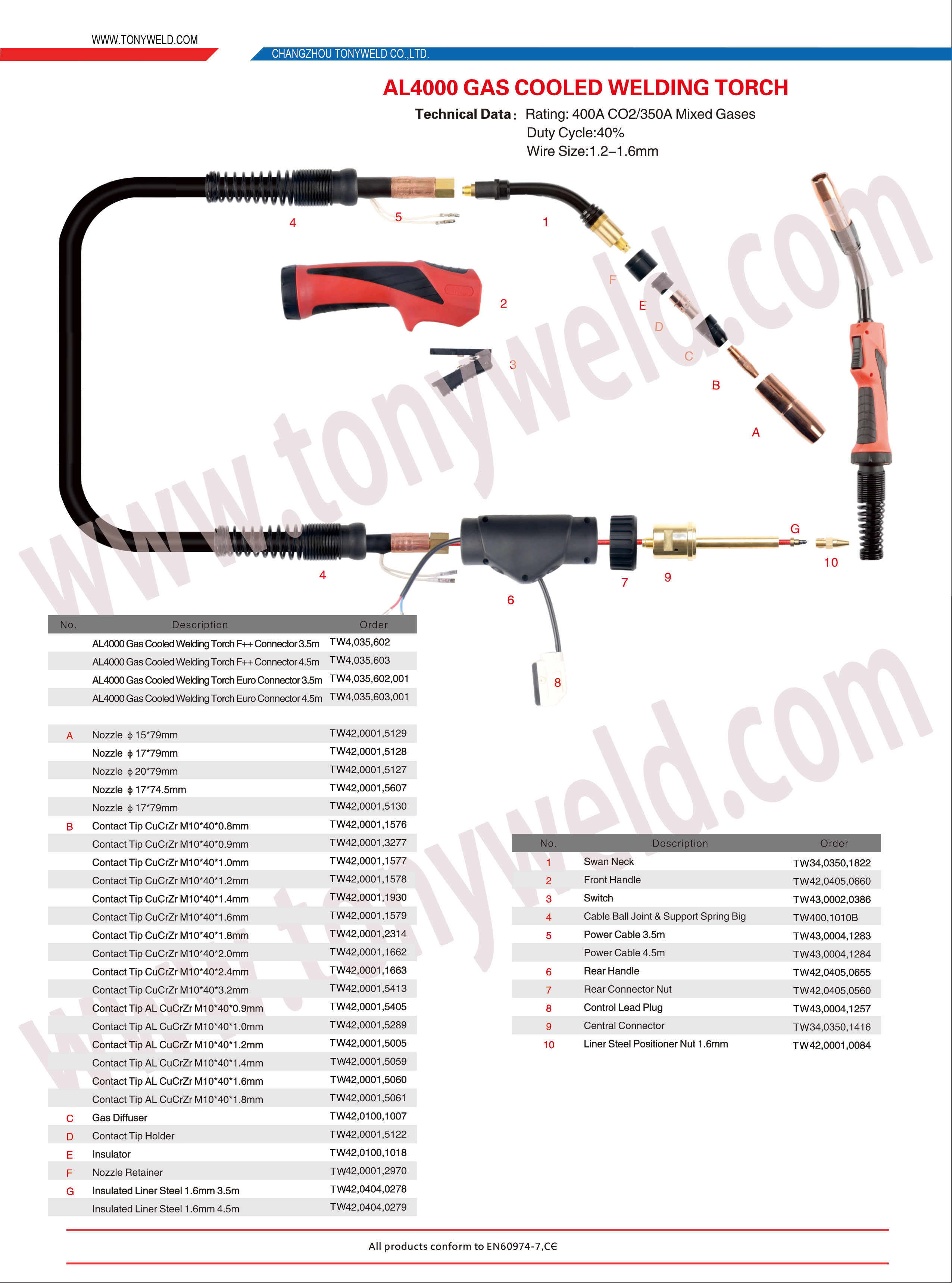

No.	Description	Order
	AL4000 3.5m Welding Torch Euro Connector	4.035.602.001
	AL4000 4.5m Welding Torch Euro Connector	4.035.603.001
	AL4000 3.5m Welding Torch Fronius Connector	4.035.602
	AL4000 4.5m Welding Torch Fronius Connector	4.035.603

A	Nozzle φ15*79mm	42.0001.5129
	Nozzle φ17*79mm	42.0001.5128
	Nozzle φ20*79mm	42.0001.5127
	Nozzle φ17*74.5mm	42.0001.5607
	Nozzle φ17*79mm	42.0001.5130
B	Contact Tip CuCrZr M10400.8mm	42.0001.1576
	Contact Tip CuCrZr M10400.9mm	42.0001.3277
	Contact Tip CuCrZr M10401.0mm	42.0001.1577
	Contact Tip CuCrZr M10401.2mm	42.0001.1578
	Contact Tip CuCrZr M10401.4mm	42.0001.1930
	Contact Tip CuCrZr M10401.6mm	42.0001.1579
	Contact Tip CuCrZr M10401.8mm	42.0001.2314
	Contact Tip CuCrZr M10402.0mm	42.0001.1662
	Contact Tip CuCrZr M10402.4mm	42.0001.1663
	Contact Tip CuCrZr M10403.2mm	42.0001.5413
	Contact Tip AL CuCrZr M10400.9mm	42.0001.5405
	Contact Tip AL CuCrZr M10401.0mm	42.0001.5289
	Contact Tip AL CuCrZr M10401.2mm	42.0001.5005
	Contact Tip AL CuCrZr M10401.4mm	42.0001.5059
	Contact Tip AL CuCrZr M10401.6mm	42.0001.5060
	Contact Tip AL CuCrZr M10401.8mm	42.0001.5061
C	Gas Diffuser	42.0100.1007
D	Contact Tip Holder	42.0001.5122
E	Insulator	42.0100.1018
F	Nozzle Retainer	42.0001.2970
G	Liner Steel 1.2mm 3.5m	42.0404.0275
	Liner Steel 1.2mm 4.5m	42.0404.0276
	Liner Steel 1.6mm 3.5m	42.0404.0278
	Liner Steel 1.6mm 4.5m	42.0404.0279

No.	Description	Order
1	Swan Neck 45°	34.0350.1822
2	Front Handle	42.0405.0660
3	Switch	43.0002.0386
4	Cable Ball Joint & Support Rubber	400.D574
5	Power Cable 3.5m	43.0004.1283
	Power Cable 4.5m	43.0004.1284
6	Rear Handle	42.0405.0655
7	Rear Connector Nut	42.0405.0560
8	Control Lead Plug	43.0004.1257
9	Central Connector	34.0350.1416
10	Liner Steel Positioner Nut 1.6mm	42.0350.0084
11	Liner Teflon Positioner Combi	42.0001.5412
11-1	Liner Teflon Positioner Nut	42.0400.1025

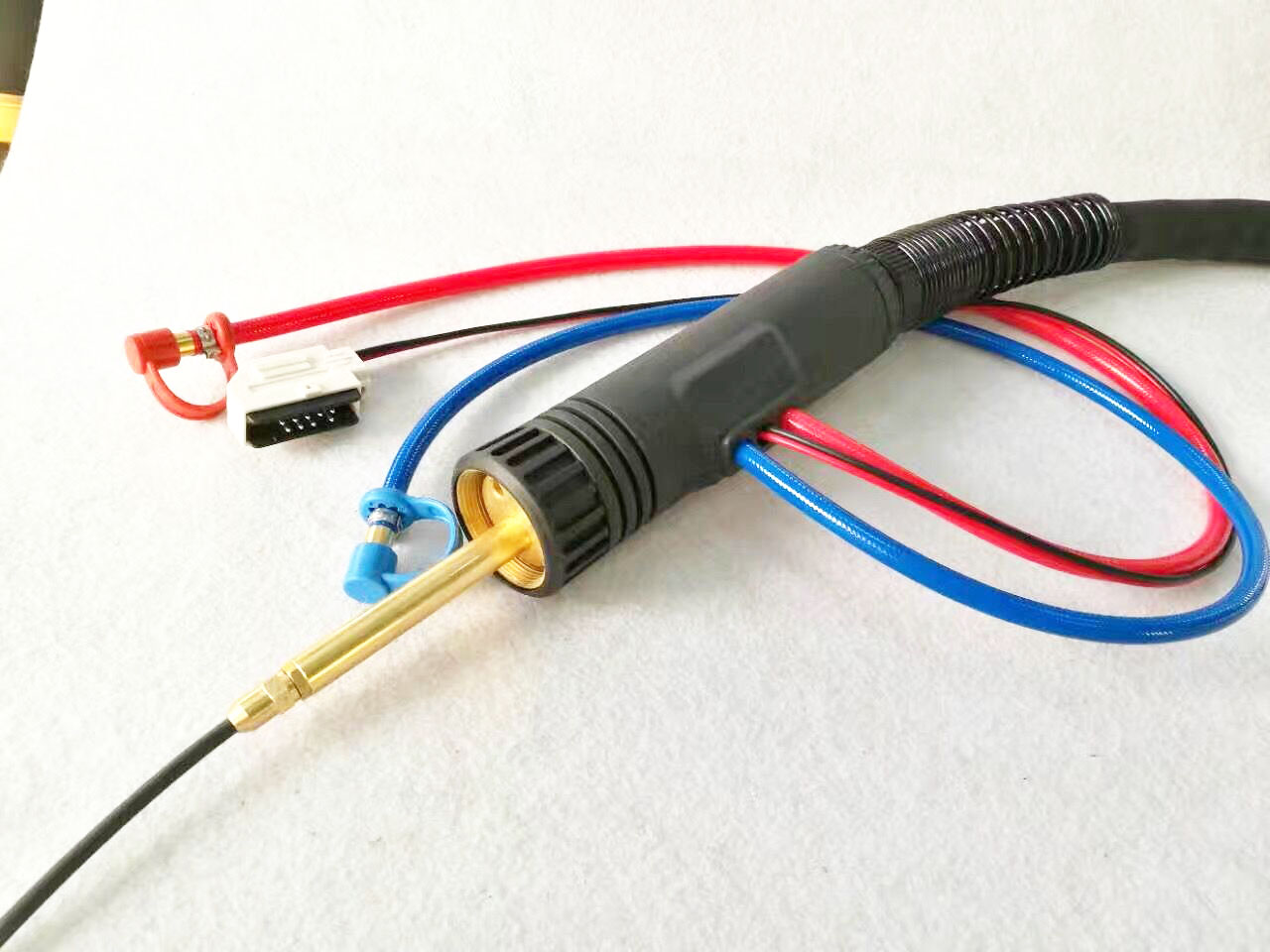

Fronius mig torch fronius connector

* 1 piece Fronius mig welding torch package in a carton
