Fronius mig torch water cooled AW4000 euro / fronius connector

Share to:

AW 4000 Water Cooled Welding Torch

Technical Data：
Rating: 400A CO2/350A Mixed Gases
Duty Cycle:100%
Wire Size: 0.8-1.2mm

规格:	FRONIUS AW 4000 Water Cooled Welding Torch
Quantity:



Inquire Add to Basket

Model:
Fronius
Brand:
Tonyweld
Code:
85159000
Product Name :
Fronius mig torch water cooled AW4000 euro / fro
series :
fronius
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
connector :
fronius / euro connector

Product Description

Fronius mig torch water cooled AW4000 euro / fronius connector

AW 4000 Water Cooled Welding Torch
Technical Data：	Rating: 400A CO2/350A Mixed Gases
	Duty Cycle:100%
	Wire Size: 0.8-1.2mm
No.	Description	Order
	AW4000 3.5m Water Welding Torch Euro Connector	4.035.594.001
	AW4000 4.5m Water Welding Torch Euro Connector	4.035.595.001
	AW4000 3.5m Water Welding Torch Fronius Connector	4.035.594.000
	AW4000 4.5m Water Welding Torch Fronius Connector	4.035.595.000

A	Nozzle φ11*67mm	42.0001.5151
	Nozzle φ13*67mm	42.0001.5096
	Nozzle φ15*67mm	42.0001.5269
	Nozzle φ17*67mm	42.0001.5821
	Nozzle φ18*67mm	44.0350.2070
	Nozzle φ13*65mm	42.0001.5619
B	Contact Tip CuCrZr M8350.8mm	42.0001.2911
	Contact Tip CuCrZr M8350.9mm	42.0001.3082
	Contact Tip CuCrZr M8351.0mm	42.0001.2912
	Contact Tip CuCrZr M8351.2mm	42.0001.2913
	Contact Tip AL CuCrZr M8350.8mm	42.0001.5082
	Contact Tip AL CuCrZr M8351.0mm	42.0001.5051
	Contact Tip AL CuCrZr M8351.2mm	42.0001.5052
	Contact Tip AL CuCrZr M8351.4mm	42.0001.5053
	Contact Tip AL CuCrZr M8351.6mm	42.0001.3485
C	Contact Tip Holder	42.0001.5084
D	Insulator	42.0100.1010
E	Nozzle Retainer	42.0001.2930
F	Fronius Liner Steel 1.2mm 3.5m	42.0404.0174
	Fronius Liner Steel 1.2mm 4.5m	42.0404.0181
	Fronius Liner Steel 1.2-1.6mm 3.5m	42.0404.0182
	Fronius Liner Steel 1.2-1.6mm 4.5m	42.0404.0183

No.	Description	Order
1	Swan Neck 45°	34.0350.1812
2	Front Handle	42.0405.0660
3	Switch	43.0002.0386
4	Cable Ball Joint & Support Spring Water	500.0233
5	Gas Hose Red φ5*8 Units:100m	40.0001.0310
5-1	Hose Clamp φ8.7mm	42.0407.0284
6	Water Hose Blue φ5*8 Units:100m	40.0001.0310
6-1	Hose Clamp φ9.0mm	42.0407.0272
7	Wire Conduit 3.5m	44.0350.1818
	Wire Conduit 4.5m	44.0350.1819
8	Power Cable 3.5m	43.0004.0109
	Power Cable 4.5m	43.0004.0110
9	Control Cable 2-pole 3.5m	43.0004.1160
	Control Cable 2-pole 4.5m	43.0004.1161
9-1	Trigger Wire Connector	43.0003.0217
9-2	Trigger Wire Connector Control Lead Plug	43.0004.1257
10	Outer Cover φ25×1.5 3.5m	44.0350.1804
	Outer Cover φ25×1.5 4.5m	44.0350.1805
11	Water Outlet Hose Red φ5*8	40.0001.0310
12	Plug Nipple ND 5mm	42.0001.1506
13	Fastener Cap Red	42.0405.0548R
13-1	Fastener Cap Blue	42.0405.0548B
14	Rear Handle	42.0405.0655
15	Rear Connector Nut	42.0405.0560
16	Central Connector Water Cooled	34.0350.1190
17	Liner Steel Positioner Nut 1.2mm	42.0001.1508
18	Liner Teflon Positioner Combi	42.0001.5412
18-1	Liner Teflon Positioner Nut	42.0400.1025

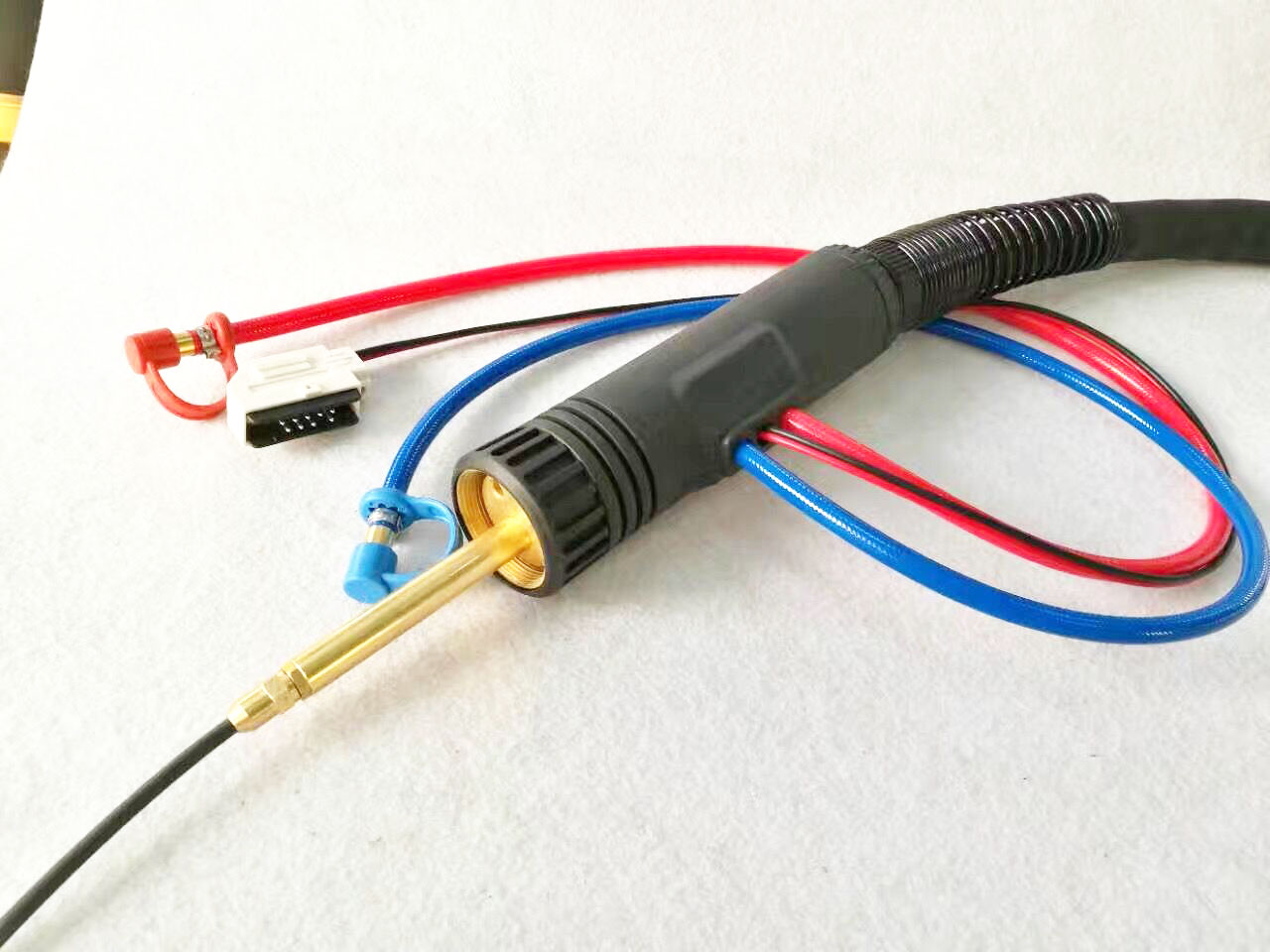

Fronius mig torch fronius connector

* 1 piece Fronius mig welding torch water cooled AW4000 package in a carton
