Product Category

Fronius mig welding torch air cooled AL 2300

Share to:

ALAL 2300 Air cooled Welding Torch

Technical Data：
Rating: 230A CO2/200A Mixed Gases
Duty Cycle:40%
Wire Size:0.6-1.0mm

规格:	FRONIUS AL2300 WELDING TORCH
Quantity:



Inquire Add to Basket

Model:
Fronius AL 2300
Brand:
Tonyweld
Code:
85159000
Product Name :
Fronius mig welding torch air cooled AL 2300
series :
fronius
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
230A -220A
Duty Cycle :
40%
connector :
fronius / euro connector
wire size :
1.0-1.6mm

Product Description

Fronius mig welding torch air cooled AL 2300 euro connector

AL 2300 Air cooled Welding Torch
Technical Data：	Rating: 230A CO2/200A Mixed Gases
	Duty Cycle:40%
	Wire Size:0.6-1.0mm
No.	Description	Order
	AL2300 3.5m Welding Torch Euro Connector	4.035.637.001
	AL2300 4.5m Welding Torch Euro Connector	4.035.638.001
	AL2300 3.5m Welding Torch Fronius Connector	4.035.637
	AL2300 4.5m Welding Torch Fronius Connector	4.035.638

A	Nozzle φ10*66mm	42.0001.5174
	Nozzle φ12*66mm	42.0001.5173
	Nozzle φ17*66mm	42.0001.5172
	Nozzle φ12*62.5mm	42.0001.6010
B	Contact Tip CuCrZr M6330.6mm	42.0001.0052
	Contact Tip CuCrZr M6330.8mm	42.0001.0053
	Contact Tip CuCrZr M6330.9mm	42.0001.3276
	Contact Tip CuCrZr M6331.0mm	42.0001.0054
	Contact Tip CuCrZr M6331.2mm	42.0001.0055
	Contact Tip CuCrZr M6331.4mm	42.0001.1929
	Contact Tip CuCrZr M6331.6mm	42.0001.0056
C	Contact Tip Holder	42.0001.1718
D	Insulator	42.0100.0225
E	Nozzle Retainer	42.0001.5171
F	Liner Steel 0.8mm 3.5m	42.0404.0270
	Liner Steel 0.8mm 4.5m	42.0404.0271
	Liner Steel 1.0mm 3.5m	42.0404.0273
	Liner Steel 1.0mm 4.5m	42.0404.0274

No.	Description	Order

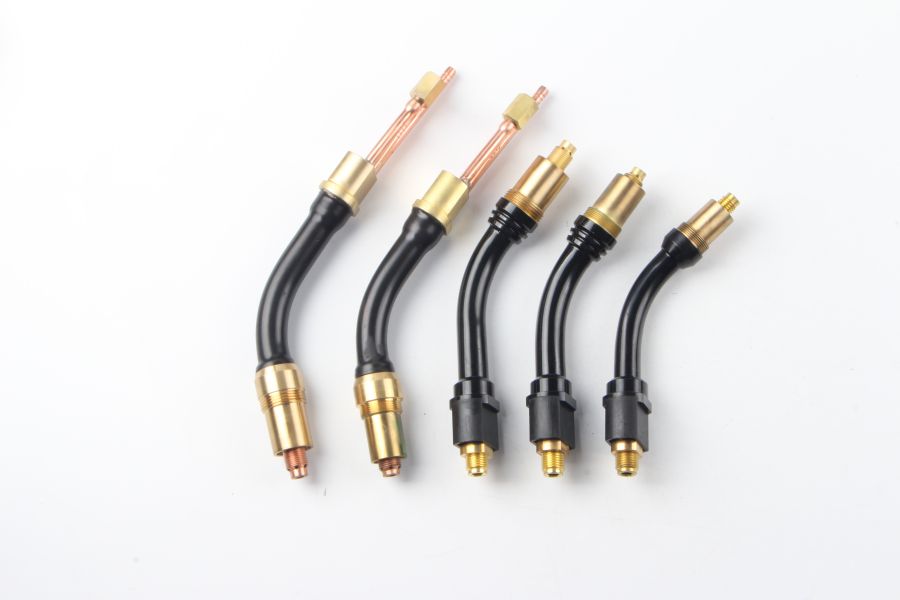

1	Swan Neck 45°	34.0350.1875
2	Front Handle	42.0405.0660
3	Switch	43.0002.0386
4	Cable Ball Joint & Support Rubber	400.D574
5	Power Cable 3.5m	43.0004.1797
	Power Cable 4.5m	43.0004.1798
6	Rear Handle	42.0405.0655
7	Rear Connector Nut	42.0405.0560
8	Control Lead Plug	43.0004.1257
9	Central Connector	34.0350.1416
10	Liner Steel Positioner Nut 1.0mm	42.0001.1743
11	Liner Teflon Positioner Combi	42.0001.5412
11-1	Liner Teflon Positioner Nut	42.0400.1025

Fronius mig torch fronius connector

* 1 piece Fronius mig welding torch package in a carton
