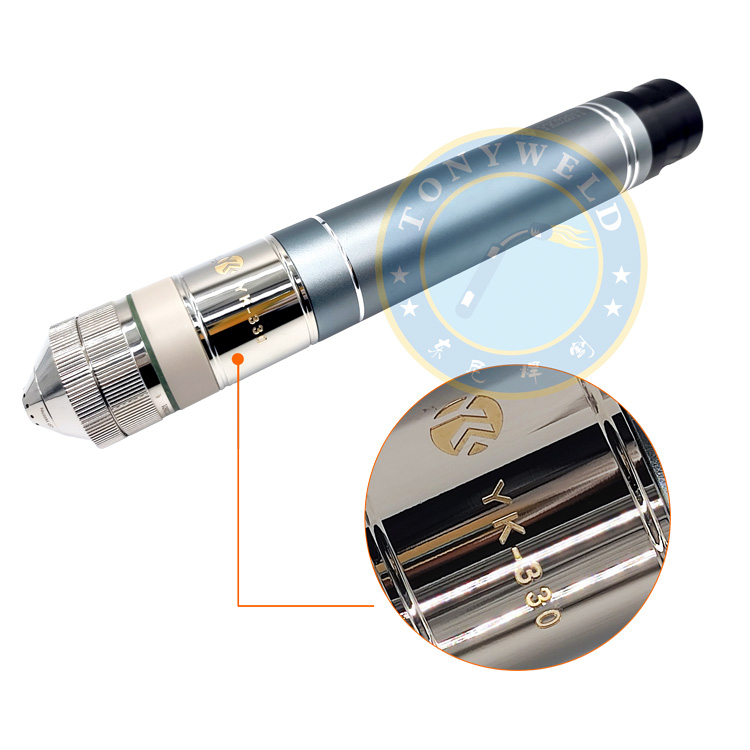

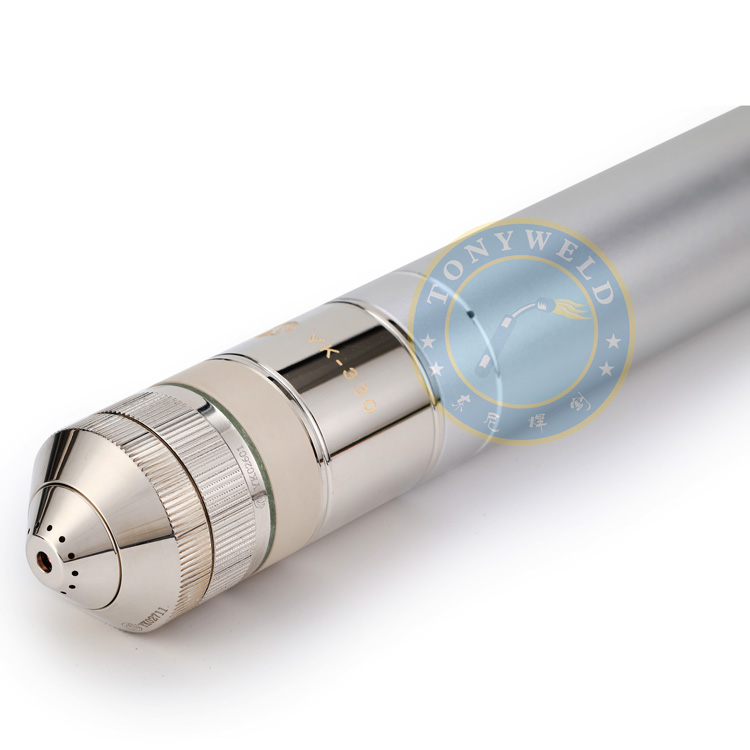

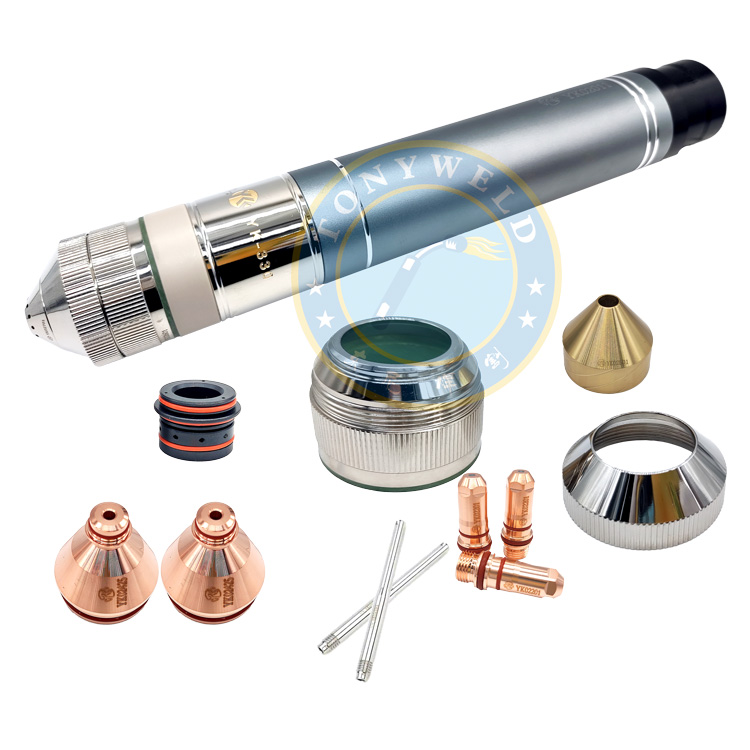

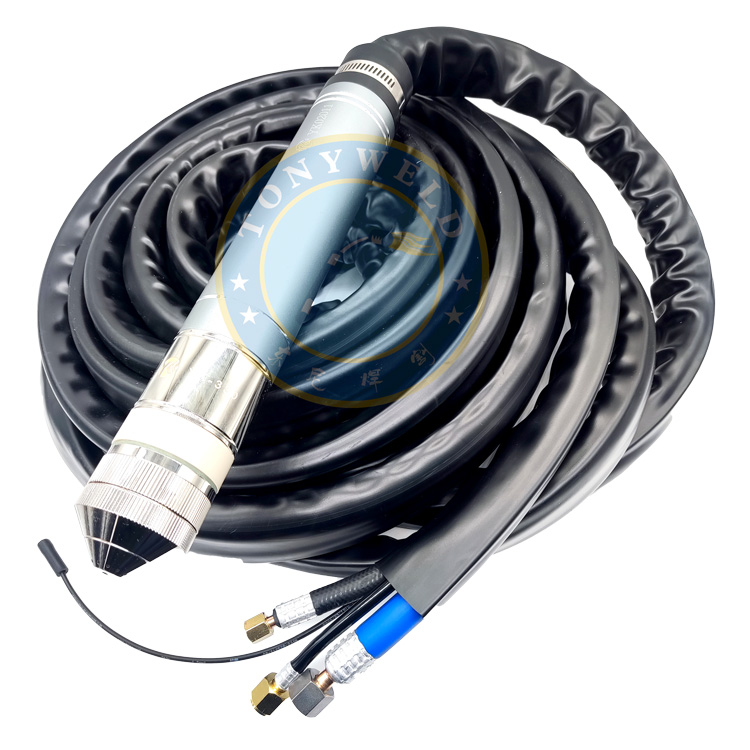

YK330
Tonyweld
Matters needing attention

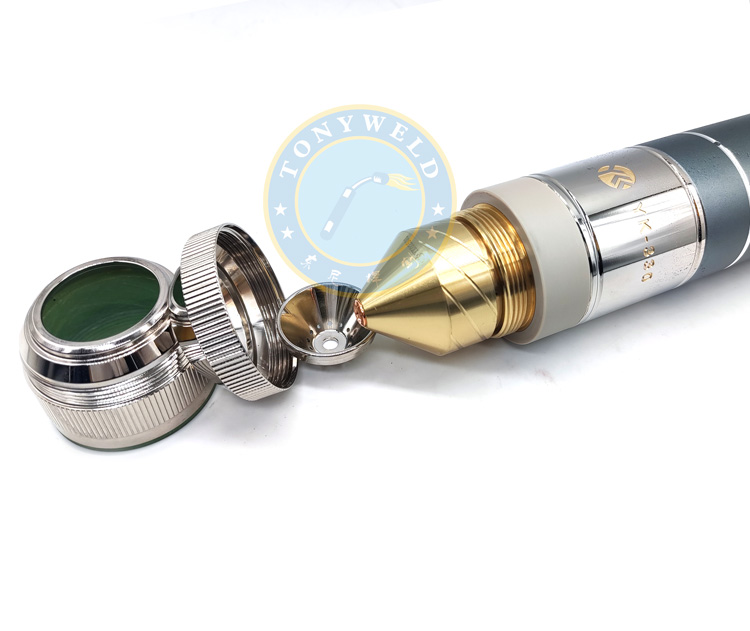

Please don't push too hard, it will damage the thread.Use for a period of time, please check whether there is slag in the ventilation filter element inside the cutting gun head.If there is any loosening, clean it up in time. Use a small wrench to align the air filter element with the wire mouth so as to avoid deviation and easy burning of the electrode nozzle.
| Cutter gun cutting data reference table | ||||||||
| Cutting thickness (mm) | Cutting current (A) | Nozzle diameter | Air pressure (Mpa) | Punch time (min) | cutting height (mm) | Refer to the arc voltage | Cutting speed (mm/min) | note |
| 6 | 80-100 | 1.7 | 0.55 | 0.5 | 4-6 | 135 | 2500-3300 | This parameter table is the cutting parameters of carbon steel plate, such as cutting stainless steel, copper, aluminum and other non-ferrous metal cutting speed should be relatively reduced; If it is a straight cutting workpiece, the current increases, the speed can be accelerated (Type YK0211 electrode is required for thick plate) |
| 10 | 100-120 | 1.7 | 0.55 | 0.8 | 4-6 | 135 | 1500-2000 | |
| 14 | 120-140 | 1.7 | 0.55 | 1 | 4-6 | 140 | 1200-1600 | |
| 16 | 130-150 | 1.9 | 0.55 | 1 | 4-6 | 145 | 1200-1500 | |
| 18 | 160-180 | 1.9 | 0.55 | 1.2 | 4-6 | 150 | 1200-1500 | |
| 20 | 180-200 | 2.3 | 0.55 | 1.2 | 5-8 | 155 | 1000-1400 | |
| 25 | 200-220 | 2.3-2.5 | 0.55 | 1.5 | 5-8 | 160 | 900-1300 | |
| 30 | 220-250 | 2.8 | 0.55 | 1.5 | 5-8 | 160 | 800-1100 | |
| 35 | 250-300 | 2.8-3.2 | 0.55 | 2 | 6 | 165 | 700-900 | |
| The following is the cutting reference data for 400A | ||||||||
| 40 | 300-350 | 3.5 | 0.55 | 2.3 | 8 | 170 | 600-800 | Edge perforation arc cutting |
| 45 | ≥330 | 3.5 | 0.55 | 2.5 | 8 | 175 | 500-650 | |
| 50 | ≥331 | 3.5 | 0.55 | 2.5 | 8 | 175 | 500-600 | |
Matters needing attention
Please don't push too hard, it will damage the thread.Use for a period of time, please check whether there is slag in the ventilation filter element inside the cutting gun head.If there is any loosening, clean it up in time. Use a small wrench to align the air filter element with the wire mouth so as to avoid deviation and easy burning of the electrode nozzle.
| Cutter gun cutting data reference table | ||||||||
| Cutting thickness (mm) | Cutting current (A) | Nozzle diameter | Air pressure (Mpa) | Punch time (min) | cutting height (mm) | Refer to the arc voltage | Cutting speed (mm/min) | note |
| 6 | 80-100 | 1.7 | 0.55 | 0.5 | 4-6 | 135 | 2500-3300 | This parameter table is the cutting parameters of carbon steel plate, such as cutting stainless steel, copper, aluminum and other non-ferrous metal cutting speed should be relatively reduced; If it is a straight cutting workpiece, the current increases, the speed can be accelerated (Type YK0211 electrode is required for thick plate) |
| 10 | 100-120 | 1.7 | 0.55 | 0.8 | 4-6 | 135 | 1500-2000 | |
| 14 | 120-140 | 1.7 | 0.55 | 1 | 4-6 | 140 | 1200-1600 | |
| 16 | 130-150 | 1.9 | 0.55 | 1 | 4-6 | 145 | 1200-1500 | |
| 18 | 160-180 | 1.9 | 0.55 | 1.2 | 4-6 | 150 | 1200-1500 | |
| 20 | 180-200 | 2.3 | 0.55 | 1.2 | 5-8 | 155 | 1000-1400 | |
| 25 | 200-220 | 2.3-2.5 | 0.55 | 1.5 | 5-8 | 160 | 900-1300 | |
| 30 | 220-250 | 2.8 | 0.55 | 1.5 | 5-8 | 160 | 800-1100 | |
| 35 | 250-300 | 2.8-3.2 | 0.55 | 2 | 6 | 165 | 700-900 | |
| The following is the cutting reference data for 400A | ||||||||
| 40 | 300-350 | 3.5 | 0.55 | 2.3 | 8 | 170 | 600-800 | Edge perforation arc cutting |
| 45 | ≥330 | 3.5 | 0.55 | 2.5 | 8 | 175 | 500-650 | |
| 50 | ≥331 | 3.5 | 0.55 | 2.5 | 8 | 175 | 500-600 | |
