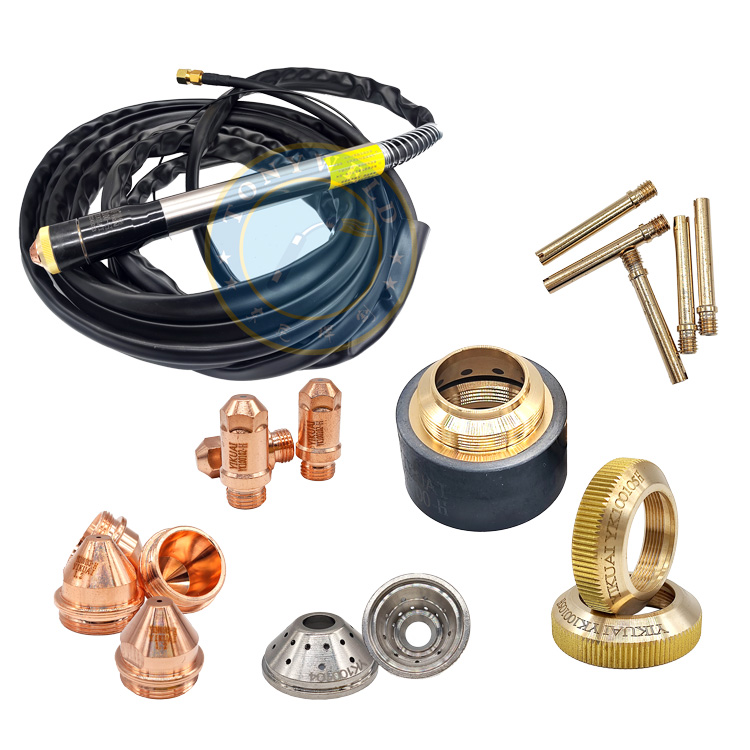

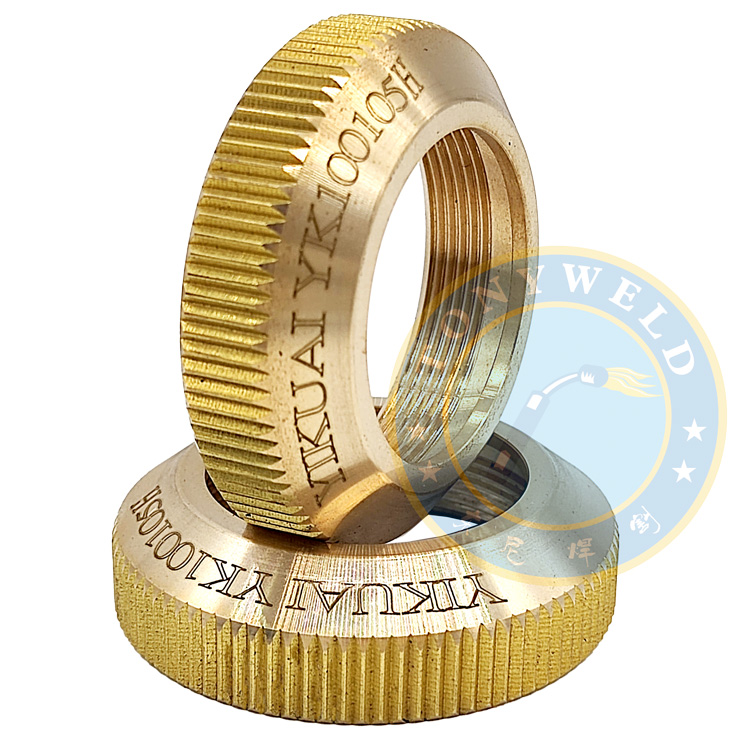

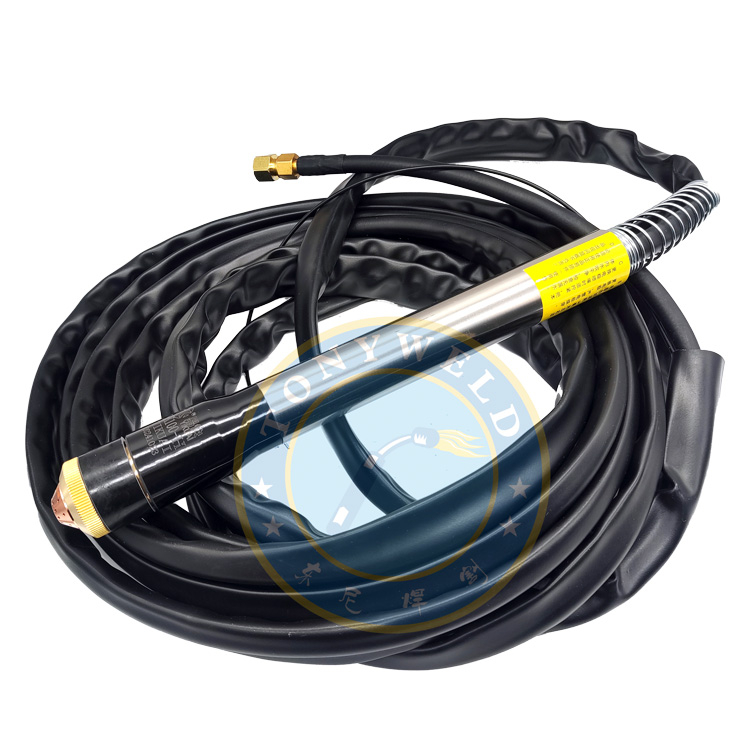

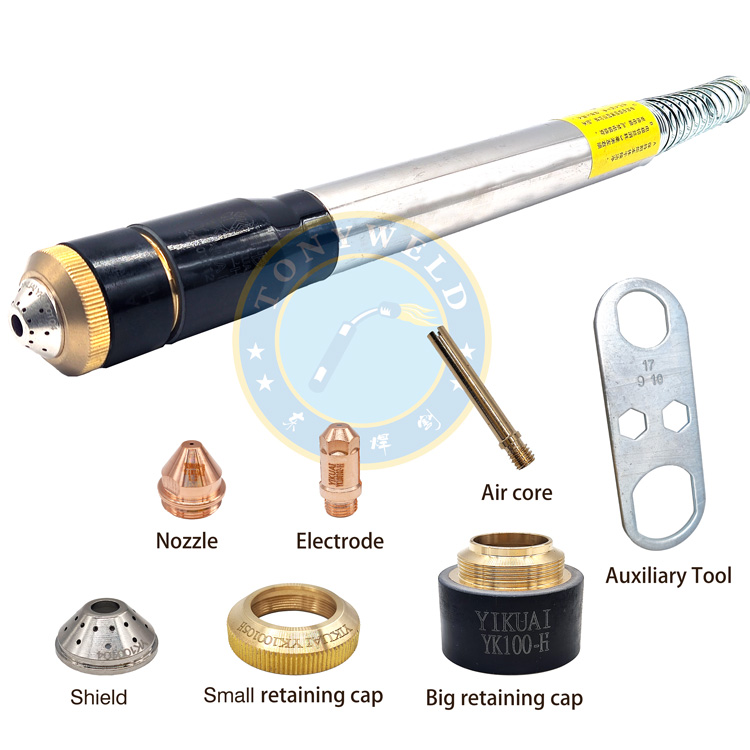

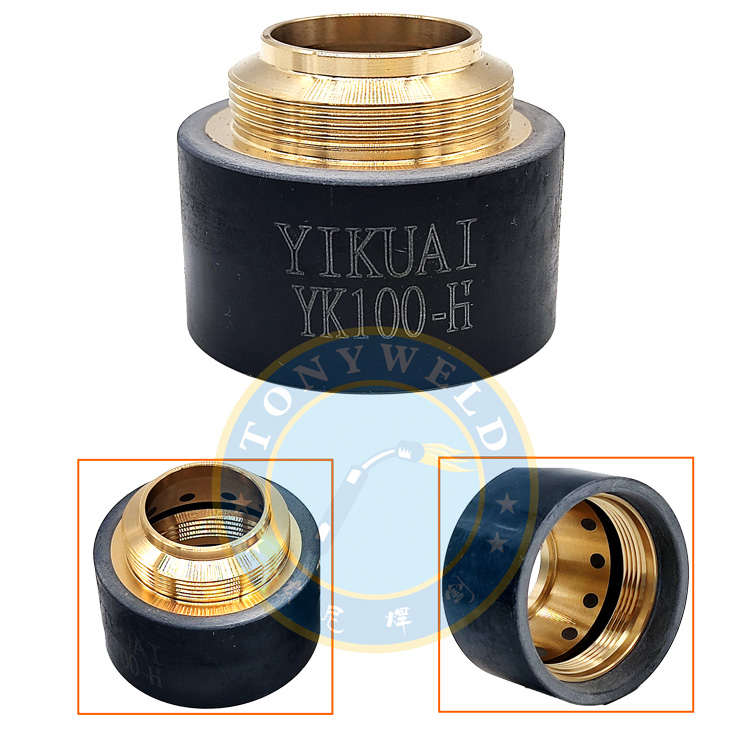

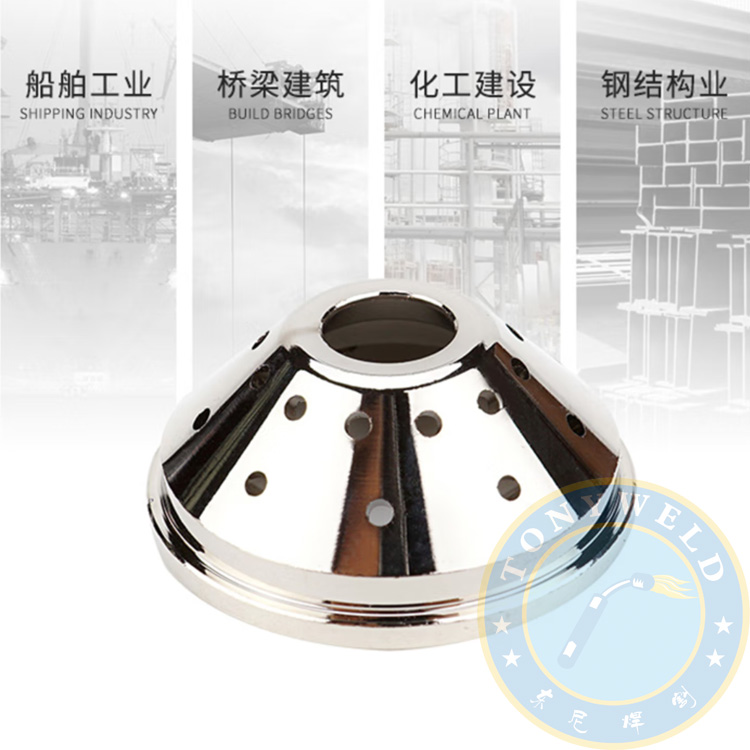

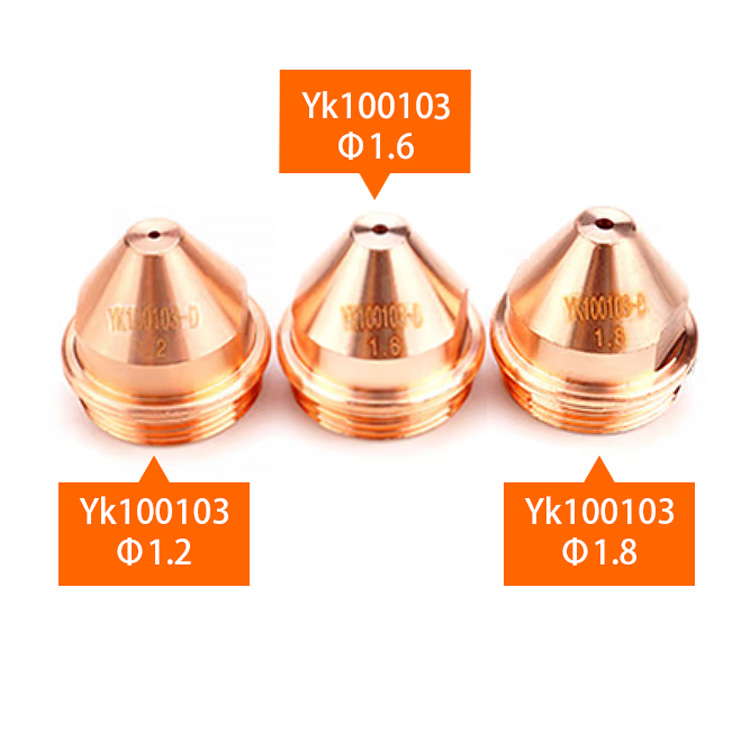

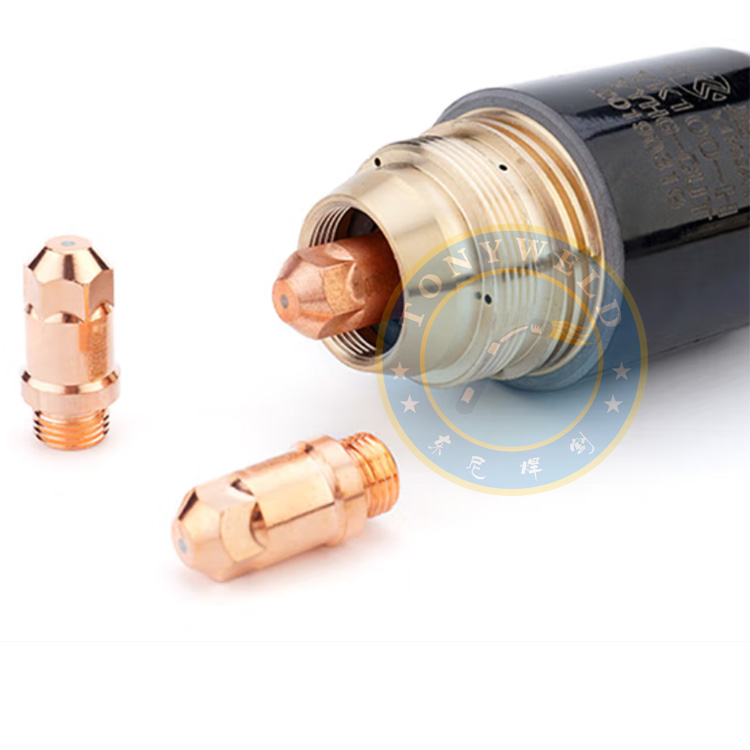

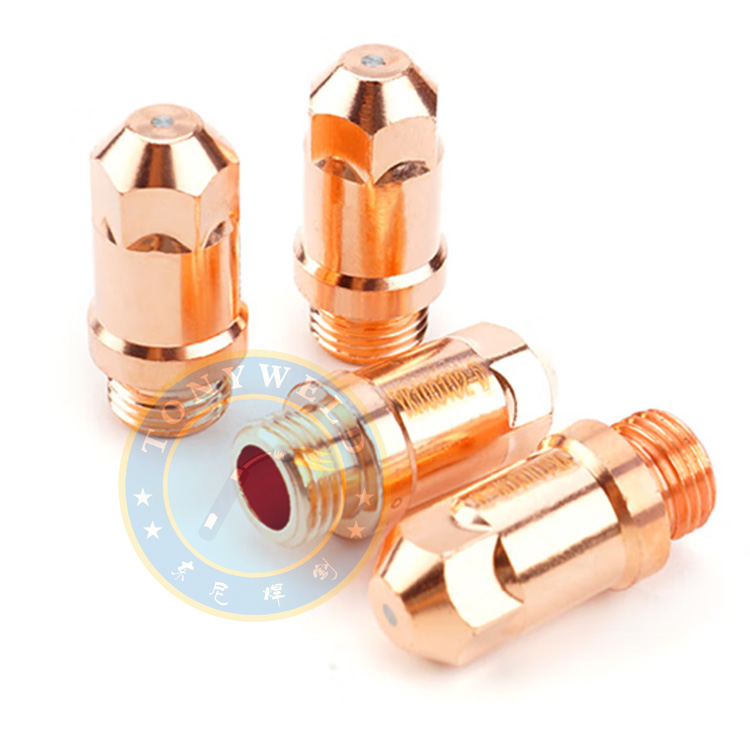

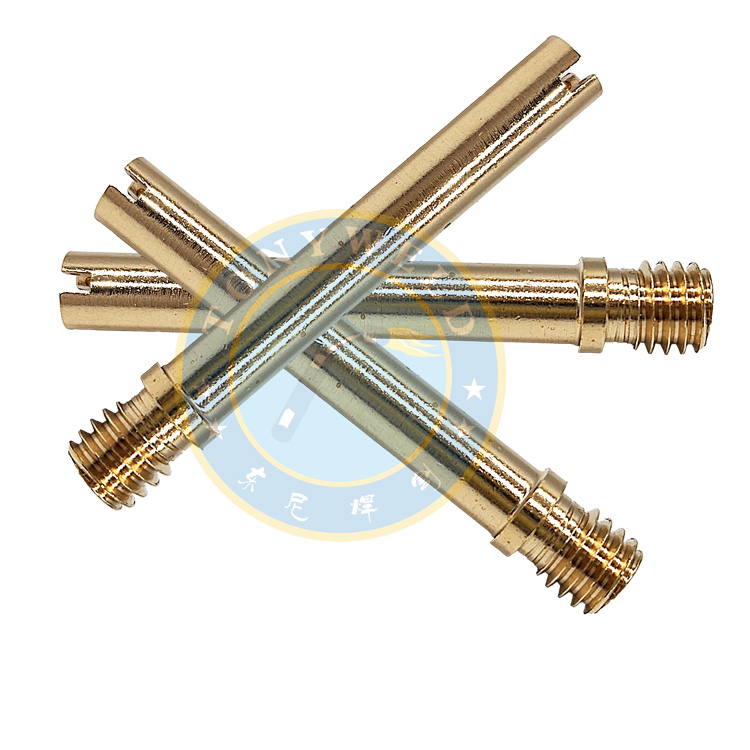

YK100-H
Tonyweld
Selected high-quality copper materials,
New process ceramic insulation,
Unique air channel ratio and eddy current compression, perfect air channel distribution,
Make it have the advantages of fast cutting speed,
Long life of consumables,
smooth cutting surface and good verticality, etc.
Matters needing attention
Please don't push too hard, it will damage the thread.Use for a period of time, please check whether there is slag in the ventilation filter element inside the cutting gun head.If there is any loosening, clean it up in time. Use a small wrench to align the air filter element with the wire mouth so as to avoid deviation and easy burning of the electrode nozzle.
| Cutter gun cutting data reference table | ||||||||
| Cutting thickness (mm) | Cutting current (A) | Nozzle diameter | Air pressure (Mpa) | Punch time (min) | Punch height (mm) | Cutting height (mm) | Cutting speed (mm/min) | Note |
| 1.5-2 | 40-60 | 1.2 | 0.4-0.45 | 0.1 | 5-6 | 4-6 | 3500-6000 | This parameter table is the cutting parameters of carbon steel plate, such as cutting stainless steel, copper, aluminum and other non-ferrous metal cutting speed should be relatively reduced; If it is a straight cutting workpiece, the current increases, the speed can be accelerated |
| 3 | 50-70 | 1.2 | 0.4-0.45 | 0.2 | 5-6 | 4-6 | 2000-3200 | |
| 4 | 60-80 | 1.2 | 0.4-0.45 | 0.2 | 5-6 | 4-6 | 2000-2800 | |
| 5 | 70-90 | 1.6 | 0.45-0.5 | 0.3 | 6-8 | 5-8 | 1800-2500 | |
| 6 | 80-100 | 1.6 | 0.45-0.5 | 0.3 | 6-8 | 5-8 | 1500-2300 | |
| 8 | 80-100 | 1.6 | 0.45-0.5 | 0.4 | 6-8 | 5-8 | 1300-2000 | |
| 10 | 80-100 | 1.6 | 0.5-0.55 | 0.5 | 6-8 | 5-8 | 1000-1500 | |
| 12 | 100-120 | 1.6 | 0.5-0.55 | 0.6 | 8-10 | 5-8 | 1000-1500 | |
| 14 | 100-120 | 1.6 | 0.5-0.55 | 0.8 | 8-10 | 5-8 | 800-1100 | |
| 16 | 100-120 | 1.8 | 0.55-0.6 | 1 | 8-10 | 5-8 | 600-900 | |
| 18 | 120 | 1.8 | 0.55-0.6 | 1 | 8-10 | 5-8 | 450-500 | |
