Yikuai YK200-H 200A High Performance Plasma Cutting Torch with high quality nozzle and electrode

Share to:

Yikuai YK200-H 200A High Performance Plasma Cutting Torch with high quality nozzle and electrode

Features

It's a classical cooling plasma torch with 6 year time-tested
Unique water channel design confirms better cutting quality, faster cutting speed and longer consumable working life
It’s suitable for 160~200A current plasma cutting

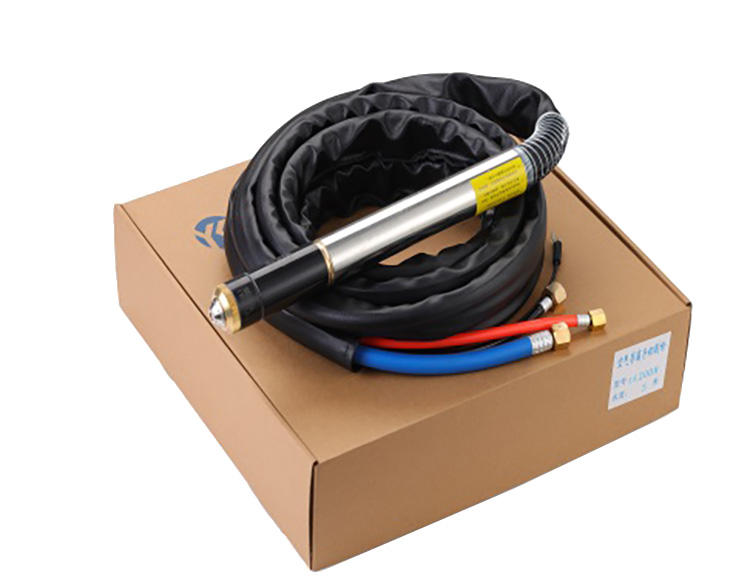

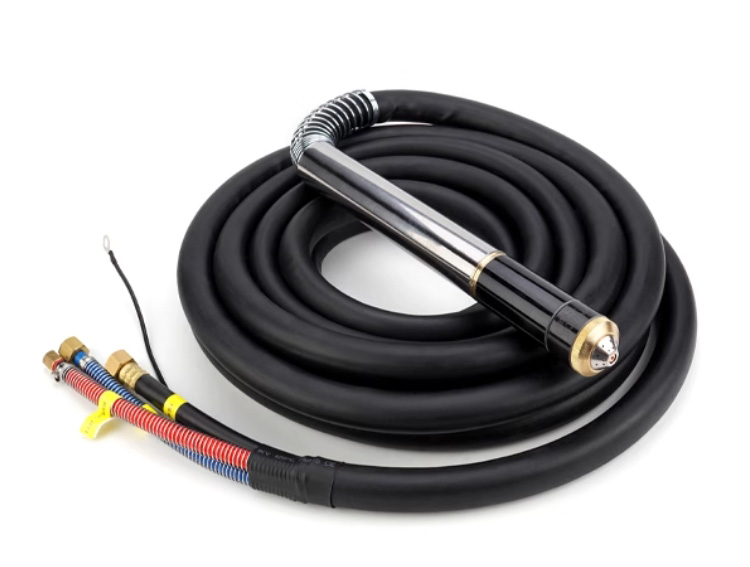

Yikuai YK200-H display

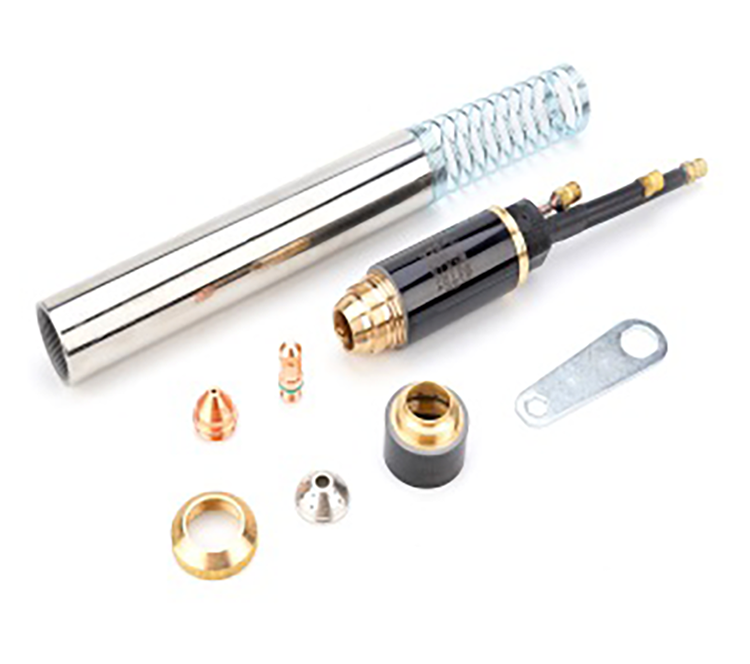

yk200h-组合 yk200h yk200h-four

YK200-H Recommend cutting parameters table for automated cutting

work-piece thickness	Current	Nozzle hole diameter	Gas pressure	Piercing time	Positioning height	Cutting height	Cutting speed	Remarks
mm	A	mm	Mpa	S	mm	mm	mm/min	This data is based on carbon steel, if cut stainless steel, copper and aluminum, please reduce the cutting speed accordingly. if increase the cutting speed, current should be increased together,nozzle diameter should be changed accordingly
3	50-80	1.2	0.45-0.5	0.3	5-6	4-6	3500-4000
6	80-100	1.6	0.45-0.5	0.3	6-8	5-8	1800-2100
8	80-100	1.6	0.45-0.5	0.3	6-8	5-8	1400-1600
10	100-120	1.6	0.45-0.5	0.5	6-8	5-8	1300-1500
12	120-140	1.6	0.5-0.55	0.5	6-8	5-8	1000-1200
14	130-160	1.6	0.5-0.55	0.8	8-10	5-8	950-1100
16	140-160	1.6	0.5-0.55	0.8	8-10	5-8	800-1000
18	180	1.8	0.55-0.6	1.0	8-10	5-8	600-700
20	180-200	1.6	0.5-0.55	0.8	8-10	5-8	950-1100
22	200	1.6	0.5-0.55	0.8	8-10	5-8	800-1000
25	200	1.8	0.55-0.6	1.0	8-10	5-8	600-700

Note: The above paramters are only for reference,please adjust it according to actual working conditions

Yk200-H Application samples
samples

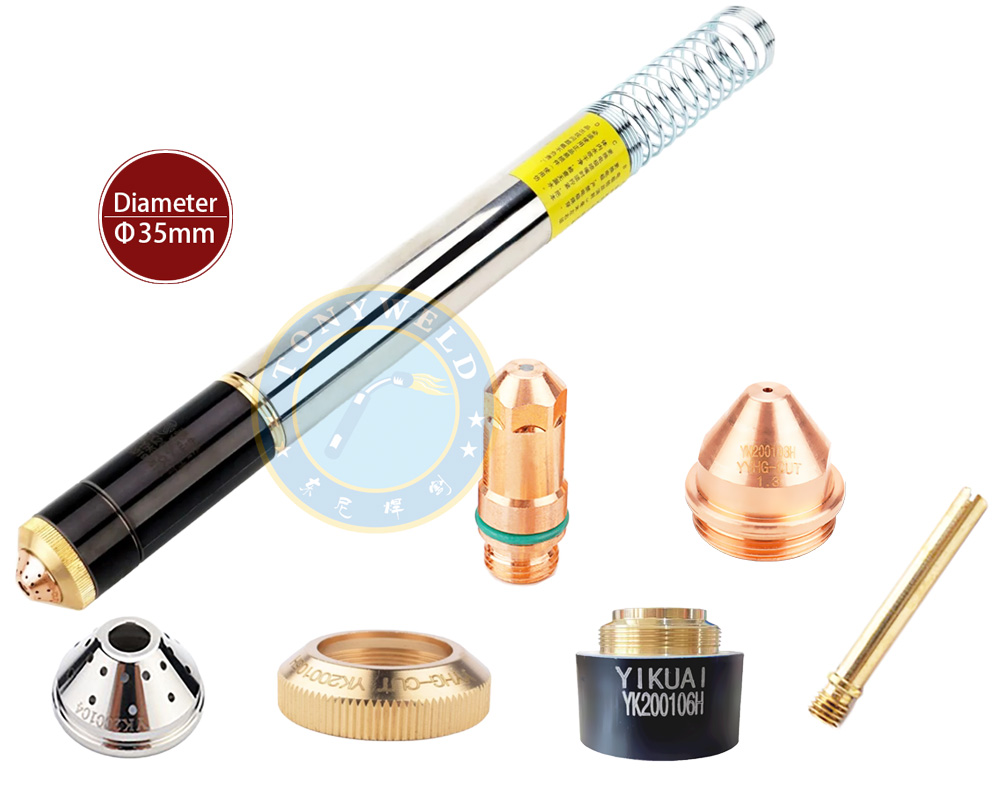

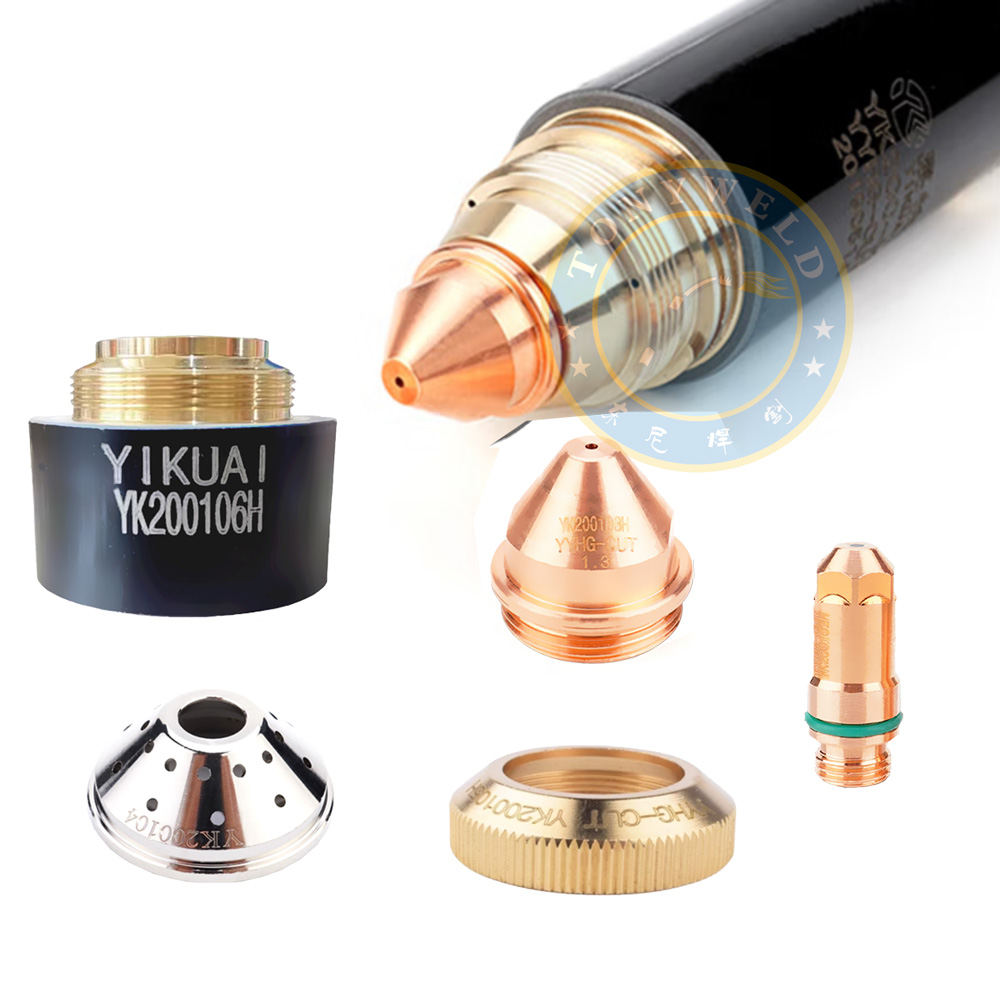

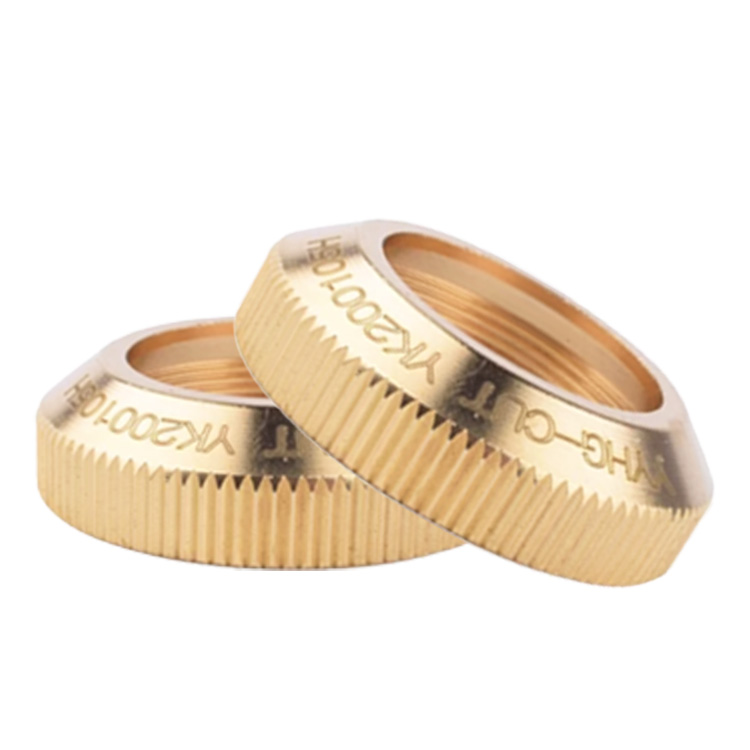

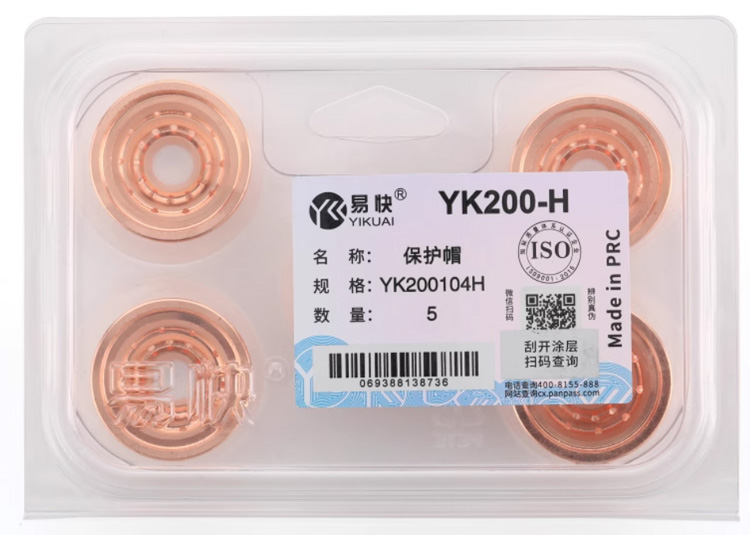

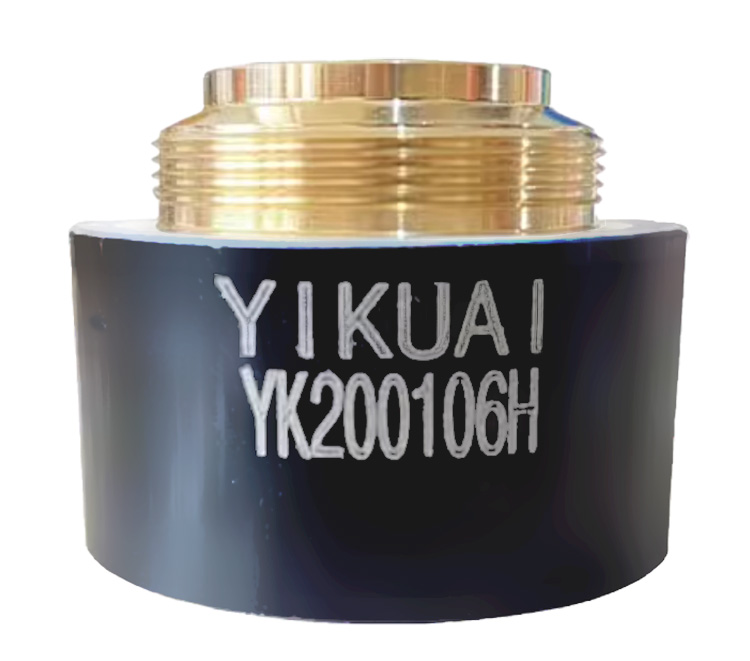

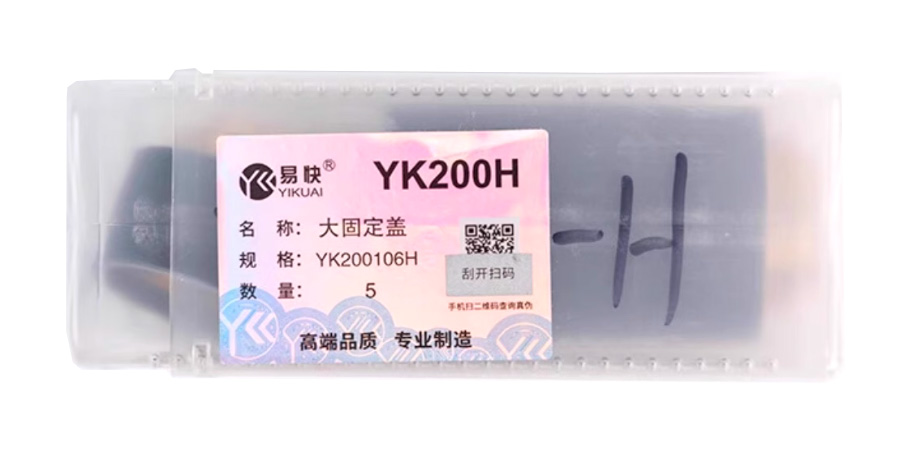

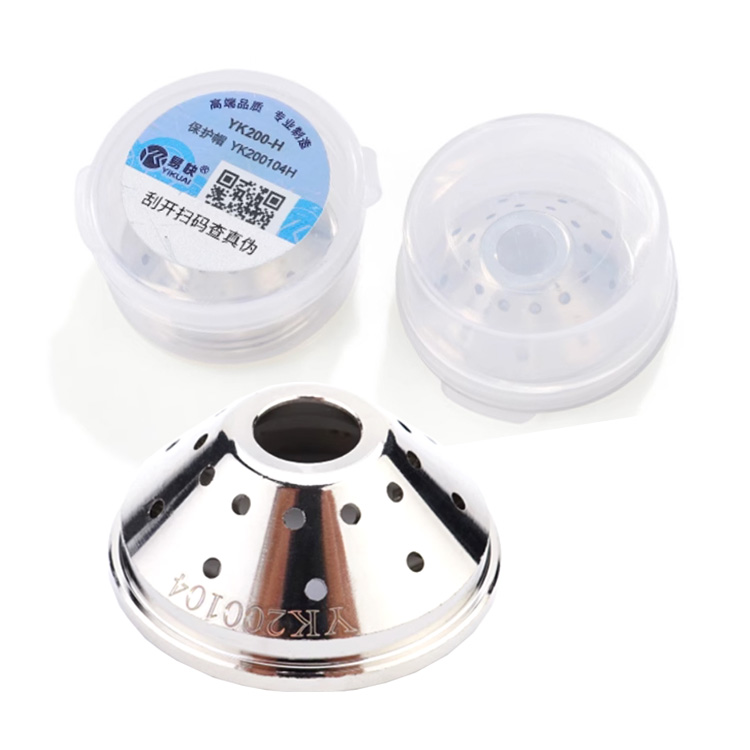

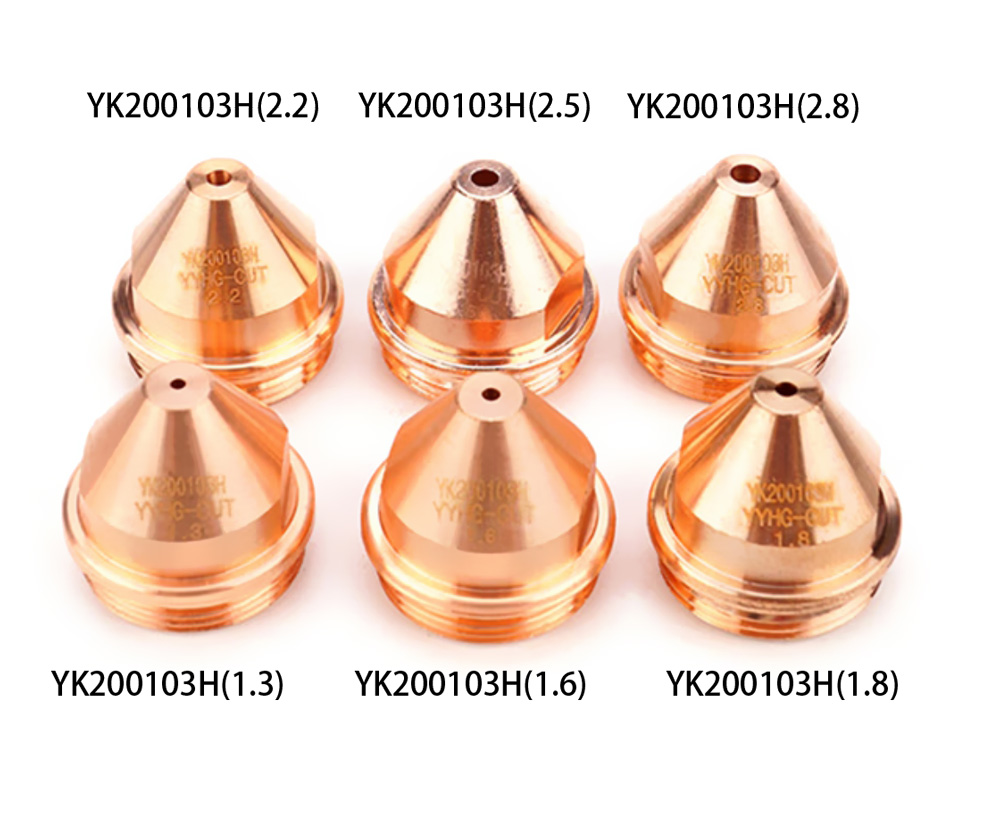

Yk200H consumables display
yk200h-组合

YK200-H Recommend cutting parameters table for automated cutting

work-piece thickness	Current	Nozzle hole diameter	Gas pressure	Piercing time	Positioning height	Cutting height	Cutting speed	Remarks
mm	A	mm	Mpa	S	mm	mm	mm/min	This data is based on carbon steel, if cut stainless steel, copper and aluminum, please reduce the cutting speed accordingly. if increase the cutting speed, current should be increased together,nozzle diameter should be changed accordingly
3	50-80	1.2	0.45-0.5	0.3	5-6	4-6	3500-4000
6	80-100	1.6	0.45-0.5	0.3	6-8	5-8	1800-2100
8	80-100	1.6	0.45-0.5	0.3	6-8	5-8	1400-1600
10	100-120	1.6	0.45-0.5	0.5	6-8	5-8	1300-1500
12	120-140	1.6	0.5-0.55	0.5	6-8	5-8	1000-1200
14	130-160	1.6	0.5-0.55	0.8	8-10	5-8	950-1100
16	140-160	1.6	0.5-0.55	0.8	8-10	5-8	800-1000
18	180	1.8	0.55-0.6	1.0	8-10	5-8	600-700
20	180-200	1.6	0.5-0.55	0.8	8-10	5-8	950-1100
22	200	1.6	0.5-0.55	0.8	8-10	5-8	800-1000
25	200	1.8	0.55-0.6	1.0	8-10	5-8	600-700
