Tr XS 300A Air Cooled CO2 mig welding torch and consumables

Tregaskiss XS 300A Air Cooled CO2 mig welding torch and consumables

Share to:

TRE XS 300A Air Cooled MIG GUN Standard Length：10FT 12FT 15FT Rating: 300ACO2/250A Mixed Gases Duty Cycle : 60% Wire Size : .030”-1/16”(0.8-1.6MM)

Availability:

Quantity:



Inquire Add to Basket

Model:
XS 300A Air Cooled MIG GUN
Brand:
Tonyweld
Code:
85159000

Product Description

Tre XS 300A Air Cooled MIG GUN CO2 mig welding torch and consumables

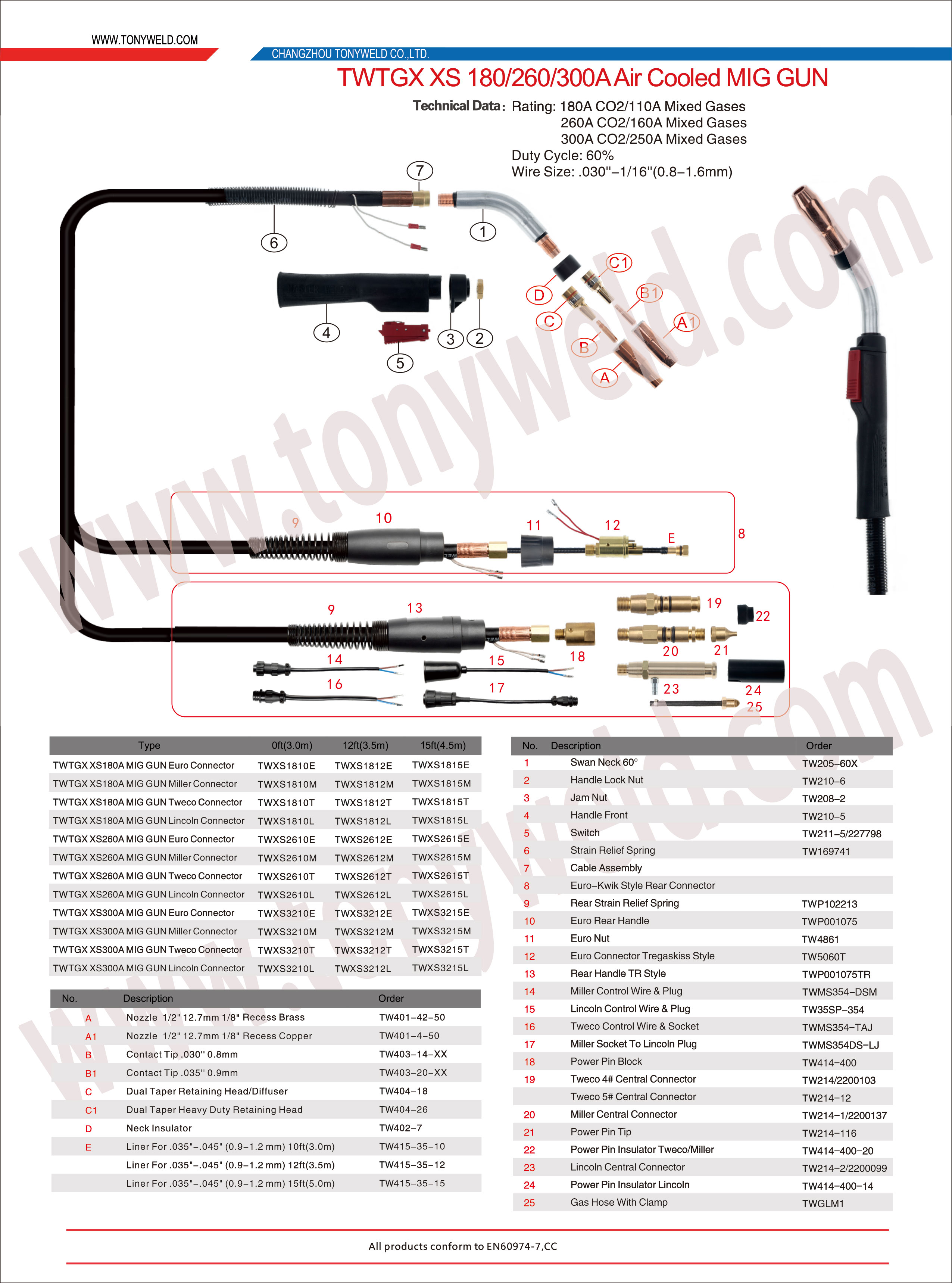

Tregaskiss-3

TWTGX XS 180/260/300AAir Cooled MIG GUN Technical Data： Rate : 180A CO2/110A Mixed Gases 260A CO2/160A Mixed Gases 300ACO2/250A Mixed Gases Duty Cycle : 60% Wire Size : .030”-1/16”(0.8-1.6MM) Type 10ft(3.0m) 12ft(3.5m) 15ft(4.5m) TWTGX XS180A MIG GUN Euro Connector TWXS1810E TWXS1812E TWXS1815E TWTGX XS180A MIG GUN Miller Connector TWXS1810M TWXS1812M TWXS1815M TWTGX XS180A MIG GUN Tweco Connector TWXS1810T TWXS1812T TWXS1815T TWTGX XS180A MIG GUN Lincoln Connector TWXS1810L TWXS1812L TWXS1815L TWTGX XS260A MIG GUN Euro Connector TWXS2610E TWXS2612E TWXS2615E TWTGX XS260A MIG GUN Miller Connector TWXS2610M TWXS2612M TWXS2615M TWTGX XS260A MIG GUN Tweco Connector TWXS2610T TWXS2612T TWXS2615T TWTGX XS260A MIG GUN Lincoln Connector TWXS2610L TWXS2612L TWXS2615L TWTGX XS300A MIG GUN Euro Connector TWXS3210E TWXS3212E TWXS3215E TWTGX XS300A MIG GUN Miller Connector TWXS3210M TWXS3212M TWXS3215M TWTGX XS300A MIG GUN Tweco Connector TWXS3210T TWXS3212T TWXS3215T TWTGX XS300A MIG GUN Lincoln Connector TWXS3210L TWXS3212L TWXS3215L
No.	Description	Order
A	Nozzle 1/2” 12.7mm 1/8”Recess Brass	TW401-42-50
A1	Nozzle 1/2” 12.7mm 1/8”Recess Copper	TW401-4-50
B	Contact Tip .030” 0.8mm	TW403-14-XX
B1	Contact Tip .035” 0.9mm	TW403-20-XX
C	Dual Taper Retaining Head/Diffuser	TW404-18
C1	Dual Taper Heavy Duty Retaining Head	TW404-26
D	Neck Insulator	TW402-7
E	Liner For .035”-.045” (0.9-1.2 mm) 10ft(3.0m)	TW415-35-10
	Liner For .035”-.045” (0.9-1.2 mm) 12ft(3.5m)	TW415-35-12
	Liner For .035”-.045” (0.9-1.2 mm) 15ft(5.0m)	TW415-35-15

No.	Description	Order
1	Swan Neck 60°	TW205-60X
2	Handle Lock Nut	TW210-6
3	Jam Nut	TW208-2
4	Handle Front	TW210-5
5	Switch	TW211-5/227798
6	Strain Relief Spring	TW169741
7	Cable Assembly
8	Euro-Kwik Style Rear Connector
9	Rear Strain Relief Spring	TWP102213
10	Euro Rear Handle	TWP001075
11	Euro Nut	TW4861
12	Euro Connector Tregaskiss Style	TW5060T
13	Rear Handle TR Style	TWP001075TR
14	Miller Control Wire & Plug	TWMS354-DSM
15	Lincoln Control Wire & Plug	TW35SP-354
16	Tweco Control Wire & Socket	TWMS354-TAJ
17	Miller Socket To Lincoln Plug	TWMS354DS-LJ
18	Power Pin Block	TW414-400
19	Tweco 4# Central Connector	TW214/2200103
	Tweco 5# Central Connector	TW214-12
20	Miller Central Connector	TW214-1/2200137
21	Power Pin Tip	TW214-116
22	Power Pin Insulator Tweco/Miller	TW414-400-20
23	Lincoln Central Connector	TW214-2/2200099
24	Power Pin Insulator Lincoln	TW414-400-14
25	Gas Hose With Clamp	TWGLM1

Tregaskiss CO2 mig welding torch package

* 1 piece Tregaskiss mig torch 300A package in a carton
