Lincoln CO2 Mig Welding Magnum PRO Curve HDE 550 Torch 10FT 12FT 15FT

Share to:

Lincoln Magnum Pro Curve Hde 550 Gas Cooled Mig Welding Torch Gun Technical Data： Rating : 550A CO2/Mixed Gas Duty Cycle : 100% Wire Size : .035”-1/8” (0.9-3.2MM)

规格:	Magnum PRO Curve HDE 550
Quantity:



Inquire Add to Basket

Model:
Magnum PRO Curve HDE 550
Brand:
Tonyweld
Code:
K4534
Product Name :
CO2 Mig Welding Magnum PRO Curve HDE 550 Torch
series :
Mig Welding torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
connector :
euro / mille /bnd connector and etc
Wire Size:
.0.6-1.2 MM

Product Description

Lin Magnum PRO Curve HDE 550 mig welding torch and consumables

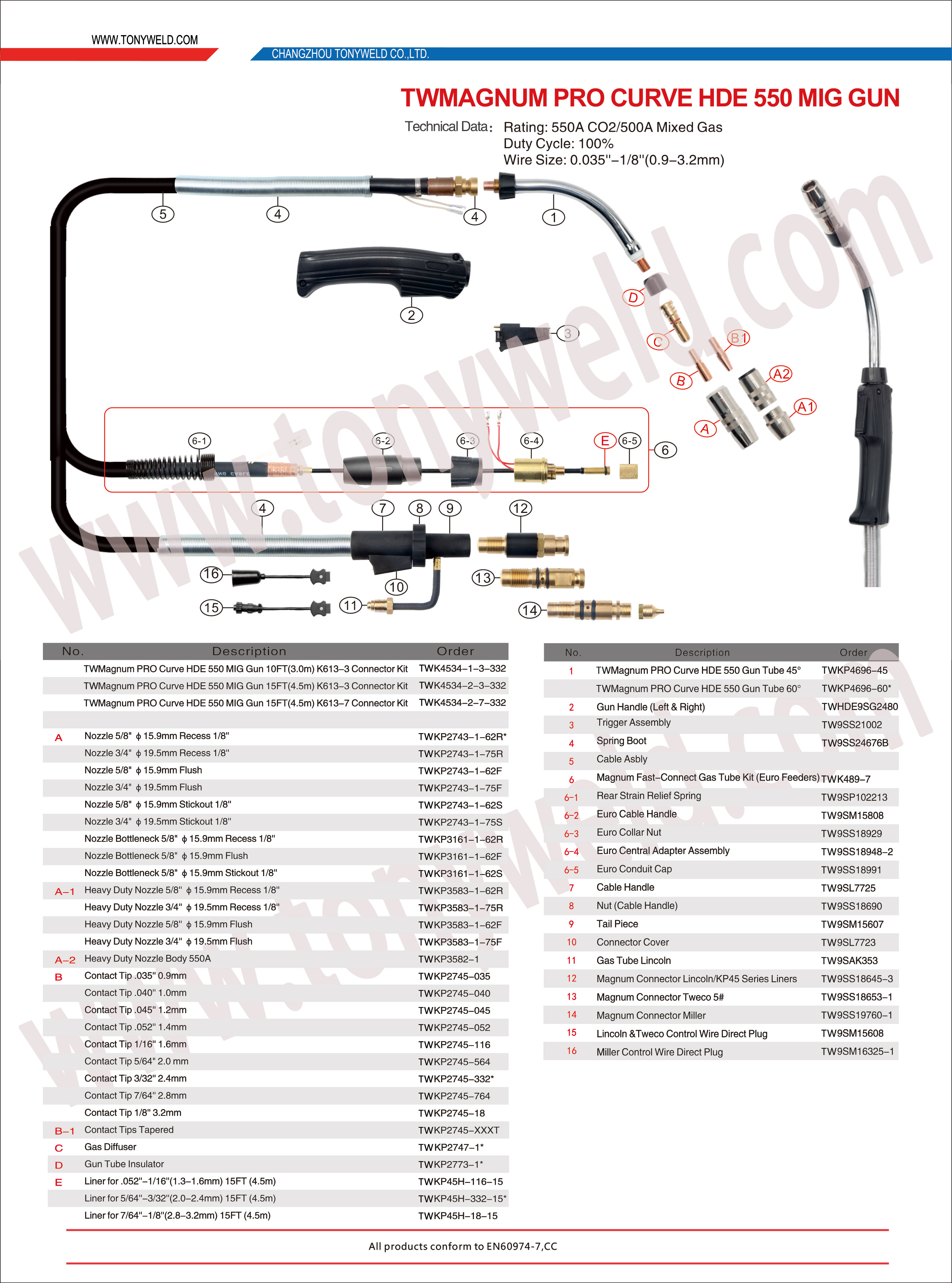

Lincoln-20

Lincoln Magnum Pro Curve Hde 550 Gas Cooled Mig Welding Torch Gun
Technical Data：	Rating : 550A CO2/Mixed Gas
	Duty Cycle : 100%
	Wire Size : .035”-1/8” (0.9-3.2MM)

No.	Description	Order
	TWMagnum PRO Curve HDE 550 MIG Gun 10FT(3.0m) K613-3 Connector Kit	TWK4534-1-3-332
	TWMagnum PRO Curve HDE 550 MIG Gun 15FT(4.5m) K613-3 Connector Kit	TWK4534-2- 3-332
	TWMagnum PRO Curve HDE 550 MIG Gun 15FT(4.5m) K613-7 Connector Kit	TWK4534-2-7-332

A	Nozzle 5/8” ф15.9mm Recess 1/8”	TWKP2743-1-62R*
	Nozzle 3/4” ф19.5mm Recess 1/8”	TWKP2743-1-75R
	Nozzle 5/8” ф15.9mm Flush	TWKP2743-1-62F
	Nozzle 3/4” ф19.5mm Flush	TWKP2743-1-75F
	Nozze 5/8” ф15.9mm Stickout 1/8”	TWKP2743-1-62S
	Nozzle 3/4” ф19.5mm Stickout 1/8”	TWKP2743-1-75S
	Nozzle Bottleneck 5/8” ф15.9mm Recess 1/8”	TWKP3161-1-62R
	Nozzle Bottleneck 5/8” ф15.9mm Flush	TWKP3161-1-62F
	Nozze Bottleneck 5/8” ф15.9mm Stickout 1/8”	TWKP3161-1-62S
A-1	Heavy Duty Nozzle 5/8” ф15.9mm Recess 1/8”	TWKP3583-1-62R
	Heavy Duty Nozzle 3/4” ф19.5mm Recess 1/8”	TWKP3583-1-75R
	Heavy Duty Nozzle 5/8” ф15.9mm Flush	TWKP3583-1-62F
	Heavy Duty Nozzle 3/4” ф19.5mm Flush	TWKP3583-1-75F
A-2	Heavy Duty Nozzle Body 550A	TWKP3582-1
B	Contact Tip .035” 0.9mm	TWKP2745-035
	Contact Tip .040” 1.0mm	TWKP2745-040
	Contact Tip .045” 1.2mm	TWKP2745-045
	Contact Tip .052” 1.4mm	TWKP2745-052
	Contact Tip 1/16” 1.6mm	TWKP2745-116
	Contact Tip 5/64” 2.0 mm	TWKP2745-564
	Contact Tip 3/32” 2.4mm	TWKP2745-332*
	Contact Tip 7/64” 2.8mm	TWKP2745-764
	Contact Tip 1/8” 3.2mm	TWKP2745-18
B-1	Contact Tips Tapered	TWKP2745-XXXT
C	Gas Diffuser	TWKP2747-1*
D	Gun Tube Insulator	TWKP2773-1*
E	Liner for .052”-1/16”(1.3 -1 .6mm) 15FT (4.5m)	TWKP45H-116-15
	Liner for 5/64”-3/32”(2.0 -2.4mm) 15FT (4.5m)	TWKP45H-332-15*
	Liner for 7/64”-1/8”(2.8-3.2mm) 15FT (4.5m)	TWKP45H-18-15

No.	Description	Order
1	TWMagnum PRO Curve HDE 550 Gun Tube 45°	TWKP4696-45
	TWMagnum PRO Curve HDE 550 Gun Tube 60°	TWKP4696-60*
2	Gun Handle (Left & Right)	TWHDE9SG2480
3	Trigger Assembly	TW9SS21002
4	Spring Boot	TW9SS24676B
5	Cable Asbly
6	Magnum Fast-Connect Gas Tube Kit (Euro Feeders)	TWK489 -7
6-1	Rear Strain Relief Spring	TW9SP102213
6-2	Euro Cable Handle	TW9SM15808
6-3	Euro Collar Nut	TW9SS18929
6-4	Euro Central Adapter Assembly	TW9SS18948-2
6-5	Euro Conduit Cap	TW9SS18991
7	Cable Handle	TW9SL7725
8	Nut (Cable Handle)	TW9SS1 8690
9	Tail Piece	TW9SM15607
10	Connector Cover	TW9SL7723
11	Gas Tube Lincoln	TW9SAK353
12	Magnum Connector Lincoln/KP45 Series Liners	TW9SS18645-3
13	Magnum Connector Tweco 5#	TW9SS18653-1
14	Magnum Connector Miller	TW9SS19760-1
15	Lincoln &Tweco Control Wire Direct Plug	TW9SM15608
16	Miller Control Wire Direct Plug	TW9SM16325-1

Lin Magnum PRO Curve HDE 550 mig welding torch package

* 1 piece mig torch Magnum PRO Curve HDE 550 package in a carton
