Product Category

Lincoln CO2 Mig Welding Magnum PRO Curve 300 Torch 10FT 12FT 15FT

Share to:

Lincoln Magnum Pro Curve 300 Gas Cooled Mig Welding Torch Gun Technical Data： Rating : 300A CO2 Duty Cycle : 60% Wire Size : .025”-5/64” (0.6-2.0MM)

规格:	Magnum PRO Curve 300
Quantity:



Inquire Add to Basket

Model:
Magnum PRO Curve 300
Brand:
Tonyweld
Code:
K2951
Product Name :
CO2 Mig Welding Magnum PRO Curve 300 Torch
series :
Mig Welding torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
connector :
euro / mille /bnd connector and etc
Wire Size:
.0.6-1.2 MM

Product Description

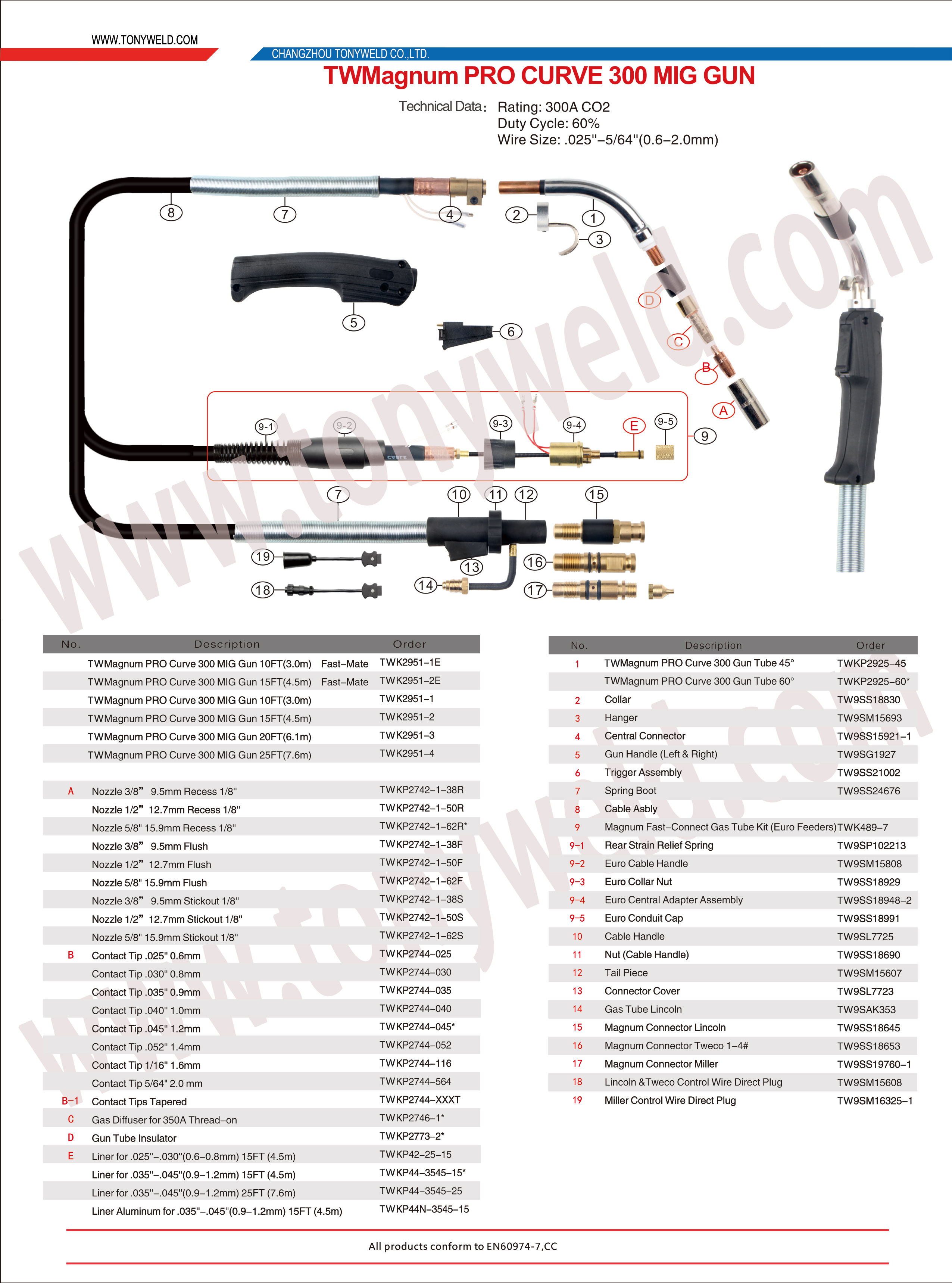

Lincoln Magnum PRO Curve 300 mig welding torch and consumables

Lincoln-14

Lincoln Magnum Pro Curve 300 Gas Cooled Mig Welding Torch Gun
Technical Data：	Rating : 300A CO2
	Duty Cycle : 60%
	Wire Size : .025”-5/64” (0.6-2.0MM)

No.	Description	Order
	TWMagnum PRO Curve 300 MIG Gun 10FT(3.0m) Fast-Mate	TWK2951-1E
	TWMagnum PRO Curve 300 MIG Gun 15FT(4.5m) Fast-Mate	TWK2951-2E
	TWMagnum PRO Curve 300 MIG Gun 10FT(3.0m)	TWK2951-1
	TWMagnum PRO Curve 300 MIG Gun 15FT(4.5m)	TWK2951-2
	TWMagnum PRO Curve 300 MIG Gun 20FT(6.1m)	TWK2951-3
	TWMagnum PRO Curve 300 MIG Gun 25FT(7.6m)	TWK2951-4

A	Nozzle 3/8” 9.5mm Recess 1/8”	TWKP2742-1-38R
	Nozzle 1/2” 12.7mm Recess 1/8”	TWKP2742-1-50R
	Nozzle 5/8” 15.9mm Recess 1/8”	TWKP2742-1-62R*
	Nozzle 3/8”9.5mm Flush	TWKP2742-1-38F
	Nozzle 1/2”12.7mm Flush	TWKP2742-1-50F
	Nozzle 5/8” 15.9mm Flush	TWKP2742-1-62F
	Nozzle 3/8”9.5mm Stickout 1/8”	TWKP2742-1-38S
	Nozzle 1/2”12.7mm Stickout 1/8”	TWKP2742-1-50S
	Nozzle 5/8” 15.9mm Stickout 1/8”	TWKP2742-1-62S
B	Contact Tip .025” 0.6mm	TWKP2744-025
	Contact Tip .030” 0.8mm	TWKP2744-030
	Contact Tip .035” 0.9mm	TWKP2744-035
	Contact Tip .040” 1.0mm	TWKP2744-040
	Contact Tip .045” 1.2mm	TWKP2744-045*
	Contact Tip .052” 1.4mm	TW KP2744-052
	Contact Tip 1/16” 1.6mm	TWKP2744-116
	Contact Tip 5/64” 2.0 mm	TWKP2744-564
B-1	Contact Tips Tapered	TWKP2744-XXXT
C	Gas Diffuser for 350A Thread-on	TWKP2746-1*
D	Gun Tube Insulator	TWKP2773-2*
E	Liner for .025”- .030”(0.6-0.8mm) 15FT (4.5m)	TWKP42-25-15
	Liner for .035”- .045”(0.9-1 .2mm) 15FT (4.5m)	TWKP44-3545-15*
	Liner for .035”-.045”(0.9 -1.2mm) 25FT (7.6m)	TWKP44-3545-25
	Liner Aluminum for .035”-.045”(0.9-1.2mm) 15FT (4.5m)	TWKP44N-3545-15

No.	Description	Order
1	TWMagnum PRO Curve 300 Gun Tube 45°	TWKP2925-45
	TWMagnum PRO Curve 300 Gun Tube 60°	TWKP2925-60*
2	Collar	TW9SS18830
3	Hanger	TW9SM15693
4	Central Connector	TW9SS15921-1
5	Gun Handle (Left & Right)	TW9SG1927
6	Trigger Assembly	TW9SS21002
7	Spring Boot	TW9SS24676
8	Cable Asbly
9	Magnum Fast-Connect Gas Tube Kit (Euro Feeders)	TWK489-7
9-1	Rear Strain Relief Spring	TW9SP102213
9-2	Euro Cable Handle	TW9SM15808
9-3	Euro Collar Nut	TW9SS18929
9-4	Euro Central Adapter Assembly	TW9SS18948-2
9-5	Euro Conduit Cap	TW9SS1 8991
10	Cable Handle	TW9SL7725
11	Nut (Cable Handle)	TW9SS18690
12	Tail Piece	TW9SM15607
13	Connector Cover	TW9SL7723
14	Gas Tube Lincoln	TW9SAK353
15	Magnum Connector Lincoln .	TW9SS18645
16	Magnum Connector Tweco 1-4#	TW9SS18653
17	Magnum Connector Miller	TW9SS19760-1
18	Lincoln &Tweco Control Wire Direct Plug	TW9SM15608
19	Miller Control Wire Direct Plug	TW9SM16325-1

Lincoln Magnum PRO Curve 300 mig welding torch package

* 1 piece mig torch Magnum PRO Curve 300 package in a carton
