Binzel soldadora MB24KD mig torch spare parts

Share to:

Quantity:



Inquire Add to Basket

Model:
24kd
Brand:
Tonyweld
Code:
85159000
Product Name :
soldadora MB24KD mig torch spare parts
series :
MB24kd mig torch parts
package :
5pcs aplastic box or as customer request
Place of Origin :
Jiangsu, China (Mainland)
material :
copper brass / E-cu CuCrZr
属性:
属性值

Product Description

Binzel soldadora MB24KD mig torch spare parts

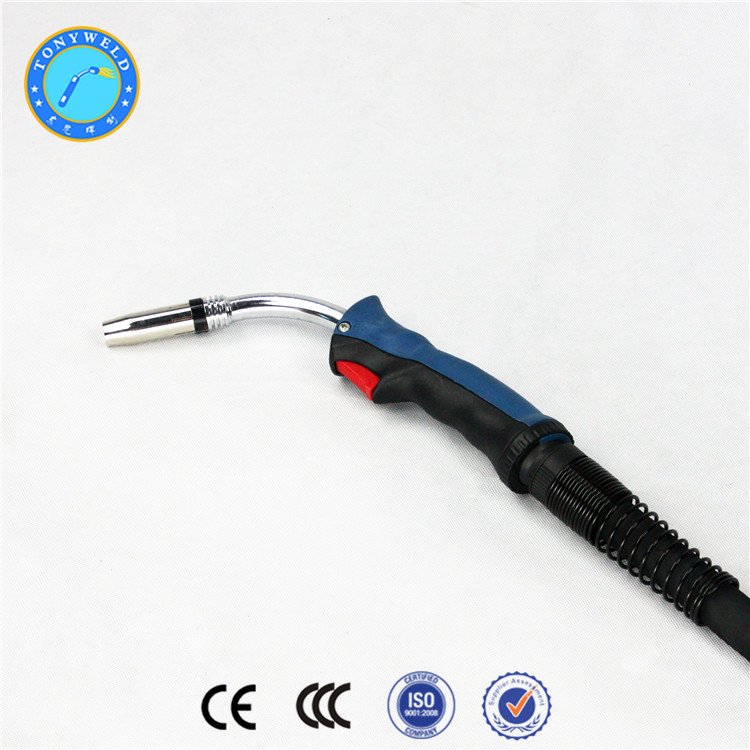

-24KD Air Cooled MIG Welding Torch
Technical Data：	Rating: 250A CO2/220A Mixed Gases
	Duty Cycle: 60 %
	Wire Size: 0.8-1.2 mm
No.	Description	Order
	24KD 3m Welding Torch	12.0251
	24KD 4m Welding Torch	12.0252
	24KD 5m Welding Torch	12.0253

A	Nozzle Conicalφ10*63.5	145.0128
	Nozzle Conical φ12.5*63.5	145.008
	Nozzle Cylindrical φ17*63.5	145.0047
B	Contact Tip E-CU M6280.8mm	140.0051
	Contact Tip E-CU M6280.9mm	140.0169
	Contact Tip E-CU M6281.0mm	140.0242
	Contact Tip E-CU M6281.2mm	140.0379
	Contact Tip E-CU M6281.4mm	140.0516
	Contact Tip E-CU M6281.6mm	140.0555
	Contact Tip CuCrZr M6280.8mm	140.0054
	Contact Tip CuCrZr M6281.0mm	140.0245
	Contact Tip CuCrZr M6281.2mm	140.0382
	Contact Tip CuCrZr M6281.4mm	140.0519
	Contact Tip CuCrZr M6281.6mm	140.0558
	Contact Tip E-CU Aluminum M6280.8mm	141.0001
	Contact Tip E-CU Aluminum M6281.0mm	141.0006
	Contact Tip E-CU Aluminum M6281.2mm	141.001
	Contact Tip E-CU Aluminum M6281.4mm	141.0019
	Contact Tip E-CU Aluminum M6281.6mm	141.002
C	Tip Holder M6*26	142.0003
D	Gas Diffuser DMC	12.0183
	Gas Diffuser Ceramic	012.0183C
E	Red Steel Liner 1.0-1.2mm 3m	124.0026
	Red Steel Liner 1.0-1.2mm 4m	124.0031
	Red Steel Liner 1.0-1.2mm 5m	124.0035

1	Swan Neck	12.0001
2	Front Handle	180.D078
3	Switch	185.0031S
4	Cable Ball Joint & Support Spring Middle	400.1010M
5	24KD Power Cable 3m 25mm²	160.0239
	24KD Power Cable 4m 25mm²	160.0255
	24KD Power Cable 5m 25mm²	160.0267
6	Rear Handle & Support Spring	501.2248X
7	Rear Connector Nut	500.0213X
8	Euro Central Connector KZ-2	501.0003
9	Liner Positioner Nut M10x1	501.0082

soldadora MB24KD mig torch

soldadora MB24KD mig torch spare parts package

* 5PCS a plastic bag or as customer request .

Our Sevice

* timely online 24 hours .

* sample order /trail order is available .

*supply the qualified products.

*after -sale service

*processing customer's sample .
