Binzel 501d mig water cooled torch and welding consumables

Share to:

501D Water Cooled MIG Welding Torch

Technical Data：
Rating:500A CO2/450A Mixed Gases
Duty Cycle: 100%
Wire Size: 1.0-1.6mm

Quantity:



Inquire Add to Basket

Model:
501d
Brand:
Tonyweld
Code:
85159000
Product Name :
binzle 501d mig water cooled torch and welding
series :
501d mig torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
500A CO2 450A Mixed gases
Duty Cycle :
100%
Wire size:
1.0-1.6mm
handle :
blue grip new handle
connector :
euro / miller / lincoln connector etc

Product Description

Binzel 501d mig water cooled torch and welding consumables

501D Water Cooled MIG Welding Torch

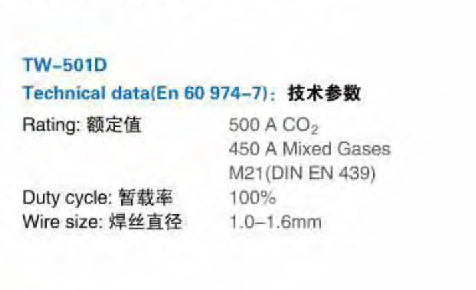

Technical Data：	Rating:500A CO2/450A Mixed Gases
	Duty Cycle: 100%
	Wire Size: 1.0-1.6mm
No.	Description	Order
	501D 3m Water Welding Torch	34.0492
	501D 4m Water Welding Torch	34.0493
	501D 5m Water Welding Torch	34.0494

A	Nozzle Tapered φ14*76	145.0132
	Nozzle Conical φ16*76	145.0085
	Nozzle Cylindrical φ20*76	145.0051
B	Contact Tip E-CU M8300.8mm	140.0114
	Contact Tip E-CU M8301.0mm	140.0313
	Contact Tip E-CU M8301.2mm	140.0442
	Contact Tip E-CU M8301.4mm	140.0533
	Contact Tip E-CU M8301.6mm	140.0587
	Contact Tip E-CU M8302.0mm	140.0653
	Contact Tip E-CU M8302.4mm	140.0677
	Contact Tip CuCrZr M8300.8mm	140.0117
	Contact Tip CuCrZr M8301.0mm	140.0316
	Contact Tip CuCrZr M8301.2mm	140.0445
	Contact Tip CuCrZr M8301.4mm	140.0536
	Contact Tip CuCrZr M8301.6mm	140.059
	Contact Tip CuCrZr M8302.0mm	140.0656
	Contact Tip CuCrZr M8302.4mm	140.0679
	Contact Tip E-CU Aluminum M8300.8mm	141.0003
	Contact Tip E-CU Aluminum M8301.0mm	141.0008
	Contact Tip E-CU Aluminum M8301.2mm	141.0015
	Contact Tip E-CU Aluminum M8301.4mm	141.0055
	Contact Tip E-CU Aluminum M8301.6mm	141.0022
	Contact Tip E-CU Aluminum M8302.0mm	141.0033
C	Gas Diffuser DMC	30.0145
	Gas Diffuser Ceramic	30.019
D	Contact Tip Holder M6*25	142.0008
	Contact Tip Holder M6*29	142.0013
	Contact Tip Holder M8*25	142.0022
	Contact Tip Holder M8*29	142.0027
E	Insulator	30.0019
F	Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 3.0m	122.0056
	Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 4.0m	122.006
	Guide spiral liner blank; 2.5/4.5; wire φ1.6; for 5.0m	122.0063

No.	Description	Order
1	501D Swan Neck	34.0496
1-1	AUT 501D 0° Swan Neck	934.0001
1-2	AUT 501D 45° Swan Neck	934.0002
2	Front Handle	180.D078
3	Switch	185.0031S
4	Cable Ball Joint & Support Spring Water	500.0233
5	Gas Hose Red φ5*8 Units:100m	109.004
5-1	Hose Clamp φ8.0mm	171.0002
6	Water Hose Blue φ5*8 Units:100m	109.0052
6-1	Hose Clamp φ8.7mm	173.0001
7	Wire Conduit For 3m	156.0019
	Wire Conduit For 4m	156.0023
	Wire Conduit For 5m	156.0026
8	Power Cable For 3m	115.0065
	Power Cable For 4m	115.007
	Power Cable For 5m	115.0074
9	Control Cable 2-pole Units:200m	100.0019
9-1	Trigger Wire Connector	175.0022
9-2	Trigger Wire Connector Female	175.0003
10	Outer Cover φ25×1.5 Units:20 m	107.0004
11	Water Outlet Hose Red φ5*8 With Plug Nipple	103.0108
12	Plug Nipple ND 5mm	501.0114
13	Fastener Cap Red	501.2423
13-1	Fastener Cap Blue	501.2424
14	Rear Handle Water	500.0342
15	Adaptor Nut M33x2	500.0213
16	Central Adaptor WZ-2	501.0015
17	Liner Positioner Nut M10x1	501.0082

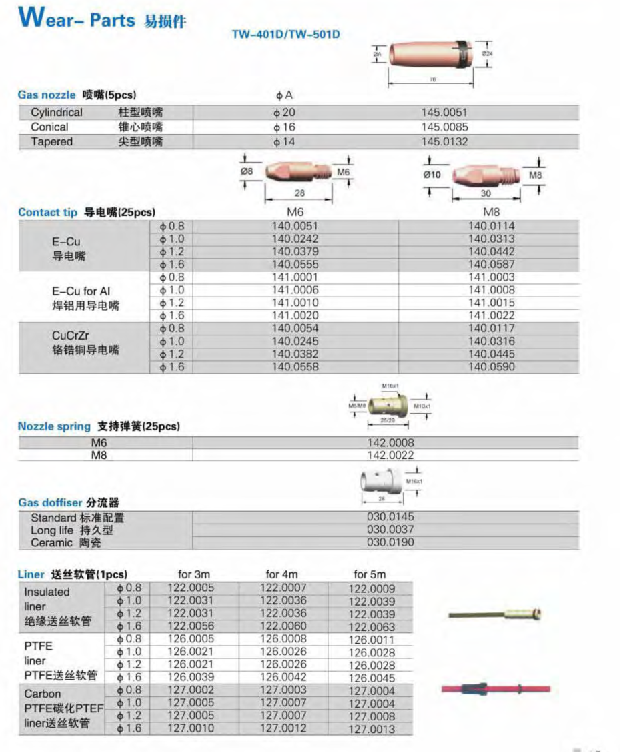

501d mig welding consumables

501D water cooled mig welding torch cable package

* 1 piece 501D mig water cooled torch package in a carton
