Product Category

40kd mig welding torch cable and mig consumables

Share to:

40KD Air Cooled MIG Welding Torch

Technical Data:
Rating: 350A CO2/320A Mixed Gases
Duty Cycle: 35%
Wire Size: 1.0-2.4mm

Quantity:



Inquire Add to Basket

Model:
40kd
Brand:
Tonyweld
Code:
85159000
Product Name :
40kd mig welding torch cable and mig consumables
series :
40kd mig torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
380A CO2 360A Mixed gases
Duty Cycle :
60%
Wire size:
Wire size: 1.8-2.4mm
handle :
black new handle
connector :
euro / miller / lincoln connector etc

Product Description

40kd mig welding torch cable and mig consumables

40KD Air Cooled MIG Welding Torch
Technical Data:	Rating: 350A CO2/320A Mixed Gases
	Duty Cycle: 35%
	Wire Size: 1.0-2.4mm
No.	Description	Order
	40KD 3m Welding Torch	15.0029
	40KD 4m Welding Torch	15.0032
	40KD 5m Welding Torch	15.0034
	40KD 3m Welding Torch Slip-on	015.0029S
	40KD 4m Welding Torch Slip-on	015.0032S
	40KD 5m Welding Torch Slip-on	015.0034S

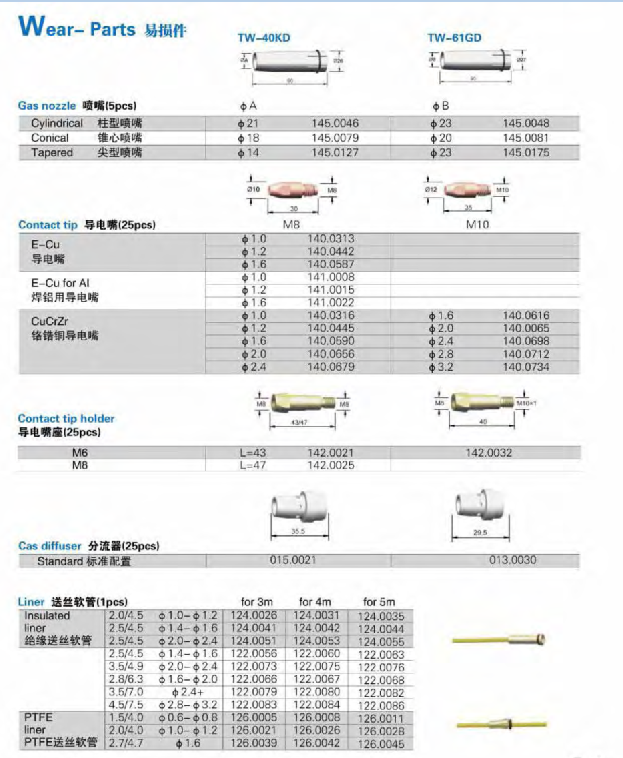

A	Nozzle Tapered φ14*90	145.0127
	Nozzle Conical φ18*90	145.0079
	Nozzle Cylindrical φ21*90	145.0046
B	Contact Tip E-CU M8300.8mm	140.0114
	Contact Tip E-CU M8301.0mm	140.0313
	Contact Tip E-CU M8301.2mm	140.0442
	Contact Tip E-CU M8301.4mm	140.0533
	Contact Tip E-CU M8301.6mm	140.0587
	Contact Tip E-CU M8302.0mm	140.0653
	Contact Tip E-CU M8302.4mm	140.0677
	Contact Tip CuCrZr M8300.8mm	140.0117
	Contact Tip CuCrZr M8301.0mm	140.0316
	Contact Tip CuCrZr M8301.2mm	140.0445
	Contact Tip CuCrZr M8301.4mm	140.0536
	Contact Tip CuCrZr M8301.6mm	140.059
	Contact Tip CuCrZr M8302.0mm	140.0656
	Contact Tip CuCrZr M8302.4mm	140.0679
	Contact Tip E-CU Aluminum M8300.8mm	141.0003
	Contact Tip E-CU Aluminum M8301.0mm	141.0008
	Contact Tip E-CU Aluminum M8301.2mm	141.0015
	Contact Tip E-CU Aluminum M8301.4mm	141.0055
	Contact Tip E-CU Aluminum M8301.6mm	141.0022
	Contact Tip E-CU Aluminum M8302.0mm	141.0033
C	Contact Tip Holder M8*43	142.0021
	Contact Tip Holder M8*47 (Long)	142.0025
D	Gas Diffuser DMC	15.0021
	Gas Diffuser Ceramic	15.0023
E	Yellow Steel Liner 1.2-1.6mm 3m	124.0041
	Yellow Steel Liner 1.2-1.6mm 4m	124.0042
	Yellow Steel Liner 1.2-1.6mm 5m	124.0044

No.	Description	Order
1	Swan Neck	15.0001
2	Front Handle	180.0029
3	Switch	400.0032
3-1	Switch Blade	400.0049
4	Cable Ball Joint & Support Spring Big	400.1010B
5	40KD Power Cable 3m 50mm⊃2;	160.0486
	40KD Power Cable 4m 50mm⊃2;	160.05
	40KD Power Cable 5m 50mm⊃2;	160.0513
6	Rear Handle	501.2248
7	Rear Connector Nut	500.0213L
8	Euro Central Connector KZ-2	501.0003
9	Liner Positioner Nut M10x1	501.0082

40kd mig welding consumables

40kd mig welding torch cable package

* 1 piece 40kd mig welding torch cable package in a carton
