BW36KD mig welding torch gun spare parts

Share to:

-36KD Air Cooled MIG Welding Torch

Technical Data：
Rating: 320A CO2/290A Mixed Gases
Duty Cycle: 60 %
Wire Size: 0.8-1.2 mm

Quantity:



Inquire Add to Basket

Model:
36kd spare parts
Brand:
Tonyweld
Code:
85159000
Product Name :
BW36KD mig welding torch gun spare parts
series :
36kd mig torch spare parts
package :
5pcs a plastic bag or as customer request
Place of Origin :
Jiangsu, China (Mainland)
material :
copper / brass / CuCrZr E-cu

Product Description

BW36KD mig welding torch gun spare parts

-36KD Air Cooled MIG Welding Torch
Technical Data：	Rating: 320A CO2/290A Mixed Gases
	Duty Cycle: 60 %
	Wire Size: 0.8-1.2 mm

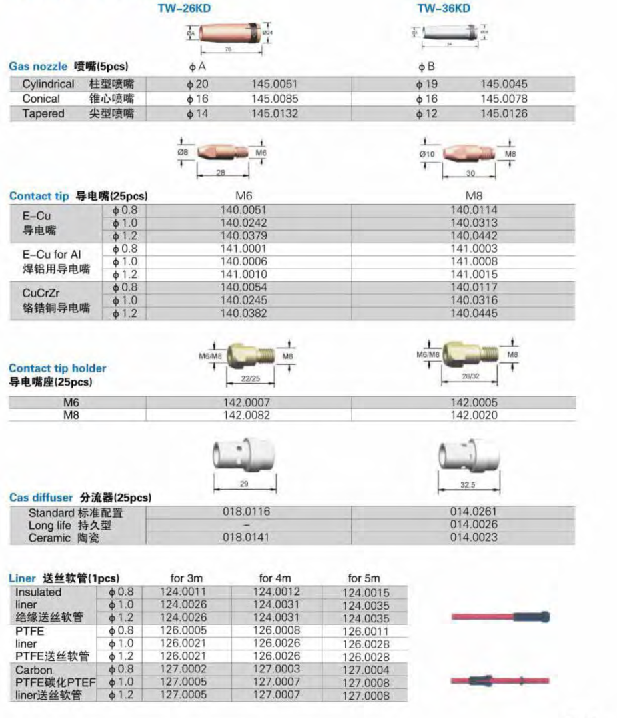

No.	Description	Order
	36KD 3m Welding Torch	14.0334
	36KD 4m Welding Torch	14.0335
	36KD 5m Welding Torch	14.0336

A	Nozzle Tapered φ12*84	145.0126
	Nozzle Conical φ16*84	145.0078
	Nozzle Cylindrical φ19*84	145.0045
B	Contact Tip E-CU M8300.8mm	140.0114
	Contact Tip E-CU M8301.0mm	140.0313
	Contact Tip E-CU M8301.2mm	140.0442
	Contact Tip E-CU M8301.4mm	140.0533
	Contact Tip E-CU M8301.6mm	140.0587
	Contact Tip E-CU M8302.0mm	140.0653
	Contact Tip E-CU M8302.4mm	140.0677
	Contact Tip CuCrZr M8300.8mm	140.0117
	Contact Tip CuCrZr M8301.0mm	140.0316
	Contact Tip CuCrZr M8301.2mm	140.0445
	Contact Tip CuCrZr M8301.4mm	140.0536
	Contact Tip CuCrZr M8301.6mm	140.059
	Contact Tip CuCrZr M8302.0mm	140.0656
	Contact Tip CuCrZr M8302.4mm	140.0679
	Contact Tip E-CU Aluminum M8300.8mm	141.0003
	Contact Tip E-CU Aluminum M8301.0mm	141.0008
	Contact Tip E-CU Aluminum M8301.2mm	141.0015
	Contact Tip E-CU Aluminum M8301.4mm	141.0055
	Contact Tip E-CU Aluminum M8301.6mm	141.0022
	Contact Tip E-CU Aluminum M8302.0mm	141.0033
C	Contact Tip Holder M6*28	142.0005
	Contact Tip Holder M6*32	142.0011
	Contact Tip Holder M8*28	142.002
	Contact Tip Holder M8*34	142.0024
D	Gas Diffuser DMC	14.0261
	Gas Diffuser Ceramic	14.0023
E	Yellow Steel Liner 1.2-1.6mm 3m	124.0041
	Yellow Steel Liner 1.2-1.6mm 4m	124.0042
	Yellow Steel Liner 1.2-1.6mm 5m	124.0044

1	Swan Neck	14.0006
1-1	AUT 36KD 0° Swan Neck	914.0002
2	Front Handle	180.D078
3	Switch	185.0031S
4	Cable Ball Joint & Support Spring Middle	400.1010M
5	36KD Power Cable 3m 35mm⊃2;	160.0364
	36KD Power Cable 4m 35mm⊃2;	160.0379
	36KD Power Cable 5m 35mm⊃2;	160.0391
6	Rear Handle & Support Spring	501.2248X
7	Rear Connector Nut	500.0213X
8	Euro Central Connector KZ-2	501.0003
9	Liner Positioner Nut M10x1	501.0082

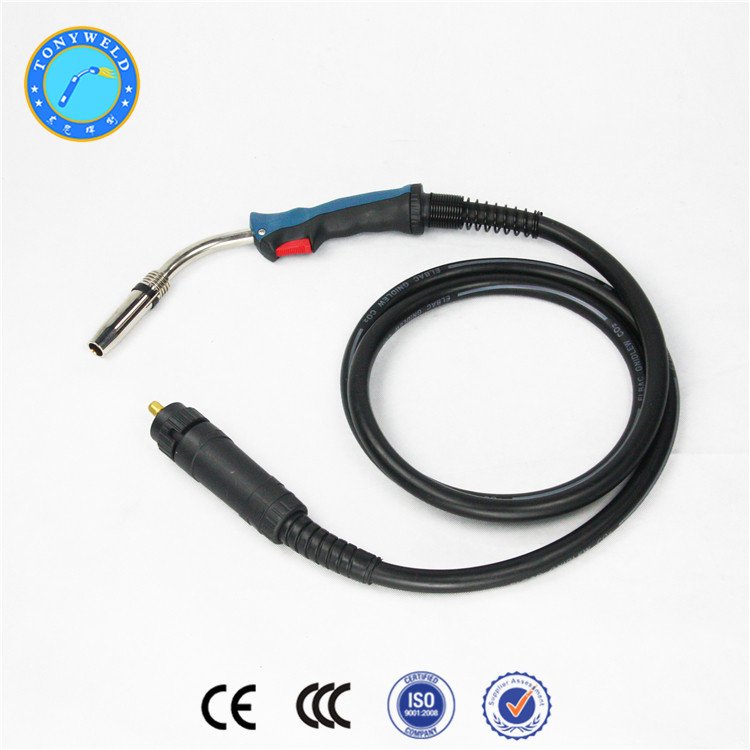

BW36KD mig welding torch gun

BW36KD mig welding torch gun spare parts package

* 5 pieces a plastix box or as customer request
