tweco nozzle 22-50
Tonyweld
Product Display

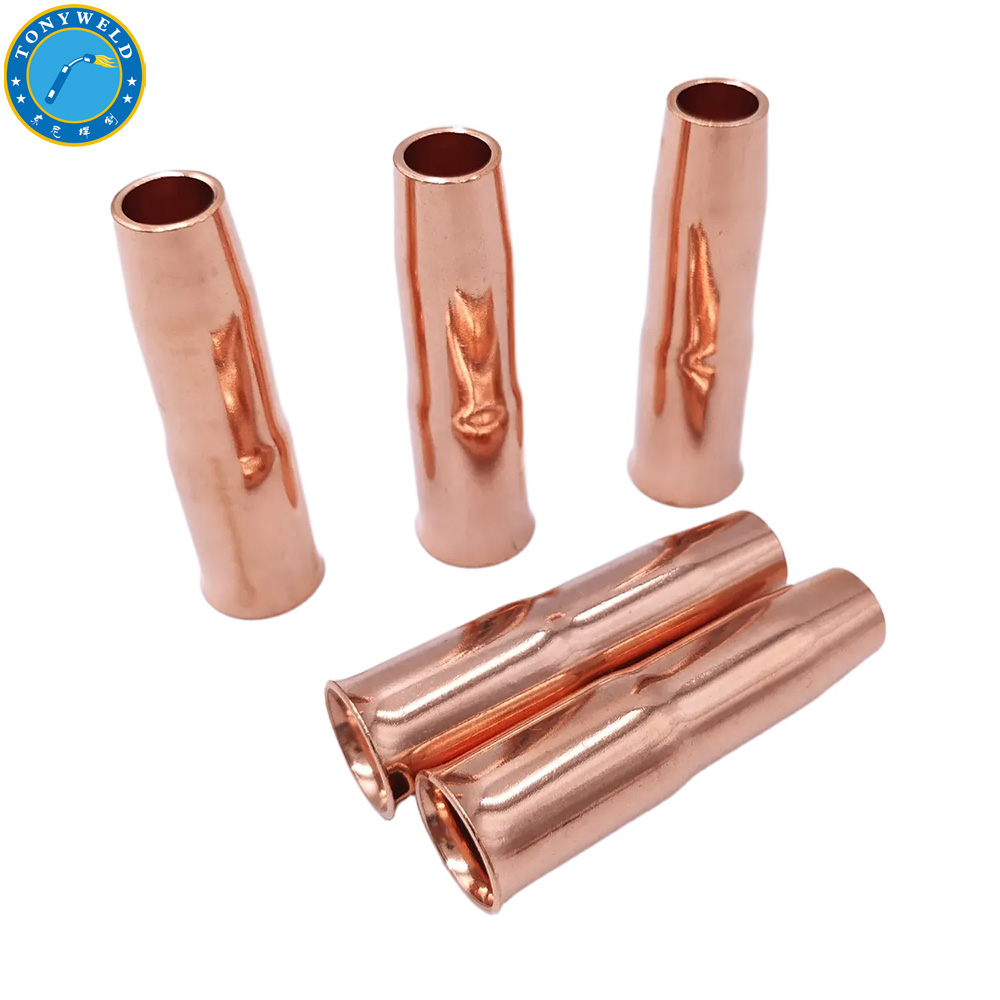

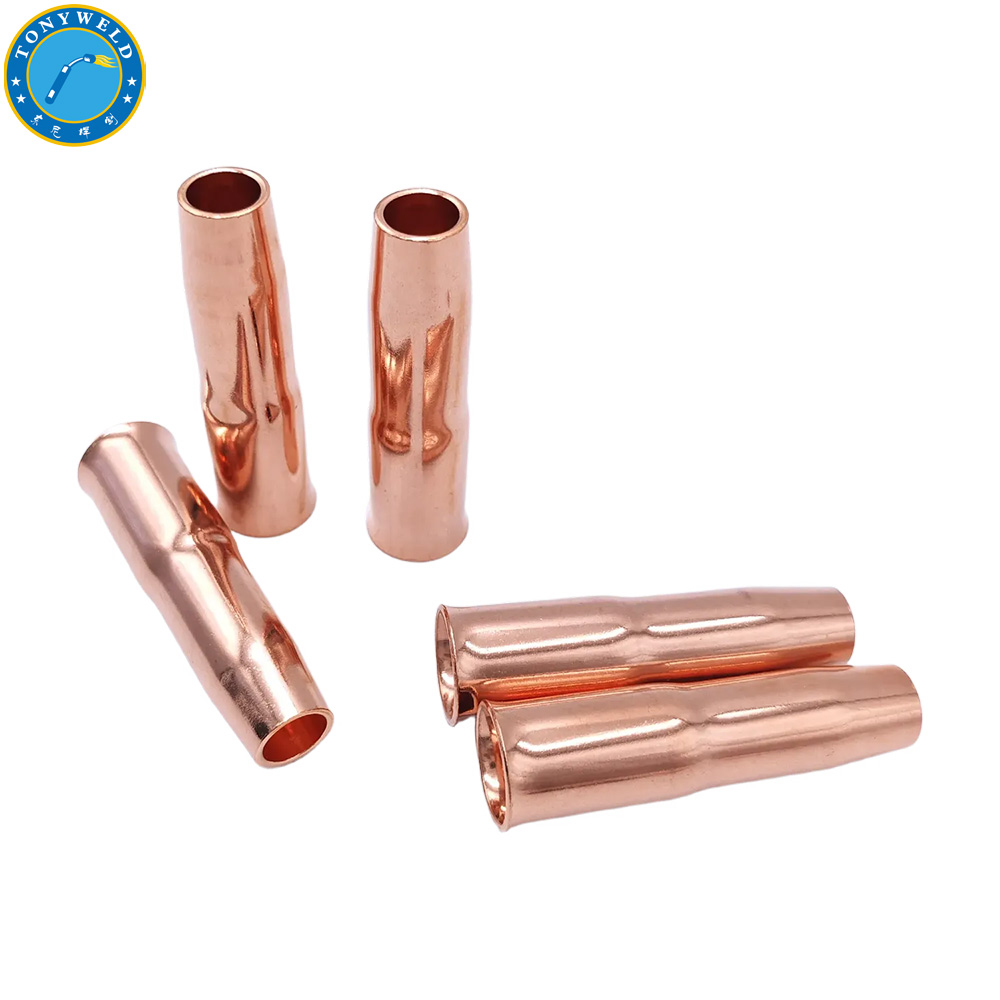

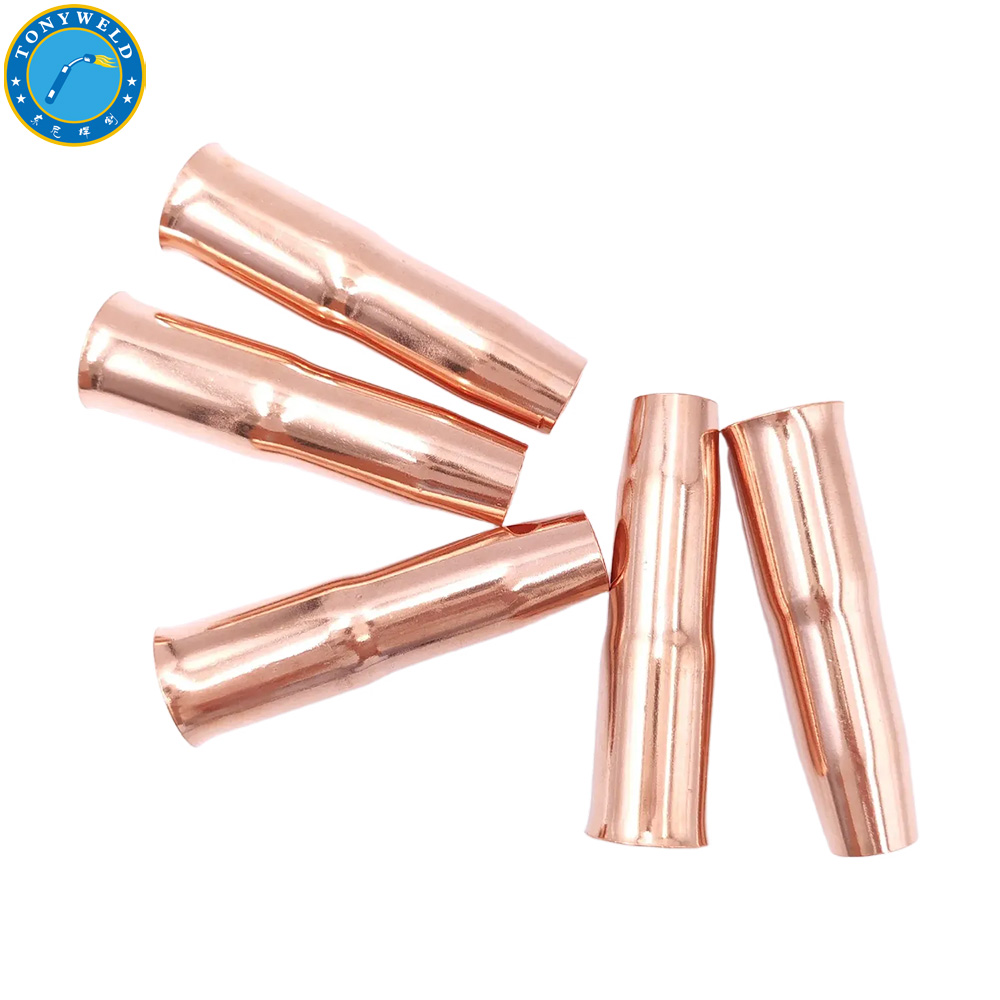

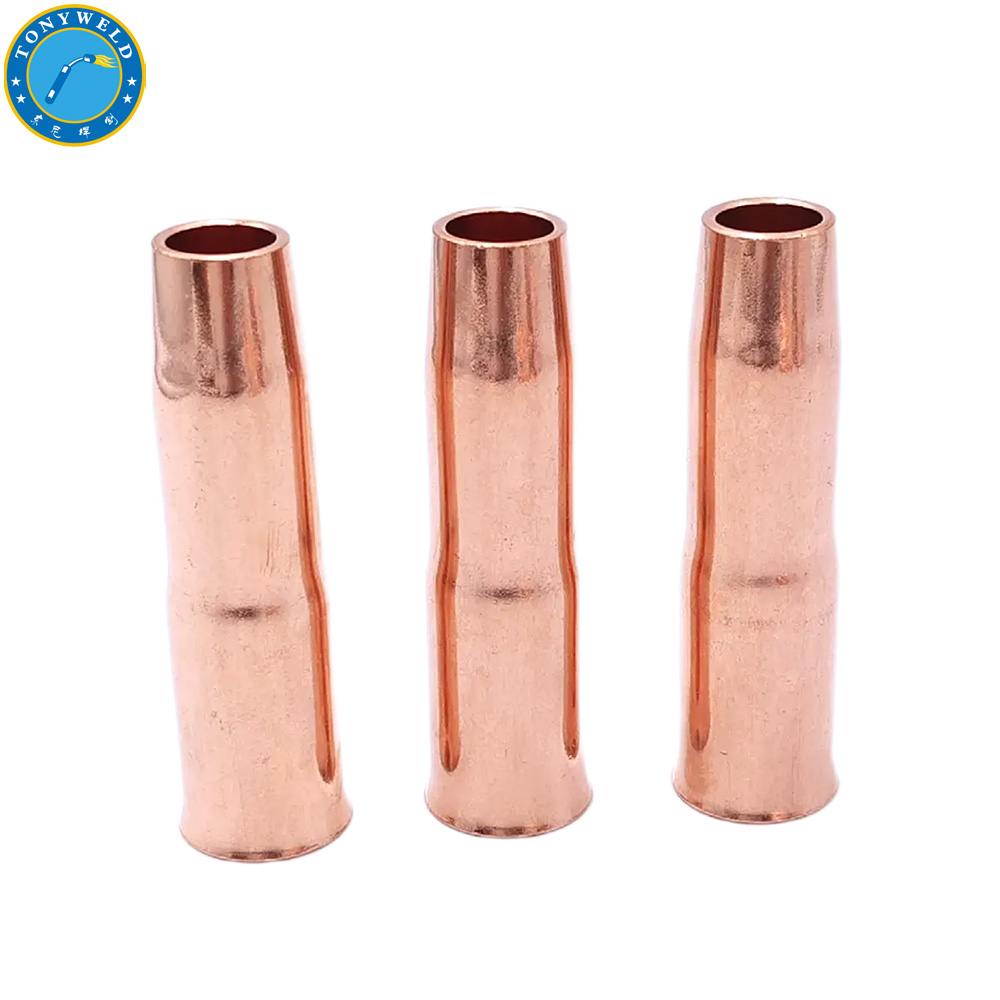

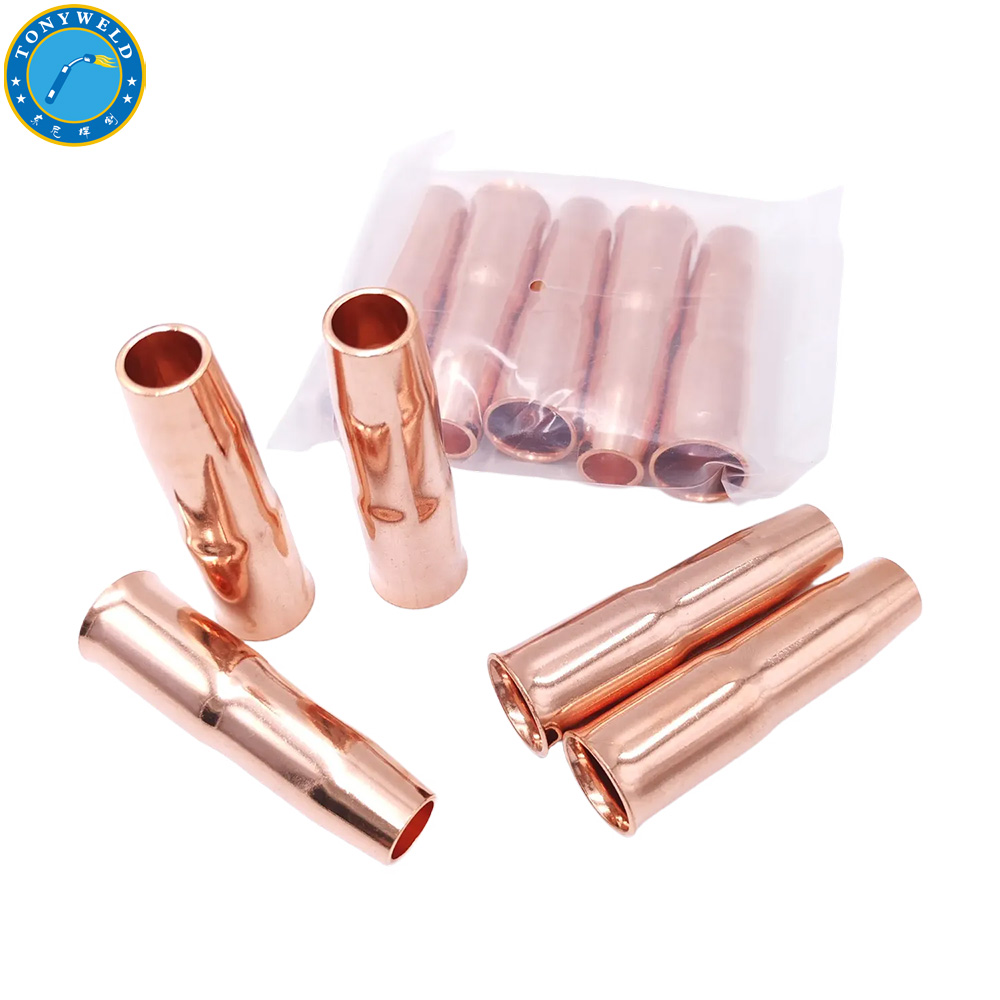

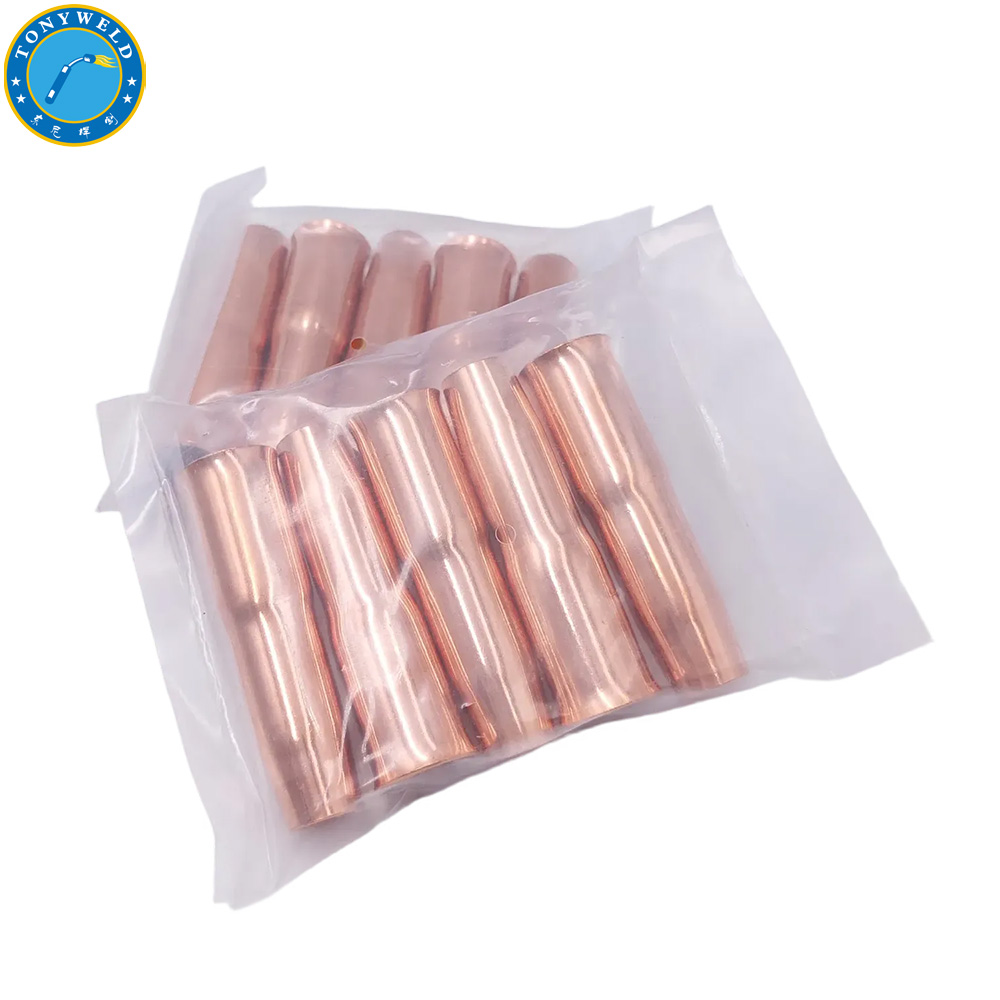

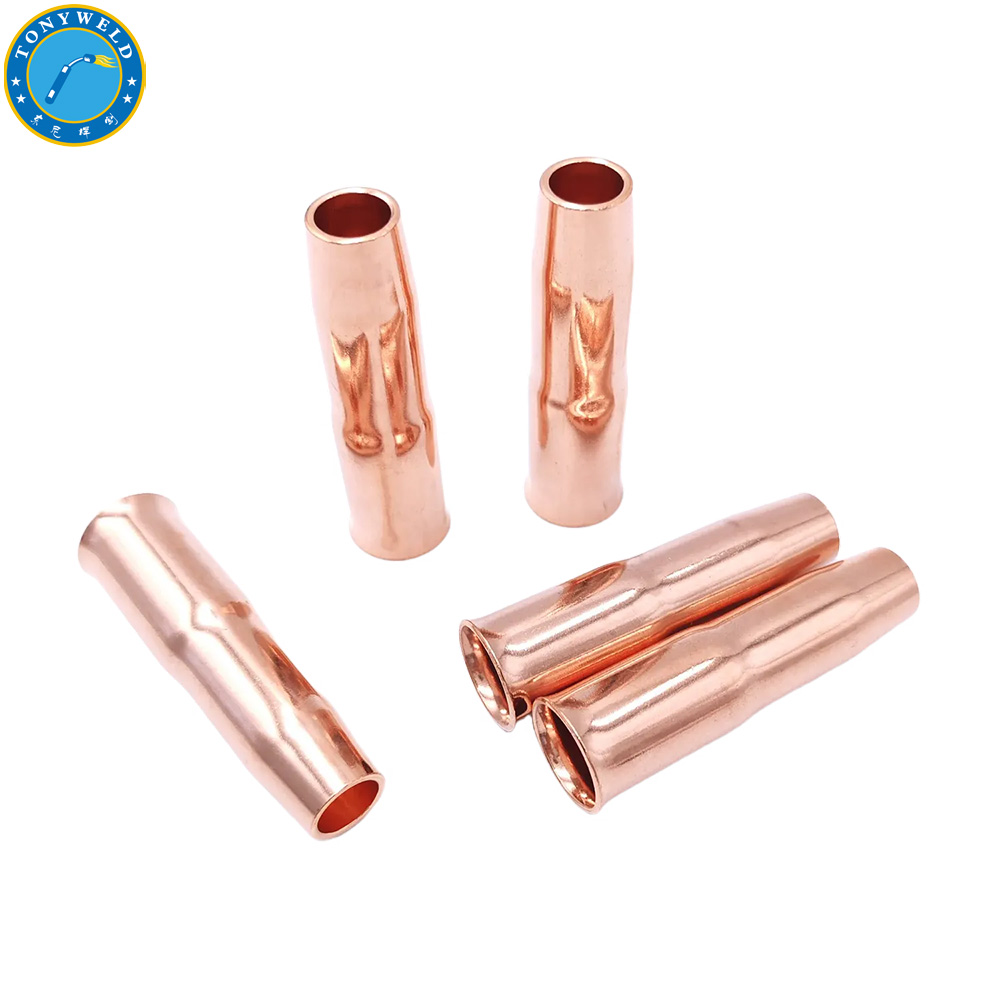

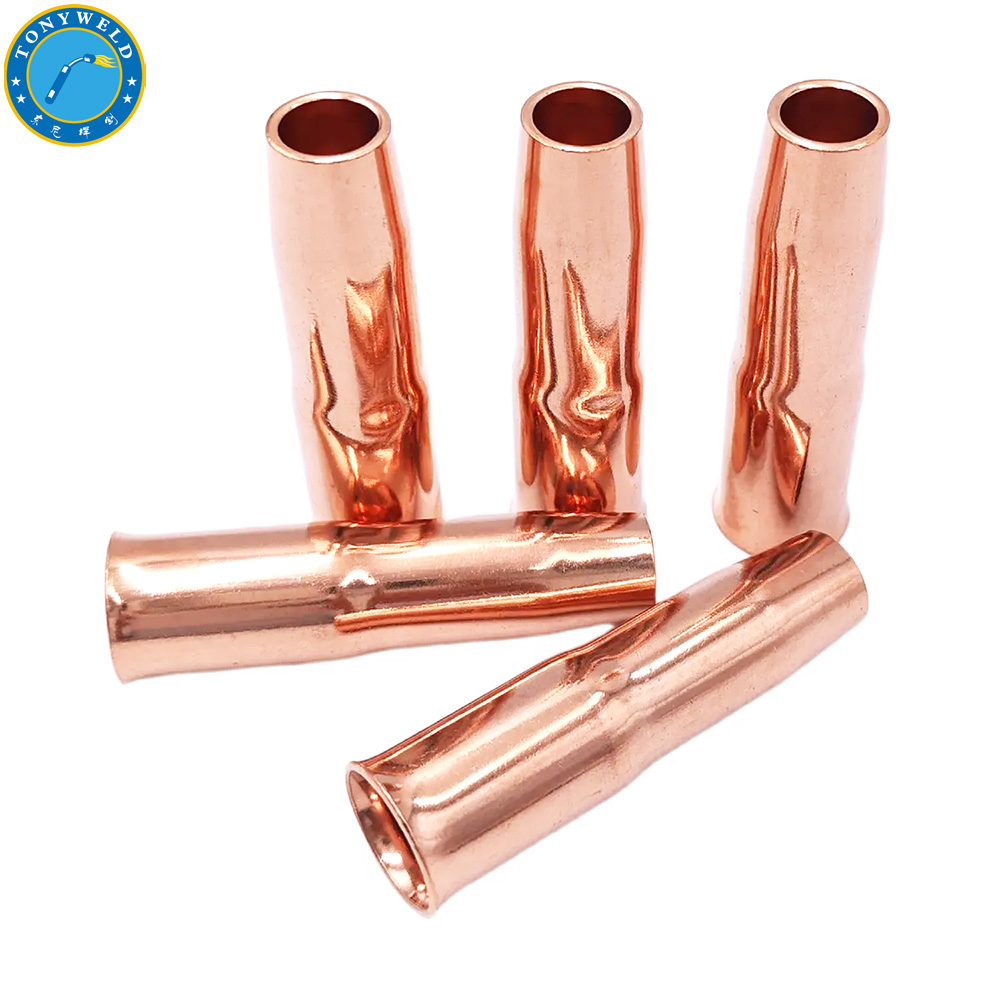

Welding Accessories Nozzle Tips 22-50 1/2" Φ12.7*78mm for Tweco Series 200A Mig Welding Gas Air Cooled Torch Soldering Gun Show
Welding Accessories Nozzle Tips 22-50 1/2" Φ12.7*78mm for Tweco Series 200A Mig Welding Gas Air Cooled Torch Soldering Gun Show
Welding Accessories Nozzle Tips 22-50 1/2" Φ12.7*78mm for Tweco Series 200A Mig Welding Gas Air Cooled Torch Soldering Gun Show
Welding Accessories Nozzle Tips 22-50 1/2" Φ12.7*78mm for Tweco Series 200A Mig Welding Gas Air Cooled Torch Soldering Gun Show
Product Technical Data
Tweco 200A Mig Welding Gas Air Cooled Torch Technical Data
| TW2 200A AIR-COOLED MIG GUN | ||||
| Technical Data | Rating: 200A CO2/150A Mixed Gases | |||
| Duty Cycle: 60% | ||||
| Wire Size: .025”-.045”(0.6-1.2mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW2 MIG Gun Tweco Connector | TW2-10T | TW2-12T | TW2-15T | |
| TW2 MIG Gun Miller Connector | TW2-10M | TW2-12M | TW2-15M | |
| TW2 MIG Gun Lincoln Connector | TW2-10L | TW2-12L | TW2-15L | |
| TW2 MIG Gun Euro Connector | TW2-10E | TW2-12E | TW2-15E | |
| No. | Description | Order |
| A | Nozzle 3/8” 9.5mm | TW22-37 |
| Nozzle 1/2” 12.7mm | TW22-50 | |
| Nozzle 5/8” 15.9mm | TW22-62 | |
| Nozzle Short Stop 3/8” 9.5mm | TW22-37SS | |
| Nozzle Short Stop 1/2” 12.7mm | TW22-50SS | |
| Nozzle Short Stop 5/8” 15.9mm | TW22-62SS | |
| Nozzle Tapered Short Stop 3/8” 9.5mm | TW22T-37SS | |
| A-1 | Nozzle | TW24A Series |
| B | Insulator | TW32 |
| B-1 | Insulator | TW34A |
| C | Contact Tip .023” 0.6mm Standard | TW14-23 |
| Contact Tip .030” 0.8mm Standard | TW14-30 | |
| Contact Tip .035” 0.9mm Standard | TW14-35 | |
| Contact Tip .040” 1.0mm Standard | TW14-40 | |
| Contact Tip .045” 1.2mm Standard | TW14-45 | |
| Contact Tip .052” 1.3mm Standard | TW14-52 | |
| Contact Tip 1/16” 1.6mm Standard | TW14-116 | |
| Contact Tip 5/64″ 2.0 mm Standard | TW14-564 | |
| Contact Tip 3/64″AL 1.2 mm Standard | TW14A364 | |
| Contact Tip .030” 0.8mm Heavy Duty | TW14H-35 | |
| Contact Tip .035” 0.9mm Heavy Duty | TW14H-35 | |
| Contact Tip .040” 1.0mm Heavy Duty | TW14H-40 | |
| Contact Tip .045” 1.2mm Heavy Duty | TW14H-45 | |
| Contact Tip .052” 1.3mm Heavy Duty | TW14H-52 | |
| Contact Tip 1/16” 1.6mm Heavy Duty | TW14H-116 | |
| Contact Tip 5/64″ 2.0 mm Heavy Duty | TW14H-564 | |
| Contact Tip 3/64″AL 1.2 mm Heavy Duty | TW14AH-364 | |
| Contact Tip1/16”AL1.6mm Heavy Duty | TW14AH-116 | |
| Contact Tip .023” 0.6mm Tapered | TW14T-23 | |
| Contact Tip .030” 0.8mm Tapered | TW14T-30 | |
| Contact Tip .035” 0.9mm Tapered | TW14T-35 | |
| Contact Tip .040” 1.0mm Tapered | TW14T-40 | |
| Contact Tip .045” 1.2mm Tapered | TW14T-45 | |
| Contact Tip .052” 1.3mm Tapered | TW14T-52 | |
| Contact Tip 1/16” 1.6mm Tapered | TW14T-116 | |
| D | Gas Diffuser | TW52 |
| D-1 | Gas Diffuser | TW52FN |
| E | Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m) | TW42-3035-15 |
| Liner for .030”-.035” (0.8-0.9mm) 25ft (7.6m) | TW42-3035-25 | |
| Liner for .040”-.045” (1.0-1.2mm) 15ft (4.6m) | TW42-4045-15 | |
| Liner for .040”-.045” (1.0-1.2mm) 25ft (7.6m) | TW42-4045-25 | |
| Liner for .052”-1/16” (1.3-1.6mm) 15ft (4.6m) | TW42-116-15 | |
| No. | Description | Order |
| 1 | Gun Tube 45° | TW62J-45 |
| Gun Tube 60° | TW62J-60 | |
| 2 | Front Cable Assembly | TW102 |
| 3 | Front Handle | TW83RC |
| 4 | Switch | TW94RR |
| 5 | Cable Ball Joint & Support Spring Small | TW400.1010S |
| 6 | Cable Assembly | TW200 |
| 7 | Euro-kwik Style Rear Connector | |
| 7-1 | Rear Strain Relief Spring | TW235RSSR |
| 7-2 | Euro Rear Handle | TWP001075 |
| 7-3 | Euro Nut | TW174X-2 |
| 7-4 | Euro Connector Tweco Style | TW174EX-1 |
| 7-5 | Euro Conduit Cap | TW174EX-1C |
| 8 | Economical Model Style Rear Connector | |
| 8-1 | Rear Handle American Style | TWP001075A |
| 8-2 | Miller Control Wire & Plug | TWMS354-DSM |
| 8-3 | Lincoln Control Wire & Plug | TW35SP-354 |
| 8-4 | Tweco Control Wire & Socket | TWMS354-TAJ |
| 8-5 | Miller Socket To Lincoln Plug | TWMS354DS-LJ |
| 9 | Original Style Rear Connector | |
| 9-1 | Rear Strain Relief Spring | TW235RSSR |
| 9-2 | Rear Case Direct Plug Style | TWM6RC |
| 9-3 | Miller Control Wire Direct Plug | TWMSAK-354 |
| 9-4 | Lincoln Control Wire Direct Plug | TWLAK-354 |
| 10 | Tweco Connector Plug | TW350-174H |
| 11 | Miller Connector Plug | TW350-174MH |
| 11-1 | Wire Guide Assembly Only | TW174M-N |
| 12 | Lincoln Connector Plug | TW350-174LH |
| 12-1 | Gas Hose With Clamp | TWAK353 |
