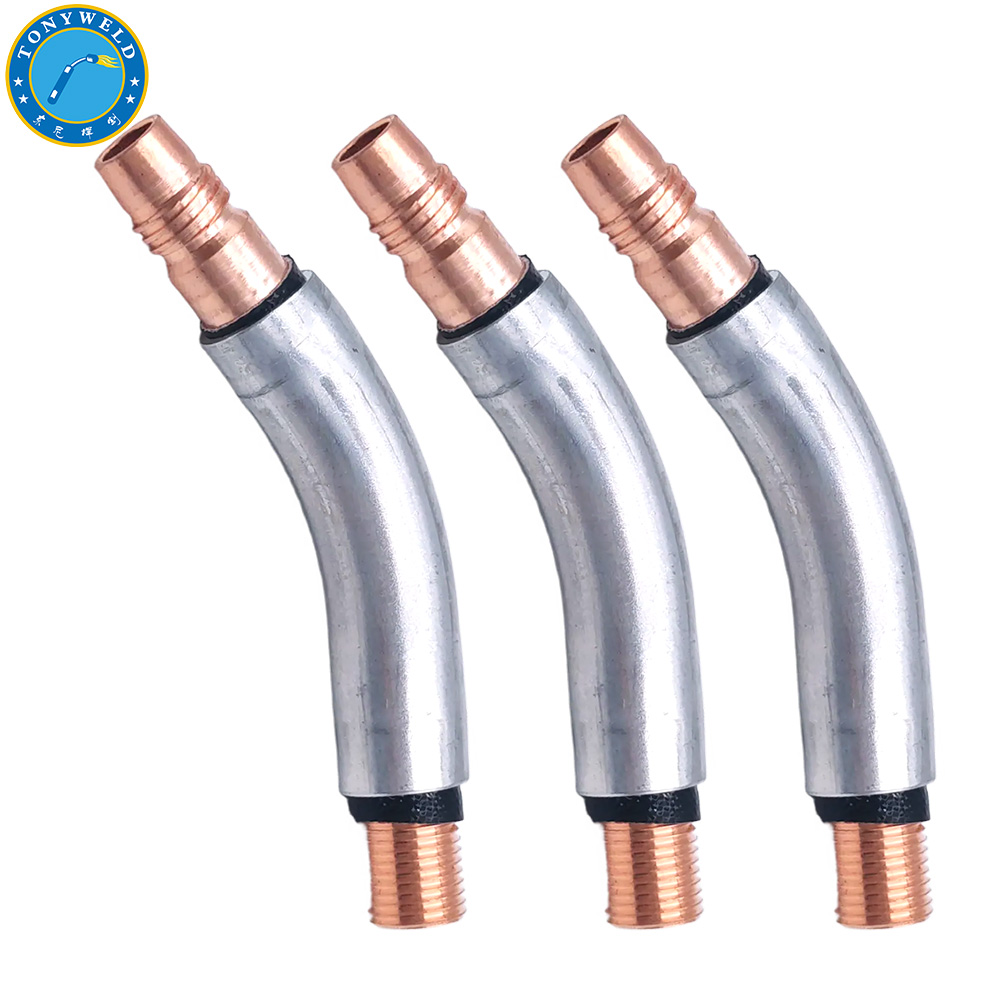

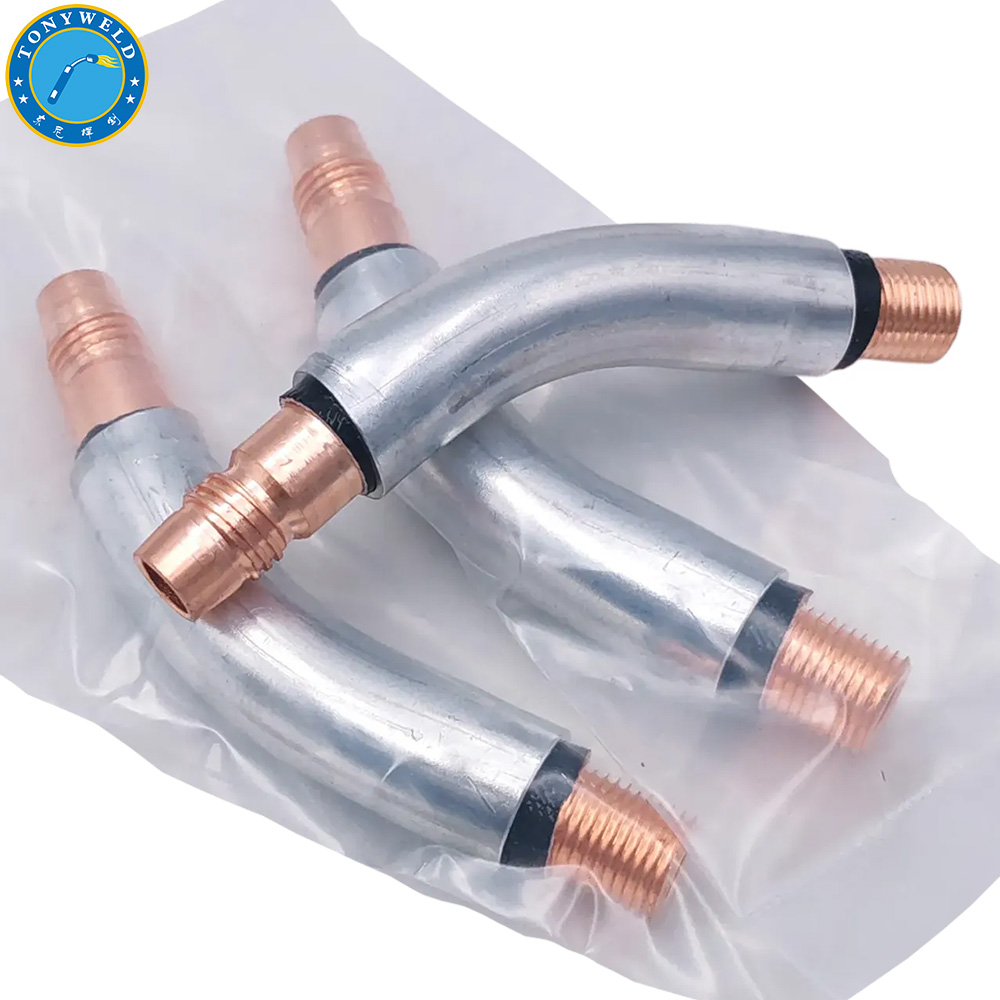

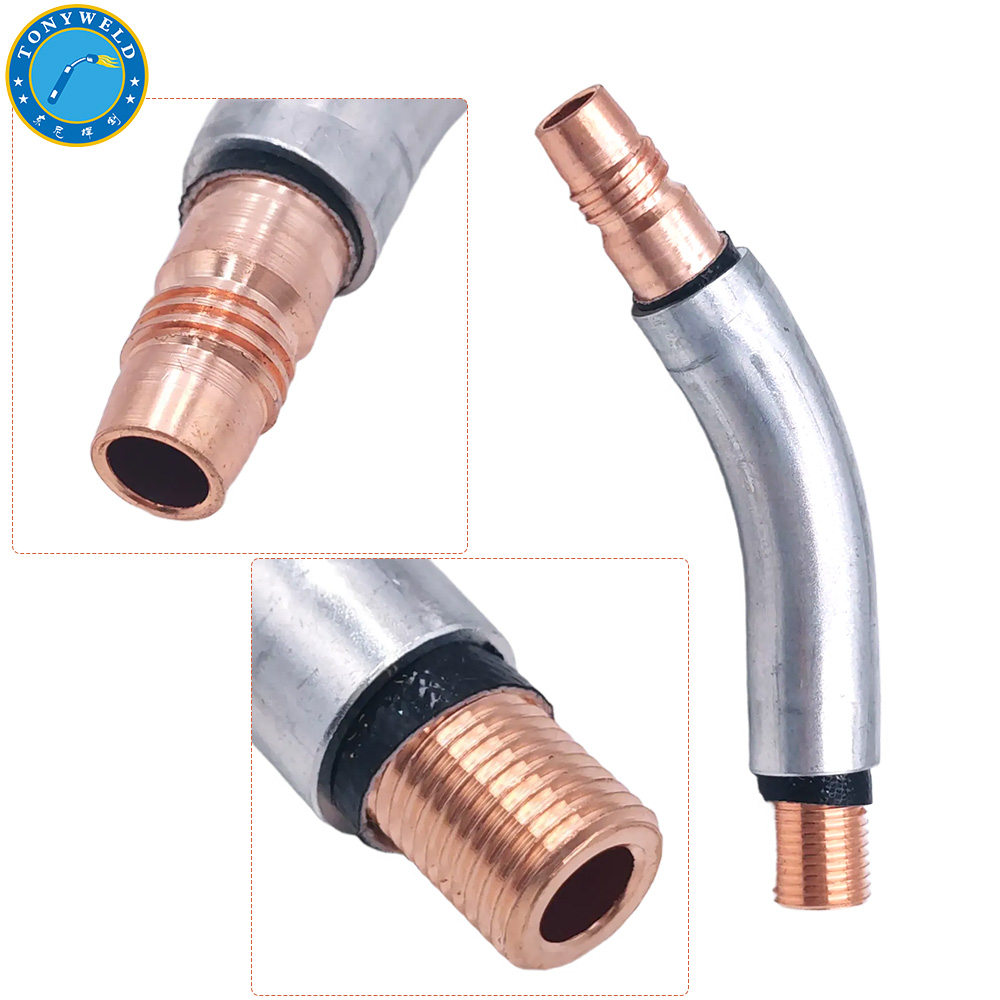

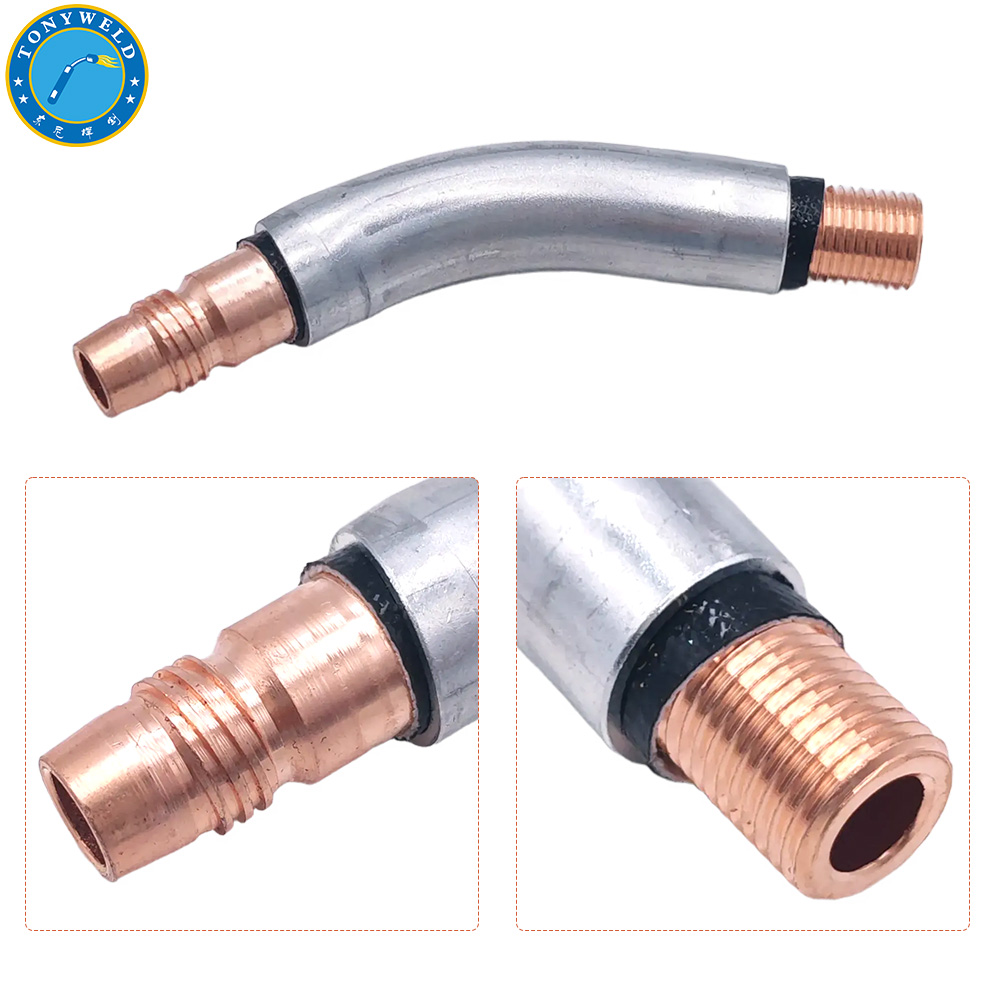

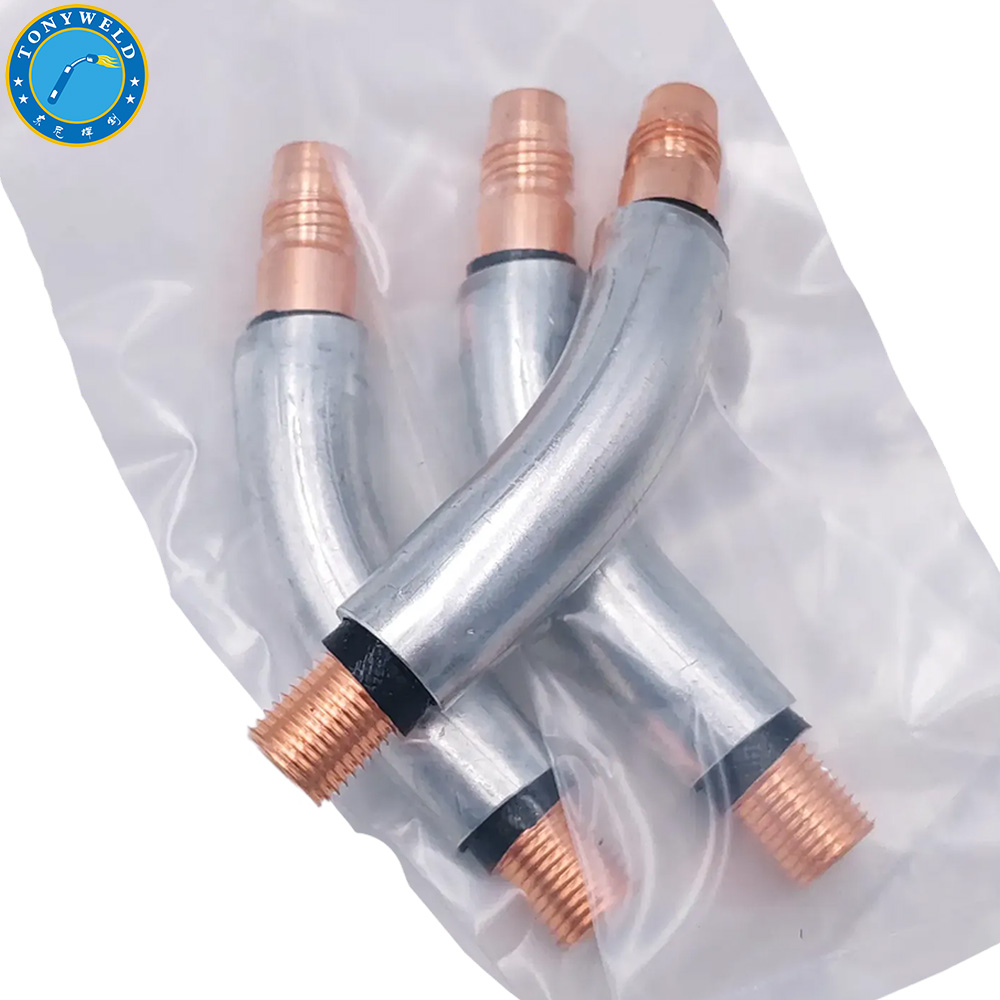

Miller MDX-250 Mig Welding Torch Swan Neck 1040086
Tonyweld
Swan Neck 1040086
Product Display
Miller MDX-250 Mig Welding Torch Swan Neck 1040086 Replacement Spare Part
Miller MDX-250 Mig Welding Torch Swan Neck 1040086 Replacement Spare Part
Miller MDX-250 Mig Welding Torch Swan Neck 1040086 Replacement Spare Part
Miller MDX-250 Mig Welding Torch Swan Neck 1040086 Replacement Spare Part
Miller MDX-250 Welding Torch Technical Data

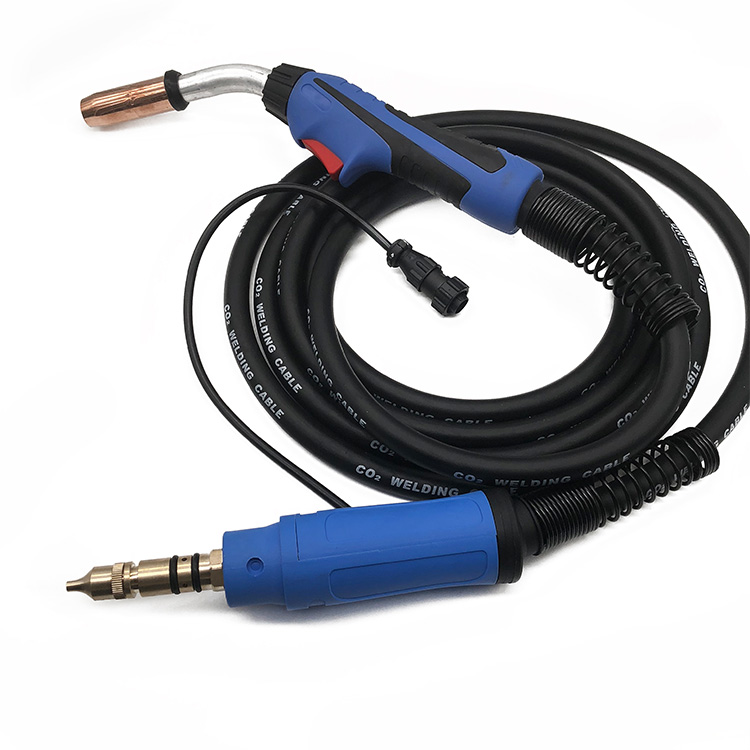

| TWMDX-250/MDX-250S AIR COOLED MIG GUN | ||
| Technical Data： | Rating : 250A CO2/200A Mixed Gases | |
| Duty Cycle : 60% | ||
| Wire Size :.030”-.045”(0.8-1.2mm) | ||
| No. | Description | Order |
| TWMDX-250 MIG GUN 10ft (3.0m) 030”-.035” (0.8-0.9mm) | TW1770035 | |
| TWMDX-250 MIG GUN 12ft (3.5m) 030”-.035” (0.8 -0.9mm) | TW1770036 | |
| TWMDX-250 MIG GUN 15ft (4.5m) 030”- .035” (0.8- 0.9mm) | TW1770037 | |
| TWMDX-250 MIG GUN 15ft (4.5m) .035”-.045” (0.9-1.2mm) | TW1 770038 | |
| TWMDX-250S MIG GUN 10ft (3.0m) .035”-.045” (0.9-1.2mm) | TW1770041 | |
| TWMDX-250S MIG GUN 12ft (3.5m) .035”- .045” (0.9-1 .2mm) | TW1770042 | |
| TWMDX-250S MIG GUN 15ft (4.5m) .035”- .045” (0.9-1.2mm) | TW1770043 | |
| A | Nozzle 1/2” 12.7mm Flush | TWN-M1200C |
| Nozzle 1/2” 12.7mm Recess 1/8” | TWN-M1218C | |
| Nozzle 5/8” 15.9mm Flush | TWN-M5800C | |
| Nozzle 5/8” 15.9mm Recess 1/8” | TWN-M5818C | |
| Nozzle 5/8” 15.9mm Stickout 1/8” | TWN-M58XTC | |
| A-1 | Nozzle AccuLock S 5/8” 15.9mm Flush | TWN-A5800CM |
| Nozzle AccuLock S 5/8” 15.9mm Recess 1/8” | TWN-A5818CM | |
| Nozzle AccuLock S 5/8” 15.9mm Recess 1/4” | TWN-A5814CM | |
| B | Contact Tip .023” 0.6mm | TWT-M023 |
| Contact Tip .030” 0.8mm | TWT-M030 | |
| Contact Tip .035” 0.9mm | TWT-M035 | |
| Contact Tip .039” 1.0mm | TWT-M039 | |
| Contact Tip .045” 1.2mm | TWT-M045 | |
| Contact Tip 3/64” 1.2 mm | TWT-M047 | |
| B-1 | Contact Tip AccuLock S .023” 0.6mm | TWT-A023CH |
| Contact Tip AccuLock S .030” 0.8mm | TWT-A030CH | |
| Contact Tip AccuLock S .035” 0.9mm | TWT-A035CH | |
| Contact Tip AccuLock S .039” 1.0mm | TWT-A039CH | |
| Contact Tip AccuLock S .045” 1.2mm | TWT-A045CH | |
| C | Diffuser AccuLock MDX | TWD-M250 |
| C-1 | Diffuser AccuLock S | TWD-MA250 |
| D | Neck Insulator | TW4623R |
| E | Liner for .030”- .035”(0.8-0.9mm) 10FT(3.0m) | TWLM2A-10 |
| Liner for .030”- .035”(0.8-0.9mm) 12FT(3.5m) | TWLM2A-12 | |
| Liner for .030”- .035”(0.8-0.9mm) 15FT(4.5m) | TWLM2A-15 | |
| Liner for .035”- .045”(0.9-1.2mm) 10FT(3.0m) | TWLM3A-10 | |
| Liner for .035”- .045”(0.9-1.2mm) 12FT(3.5m) | TWLM3A-12 | |
| Liner for .035”- .045”(0.9-1.2mm) 15FT(4.5m) | TWLM3A-15 | |
| No. | Description | Order |
| 1 | Swan Neck | TW1040086 |
| 2 | Nut Locking | TW1960011 |
| 3 | Front Handle | TW1880265 |
| 4 | Switch | TW9SS21002 |
| 5 | Cable Ball Joint & Support Spring Middle | TW2520102 |
| 6 | Cable Assembly | |
| 7 | Rear Handle Support Spring | TW2520033 |
| 8 | Rear Handle | TW2520100 |
| 9 | Control Plug Miller | TWGN2021 |
| 10 | Central Connector | TW2200169 |
| 11 | Power Pin Cap .030”- .045”(0.8 -1.2mm) | TW2200171 |
