Tonyweld

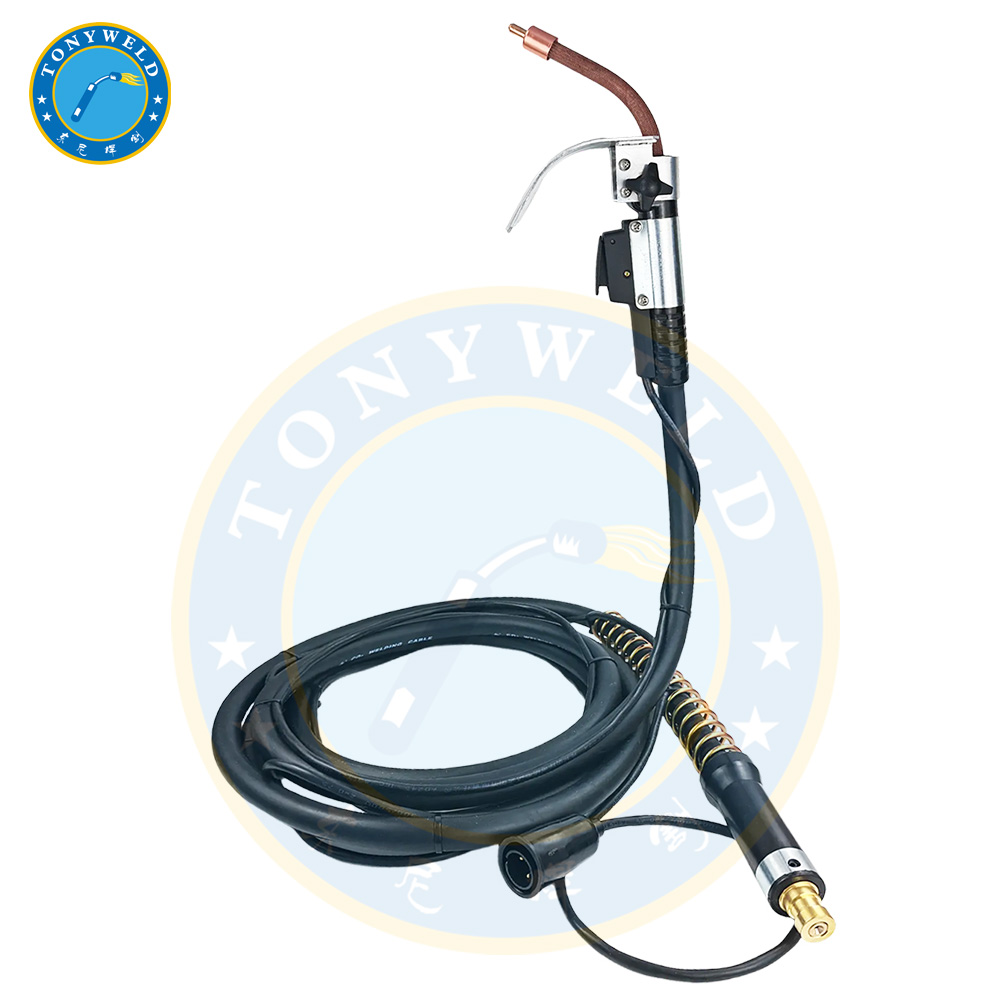

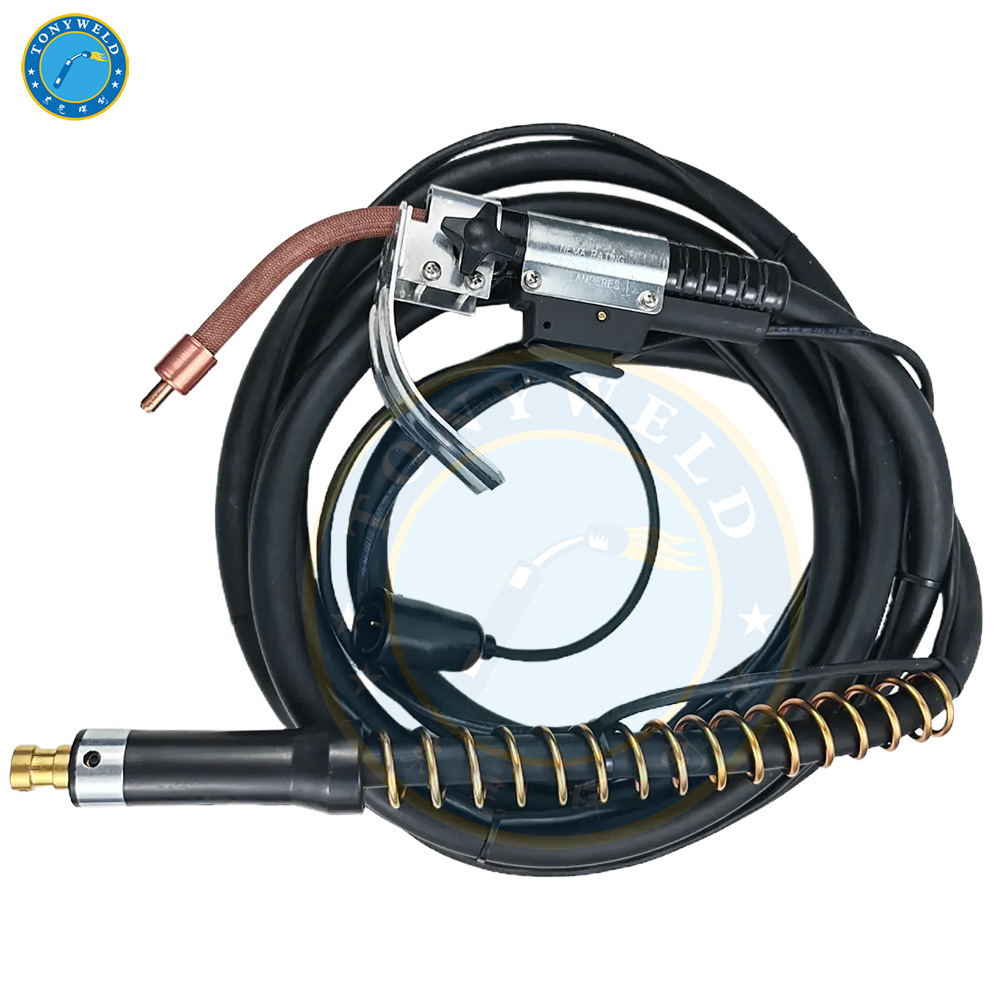

K126 Flux-cored Self Shielding 350A Co2 Gas air Cooled Mig Welding Torch Gun
K126 Flux-cored Self Shielding 350A Co2 Gas air Cooled Mig Welding Torch Gun Technical Data
| TWK126 Flux-Cored Self Shielding Welding Gun | ||
| Technical Data： | Rating : 350A CO2 | |
| Duty Cycle : 60% | ||
| Wire Size : .062”-3/32” (1.6-2.4mm) | ||
| No. | Description | Order |
| TWK126 FCAW-SS Welding Gun 10ft (3.0m) | TWK126-1 | |
| TWK126 FCAW-SS Welding Gun 15ft (4.5m) | TWK126-2 | |
| 1 | Nozzle Thread Protector, 3/4 to 1-1/2* Stickout | TWKP2089-1 |
| 2 | Contact Tip 1/16” 1.6mm | TWKP2100-2B1 |
| Contact Tip 068-072” 1.7-1.8mm | TWKP2100-1B1 | |
| Contact Tip 5/64” 2.0mm | TWKP2100-4B1 | |
| Contact Tip 3/32” 2.4mm | TWKP2100-3B1 | |
| 3 | Gun Tube | TWKP1909-1 |
| 4 | Heat Shield Assembly | TW9SS13037 |
| 5 | Spatter Shield | TW9ST12027 |
| 6 | Snap Ring | TW9SS9776-7 |
| 7 | Clamp | TW9SS15921-1 |
| 8 | Clamp Switch Housing | TW9SS15922-1 |
| 9 | Handle | TW9SM10102-1 |
| 10 | Trigger & Control Cable 10ft (3.0m) | TW9SM12462-10 |
| Trigger & Control Cable 15ft (4.5m) | TW9SM12462-15 | |
| 10-1 | Micro Switch | TW9ST12485 |
| 10-2 | Control Wire Plug | TW35SP-354 |
| 11 | Switch Insulation | TW9SS14878 |
| 12 | Switch Housing Assembly | TW9SM22370 |
| 13 | Conductor Cable | TWL6250 |
| 14 | Handle & Stiffener Wire Feeder End | TW9SM14050-1 |
| 15 | Connector Wire Feeder End | TW9SS12801-3 |
| 16 | Liner for 5/64”-3/32”(2.0-2.4mm) 15ft (4.5m) | TW45H-332-15 |

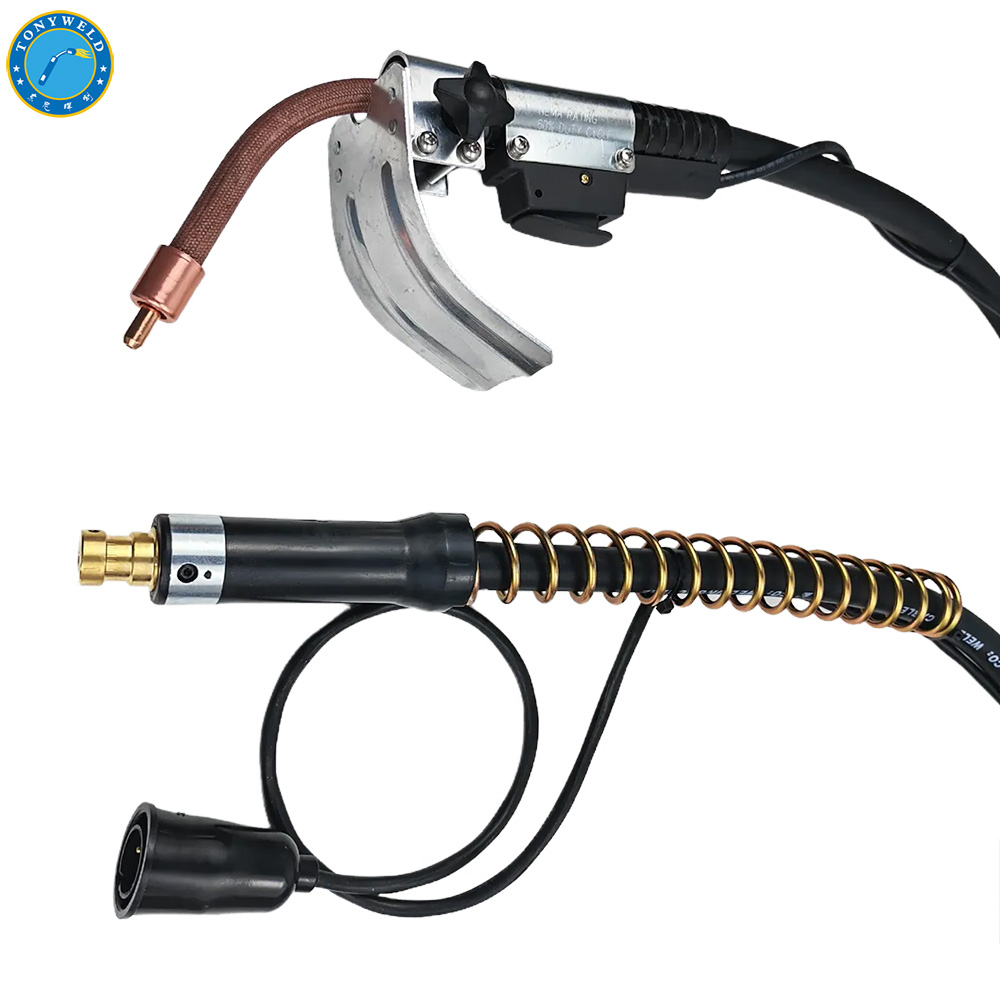

K126 Flux-cored Self Shielding 350A Co2 Gas air Cooled Mig Welding Torch Gun connector

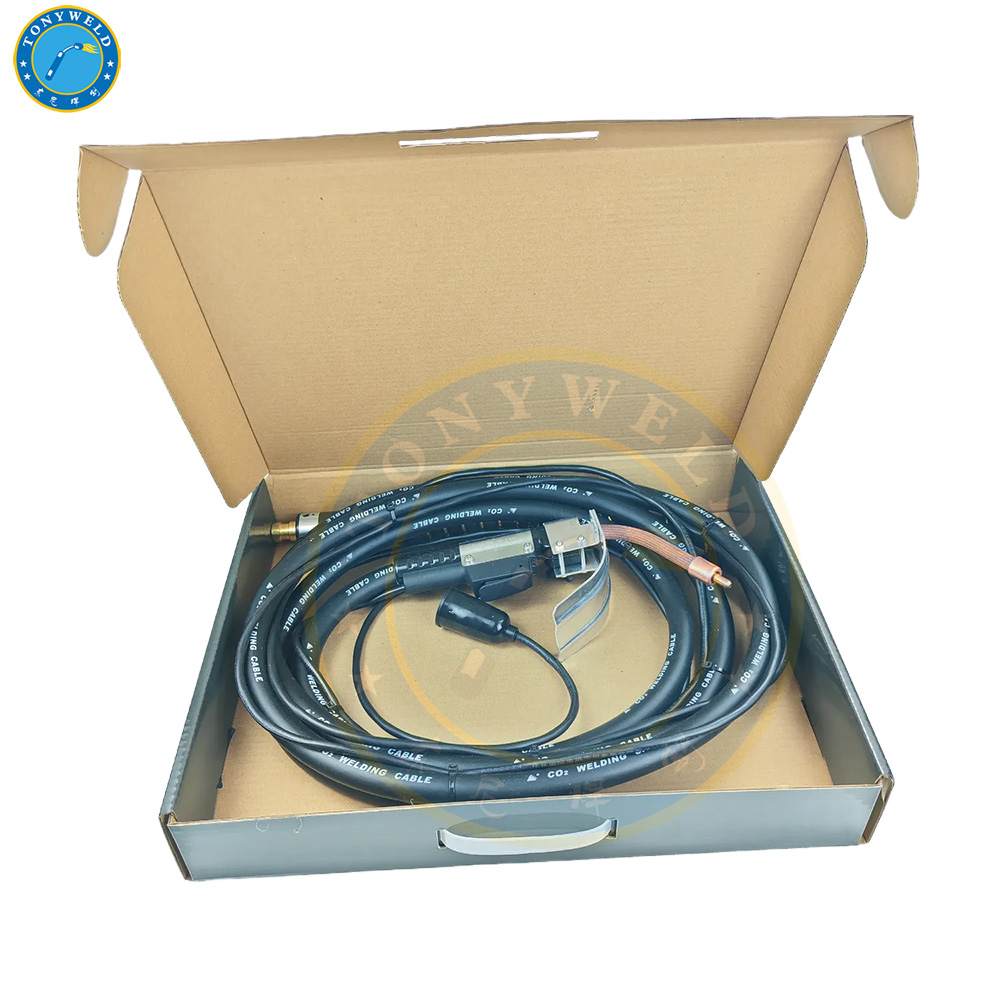

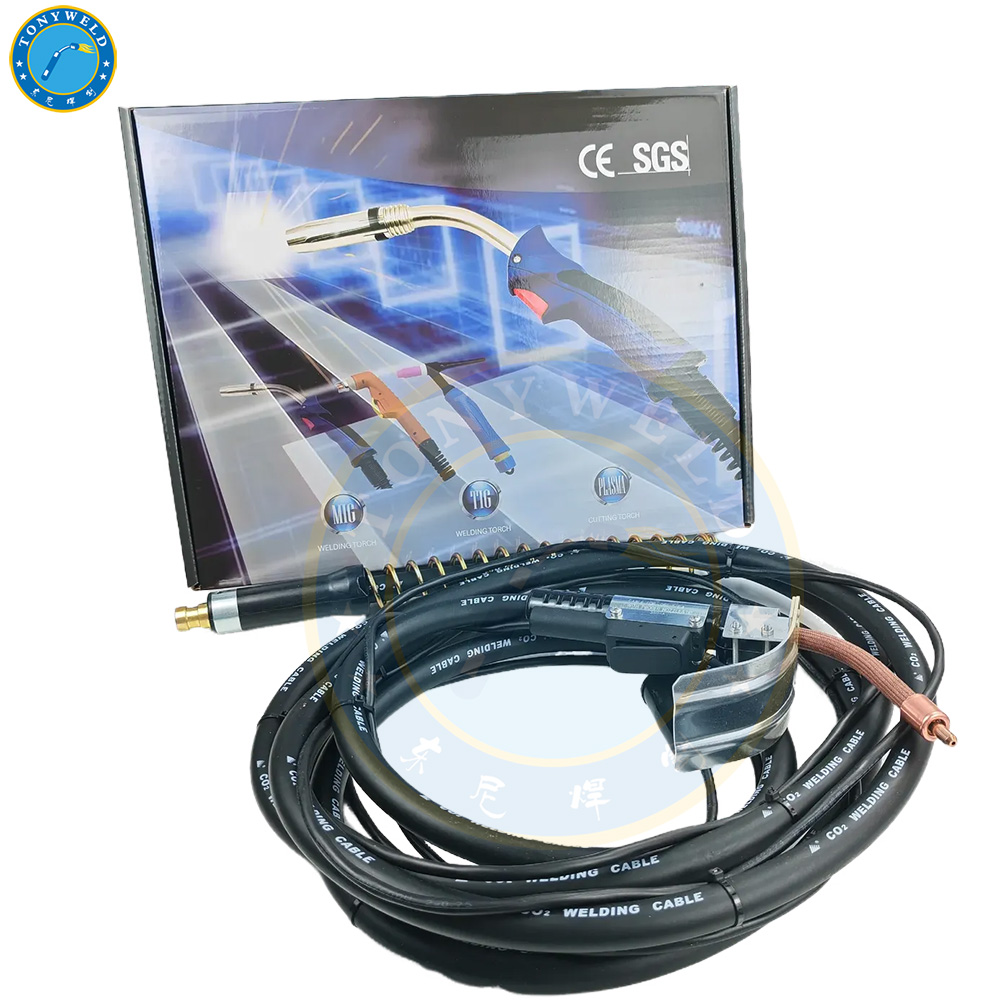

K126 Flux-cored Self Shielding 350A Co2 Gas air Cooled Mig Welding Torch Gun Packing Size
