| 规格: | |
|---|---|
| Quantity: | |
Tweco
Tonyweld
85159000
Tweco 5# mig CO2 500A torch and mig consumabl
tweco torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
500A CO2 torch 450A mixed gases
60%
euro / miller / tweco connector and etc
1.2-1.6 mm

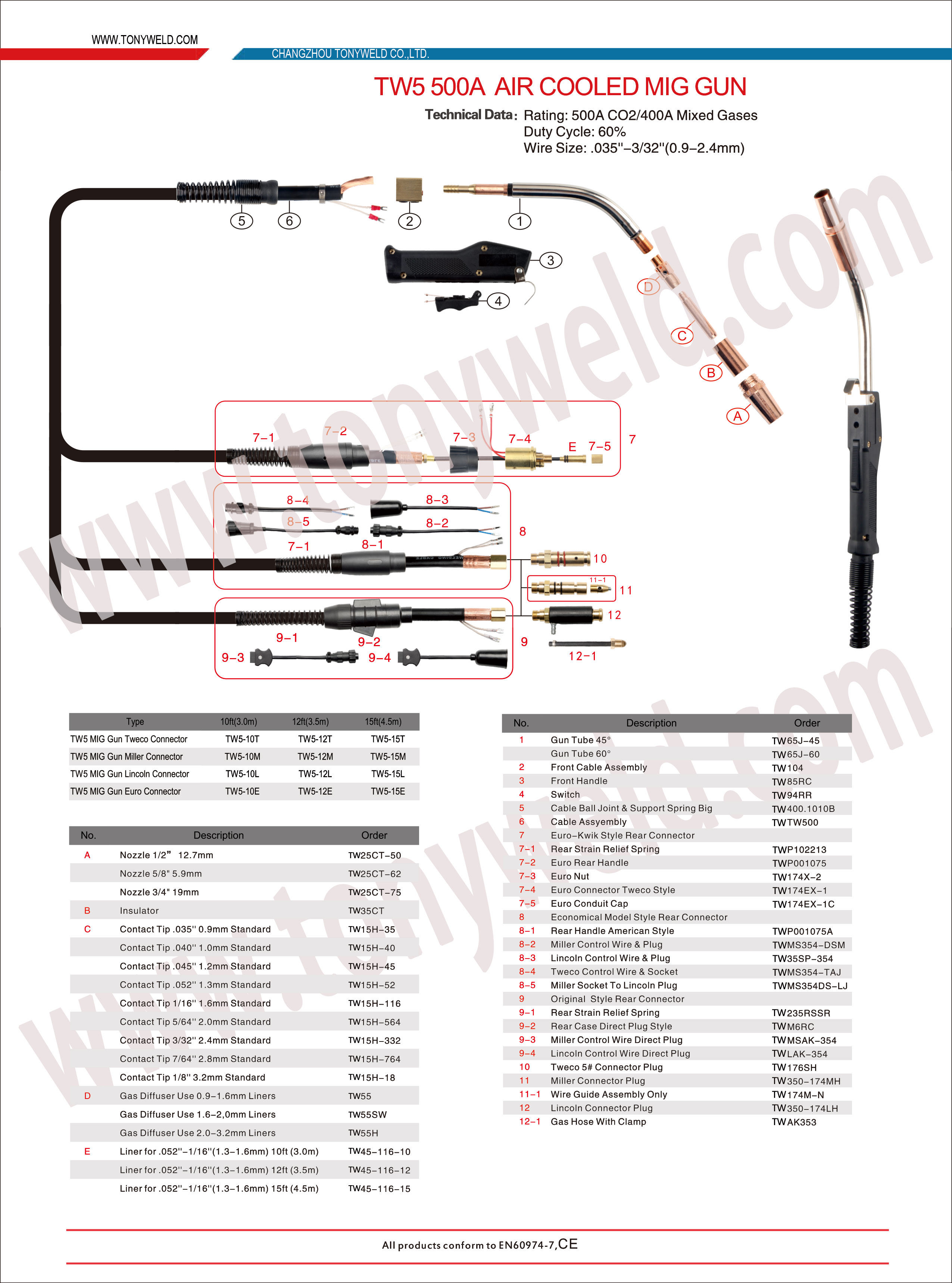

| TW5 500A AIR-COOLED MIG GUN | | | | |
| | Rating: 500A CO2/400A Mixed Gases | | | |
| | Duty Cycle: 60% | | | |
| | Wire Size: .035”-3/32”(0.9-2.4mm) | | | |
| | Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| | TW5 MIG Gun Tweco Connector | TW5-10T | TW5-12T | TW5-15T |
| | TW5 MIG Gun Miller Connector | TW5-10M | TW5-12M | TW5-15M |
| | TW5 MIG Gun Lincoln Connector | TW5-10L | TW5-12L | TW5-15L |
| | TW5 MIG Gun Euro Connector | TW5-10E | TW5-12E | TW5-15E |
| | | | | |
| No. | Description | Order | | |
| A | Nozzle 1/2” 12.7mm | 25CT-50 | | |
| | Nozzle 5/8″ 5.9mm | 25CT-62 | | |
| | Nozzle 3/4″ 19mm | 25CT-75 | | |
| B | Insulator | 35CT | | |
| C | Contact Tip .035” 0.9mm Standard | 15H-35 | | |
| | Contact Tip .040” 1.0mm Standard | 15H-40 | | |
| | Contact Tip .045” 1.2mm Standard | 15H-45 | | |
| | Contact Tip .052” 1.3mm Standard | 15H-52 | | |
| | Contact Tip 1/16” 1.6mm Standard | 15H-116 | | |
| | Contact Tip 5/64” 2.0mm Standard | 15H-564 | | |
| | Contact Tip 3/32” 2.4mm Standard | 15H-332 | | |
| | Contact Tip 7/64” 2.8mm Standard | 15H-764 | | |
| | Contact Tip 1/8” 3.2mm Standard | 15H-18 | | |
| D | Gas Diffuser Use 0.9-1.6mm Liners | 55 | | |
| | Gas Diffuser Use 1.6-2,0mm Liners | 55SW | | |
| | Gas Diffuser Use 2.0-3.2mm Liners | 55H | | |
| E | Liner for. 035”-.045”(0.9-1.2mm) 15FT (4.5m) | 45-3545-15 | | |
| | Liner for .035”-.045”(0.9-1.2mm) 25FT (7.6m) | 45-3545-25 | | |
| | Liner for .052”-1/16”(1.3-1.6mm) 15FT (4.5m) | 45-116-15 | | |
| | Liner for .052”-1/16”(1.3-1.6mm) 25FT (7.6m) | 45-116-25 | | |
| | Liner for 1/16”-5/64”(1.6-2.0mm) 15FT (4.5m) | 45-564-15 | | |
| | Liner for 1/16”-5/64”(1.6-2.0mm) 25FT (7.6m) | 45-564-25 | | |
| | Liner for 5/64”-3/32”(2.0-2.4mm) 15FT (4.5m) | 45H-332-15 | | |
| | Liner for 5/64”-3/32”(2.0-2.4mm) 25FT (7.6m) | 45H-332-25 | | |
| | Liner for 3/32”-7/64”(2.4-2.8mm) 15FT(4.5m) | 45H-764-15 | | |
| | Liner for 7/64”-1/8”(2.8-3.2mm) 15FT (4.5m) | 45-18-15 | | |
| | | | | |
| No. | Description | Order | | |
| 1 | Gun Tube 45° | 65J-45 | | |
| | Gun Tube 60° | 65J-60 | | |
| 2 | Front Cable Assembly | 104 | | |
| 3 | Front Handle | 84RC | | |
| 4 | Switch | 94RR | | |
| 5 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 6 | Cable Assembly | TW500 | | |
| 7 | Rear Strain Relief Spring | 235RSSR | | |
| 8 | Rear Case (Direct Plug) | R6RC | | |
| 9 | Control Wire (Tweco/Miller) | MAK-354 | | |
| 9-1 | Control Wire (Lincoln) | LAK-354 | | |
| 10 | Tweco Central Connector | 176SH | | |
| 11 | Miller Central Connector | 350-174MH | | |
| 12 | Lincoln Central Connector | 350-174LH | | |
| 12-1 | Gas Tube | LKGAS | | |
| 13 | Euro Central Connector | 174EX-1 | | |
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 13-2 | Euro Rear Handle | 501.2248 | | |
| 13-3 | Euro Nut | 174X-2 | | |
| 13-4 | Euro Body Assembly | 174EX-1 | | |
| 13-5 | Euro Conduit Cap | 174EX-1C | | |
| TW5 500A AIR-COOLED MIG GUN | | | | |
| | Rating: 500A CO2/400A Mixed Gases | | | |
| | Duty Cycle: 60% | | | |
| | Wire Size: .035”-3/32”(0.9-2.4mm) | | | |
| | Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| | TW5 MIG Gun Tweco Connector | TW5-10T | TW5-12T | TW5-15T |
| | TW5 MIG Gun Miller Connector | TW5-10M | TW5-12M | TW5-15M |
| | TW5 MIG Gun Lincoln Connector | TW5-10L | TW5-12L | TW5-15L |
| | TW5 MIG Gun Euro Connector | TW5-10E | TW5-12E | TW5-15E |
| | | | | |
| No. | Description | Order | | |
| A | Nozzle 1/2” 12.7mm | 25CT-50 | | |
| | Nozzle 5/8″ 5.9mm | 25CT-62 | | |
| | Nozzle 3/4″ 19mm | 25CT-75 | | |
| B | Insulator | 35CT | | |
| C | Contact Tip .035” 0.9mm Standard | 15H-35 | | |
| | Contact Tip .040” 1.0mm Standard | 15H-40 | | |
| | Contact Tip .045” 1.2mm Standard | 15H-45 | | |
| | Contact Tip .052” 1.3mm Standard | 15H-52 | | |
| | Contact Tip 1/16” 1.6mm Standard | 15H-116 | | |
| | Contact Tip 5/64” 2.0mm Standard | 15H-564 | | |
| | Contact Tip 3/32” 2.4mm Standard | 15H-332 | | |
| | Contact Tip 7/64” 2.8mm Standard | 15H-764 | | |
| | Contact Tip 1/8” 3.2mm Standard | 15H-18 | | |
| D | Gas Diffuser Use 0.9-1.6mm Liners | 55 | | |
| | Gas Diffuser Use 1.6-2,0mm Liners | 55SW | | |
| | Gas Diffuser Use 2.0-3.2mm Liners | 55H | | |
| E | Liner for. 035”-.045”(0.9-1.2mm) 15FT (4.5m) | 45-3545-15 | | |
| | Liner for .035”-.045”(0.9-1.2mm) 25FT (7.6m) | 45-3545-25 | | |
| | Liner for .052”-1/16”(1.3-1.6mm) 15FT (4.5m) | 45-116-15 | | |
| | Liner for .052”-1/16”(1.3-1.6mm) 25FT (7.6m) | 45-116-25 | | |
| | Liner for 1/16”-5/64”(1.6-2.0mm) 15FT (4.5m) | 45-564-15 | | |
| | Liner for 1/16”-5/64”(1.6-2.0mm) 25FT (7.6m) | 45-564-25 | | |
| | Liner for 5/64”-3/32”(2.0-2.4mm) 15FT (4.5m) | 45H-332-15 | | |
| | Liner for 5/64”-3/32”(2.0-2.4mm) 25FT (7.6m) | 45H-332-25 | | |
| | Liner for 3/32”-7/64”(2.4-2.8mm) 15FT(4.5m) | 45H-764-15 | | |
| | Liner for 7/64”-1/8”(2.8-3.2mm) 15FT (4.5m) | 45-18-15 | | |
| | | | | |
| No. | Description | Order | | |
| 1 | Gun Tube 45° | 65J-45 | | |
| | Gun Tube 60° | 65J-60 | | |
| 2 | Front Cable Assembly | 104 | | |
| 3 | Front Handle | 84RC | | |
| 4 | Switch | 94RR | | |
| 5 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 6 | Cable Assembly | TW500 | | |
| 7 | Rear Strain Relief Spring | 235RSSR | | |
| 8 | Rear Case (Direct Plug) | R6RC | | |
| 9 | Control Wire (Tweco/Miller) | MAK-354 | | |
| 9-1 | Control Wire (Lincoln) | LAK-354 | | |
| 10 | Tweco Central Connector | 176SH | | |
| 11 | Miller Central Connector | 350-174MH | | |
| 12 | Lincoln Central Connector | 350-174LH | | |
| 12-1 | Gas Tube | LKGAS | | |
| 13 | Euro Central Connector | 174EX-1 | | |
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 13-2 | Euro Rear Handle | 501.2248 | | |
| 13-3 | Euro Nut | 174X-2 | | |
| 13-4 | Euro Body Assembly | 174EX-1 | | |
| 13-5 | Euro Conduit Cap | 174EX-1C | | |
