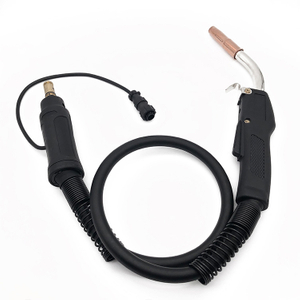

TWECO Spray Master 250A
Tonyweld
85159000
TW Spray Mas mig welding CO2 torch 200A and cons
tweco torch
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
200A CO2 torch 160A mixed gases
60%
euro / miller / tweco connector and etc
0.6-0.9 mm
| TW Spray Master 250A AIR-COOLED MIG GUN | | | | |
| | Rating: 250A CO2/220A Mixed Gases | | | |
| | Duty Cycle: 80% | | | |
| | Wire Size: .025”-.045”(0.6-1.2mm) | | | |
| | Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| | TW Spray Master 250 MIG Gun Tweco Connector | TWMS210-3545 | TWMS212-3545 | TWMS215-3545 |
| | TW Spray Master 250 MIG Gun Miller Connector | TWMS210M-3545 | TWMS212M-3545 | TWMS215M-3545 |
| | TW Spray Master 250 MIG Gun Lincoln Connector | TWMS210L-3545 | TWMS212L-3545 | TWMS215L-3545 |
| | TW Spray Master 250 MIG Gun Euro Connector | TWMS210X-3545 | TWMS212X-3545 | TWMS215X-3545 |
| | | | | |
| No. | Description | Order | | |
| A | Nozzle 3/8” 9.5mm | HD22-37 | | |
| | Nozzle 1/2” 12.7mm | HD22-50 | | |
| | Nozzle 1/2” 12.7mm | HD22-50F | | |
| | Nozzle 5/8” 15.9mm | HD22-62 | | |
| | Nozzle 5/8” 15.9mm | HD22-62F | | |
| B | Contact Tip .023” 0.6mm | 11-23 | | |
| | Contact Tip .030” 0.8mm | 11-30 | | |
| | Contact Tip .035” 0.9mm | 11-35 | | |
| | Contact Tip .040” 1.0mm | 11-40 | | |
| | Contact Tip .045” 1.2mm | 11-45 | | |
| C | Gas Diffuser | HD52-11 | | |
| D | Nozzle Insulator | 63J-3 | | |
| E | Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m) | 42-3035-15 | | |
| | Liner for .030”-.035” (0.8-0.9mm) 25ft (7.6m) | 42-3035-25 | | |
| | Liner for .040”-.045” (1.0-1.2mm) 15ft (4.6m) | 42-4045-15 | | |
| | Liner for .040”-.045” (1.0-1.2mm) 25ft (7.6m) | 42-4045-25 | | |
| | Liner for .052”-1/16” (1.3-1.6mm) 15ft (4.6m) | 42-116-15 | | |
| | | | | |
| No. | Description | Order | | |
| 1 | Gun Tube 45° | LMS63-45 | | |
| | Gun Tube 60° | MS63-60 | | |
| 2 | Front Handle | MS84 | | |
| 3 | Trigger Blade Assembly | ELC94-BL | | |
| 4 | Trigger (Standard) | ELC94 | | |
| 5 | Front Strain Relief Spring & Cap | MS144 | | |
| 6 | Cable Assembly | TWMS250 | | |
| 7 | Rear Strain Relief Spring | 235RSSR | | |
| 8 | Rear Case (Direct Plug) | R6RC | | |
| 9 | Control Wire (Tweco/Miller) | MAK-354 | | |
| 9-1 | Control Wire (Lincoln) | LAK-354 | | |
| 10 | Tweco Central Connector | 350-174H | | |
| 11 | Miller Central Connector | 350-174MH | | |
| 12 | Lincoln Central Connector | 350-174LH | | |
| 12-1 | Gas Tube | LKGAS | | |
| 13 | Euro Central Connector | 174EX-1 | | |
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 13-2 | Euro Rear Handle | 501.2248 | | |
| 13-3 | Euro Nut | 174X-2 | | |
| 13-4 | Euro Body Assembly | 174EX-1 | | |
| 13-5 | Euro Conduit Cap | 174EX-1C | | |
| TW Spray Master 250A AIR-COOLED MIG GUN | | | | |
| | Rating: 250A CO2/220A Mixed Gases | | | |
| | Duty Cycle: 80% | | | |
| | Wire Size: .025”-.045”(0.6-1.2mm) | | | |
| | Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| | TW Spray Master 250 MIG Gun Tweco Connector | TWMS210-3545 | TWMS212-3545 | TWMS215-3545 |
| | TW Spray Master 250 MIG Gun Miller Connector | TWMS210M-3545 | TWMS212M-3545 | TWMS215M-3545 |
| | TW Spray Master 250 MIG Gun Lincoln Connector | TWMS210L-3545 | TWMS212L-3545 | TWMS215L-3545 |
| | TW Spray Master 250 MIG Gun Euro Connector | TWMS210X-3545 | TWMS212X-3545 | TWMS215X-3545 |
| | | | | |
| No. | Description | Order | | |
| A | Nozzle 3/8” 9.5mm | HD22-37 | | |
| | Nozzle 1/2” 12.7mm | HD22-50 | | |
| | Nozzle 1/2” 12.7mm | HD22-50F | | |
| | Nozzle 5/8” 15.9mm | HD22-62 | | |
| | Nozzle 5/8” 15.9mm | HD22-62F | | |
| B | Contact Tip .023” 0.6mm | 11-23 | | |
| | Contact Tip .030” 0.8mm | 11-30 | | |
| | Contact Tip .035” 0.9mm | 11-35 | | |
| | Contact Tip .040” 1.0mm | 11-40 | | |
| | Contact Tip .045” 1.2mm | 11-45 | | |
| C | Gas Diffuser | HD52-11 | | |
| D | Nozzle Insulator | 63J-3 | | |
| E | Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m) | 42-3035-15 | | |
| | Liner for .030”-.035” (0.8-0.9mm) 25ft (7.6m) | 42-3035-25 | | |
| | Liner for .040”-.045” (1.0-1.2mm) 15ft (4.6m) | 42-4045-15 | | |
| | Liner for .040”-.045” (1.0-1.2mm) 25ft (7.6m) | 42-4045-25 | | |
| | Liner for .052”-1/16” (1.3-1.6mm) 15ft (4.6m) | 42-116-15 | | |
| | | | | |
| No. | Description | Order | | |
| 1 | Gun Tube 45° | LMS63-45 | | |
| | Gun Tube 60° | MS63-60 | | |
| 2 | Front Handle | MS84 | | |
| 3 | Trigger Blade Assembly | ELC94-BL | | |
| 4 | Trigger (Standard) | ELC94 | | |
| 5 | Front Strain Relief Spring & Cap | MS144 | | |
| 6 | Cable Assembly | TWMS250 | | |
| 7 | Rear Strain Relief Spring | 235RSSR | | |
| 8 | Rear Case (Direct Plug) | R6RC | | |
| 9 | Control Wire (Tweco/Miller) | MAK-354 | | |
| 9-1 | Control Wire (Lincoln) | LAK-354 | | |
| 10 | Tweco Central Connector | 350-174H | | |
| 11 | Miller Central Connector | 350-174MH | | |
| 12 | Lincoln Central Connector | 350-174LH | | |
| 12-1 | Gas Tube | LKGAS | | |
| 13 | Euro Central Connector | 174EX-1 | | |
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
| 13-2 | Euro Rear Handle | 501.2248 | | |
| 13-3 | Euro Nut | 174X-2 | | |
| 13-4 | Euro Body Assembly | 174EX-1 | | |
| 13-5 | Euro Conduit Cap | 174EX-1C | | |
