Tweco 2# mig welding CO2 torch 200A and consumables

Share to:

TW2 200A AIR-COOLED MIG GUN

Technical Data
Rating: 200A CO2/150A Mixed Gases
Duty Cycle: 60%
Wire Size: .025”-.045”(0.6-1.2mm)

规格:	TWECO 2# 200A WHOLE TORCH
Quantity:



Inquire Add to Basket

Model:
Tweco 2#
Brand:
Tonyweld
Code:
85159000
Product Name :
Tweco 2# mig welding CO2 torch 200A and cons
series :
tweco torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
200A CO2 torch 160A mixed gases
Duty Cycle :
60%
connector :
euro / miller / tweco connector and etc
wire size :
0.6-0.9 mm

Product Description

Tweco 2# mig welding CO2 torch 200A and consumables

TW2 200A AIR-COOLED MIG GUN
Technical Data	Rating: 200A CO2/150A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .025”-.045”(0.6-1.2mm)
	Type	10ft(3.0m)	12ft(3.5m)	15ft(4.5m)
	TW2 MIG Gun Tweco Connector	TW2-10T	TW2-12T	TW2-15T
	TW2 MIG Gun Miller Connector	TW2-10M	TW2-12M	TW2-15M
	TW2 MIG Gun Lincoln Connector	TW2-10L	TW2-12L	TW2-15L
	TW2 MIG Gun Euro Connector	TW2-10E	TW2-12E	TW2-15E

No.	Description	Order

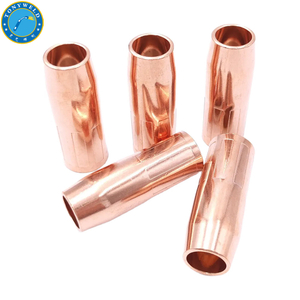

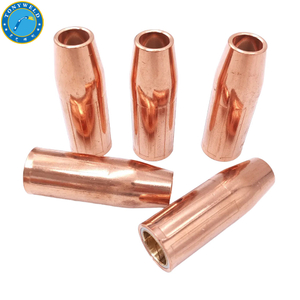

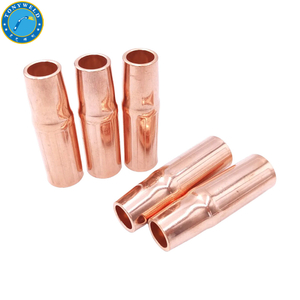

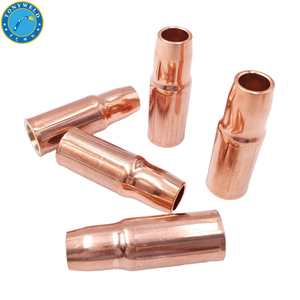

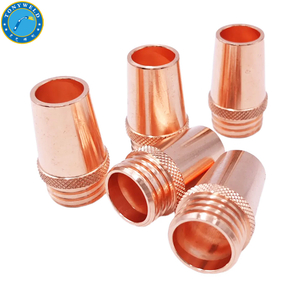

A	Nozzle 3/8” 9.5mm	22-37
	Nozzle 1/2” 12.7mm	22-50
	Nozzle 5/8″ 15.9mm	22-62
	Nozzle Short Stop 3/8” 9.5mm	22-37SS
	Nozzle Short Stop 1/2” 12.7mm	22-50SS
	Nozzle Short Stop 5/8” 15.9mm	22-62SS
	Nozzle Tapered Short Stop 3/8” 9.5mm	22T-37SS

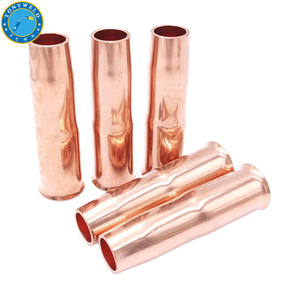

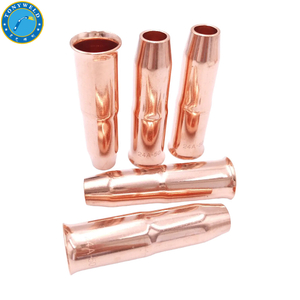

A-1	Nozzle	24A Series
B	Insulator	32

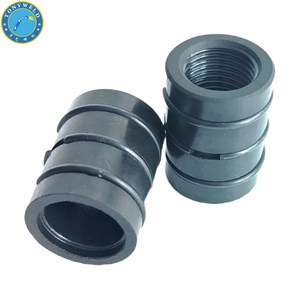

B-1	Insulator	34A
C	Contact Tip .023” 0.6mm Standard	14-23
	Contact Tip .030” 0.8mm Standard	14-30
	Contact Tip .035” 0.9mm Standard	14-35
	Contact Tip .040” 1.0mm Standard	14-40
	Contact Tip .045” 1.2mm Standard	14-45
	Contact Tip .052” 1.3mm Standard	14-52
	Contact Tip 1/16” 1.6mm Standard	14-116
	Contact Tip 5/64″ 2.0 mm Standard	14-564
	Contact Tip 3/64″AL 1.2 mm Standard	14A364
	Contact Tip .030” 0.8mm Heavy Duty	14H-35
	Contact Tip .035” 0.9mm Heavy Duty	14H-35
	Contact Tip .040” 1.0mm Heavy Duty	14H-40
	Contact Tip .045” 1.2mm Heavy Duty	14H-45
	Contact Tip .052” 1.3mm Heavy Duty	14H-52
	Contact Tip 1/16” 1.6mm Heavy Duty	14H-116
	Contact Tip 5/64″ 2.0 mm Heavy Duty	14H-564
	Contact Tip 3/64″AL 1.2 mm Heavy Duty	14AH-364
	Contact Tip 1/16”AL1.6mm Heavy Duty	14AH-116
	Contact Tip .023” 0.6mm Tapered	14T-23
	Contact Tip .030” 0.8mm Tapered	14T-30
	Contact Tip .035” 0.9mm Tapered	14T-35
	Contact Tip .040” 1.0mm Tapered	14T-40
	Contact Tip .045” 1.2mm Tapered	14T-45
	Contact Tip .052” 1.3mm Tapered	14T-52
	Contact Tip 1/16” 1.6mm Tapered	14T-116

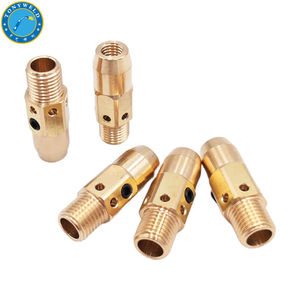

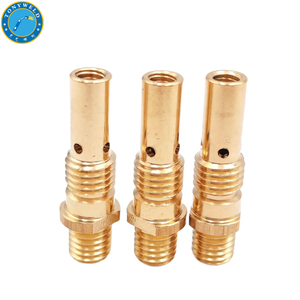

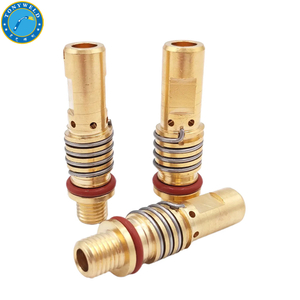

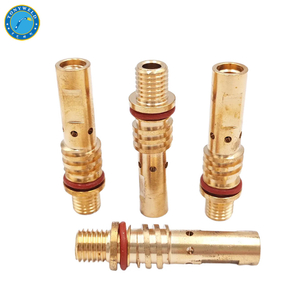

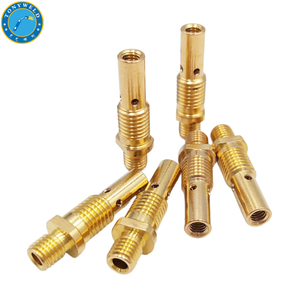

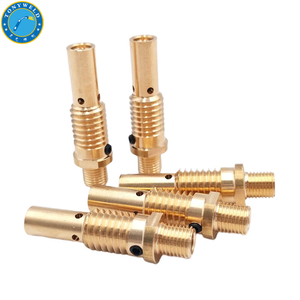

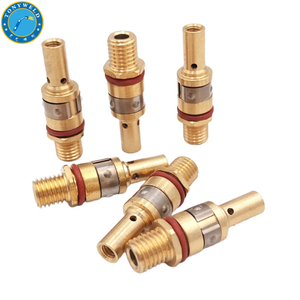

D	Gas Diffuser	52

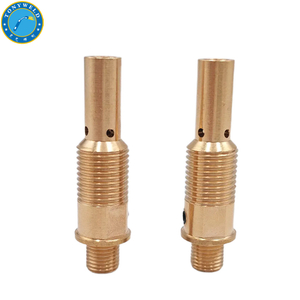

D-1	Gas Diffuser	52FN
E	Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m)	42-3035-15
	Liner for .030”-.035” (0.8-0.9mm) 25ft (7.6m)	42-3035-25
	Liner for .040”-.045” (1.0-1.2mm) 15ft (4.6m)	42-4045-15
	Liner for .040”-.045” (1.0-1.2mm) 15ft (7.6m)	42-4045-25
	Liner for .052”-1/16” (1.3-1.6mm) 15ft (4.6m)	42-116-15

No.	Description	Order
1	Gun Tube 45°	62J-45
	Gun Tube 60°	62J-60
2	Front Cable Assembly	102
3	Front Handle	83RC
4	Switch	94RR
5	Cable Ball Joint & Support Spring Small	400.1010S
6	Cable Assembly	TW200
7	Rear Strain Relief Spring	235RSSR
8	Rear Case (Direct Plug)	R6RC
9	Control Wire (Tweco/Miller)	MAK-354
9-1	Control Wire (Lincoln)	LAK-354
10	Tweco Central Connector	350-174H
11	Miller Central Connector	350-174MH
12	Lincoln Central Connector	350-174LH
12-1	Gas Tube	LKGAS
13	Euro Central Connector	174EX-1
13-1	Cable Ball Joint & Support Spring Big	400.1010B
13-2	Euro Rear Handle	501.2248
13-3	Euro Nut	174X-2
13-4	Euro Body Assembly	174EX-1
13-5	Euro Conduit Cap	174EX-1C

Tweco mig welding consumables

Tweco 2# mig welding torch package

* 1 piece tweco 2# mig torch 200A CO2 package in a carton
