A Comprehensive Guide to Plasma Cutting Torches and Their Uses

Plasma cutting torches are essential tools in modern metal fabrication, offering precision, speed, and versatility for cutting through conductive materials. This comprehensive guide explores the different types of plasma torches, their components, gas selection, accessories, and applications across various industries.

Understanding Plasma Cutting Technology

Plasma cutting is a process that uses an accelerated jet of hot plasma to cut through electrically conductive materials like steel, stainless steel, aluminum, brass, and copper. The plasma torch is the heart of this system, creating and directing the plasma arc that makes precise cuts possible.

All plasma cutting systems use gas to create the plasma arc, with options ranging from simple air plasma systems to sophisticated multi-gas setups that optimize performance for different materials 1. The basic principle involves:

• Creating an electrical channel of superheated, electrically ionized gas (plasma)

• Forcing this plasma through a constricted opening (nozzle) at high velocity

• Directing this plasma stream toward the workpiece where it melts the metal

• Blowing away the molten metal with high-speed gases

Types of Plasma Cutting Torches

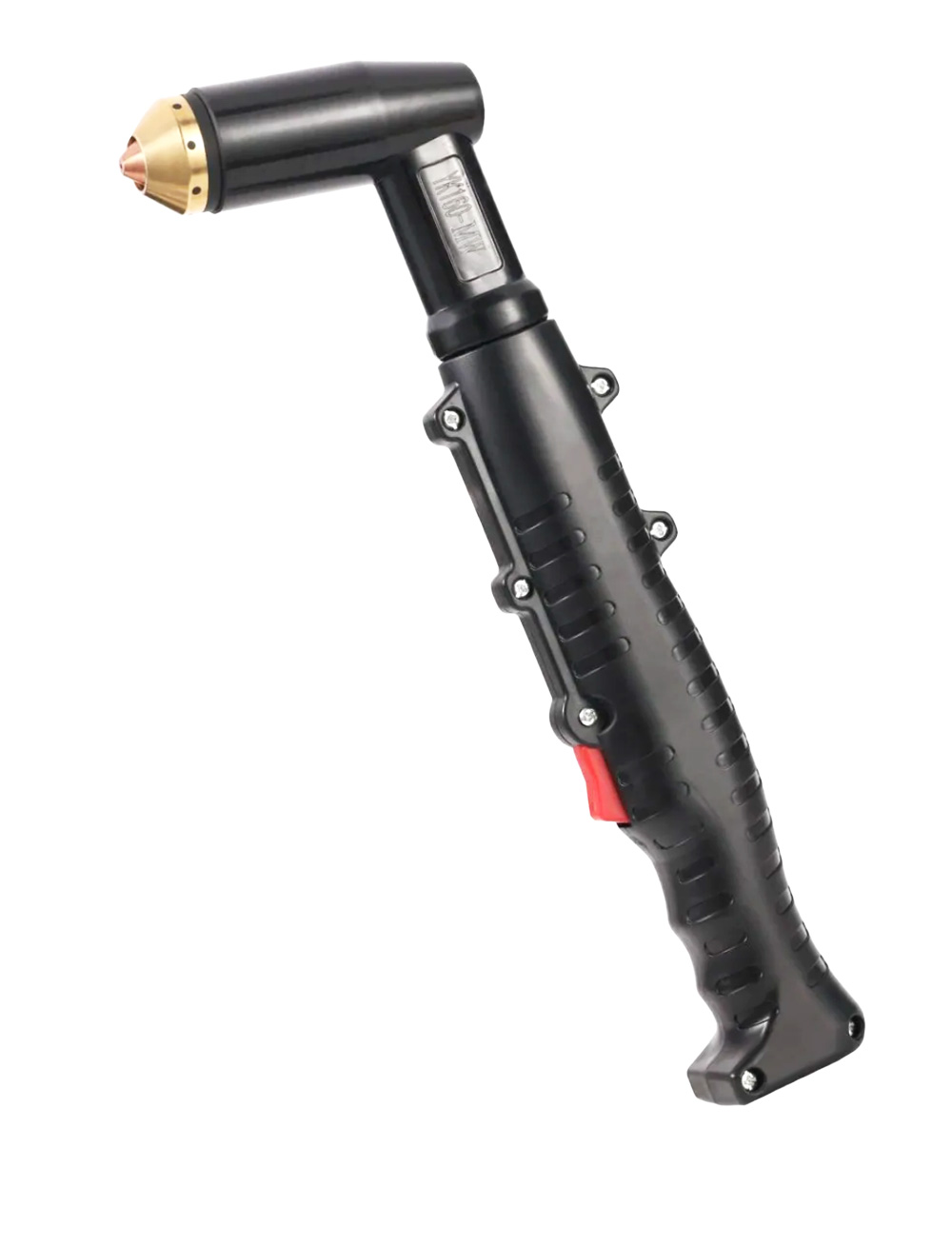

1. Handheld Plasma Torches

Common in smaller shops and field work, these portable torches offer flexibility for cutting shapes freehand. They're typically air-cooled and use compressed air as both plasma and shield gas for simplicity 1.

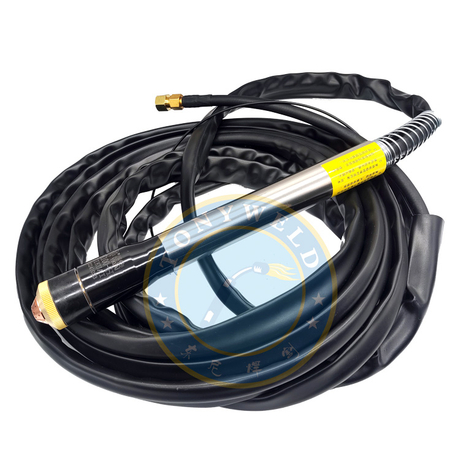

2. Machine/CNC Plasma Torches

Designed for automated cutting tables, these torches often feature:

• More durable construction for continuous operation

• Precision components for repeatable cuts

• Quick-change consumable systems

• Options for water injection or multi-gas configurations

The P80 style torch is a popular choice for CNC conversion, featuring a straight design that allows space-saving mounting to Z-axis with a 28mm clamp 6. These torches can adapt many handheld plasma cutters into CNC systems.

3. Robotic Plasma Torches

Specialized torches like those from TBi-Industries are engineered for robotic applications, maintaining tool center point (TCP) accuracy even under thermal load. They often include features like 8:

• Mechanically stable assemblies

• Optional integrated powder feeding channels

• Compatibility with accessory parts like cold wire guides

• Modular systems allowing various configurations

4. High-Definition Plasma Torches

While not detailed in the search results, these premium torches (mentioned in the 2" HiDef configurations of Snap 'n Cut systems 4) offer superior cut quality and precision for industrial applications.

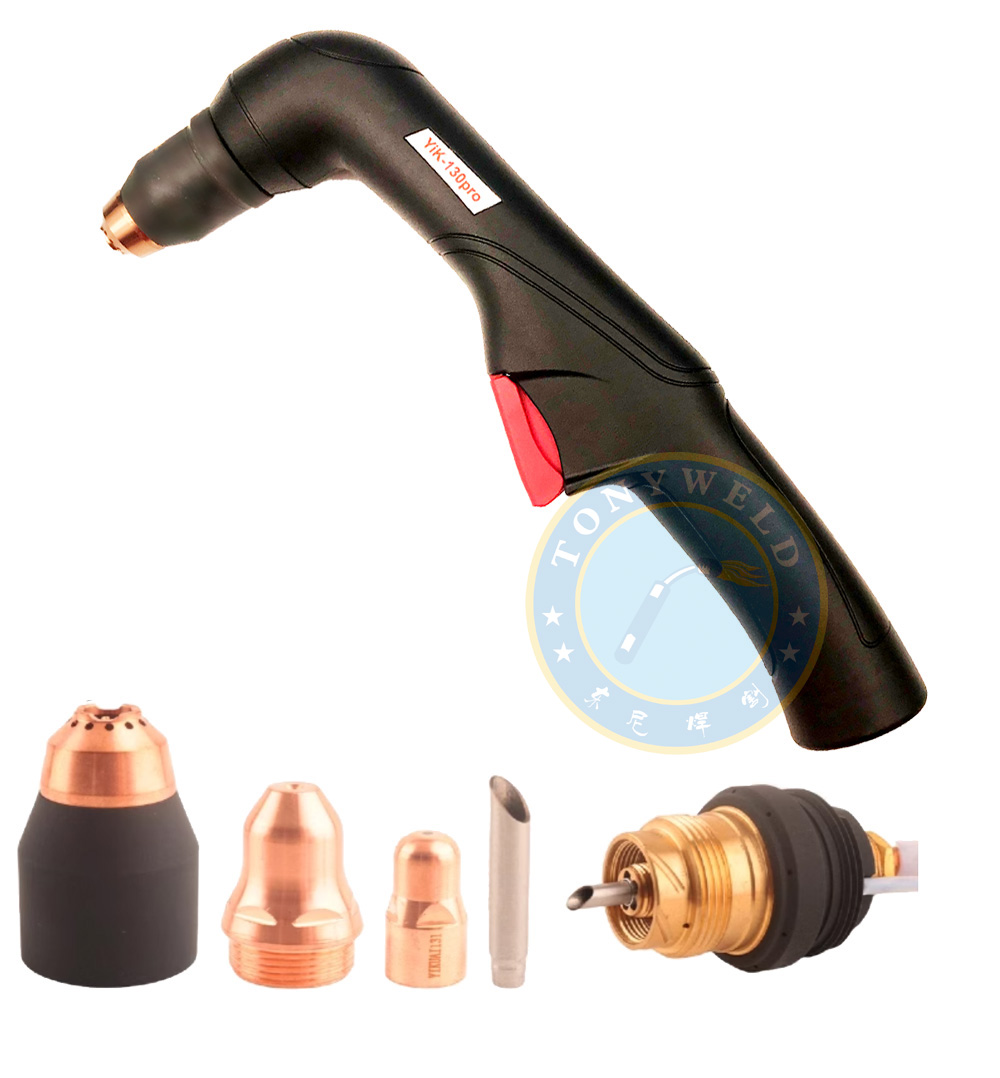

Plasma Torch Components and Consumables

The performance and lifespan of a plasma torch depend heavily on its consumable parts. Major components include:

• Electrode: Conducts electricity to create the plasma arc (made from hafnium or tungsten)

• Nozzle: Constricts and focuses the plasma stream

• Shield Cap: Protects nozzle and improves cut quality

• Retaining Cap: Holds components together

• Swirl Ring: Controls gas flow pattern

Manufacturers like Changzhou Forman Welding Equipment produce these components for various torch brands including Hypertherm, ESAB, Trafimet, and Kjellberg 3. Quality consumables are critical as they directly affect:

• Cut quality and precision

• Kerf width and bevel angle

• Consumable life and operating costs

• Process stability and productivity

Gas Selection for Plasma Cutting

Choosing the right plasma and shield gases significantly impacts cut quality, speed, and operating costs. Here's a summary of optimal gas choices for different materials 1:

Mild Steel Cutting

• Best option: Oxygen plasma with air shield gas

• Advantages: Excellent cut quality, fastest speed, minimal dross

• Cons: Higher gas cost, shorter consumable life (800-1500 starts)

• Economical option: Air plasma with air shield

• Advantages: Low cost, versatile (can cut other materials)

• Cons: Some edge oxidation, may require weld preparation

Stainless Steel and Aluminum (<1/2" thickness)

• Best option: Nitrogen plasma with CO₂ or water shield

• Advantages: Excellent cut quality, long consumable life (1000+ starts)

• Water shield provides smoothest finish

• Economical option: Nitrogen plasma with air shield

• Good balance of quality and affordability

Thick Stainless and Aluminum (>1/2" thickness)

• Best option: Argon-hydrogen (H-35) plasma with nitrogen shield

• Advantages: Maximum cutting capability, polished surface finish

• Warning: Requires system equipped for safe argon-hydrogen use

Plasma Torch Accessories and Enhancements

Circle Cutting Guides

Hypertherm offers specialized kits for cutting precise circles:

• Deluxe Kit: Cuts 3"-20" diameter circles, includes magnetic base and suction cups 2

• Basic Kit: Cuts up to 28" diameter circles 2
  These guides feature rotating torch holders and metal wheels for smooth cuts.

Torch Protection Systems

The Snap 'n Cut system provides crucial protection for CNC plasma torches by 4:

• Breaking away during collisions to prevent torch damage

• Allowing easy consumable changes outside the table area

• Maintaining accurate realignment with CNC-machined components

• Offering versions for 35mm, Powermax 125, and 2" HiDef torches

Consumable Changing Aids

Many modern torches incorporate features that simplify consumable replacement, reducing downtime and improving operator safety 4.

Selecting the Right Plasma Torch

When choosing a plasma cutting torch, consider:

1. Primary Materials: Match torch/gas capabilities to your most-cut materials

2. Thickness Range: Ensure the torch can handle your typical material thicknesses

3. Duty Cycle: Match to your production volume (intermittent vs. continuous use)

4. Cut Quality Needs: Precision applications may require high-definition systems

5. Automation Requirements: Handheld vs. machine-mounted vs. robotic torches

6. Operating Costs: Factor in consumable life and gas expenses

7. Available Utilities: Compressed air capacity, gas availability, power supply

Maintenance and Best Practices

To maximize torch performance and lifespan:

• Cleanliness: Keep torch and consumables free of spatter and debris

• Proper Assembly: Follow manufacturer instructions for component installation

• Gas Quality: Use clean, dry gases with proper filtration

• Consumable Inspection: Replace worn parts before they affect cut quality

• Collision Prevention: Implement protection systems like Snap 'n Cut 4

• Proper Storage: Protect torches from moisture and damage when not in use

Applications Across Industries

Plasma cutting torches serve diverse sectors including:

• Metal Fabrication: Cutting plates, structural shapes, and custom parts

• Automotive: Repair and custom part fabrication

• Construction: Steel beam and plate processing

• Shipbuilding: Large-scale metal cutting

• Art and Decoration: Precision metal artwork

• Industrial Demolition: Scrap processing and salvage operations

Future Trends

While not covered in the search results, industry trends likely include:

• Increased automation and robotic integration 8

• Improved consumable designs for longer life

• Enhanced cut quality through better gas mixing and control

• More compact and energy-efficient power supplies

• Smart torches with sensors for real-time performance monitoring

Conclusion

Plasma cutting torches offer fabricators a versatile and efficient metal cutting solution. By understanding the different torch types, proper gas selection, consumable management, and accessory options, operators can optimize their plasma cutting operations for quality, productivity, and cost-effectiveness. Whether using simple air plasma systems or sophisticated multi-gas robotic torches, proper selection and maintenance of the plasma torch is key to successful metal fabrication.

For specific torch models and compatibility information, refer to manufacturer resources like Hypertherm's cutting guides 2 or consult with consumable suppliers like Changzhou Forman Welding Equipment 3.
