规格: | |
---|---|
Quantity: | |

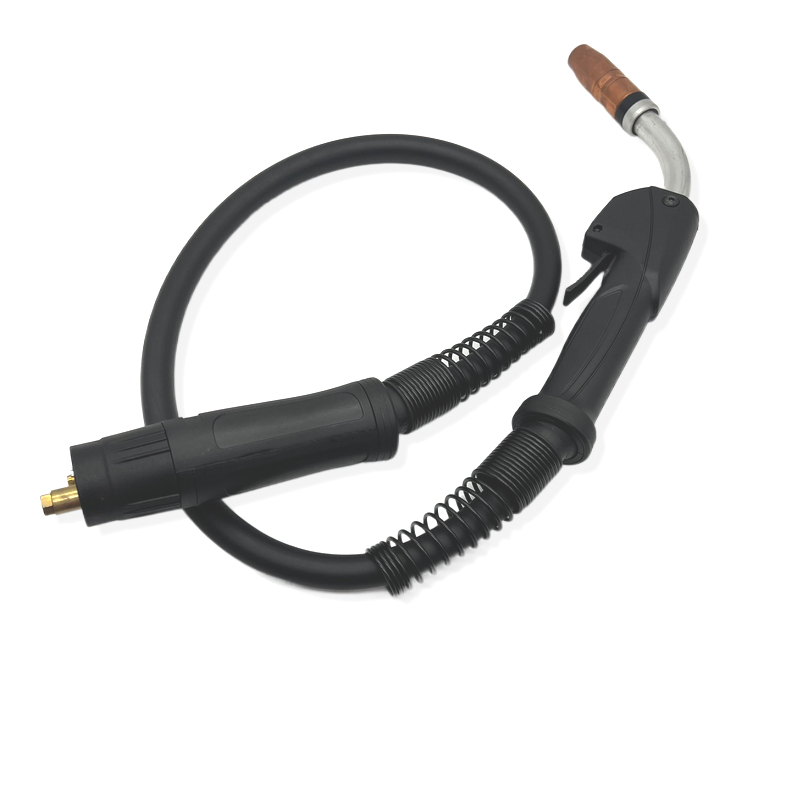

TR500 Air Cooled MIG GUN4
Tonyweld
85159000
TR500 Air Cooled MIG GUN Air Cooled MIG GUN CO2 mi
Tregaskiss 500A
1piece a plastic box
3M or 4M or 5M or according to customer request
Jiangsu, China (Mainland)
500A CO2/400A Mixed Gases
60%
euro / mille /bnd connector and etc
040”-3/32”(1.0–2.4mm)
TR500 Air Cooled MIG GUN | | | ||
Technical Data: | Rating:500A CO2/400A Mixed Gases | | | |
| Duty Cycle: 60% | | | |
| Wire Size: .040”-3/32”(1.0–2.4mm) | | | |
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) |
| TR500 MIG GUN Miller Connector | 5010M | 5012M | 5015M |
| TR500 MIG GUN Tweco Connector | 5010T | 5012T | 5015T |
| TR500 MIG GUN Lincoln Connector | 5010L | 5012L | 5015L |
| TR500 MIG GUN Euro Connector | 5010E | 5012E | 5015E |
| | | | |
No. | Description | Order | | |
A | Nozzle 1/2″ 12.7mm 1/4″ Recess Copper | 401-5-50 | | |
| Nozzle 3/4″ 19mm 1/4″ Recess Copper | 401-5-75 | | |
| Nozzle 5/8” 15.9mm 1/4″ Recess Copper | 401-5-62 | | |
| Nozzle 1/2″ 12.7mm 1/8” Recess Copper | 401-6-50 | | |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Copper | 401-6-62 | | |
| Nozzle 3/4″ 19mm 1/8″ Recess Copper | 401-6-75 | | |
| Nozzle 5/8” 15.9mm 1/4″ Recess Brass | 401-7-62 | | |
| Nozzle 3/4″ 19mm 1/8” Recess Brass | 401-7-75 | | |
| Nozzle 5/8″ 15.9mm 1/8” Recess Brass | 401-71-62 | | |
| Nozzle 5/8” 15.9mm Flush Bottleneck Copper | 401-48-62 | | |
| Nozzle 5/8” 15.9mm 1/8” Stick Out Brass | 401-87-62 | | |
| Nozzle 5/8” 15.9mm 1/8” Stick Out Copper | 401-81-62 | | |
B | Contact Tip .030” 0.8mm Heavy Duty | 403-20-30 | | |
| Contact Tip .035” 0.9mm Heavy Duty | 403-20-35 | | |
| Contact Tip .040” 1.0mm Heavy Duty | 403-20-40 | | |
| Contact Tip .045” 1.2mm Heavy Duty | 403-20-45 | | |
| Contact Tip .052” 1.4mm Heavy Duty | 403-20-52 | | |
| Contact Tip 1/16” 1.6mm Heavy Duty | 403-20-116 | | |
| Contact Tip 5/64” 2.0mm Heavy Duty | 403-20-564 | | |
| Contact Tip 3/32” 2.4mm Heavy Duty | 403-20-332 | | |
| Contact Tip .030” 0.8mm Heavy Duty Tapered | 403-21-30 | | |
| Contact Tip .035” 0.9mm Heavy Duty Tapered | 403-21-35 | | |
| Contact Tip .040” 1.0mm Heavy Duty Tapered | 403-21-40 | | |
| Contact Tip .045” 1.2mm Heavy Duty Tapered | 403-21-45 | | |
| Contact Tip .052” 1.4mm Heavy Duty Tapered | 403-21-52 | | |
| Contact Tip 1/16” 1.6mm Heavy Duty Tapered | 403-21-116 | | |
| Contact Tip 5/64” 2.0mm Heavy Duty Tapered | 403-21-564 | | |
| Contact Tip 3/32” 2.4mm Heavy Duty Tapered | 403-21-332 | | |
C | Gas Diffuser | 404-20 | | |
| Gas Diffuser Dual Taper | 404-26 | | |
| Gas Diffuser | 404-30 | | |
| Gas Diffuser Dual Taper | 404-32 | | |
D | Neck Insulator | 402-11 | | |
E | Liner for 1/16″-5/64″ (1.6-2.0mm) 10FT(3.0m) | 415-564-10 | | |
| Liner for 1/16″-5/64″ (1.6-2.0mm) 15FT(4.6m) | 415-564-15 | | |
| Liner for .078″-3/32″ (2.0-2.4mm) 15FT(4.6m) | 415-332-15 | | |
| Liner for .078″-3/32″ (2.0-2.4mm) 25FT(7.6m) | 415-332-25 | | |
| | | | |
| | | | |
No. | Description | Order | | |
1 | Swan Neck 45° | 505-45 | | |
| Swan Neck 60° | 505-60 | | |
2 | Torch Body Assembly | 407 | | |
3 | Handle | 410 | | |
4 | Switch | 411-1 | | |
5 | Switch The Trigger | 411-2X | | |
6 | End Fitting | 408 | | |
7 | Cone Nut | 509 | | |
8 | Cable Ball Joint & Support Spring Big | 400.1010B | | |
9 | Cable Assembly | | | |
10 | Euro Direct Plug Kit | 1199E | | |
10-1 | Rear Handle | 501.2248 | | |
10-2 | Adaptor nut | 4861 | | |
10-3 | Euro Central Connector | 5060 | | |
11 | Rear Handle American Brand | 2520047 | | |
12 | Control Wire (Tweco/Miller) | MAK-354 | | |
12-1 | Control Wire (Lincoln) | LAK-354 | | |
13 | Tweco Central Connector | 2200103 | | |
14 | Miller Central Connector | 2200101 | | |
15 | Lincoln Central Connector | 2200099 | | |
15-1 | Gas Tube | LKGAS | | |
