KEMPPI MMT/PMT52W Water Cooled MIG GUN and mig consumables

Share to:

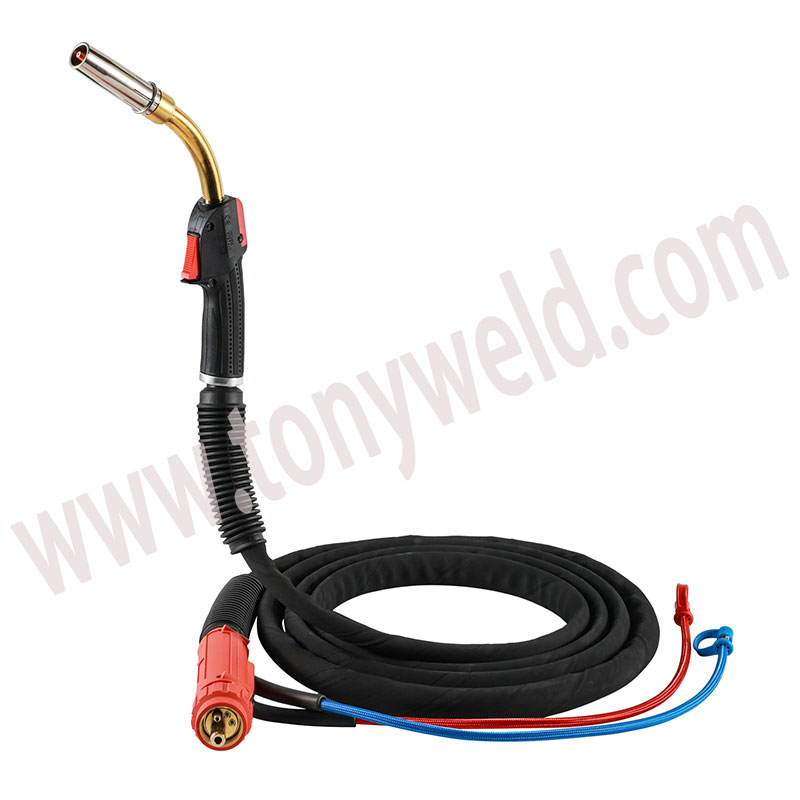

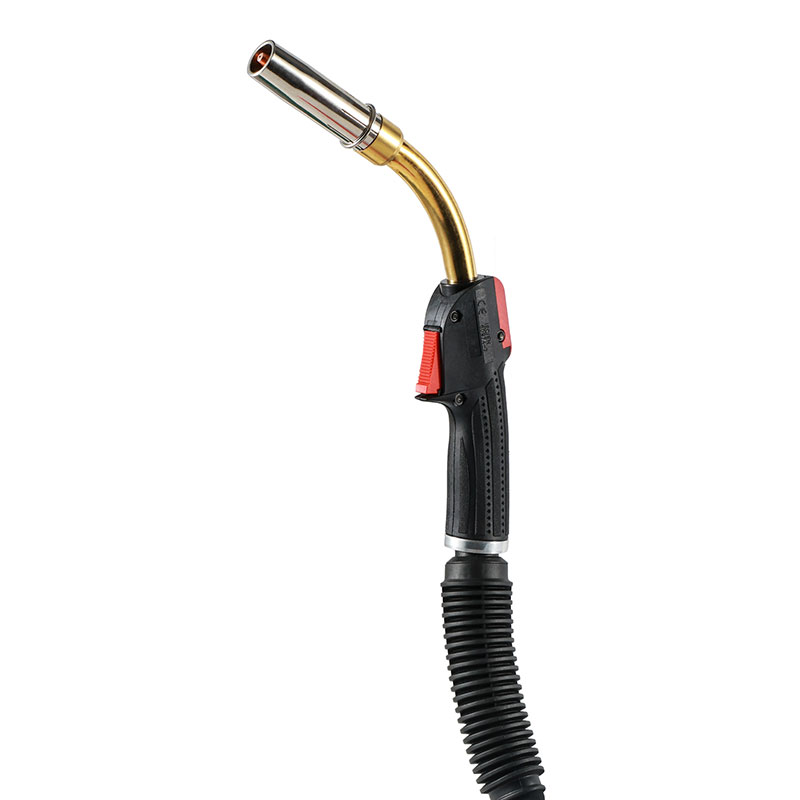

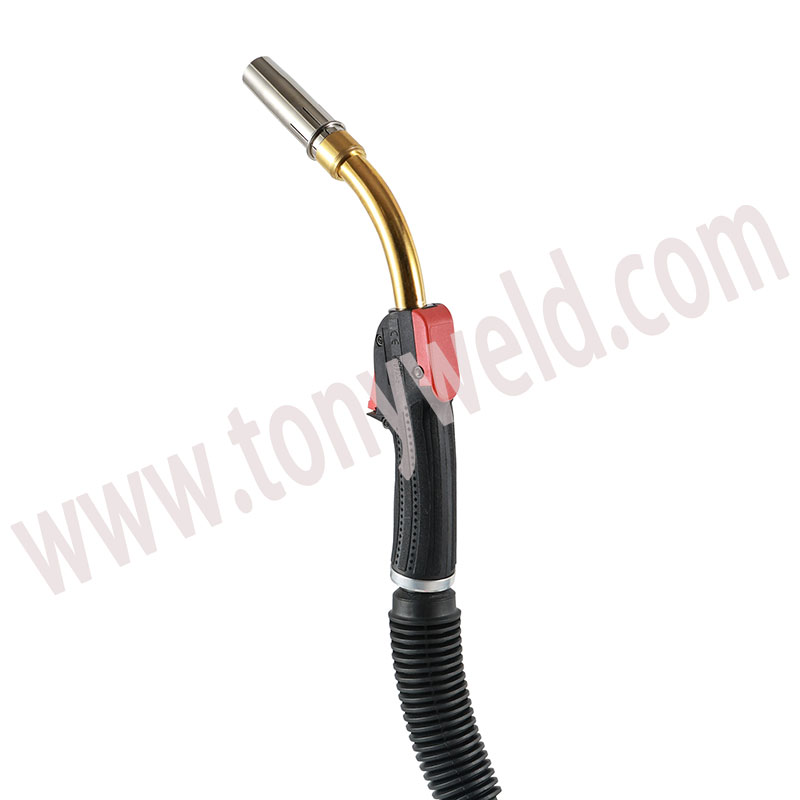

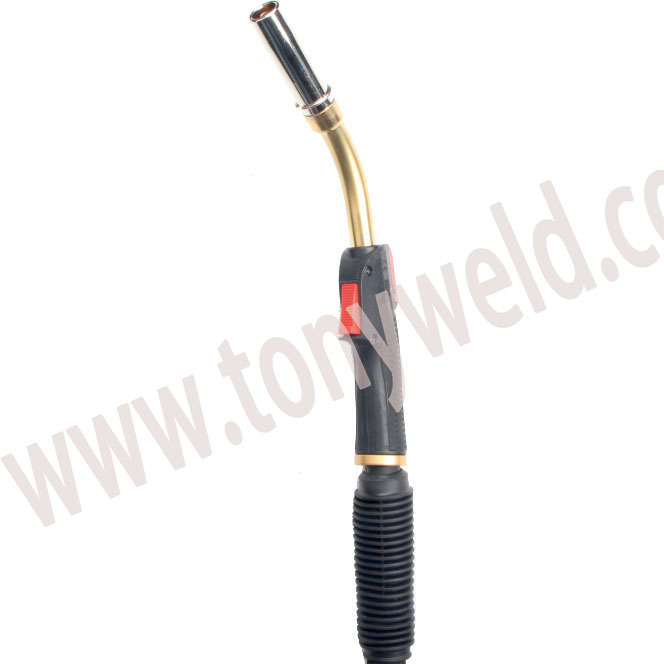

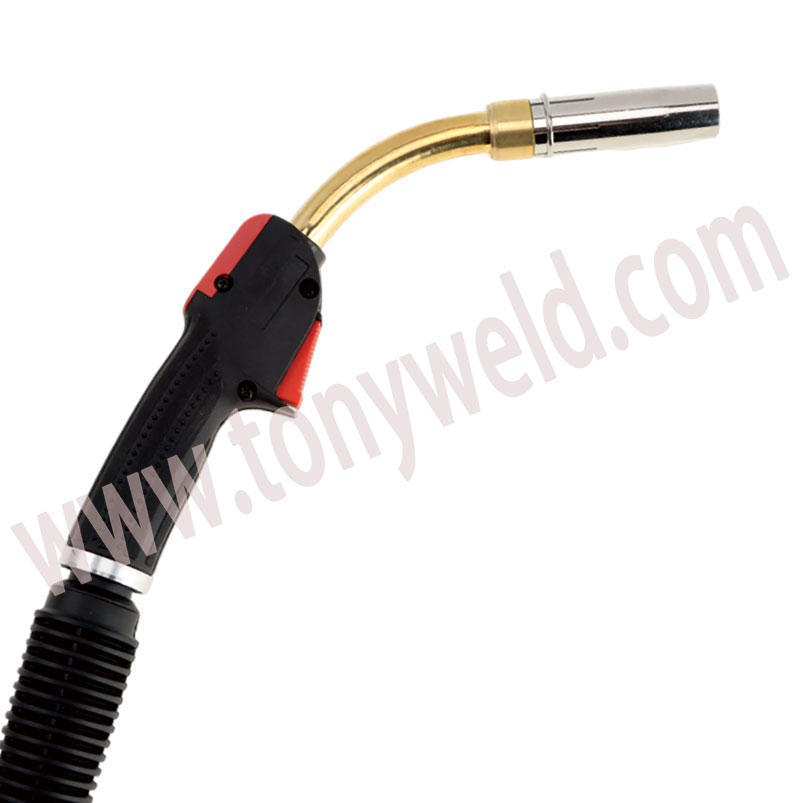

MMT/PMT52W Water Cooled MIG GUN

Technical Data：
Rating: 500A CO2
Duty Cycle: 100 %
Wire Size: 0.8-1.6mm

规格:	KEMPPI MMT/PMT52W WHOEL TORCH
Quantity:


Inquire Add to Basket

Model:
KEMPPI MMT/PMT52W Water Cooled MIG GUN
Brand:
Tonyweld
Code:
85159000
Product Name :
KEMPPI MMT/PMT52W Water Cooled MIG and mig consu
series :
KEMPPI MMT/PMT52W Water Cooled MIG GUN
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
500A CO2
Duty Cycle :
100%
connector :
euro / miller /bernard connector and etc
wire size :
0.8-1.6mm

Product Description

KEMPPI MMT/PMT52W Air Cooled MIG GUN and mig consumables

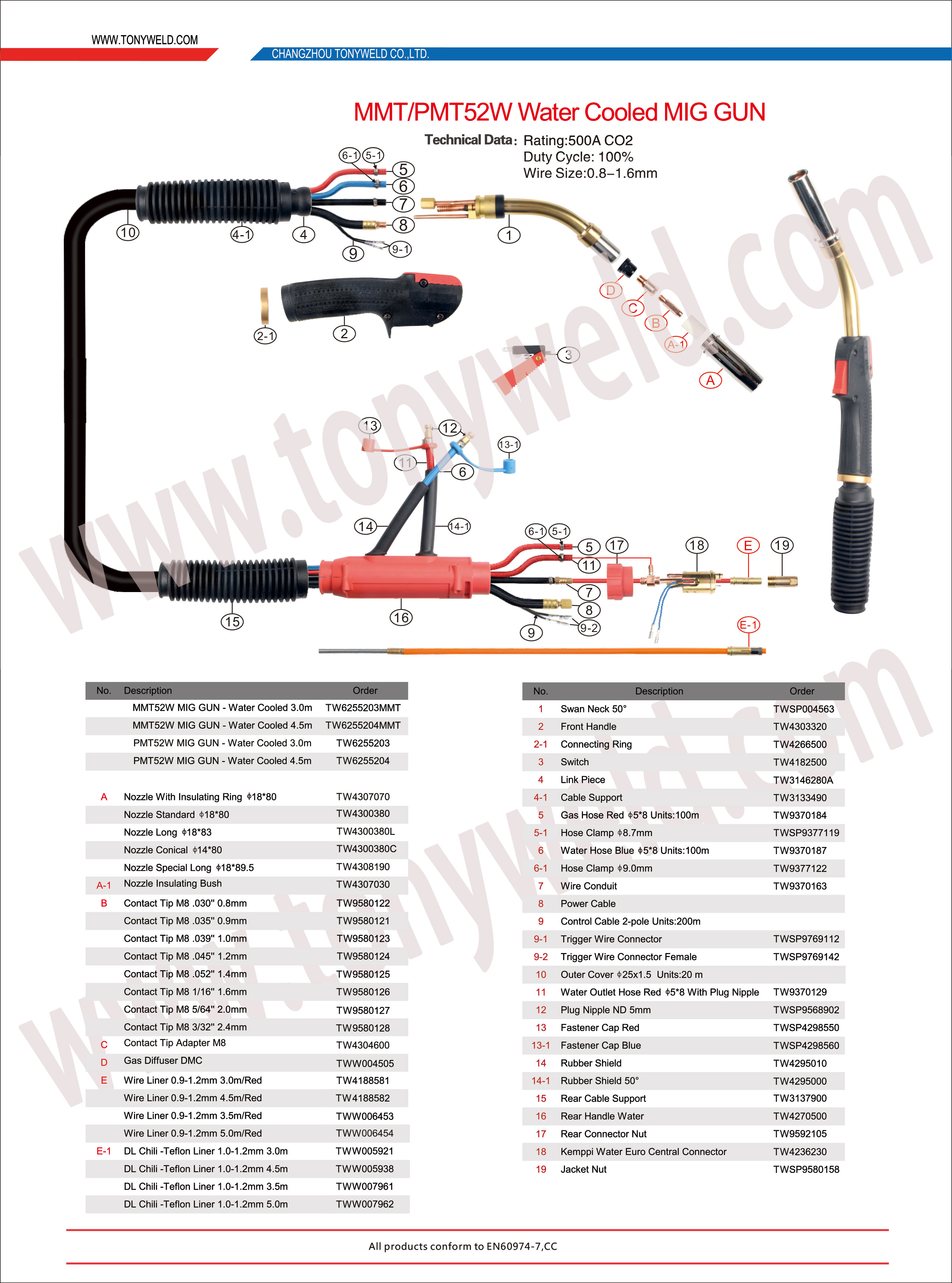

MMT/PMT52W Water Cooled MIG GUN
Technical Data：	Rating:500A CO2
	Duty Cycle:100%
	Wire Size:0.8-1.6mm

No.	Description	Order
	MMT52W MIG GUN – Water Cooled 3.0m	6255203MMT
	MMT52W MIG GUN – Water Cooled 4.5m	6255204MMT
	PMT52W MIG GUN – Water Cooled 3.0m	6255203
	PMT52W MIG GUN – Water Cooled 4.5m	6255204

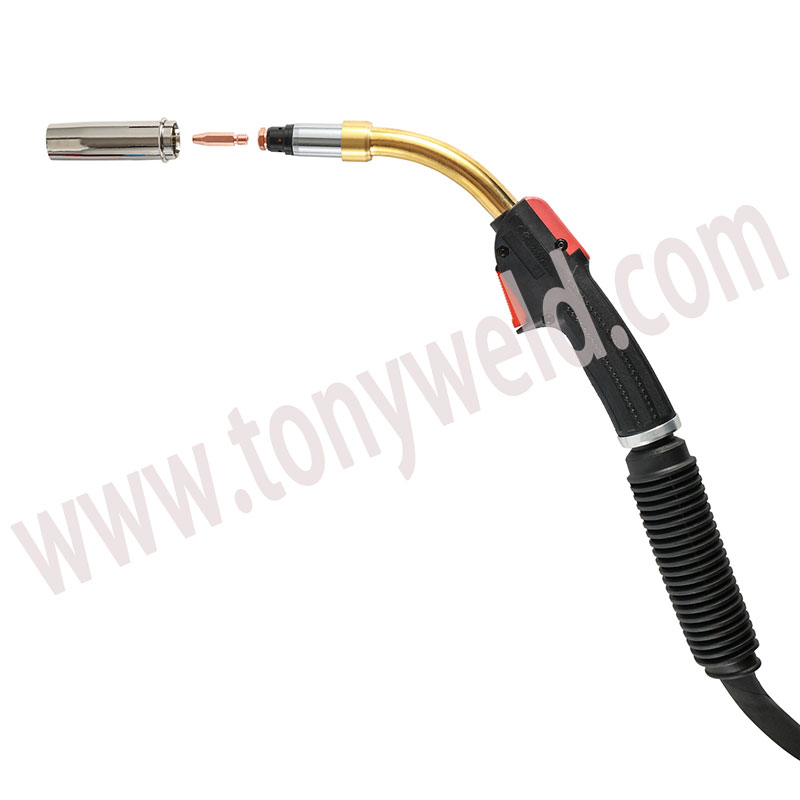

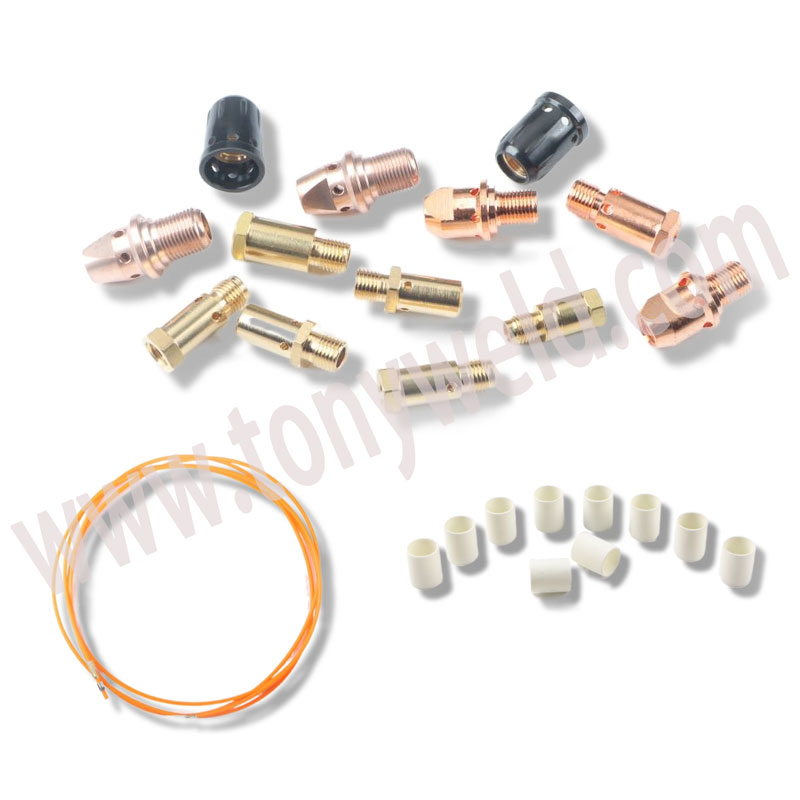

A	Nozzle With Insulating Ring φ18*80	4307070
	Nozzle Standard φ18*80	4300380
	Nozzle Long φ18*83	4300380L
	Nozzle Conical φ14*80	4300380C
	Nozzle Special Long φ18*89.5	4308190
A-1	Nozzle Insulating Bush	4307030
B	Contact Tip M8 .030” 0.8mm	9580122
	Contact Tip M8 .035” 0.9mm	9580121
	Contact Tip M8 .039” 1.0mm	9580123
	Contact Tip M8 .045” 1.2mm	9580124
	Contact Tip M8 .052” 1.4mm	9580125
	Contact Tip M8 1/16” 1.6mm	9580126
	Contact Tip M8 5/64” 2.0mm	9580127
	Contact Tip M8 3/32” 2.4mm	9580128
C	Contact Tip Adapter M8	4304600
D	Gas Diffuser DMC	W004505
E	Wire Liner 0.9-1.2mm 3.0m/Red	4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	W006453
	Wire Liner 0.9-1.2mm 5.0m/Red	W006454
E-1	DL Chili -Teflon Liner 1.0-1.2mm 3.0m	W005921
	DL Chili -Teflon Liner 1.0-1.2mm 4.5m	W005938
	DL Chili -Teflon Liner 1.0-1.2mm 3.5m	W007961
	DL Chili -Teflon Liner 1.0-1.2mm 5.0m	W007962

No.	Description	Order

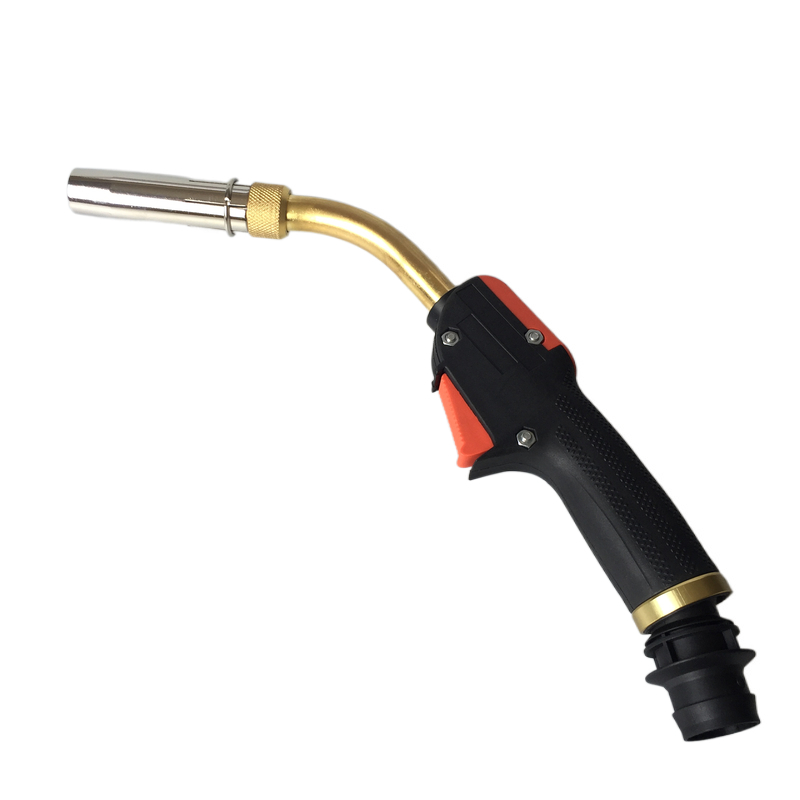

1	Swan Neck 50°	SP004563
2	Front Handle	4303320
2-1	Connecting Ring	4266500
3	Switch	4182500
4	Link Piece	3146280A
4-1	Cable Support	3133490
5	Gas Hose Red φ5*8 Units:100m	9370184
5-1	Hose Clamp φ8.7mm	SP9377119
6	Water Hose Blue φ5*8 Units:100m	9370187
6-1	Hose Clamp φ9.0mm	9377122
7	Wire Conduit	370163
8	Power Cable
9	Control Cable 2-pole Units:200m
9-1	Trigger Wire Connector	SP9769112
9-2	Trigger Wire Connector Female	SP9769142
10	Outer Cover φ25×1.5 Units:20 m
11	Water Outlet Hose Red φ5*8 With Plug Nipple ND 5mm L=0.6m	9370129
12	Plug Nipple ND 5mm	SP9568902
13	Fastener Cap Red	SP4298550
13-1	Fastener Cap Blue	SP4298560
14	Rubber Shield	4295010
14-1	Rubber Shield 50°	4295000
15	Rear Cable Support	3137900
16	Rear Handle Water	4270500
17	Rear Connector Nut	9592105
18	Kemppi Water Euro Central Connector	4236230
19	Jacket Nut	SP9580158

\

Bnd mig welding consumables

Bernard 600A CO2 mig welding torch package

* 1 piece Bernard CO2 mig torch 600A package in a carton
