K10429 LGS 505W MIG GUN

Share to:

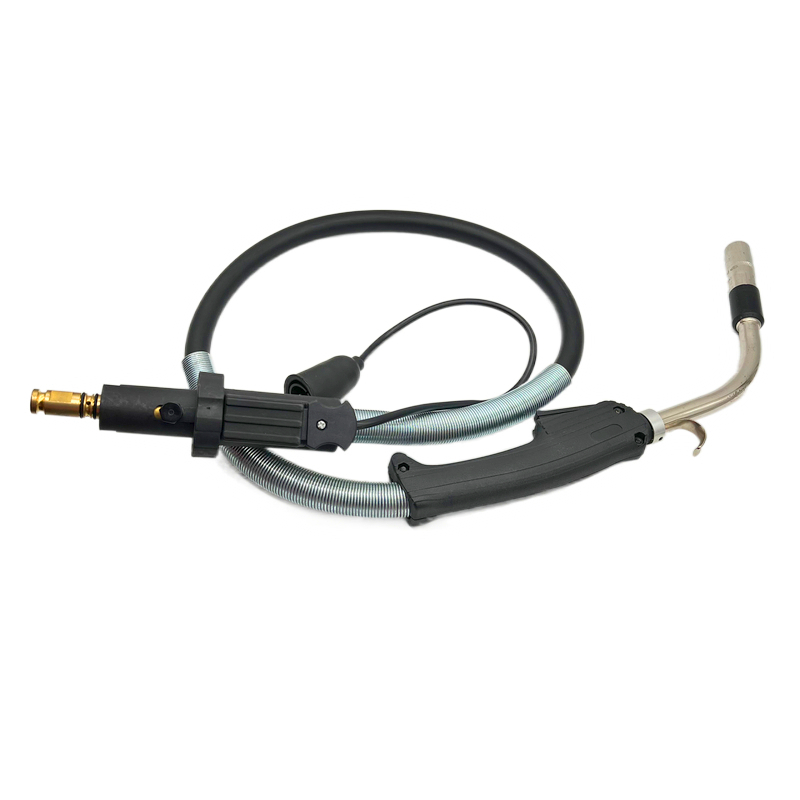

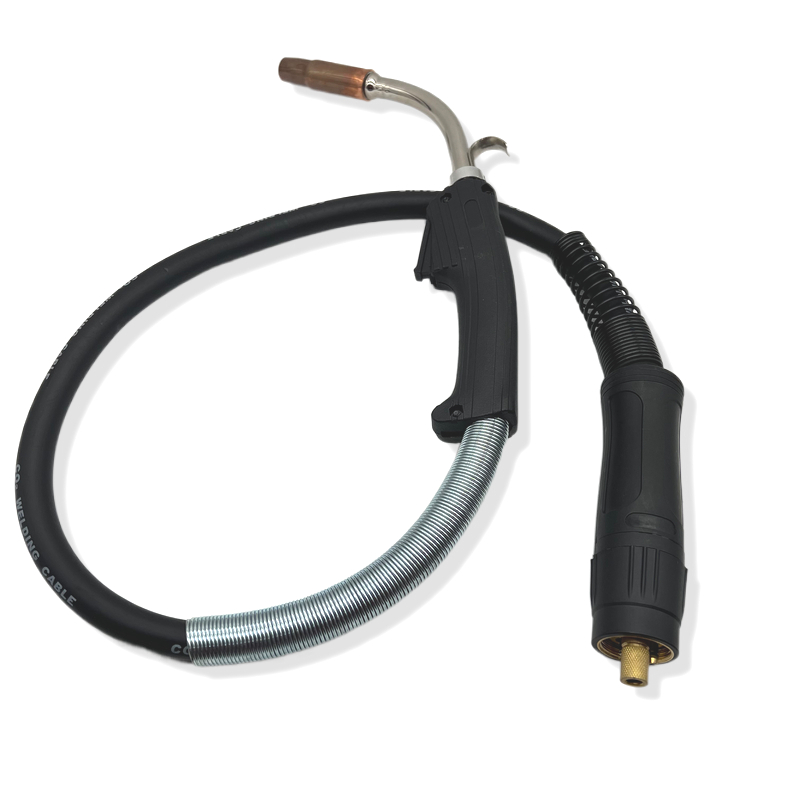

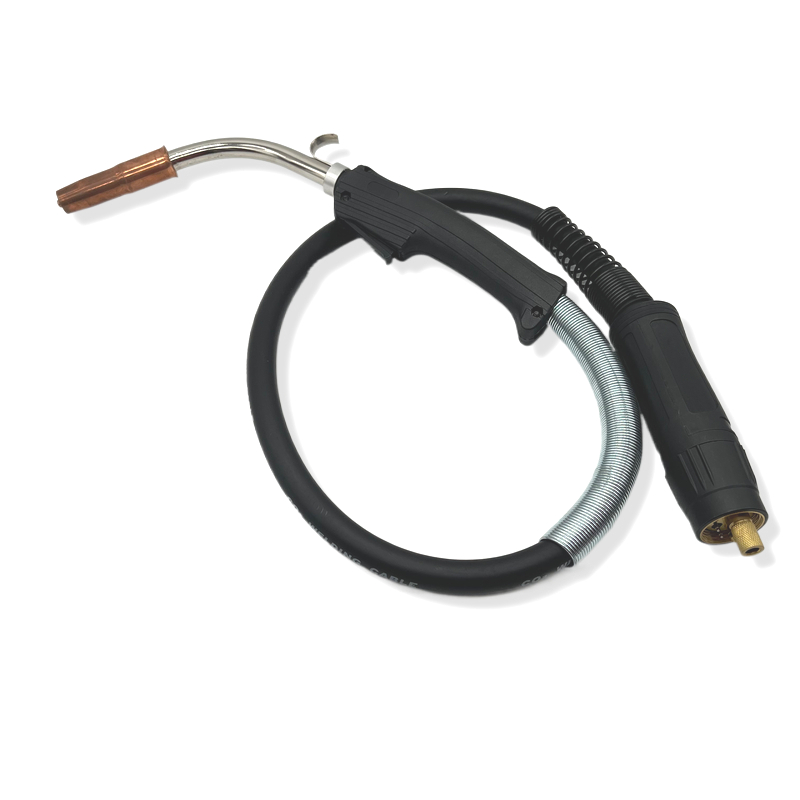

K10429 LGS 505W MIG GUN
Rating :505A CO2
Duty Cycle : 100%
Wire Size: .0.6-1.2 MM

规格:	K10429 LGS 505W MIG GUN
Quantity:



Inquire Add to Basket

Model:
K10429
Brand:
Tonyweld
Code:
K10429
Product Name :
K10429 LGS 505W MIG GUN
series :
Mig Welding torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
connector :
euro / mille /bnd connector and etc
Wire Size:
.0.6-1.2 MM

Product Description

LG K10429 LGS 505W MIG GUN MIG GUN mig welding torch and consumables

LG K10429 LGS 505W MIG GUN

Technical Data：

Rating: 505A CO2

Duty Cycle: 100%

Wire Size: .0.6 - 1.2 MM

K126-10	K126 PRO Innershield 350A FCAW-SS Welding Gun 10ft (3.0m)
K126-11	K126 PRO Innershield 350A FCAW-SS Welding Gun 15ft (4.5m)
K126-12	K126 PRO Innershield 350A FCAW-SS Welding Gun 15ft (4.5m)
K126-13	K126 PRO Innershield 350A FCAW-SS Welding Gun 15ft (4.5m)
9SM10102-2	Handle
9SS9776-7	Snap Ring
9SS15921-1	Clamp
9ST12027	Spatter Shield
9SCF000148	8-32X.25 PHS
9ST14438	Clamping Screw
KP2745-035	KP2745-035 Contact Tip .035'' 0.9mm
KP2745-040	KP2745-040 Contact Tip .040'' 1.0mm
KP2745-045	KP2745-045 Contact Tip .045'' 1.2mm
KP2745-052	KP2745-052 Contact Tip .052'' 1.4mm
KP2745-116	KP2745-116 Contact Tip 1/16'' 1.6mm
KP2745-564	KP2745-564 Contact Tip 5/64" 2.0 mm
KP2745-332	KP2745-332 Contact Tip 3/32'' 2.4mm
KP2745-764	KP2745-764 Contact Tip 7/64'' 2.8mm
KP2745-18	KP2745-18 Contact Tip 1/8'' 3.2mm

KP2906-62R	Gun Tube 62º Reverse Bend, 6 in. (152 mm)
KP2906-30R	Gun Tube 30° Reverse Bend, 6 in. (152 mm)
KP2906-30R-L	Gun Tube 30º Reverse Bend, 12 in. (305 mm)
KP3267-1	Gun Tube 30º Reverse Bend, 12 in. (305 mm)
9SM22370	Gun Control Assembly, Includes:
9SL10706	Switch Housing
9SCF000138	H3-48X.875 RHS
9SE106A-17	LockWasher
9SS11604-22	Set Screw
9SS23982	Trigger Assembly
9ST12025	Trigger Coil Spring
9SS28279	Trigger Switch Assembly
9ST9967-52	Roll Pin
9SS14878	Switch Insulation
9SS15922-1	Clamp
9SS13037	Heat Shield Assembly
K613-1	Gun Connector Kit Assembly, Includes:
K466-8	Gun Connector Kit Assembly, Includes:
K613-6	Gun Connector Kit Assembly, Includes:
9SS18645-1	Connector Assembly
9SS18653	Connector Assembly
9SS18645-3	Connector Assembly
9ST7028-234	Insulation Tube
9SM15608	Gun Control Assembly
9SCF000119	#8-32x1.50 RHS
9ST9695-3	LockWasher
9SCF000042	#8-32 HN
KP2908-1	Tip Holder
KP2907-1	Insulator
9SM15607	Tail Piece
9SS18690	Nut [Cable Handle]
9SL7723	Connector Cover
9SS18695	Molded Gas Plug
KP45H-332-15	Cable Liner [Not Shown]
KP44-564-15	Cable Liner [Not Shown]

LG K10429 LGS 505W MIG GUN mig welding torch package

* 1 piece LG K10429 LGS 505W MIG GUN package in a carton
