Bnd Q50 CO2 mig welding torch and consumables

Share to:

BND BTB Q50 AIR COOLED MIG GUN
Technical Data：
Rating: 500A CO2/450A Mixed Gases
Duty Cycle: 60%
Wire Size: .035”-3/32”(0.9-2.4mm)

规格:	BND Q50 WHOLE TORCH
Quantity:



Inquire Add to Basket

Model:
Bnd Q50
Brand:
Tonyweld
Code:
85159000
Product Name :
Bnd Q50 CO2 mig welding torch and consumables4
series :
bnd torch
package :
1piece a plastic box
length :
3M or 4M or 5M or according to customer request
Place of Origin :
Jiangsu, China (Mainland)
Rating :
Q50 CO2 450A mixed gases
Duty Cycle :
60%
connector :
euro / mille /bnd connector and etc
wire size :
0.9-2.4mm

Product Description

Bnd Q50 CO2 mig welding torch and consumables

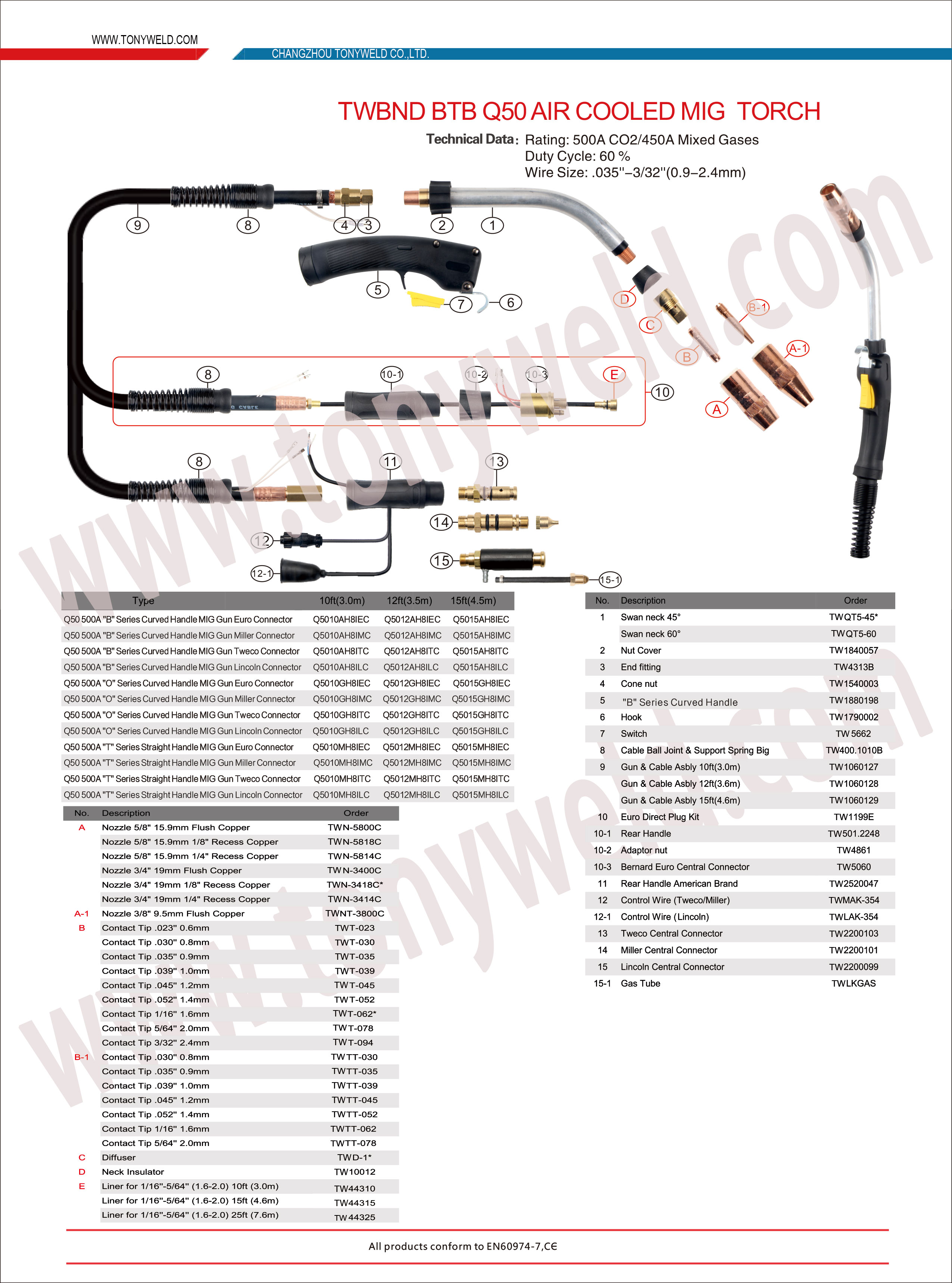

BND BTB Q50 AIR COOLED MIG WELDING TORCH
Technical Data：	Rating: 500A CO2/450A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .035”-3/32”(0.9-2.4mm)

	Type	10ft(3.0m)
	Q500 MIG Gun Euro Connector	Q5010AI8IE
	Q500 MIG Gun Miller Connector	Q5010AI8IM
	Q500 MIG Gun Tweco Connector	Q5010AI8IT
	Q500 MIG Gun Lincoln Connector	Q5010AI8IL

No.	Description	Order
A	Nozzle 5/8″ 15.9mm Flush Copper	N-5800C
	Nozzle 5/8″ 15.9mm 1/8″ Recess Copper	N-5818C
	Nozzle 5/8″ 15.9mm 1/4″ Recess Copper	N-5814C
	Nozzle 3/4″ 19mm Flush Copper	N-3400C
	Nozzle 3/4″ 19mm 1/8″ Recess Copper	N-3418C
	Nozzle 3/4″ 19mm 1/4″ Recess Copper	N-3414C
A-1	Nozzle 3/8″ 9.5mm Flush Copper	NT-3800C
B	Contact Tip .023” 0.6mm	T-023
	Contact Tip .030” 0.8mm	T-030
	Contact Tip .035” 0.9mm	T-035
	Contact Tip .039” 1.0mm	T-039
	Contact Tip .045” 1.2mm	T-045
	Contact Tip .052” 1.4mm	T-052
	Contact Tip 1/16” 1.6mm	T-062
	Contact Tip 5/64” 2.0mm	T-078
	Contact Tip 3/32” 2.4mm	T-094
B-1	Contact Tip .030” 0.8mm	TT-030
	Contact Tip .035” 0.9mm	TT-035
	Contact Tip .039” 1.0mm	TT-039
	Contact Tip .045” 1.2mm	TT-045
	Contact Tip .052” 1.4mm	TT-052
	Contact Tip 1/16” 1.6mm	TT-062
	Contact Tip 5/64” 2.0mm	TT-078
C	Diffuser	D-1
D	Neck Insulator	10012
E	Liner for 1/16”-5/64” (1.6-2.0) 10ft (3.0m)	44310
	Liner for 1/16”-5/64” (1.6-2.0) 15ft (4.6m)	44315
	Liner for 1/16”-5/64” (1.6-2.0) 25ft (7.6m)	44325

No.	Description	Order
1	Swan neck 45°	QT5-45
	Swan neck 60°	QT5-60
2	Nut Cover	1840057
3	End fitting	4313B
4	Cone nut	1540003
5	Front Handle	1880198
6	Hook	1790002
7	Switch	5662
8	Cable Ball Joint & Support Spring Big	400.1010B
9	Gun & Cable Asbly 10ft(3.0m)	1060127
	Gun & Cable Asbly 12ft(3.6m)	1060128
	Gun & Cable Asbly 15ft(4.6m)	1060129
10	Euro Direct Plug Kit	1199E
10-1	Rear Handle	501.2248
10-2	Adaptor nut	4861
10-3	Bernard Euro Central Connector	5060
11	Rear Handle American Brand	2520047
12	Control Wire (Tweco/Miller)	MAK-354
12-1	Control Wire (TLincoln)	LAK-354
13	Tweco Central Connector	2200103
14	Miller Central Connector	2200101
15	Lincoln Central Connector	2200099
15-1	Gas Tube	LKGAS

Bnd 200A CO2 mig welding torch package

* 1 piece Bnd mig torch 200A package in a carton
